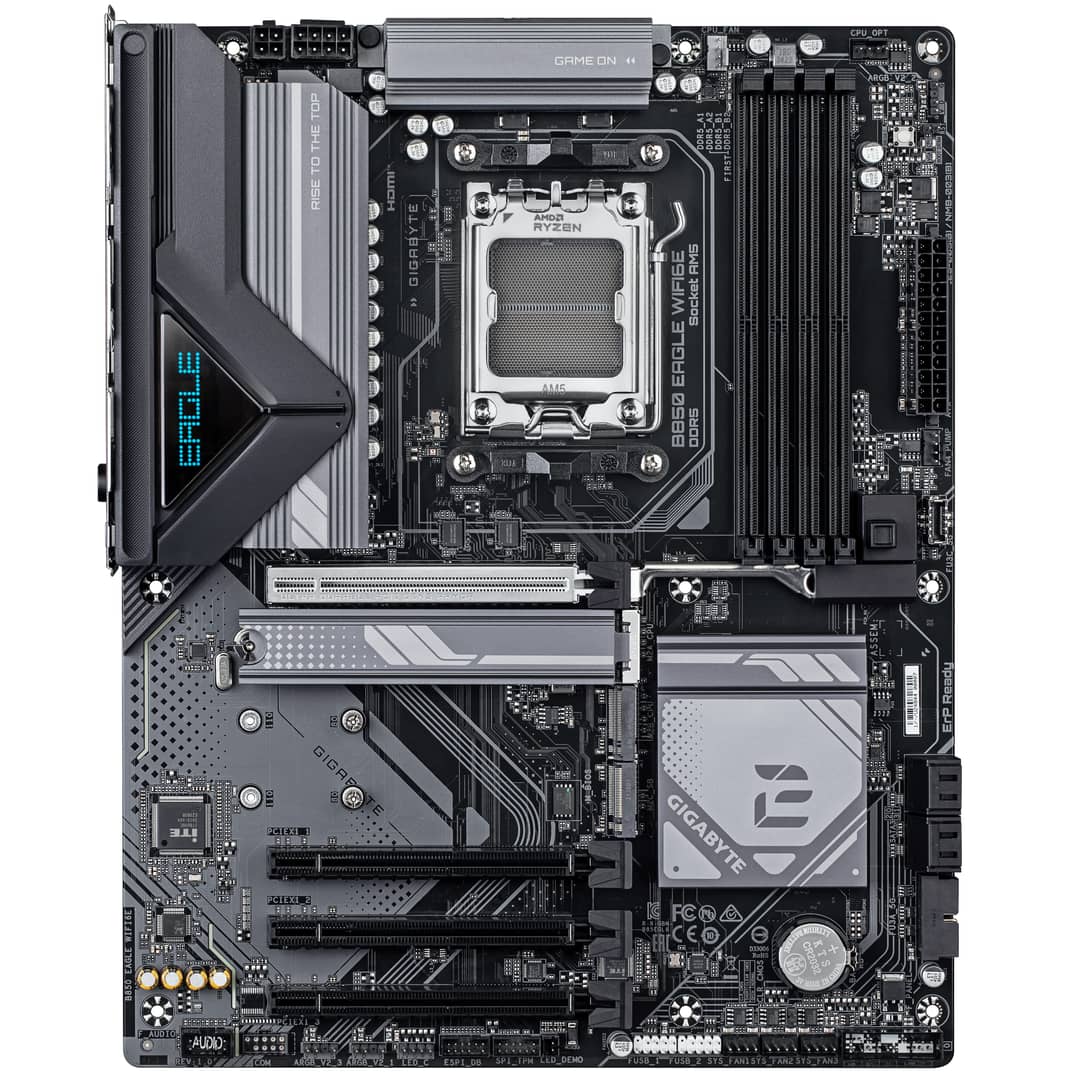

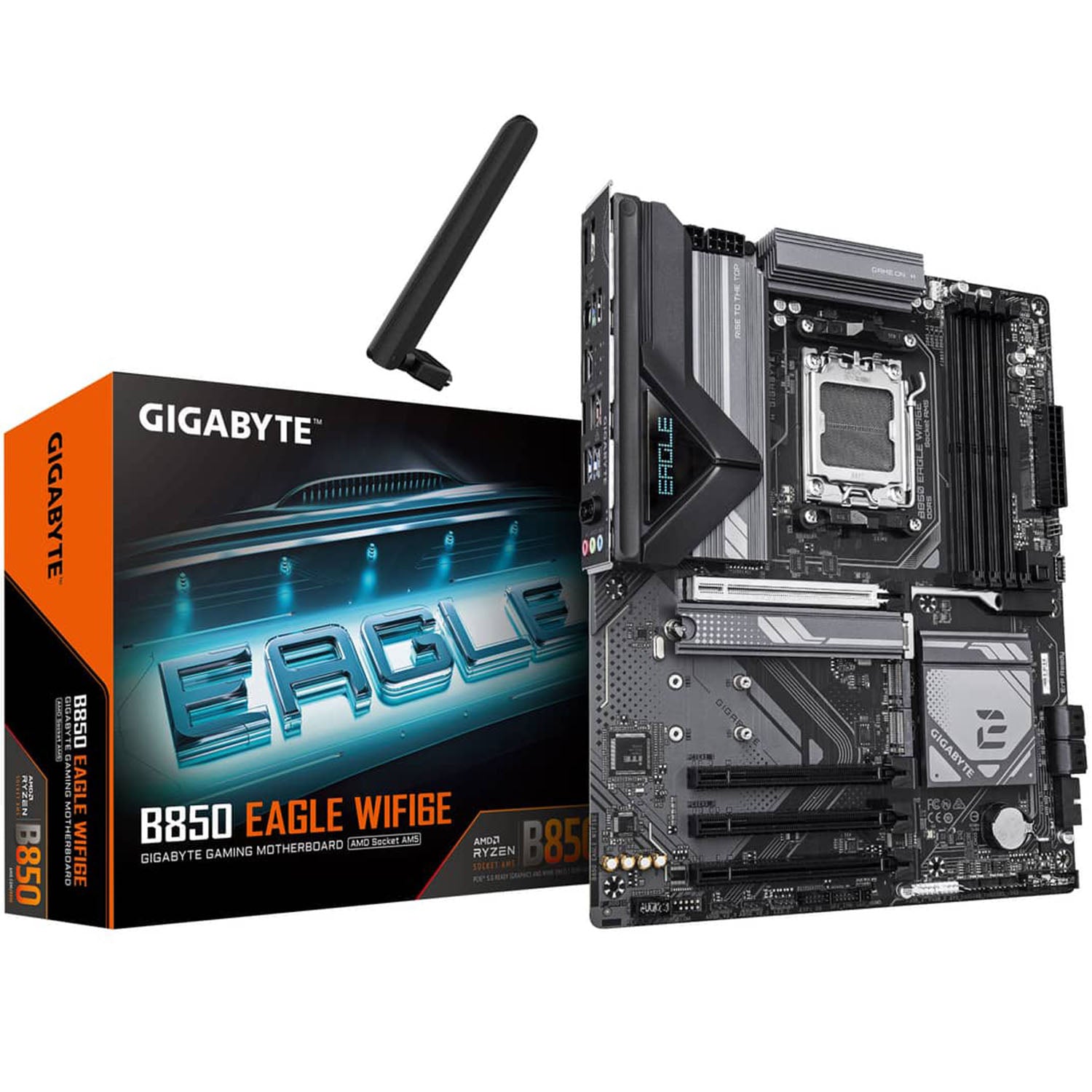

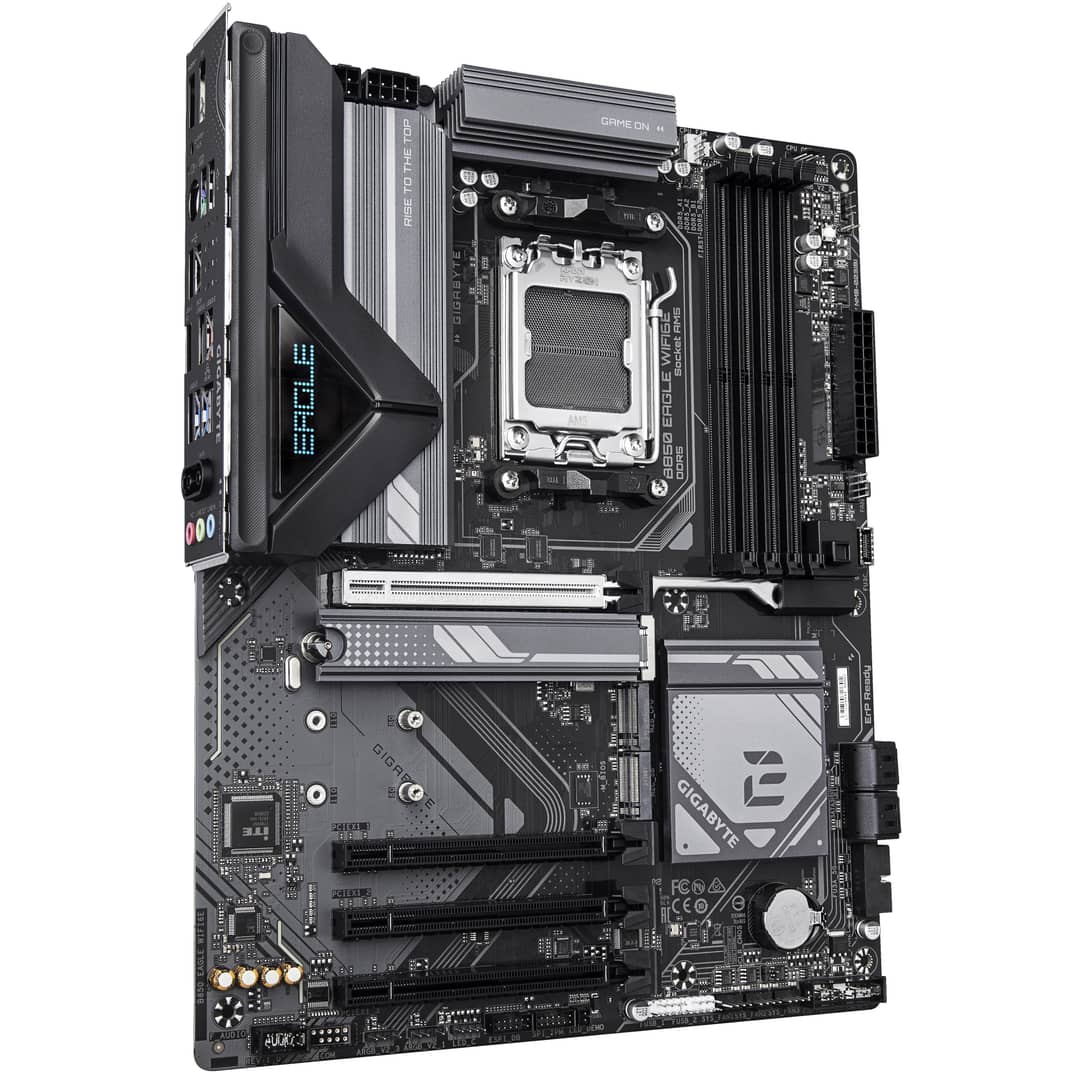

GIGABYTE B850 EAGLE WIFI6E – AM5 ATX Motherboard, DDR5, PCIe 5.0, Wi‑Fi 6E

GIGABYTE AM5 B850 EAGLE WIFI6E DDR5

Build a reliable and modern AM5 system with the GIGABYTE B850 EAGLE WIFI6E, a feature‑rich ATX motherboard designed for Ryzen 7000 / 8000 / 9000 Series processors. Powered by the AMD B850 chipset, it delivers next‑generation performance with DDR5 up to 7600MT/s (O.C), PCIe Gen5 GPU support, triple M.2 slots, Wi‑Fi 6E, 2.5GbE LAN, and robust VRM cooling. GIGABYTE technologies such as EZ‑Latch Plus, Smart Fan 6, Q‑Flash Plus, and fully covered heatsinks ensure easy installation, excellent stability, and long‑term durability — ideal for gaming, productivity, and everyday AM5 builds.

Specifications

Type: ATX Motherboard
Brand: GIGABYTE
Model: B850 EAGLE WIFI6E
Chipset: AMD B850
CPU Socket: AM5
Supported CPUs: AMD Ryzen 7000 / 8000 / 9000 Series

Memory
RAM Technology: DDR5
RAM Slots: 4 × DIMM
Max Memory: 192GB
Max Memory Speed (OC): Up to DDR5 7600MT/s
Profiles: AMD EXPO, Intel XMP

PCIe Slots
1 × PCIe 5.0 x16
1 × PCIe 4.0 x16 (x4 mode)
1 × PCIe 3.0 x16 (x2 mode)
M.2 Slots
1 × PCIe 5.0 x4 (EZ‑Latch Plus)
2 × PCIe 4.0 x4
SATA Ports: 4 × SATA 6Gb/s

Networking
LAN: Realtek 2.5GbE LAN
Wireless: Wi‑Fi 6E
Bluetooth: 5.3

Audio
Codec: Realtek HD Audio
Channels: 7.1‑Channel HD Audio

Video Outputs
(Requires Ryzen CPU with integrated graphics)
1 × HDMI
1 × DisplayPort

Special Features
8+2+1 Phase VRM
EZ‑Latch Plus (PCIe & M.2)
Fully covered MOSFET heatsinks
Smart Fan 6
Q‑Flash Plus
RGB & ARGB headers
PCIe 5.0 GPU support
Triple M.2 with heatsinks

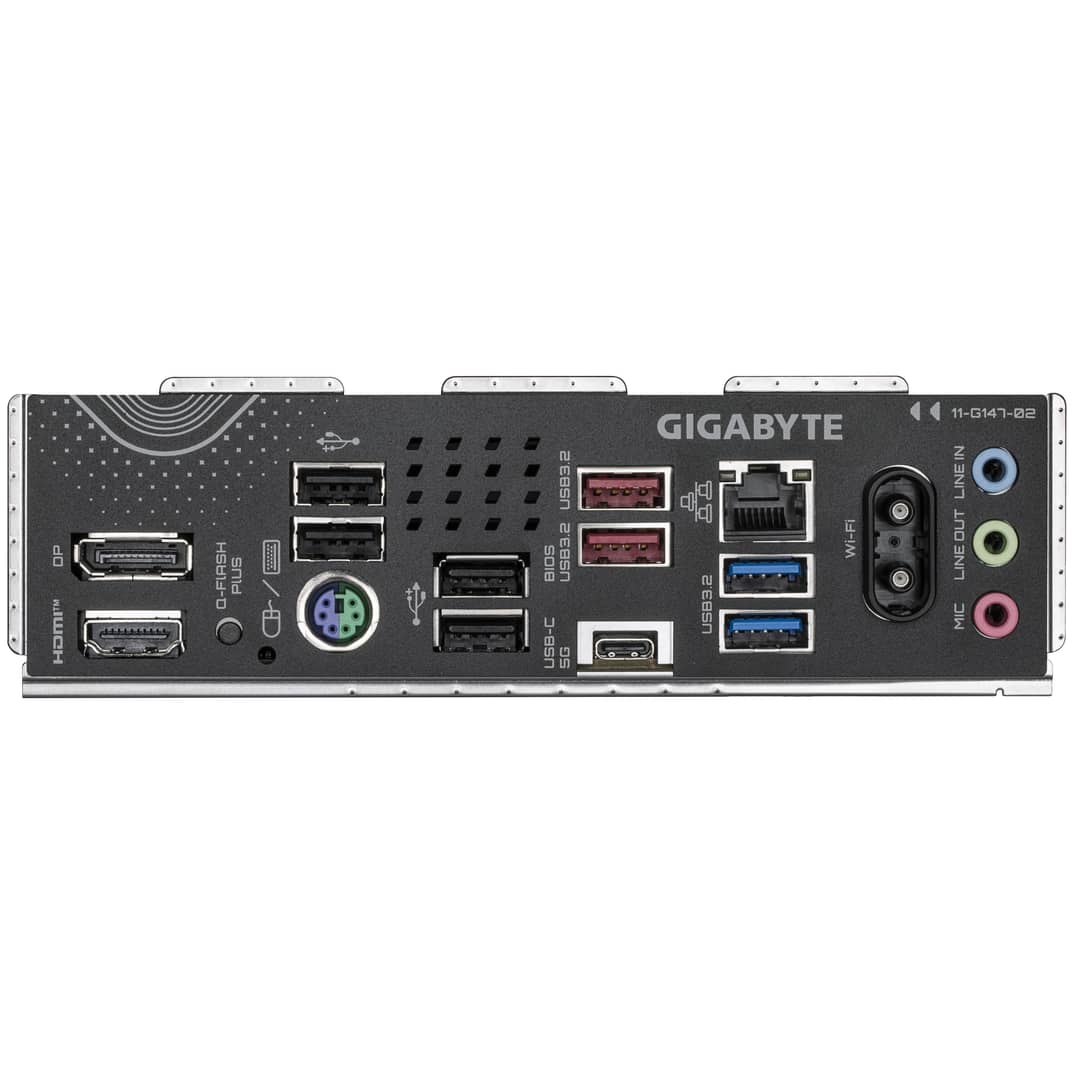

USB Connectivity Rear I/O
1 × USB‑C 10Gbps
1 × USB‑A 10Gbps
4 × USB‑A 5Gbps
4 × USB 2.0
HDMI
DisplayPort
2.5GbE LAN

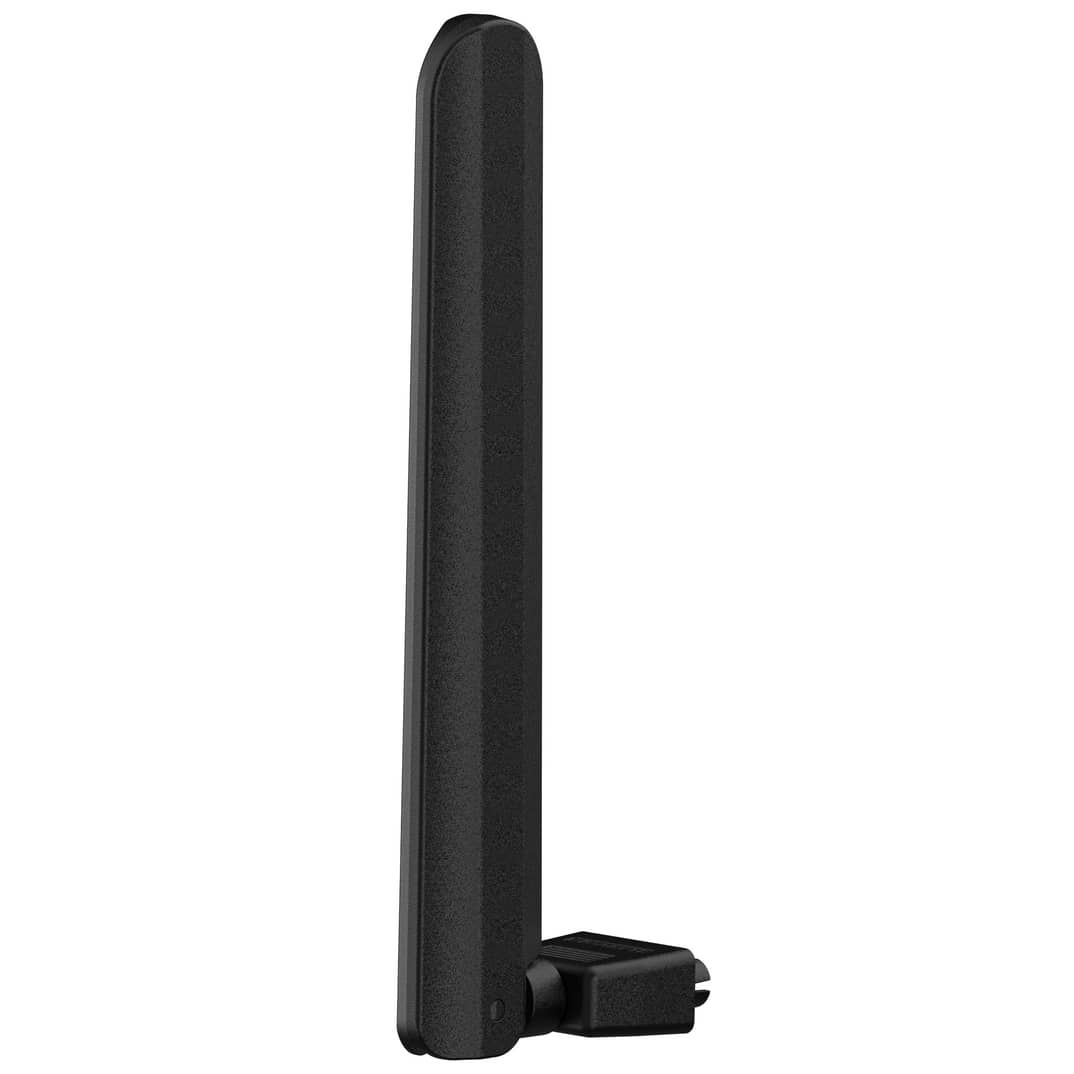

Wi‑Fi antenna connectors
Audio jacks

Internal Headers
24‑pin ATX
1 × 8‑pin + 1 × 4‑pin CPU power
1 × USB‑C 10Gbps
1 × USB 3.2 Gen1
2 × USB 2.0
1 × RGB
2 × ARGB
Front panel audio
TPM header
Multiple fan headers

Form Factor: ATX
