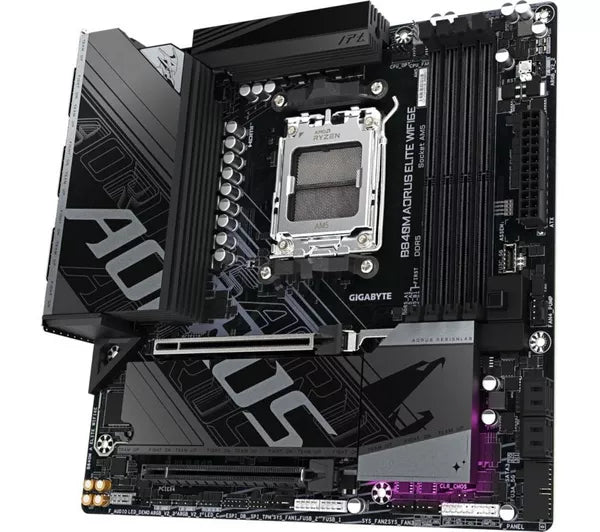

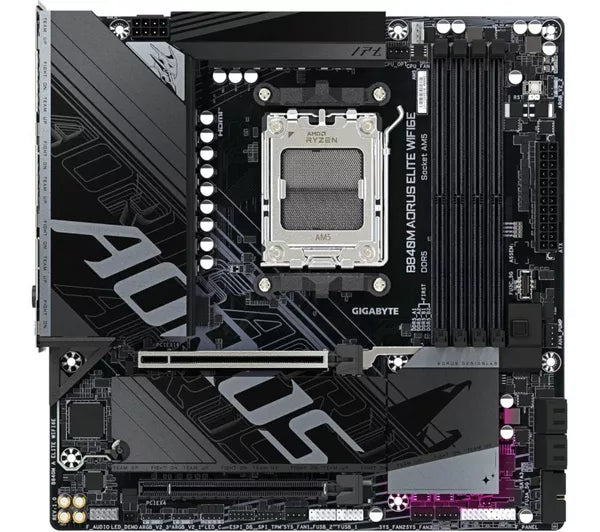

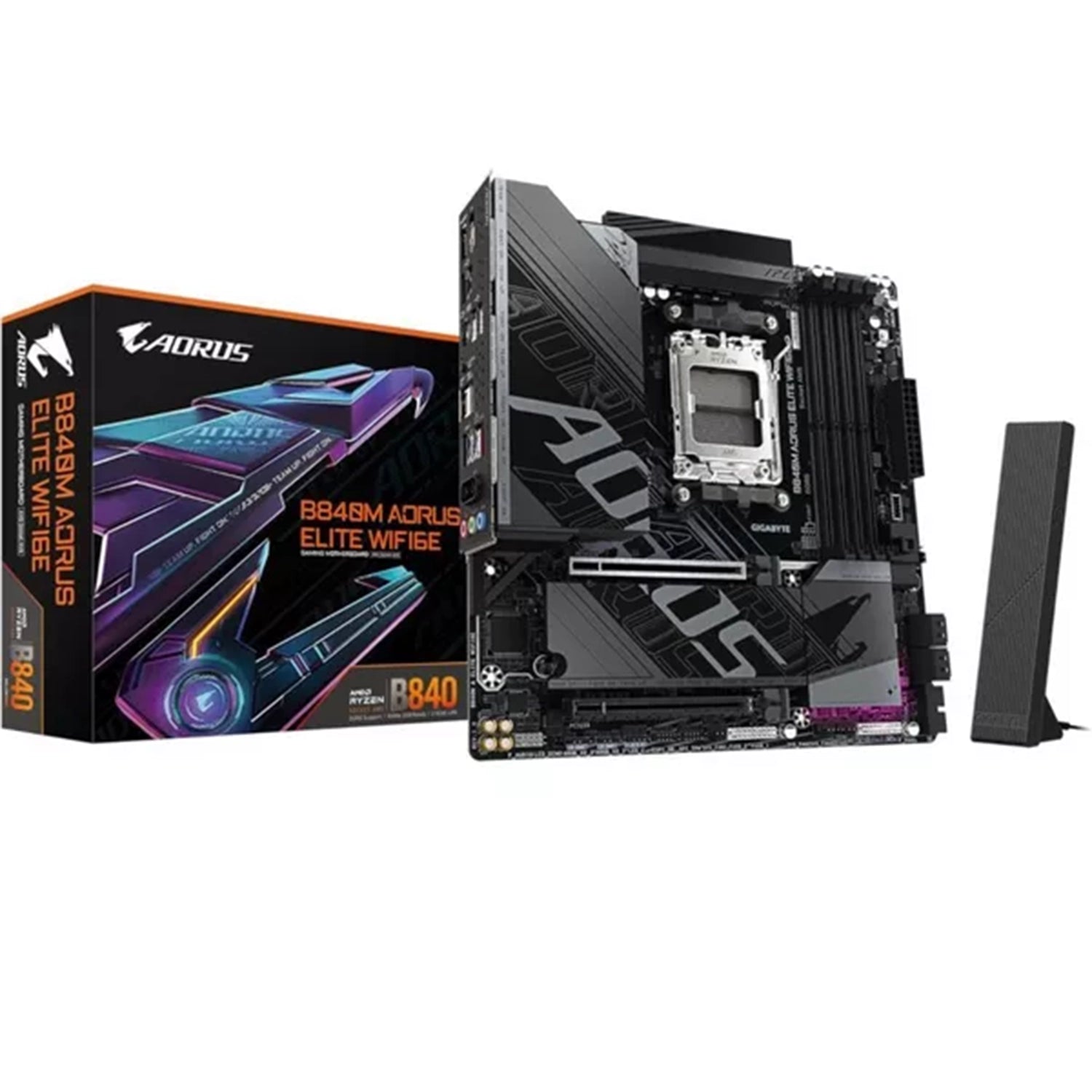

GIGABYTE B840M AORUS ELITE WIFI6E – AM5 Micro ATX Motherboard, DDR5, Wi‑Fi 6E
GIGABYTE AM5 B840M AORUS ELITE WIFI6 DDR5
Build a compact and reliable AM5 system with the GIGABYTE B840M AORUS ELITE WIFI6E, a feature‑rich Micro ATX motherboard designed for Ryzen 7000 / 8000 / 9000 Series processors. Powered by the AMD B840 chipset, it delivers strong next‑generation performance with DDR5 up to 8200MT/s (O.C), PCIe Gen4 GPU support, dual PCIe 4.0 M.2 slots, Wi‑Fi 6E, 2.5GbE LAN, and robust VRM cooling. GIGABYTE technologies such as EZ‑Latch Plus, EZ‑Latch Click, VRM Thermal Armor, Smart Fan, and Q‑Flash Plus ensure easy installation, excellent stability, and long‑term durability — ideal for compact AM5 gaming and productivity builds.
Specifications
Type: Micro ATX Motherboard
Brand: GIGABYTE
Model: B840M AORUS ELITE WIFI6E
Chipset: AMD B840
CPU Socket: AM5
Supported CPUs: AMD Ryzen 7000 / 8000 / 9000 Series
Memory
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 × 288‑pin
RAM Speed Support: Up to DDR5 8200 (O.C)
Max Memory: 256GB
PCIe Slots: 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x16
M.2 Slots: 2 × PCIe Gen4 x4
SATA Ports: 4 × SATA 6Gb/s
RAID Support: RAID 0 / 1 / 5 / 10
Networking
LAN: Realtek 2.5GbE LAN
Wireless: Wi‑Fi 6E (2.4 / 5 / 6 GHz)
Bluetooth: 5.3
Audio
Codec: Realtek HD Audio
Channels: 2 / 4 / 5.1 / 7.1‑Channel HD Audio
Video Outputs
(Requires Ryzen CPU with integrated graphics)
1 × HDMI
1 × DisplayPort
Special Features
X3D Turbo Mode
Digital Twin 10+2+2 Phase VRM
EZ‑Latch Plus (PCIe & M.2 quick‑release)
EZ‑Latch Click (screwless M.2 heatsinks)
VRM Thermal Armor Advanced
M.2 Thermal Guard Ext
Smart Fan
Wi‑Fi EZ‑Plug
Q‑Flash Plus
PCIe UD Slot reinforcement
Ultra‑Fast Storage (dual PCIe 4.0 M.2)

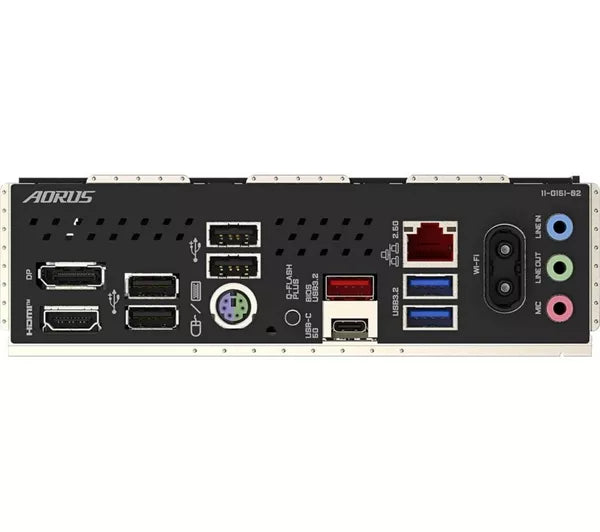

USB Connectivity Rear I/O
4 × USB 2.
2 × USB 3.2 Gen1 Type‑A
1 × USB 3.2 Gen2 Type‑A
HDMI
DisplayPort
2.5GbE LAN

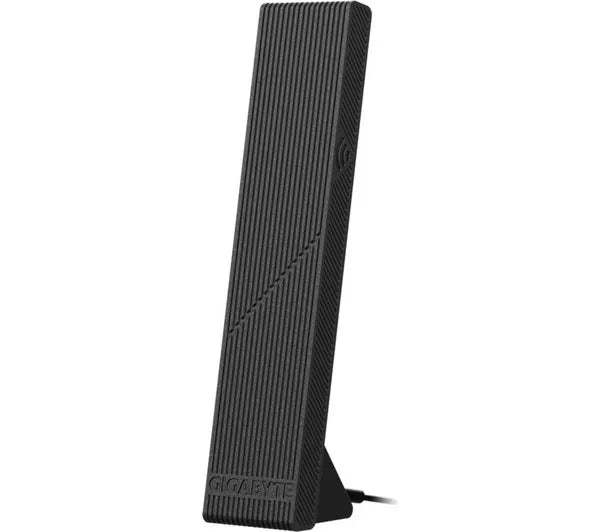

Wi‑Fi antenna connectors
3 × audio jacks
Q‑Flash Plus button
Internal Headers
24‑pin ATX
1 × 8‑pin CPU power
2 × USB 2.0 headers
2 × USB 3.2 Gen1 headers
Front panel audio
TPM header
3 × ARGB Gen2 headers
1 × RGB header
Reset button
Multiple fan headers
Form Factor: Micro ATX (244 × 244 mm)
