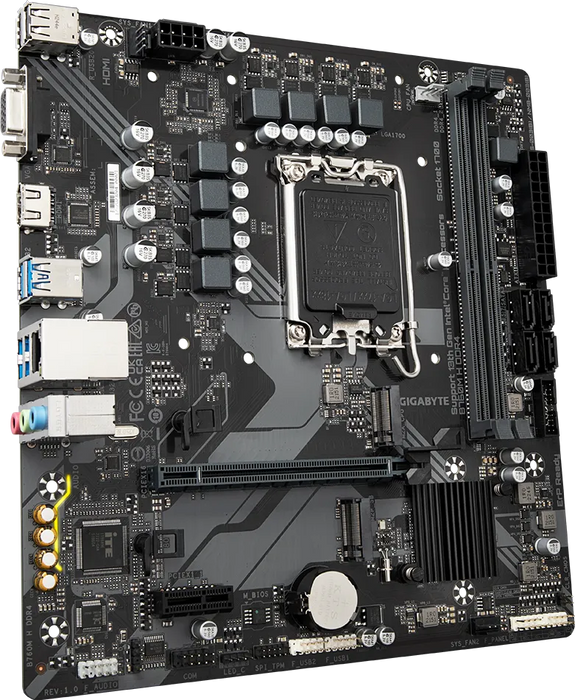

Gigabyte B760M H DDR4 Micro‑ATX LGA1700 Motherboard – PCIe 4.0, Dual M.2

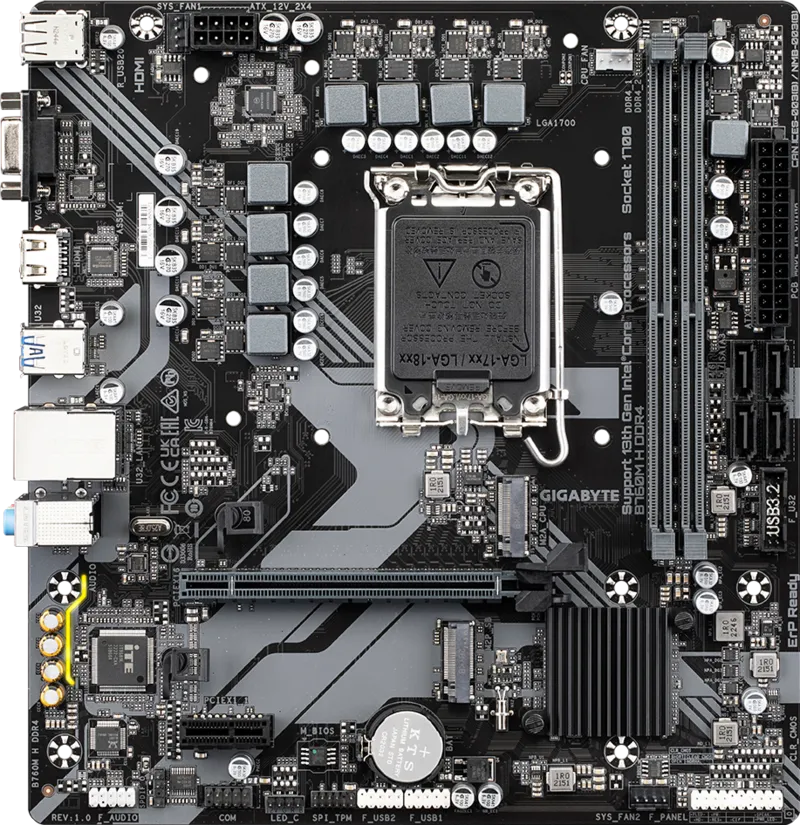

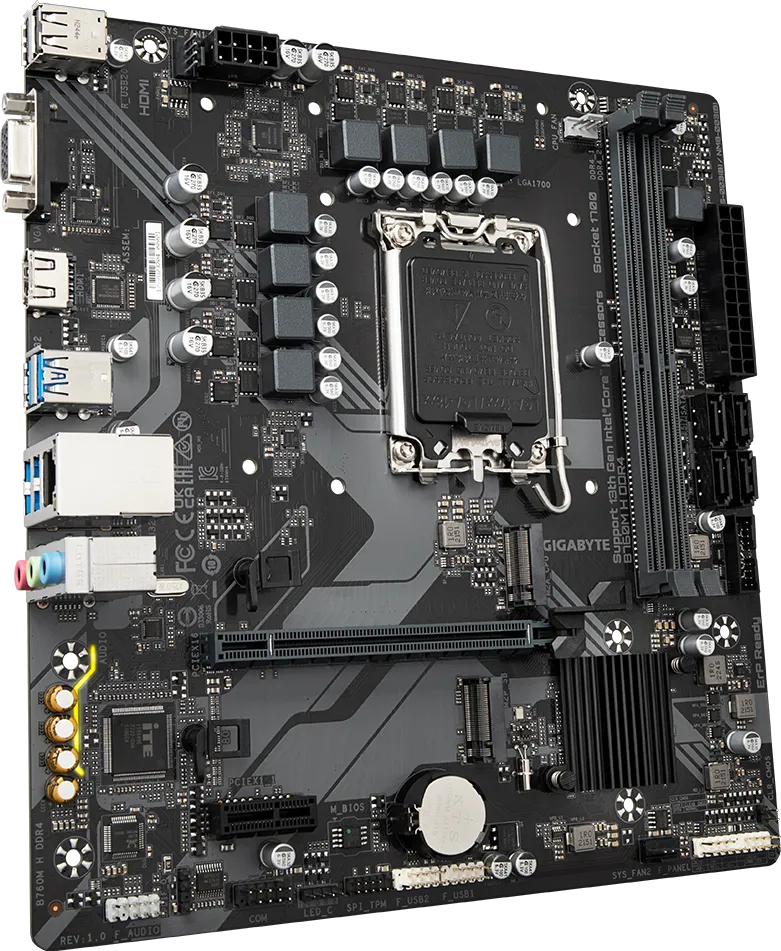

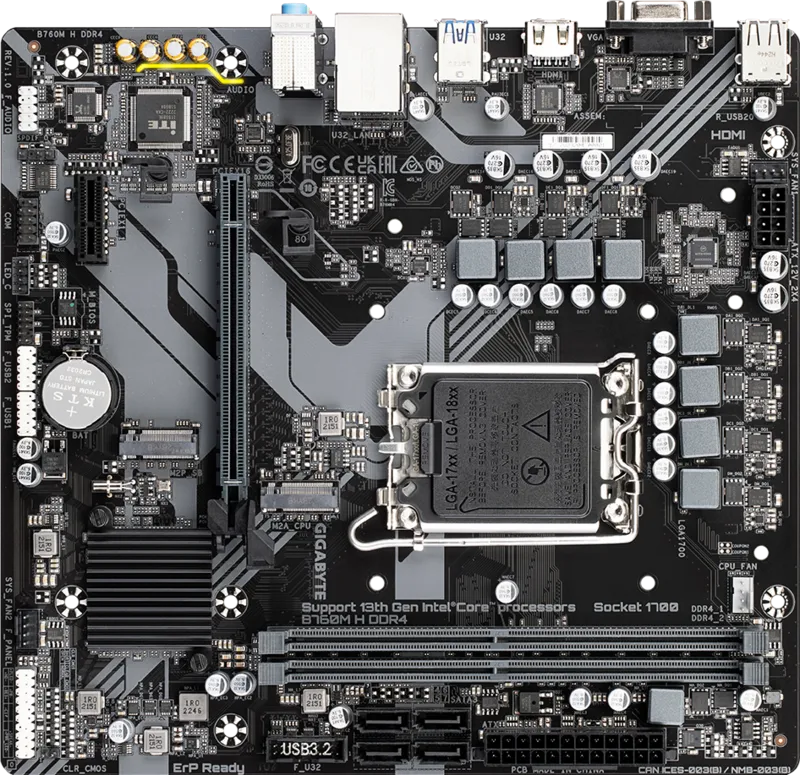

GIGABYTE B760M H DDR4 M‑ATX Motherboard

Build a stable and efficient Intel 12th/13th/14th Gen system with the GIGABYTE B760M H DDR4, a Micro‑ATX motherboard designed for gaming, productivity, and everyday computing. Powered by the Intel B760 Express chipset, it supports LGA1700 processors and delivers fast DDR4 performance, PCIe 4.0 GPU support, dual PCIe 4.0 M.2 slots, and Realtek Gigabit LAN. GIGABYTE Ultra‑Durable components, Smart Fan 6, EZ‑Latch PCIe, and Q‑Flash Plus ensure long‑term reliability, easy installation, and smooth performance for modern Intel builds.

Type: Micro‑ATX Motherboard
Brand: GIGABYTE
Model: B760M H DDR4
Chipset: Intel B760 Express
CPU Socket: LGA1700
Supported CPUs: Intel 12th, 13th & 14th Gen Core / Pentium / Celeron
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 2 × 288‑pin
RAM Speeds: DDR4‑3200 (official), up to DDR4‑5333 (OC)
Max Memory: 64GB
PCIe Slots: 1 × PCIe 4.0 x16 (GPU slot), 1 × PCIe 3.0 x1
M.2 Slots: 2 × PCIe 4.0 x4 NVMe SSD
SATA Ports: 4 × SATA 6Gb/s
RAID Support: RAID 0/1/5/10
LAN: Realtek GbE LAN (1Gbps)
Audio Codec: Realtek HD Audio
Channels: 2/4/5.1/7.1‑Channel High Definition Audio
Video Outputs: 1 × HDMI, 1 × D‑Sub (Requires CPU with integrated graphics)
BIOS: 128Mbit AMI UEFI BIOS (Q‑Flash Plus supported)

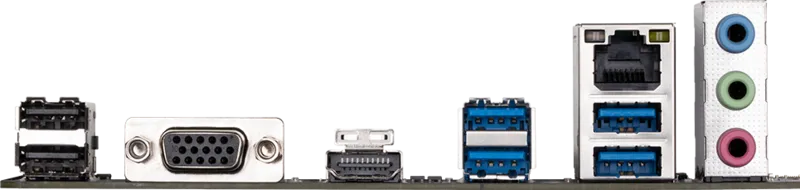

USB Connectivity Rear I/O: 2 × USB 2.0, 4 × USB 3.2 Gen1 Type‑A, HDMI, D‑Sub, LAN, 3 × Audio jacks
Internal Headers: 2 × USB 2.0 headers, 1 × USB 3.2 Gen1 header, RGB LED header, TPM header, COM header, Front panel connectors, Multiple fan headers, Q‑Flash Plus button

Power Connectors: 24‑pin ATX, 8‑pin CPU power
Form Factor: Micro‑ATX (215 × 230 mm)

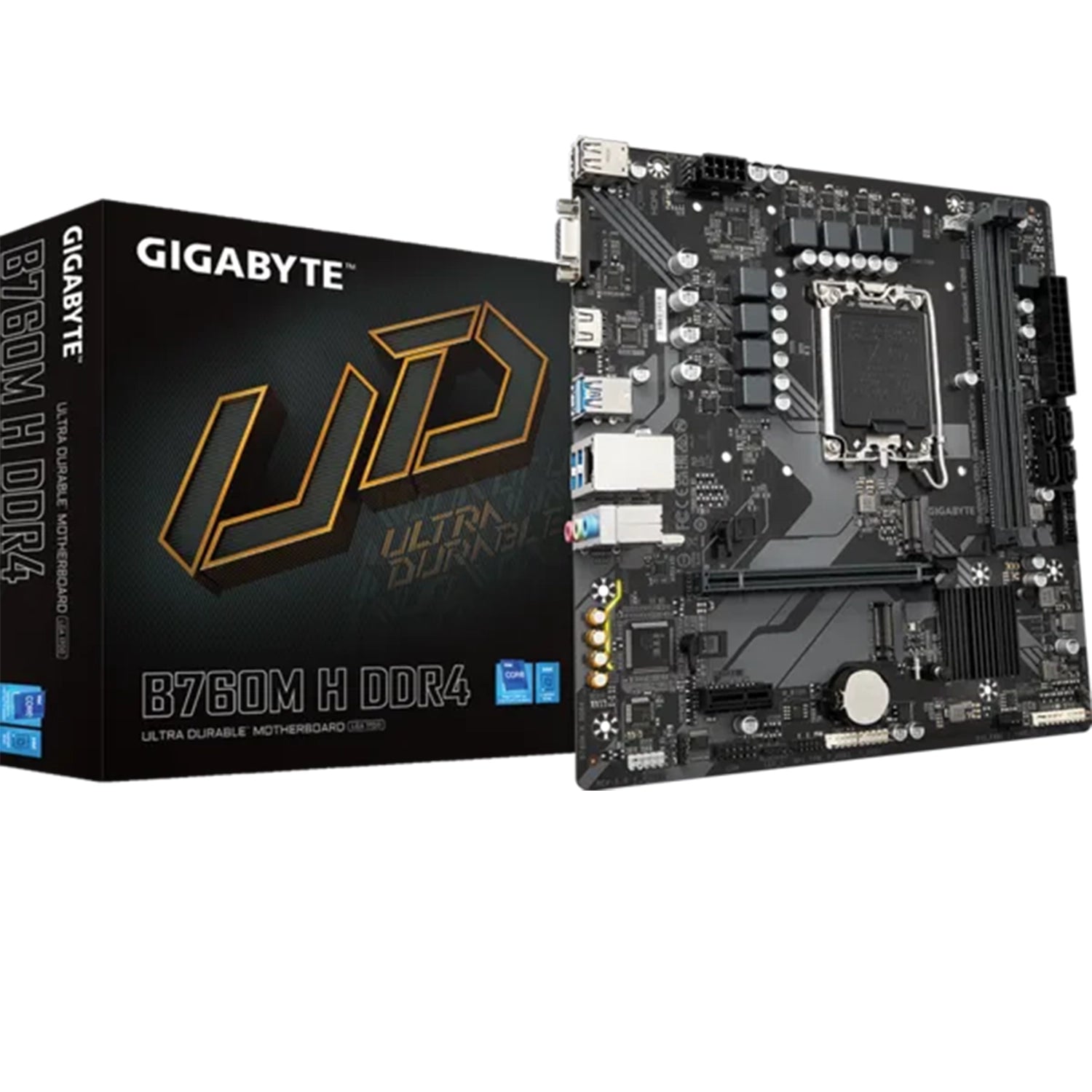

Package Contents: Motherboard, Manual, IO Shield, 2 × SATA cables, M.2 screws

Most Suitable For
Budget to mid‑range Intel gaming PCs
Intel 12th / 13th / 14th Gen builds
Compact Micro‑ATX systems
PCIe 4.0 GPU + NVMe storage setups
Home, office, and productivity builds
