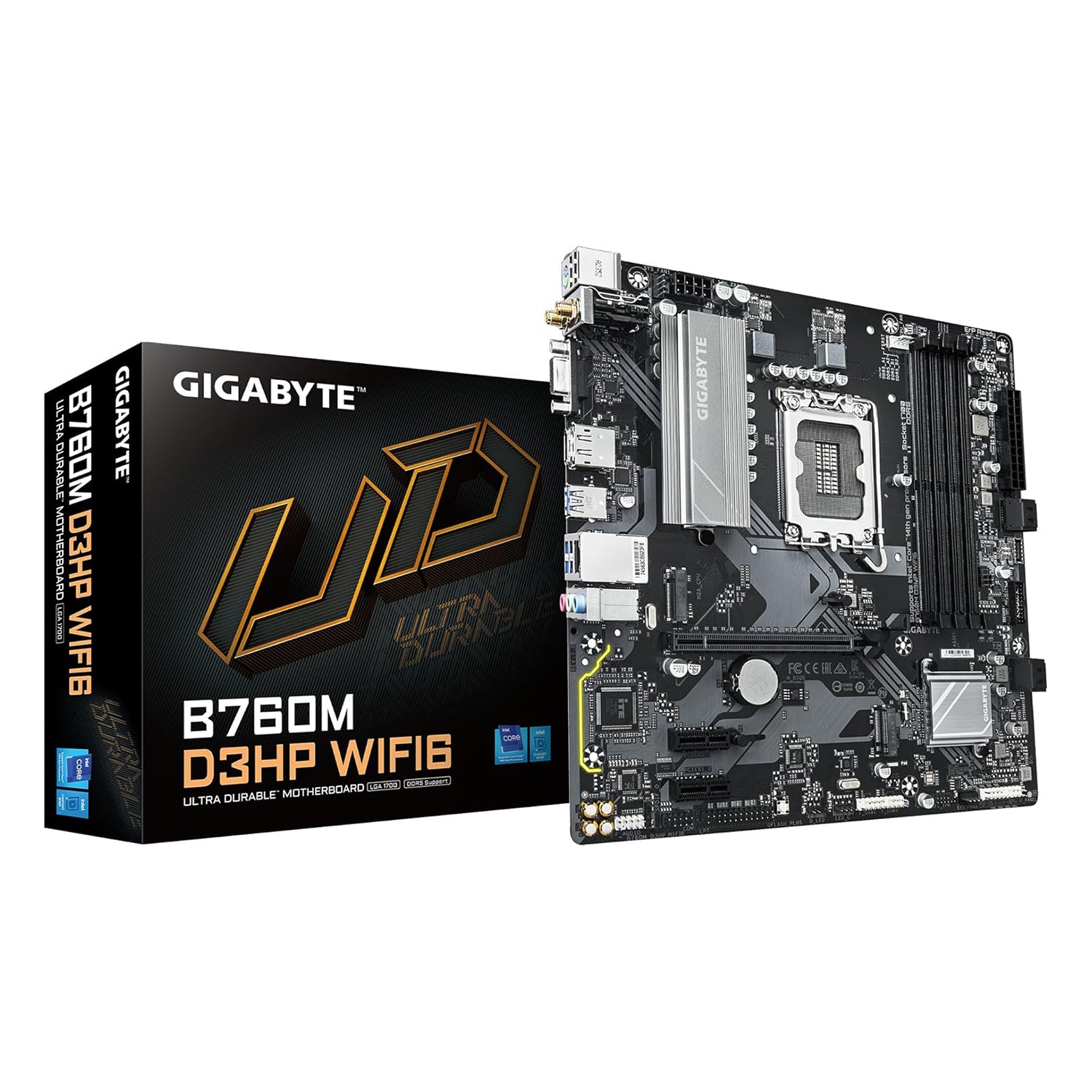

Gigabyte B760M D3HP WIFI6 Micro ATX Gaming Motherboard, DDR5
Gigabyte B760 M-ATX Gaming Motherboard

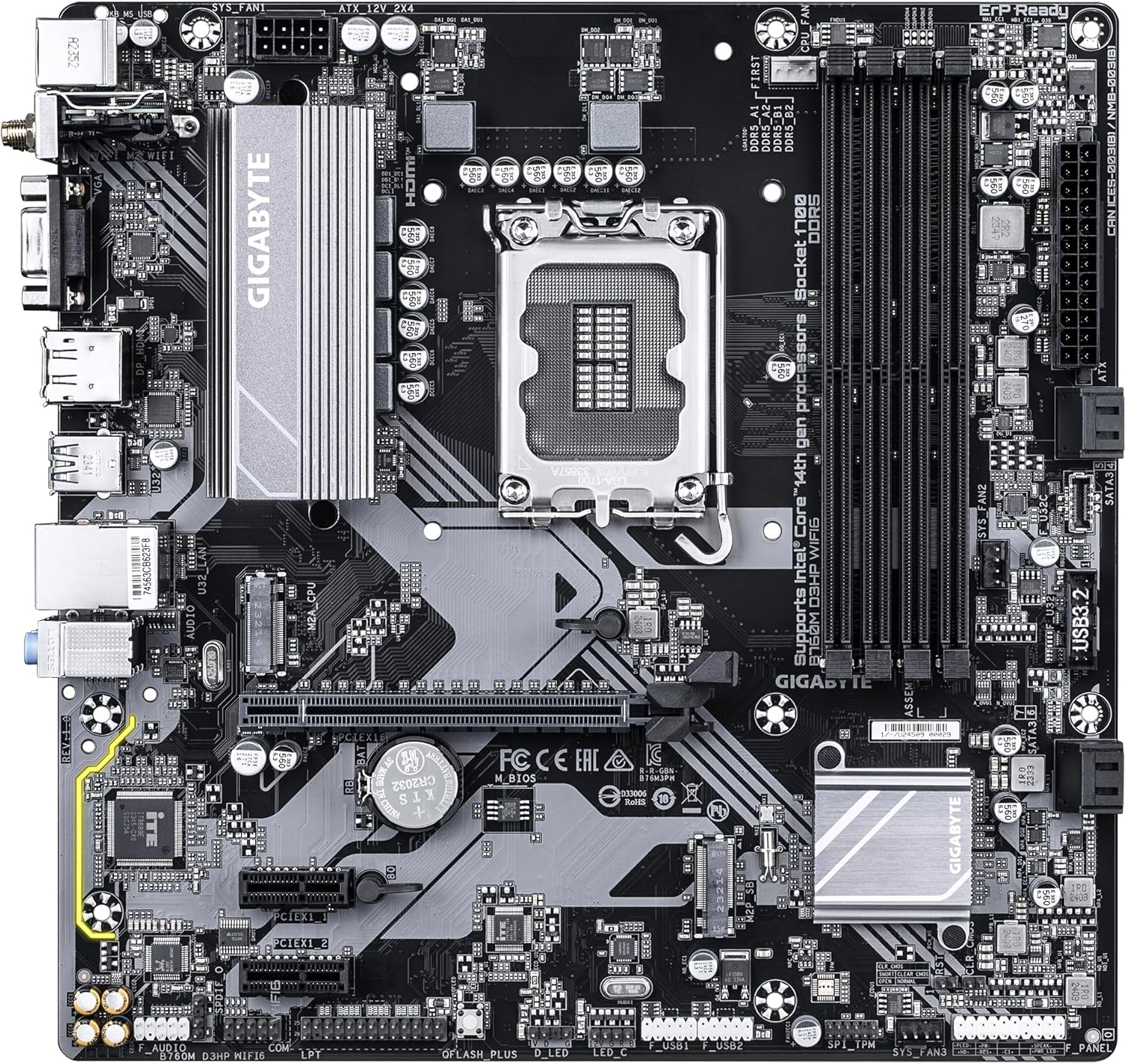

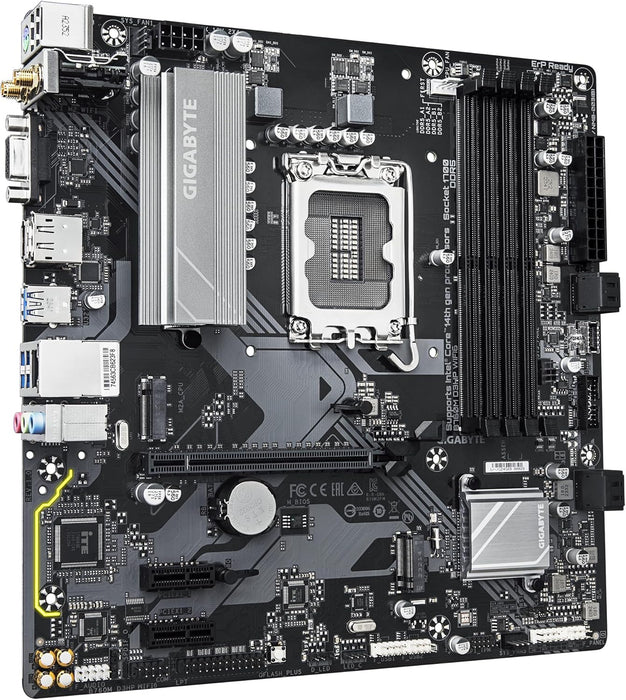

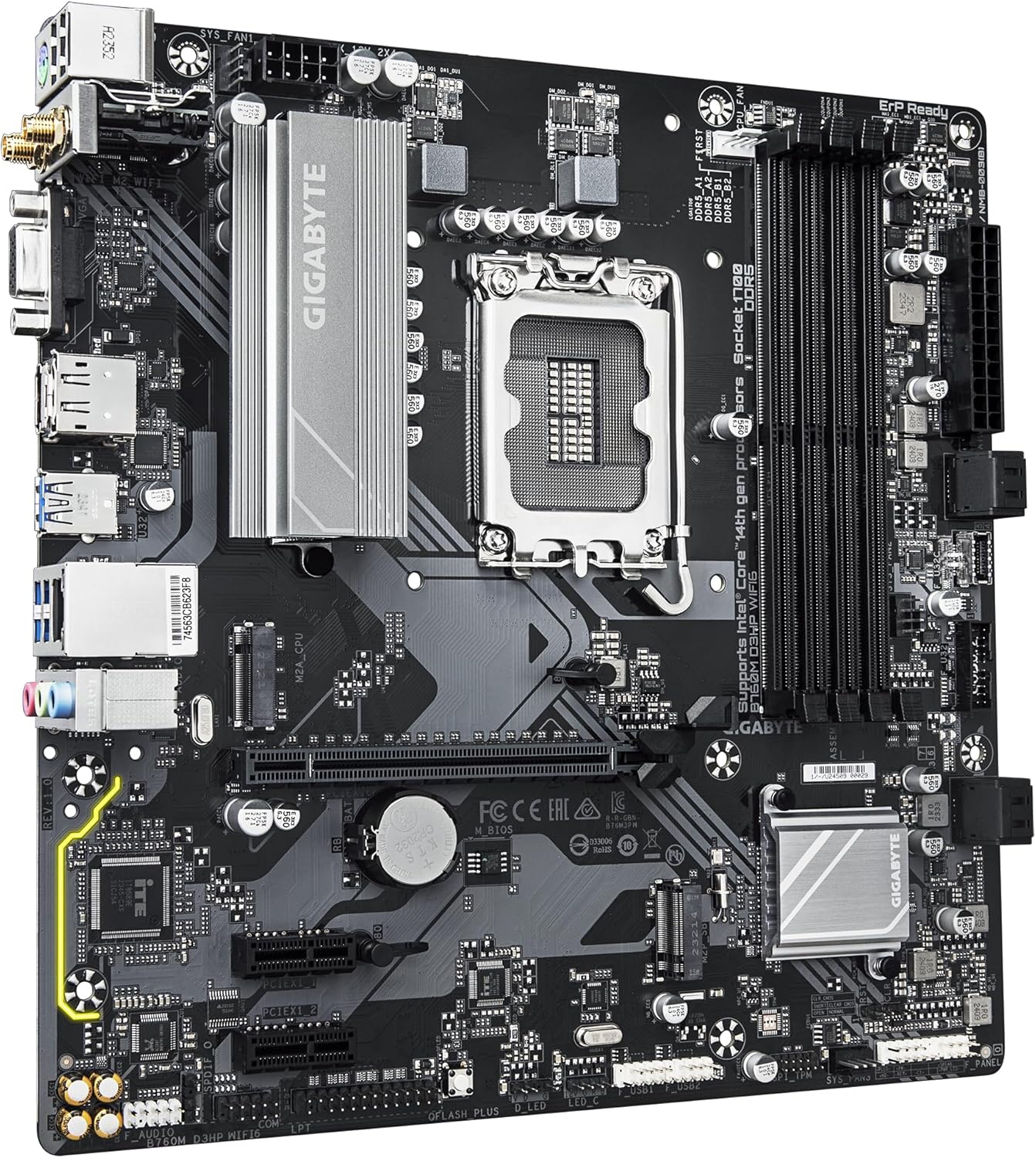

The GIGABYTE B760M D3HP WIFI6 delivers robust performance for Intel's latest processors in a compact micro-ATX form factor. Built with a 4+1+1 phase digital VRM, it ensures stable power delivery for 14th Gen Core CPUs. This board supports DDR5 memory up to 5600MHz, enabling faster data throughput for demanding applications. Dual PCIe 4.0 M.2 slots provide high-speed NVMe storage connectivity, while integrated Wi-Fi 6 and Gigabit Ethernet offer flexible networking options. USB 3.2 Gen1 ports deliver reliable high-speed peripheral connectivity. Ideal for builders seeking a feature-rich, space-efficient platform without compromising on core specifications.
Specifications
BIOS:
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset: Intel B760 Express
CPU Interface: Socket 1700
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR5 5600 (O.C.)
Max. Memory Support: 192GB
PCI Express 4.0 x16: 1
PCI Express 3.0 x1: 2
S-ATA 6Gb/s Port(s): 4
RAID: Raid 0/1/5/10
M.2 Socket(s): 2 x PCIe Gen 4.0 x4
LAN Speed: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless NIC: Wi-Fi 6
Wireless Technology:
WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
Support for 11ax 80MHz wireless standard
Bluetooth: v5.3
On-Board Audio:
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
On-Board Video: Processor with integrated graphics is required
Back PS/2 Keyboard/Mouse Port: 1
Back USB 2.0 Port(s): 2
Back USB 3.2 Port(s) Type-A Gen 1: 3
Back VGA Port(s): 1
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 3
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 1: 2
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s):
1 x Addressable LED strip header
1 x RGB LED strip header
Form Factor: Micro ATX
Product Width: 244mm
Product Length: 244mm
