Gigabyte B760 Gaming X Motherboard ATX Intel 1700, DDR5

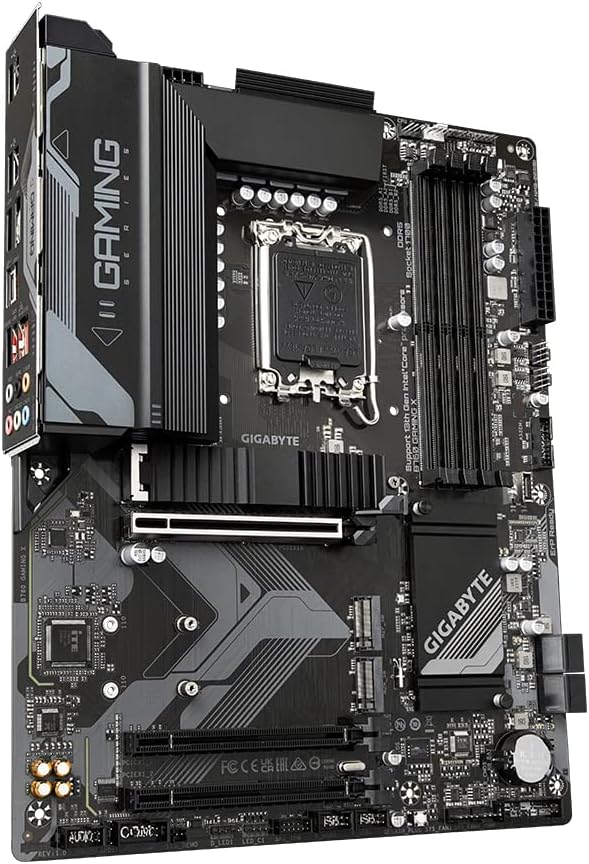

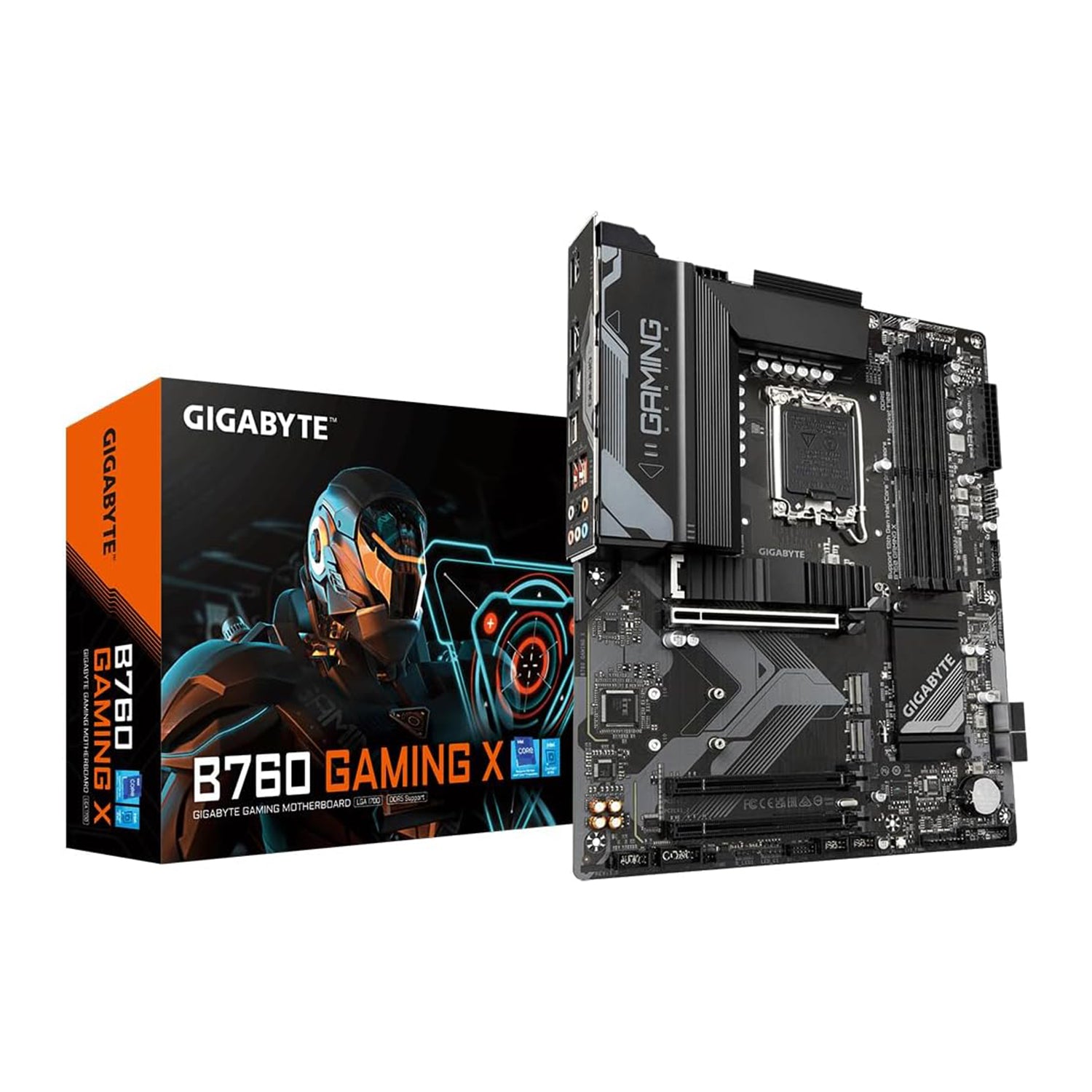

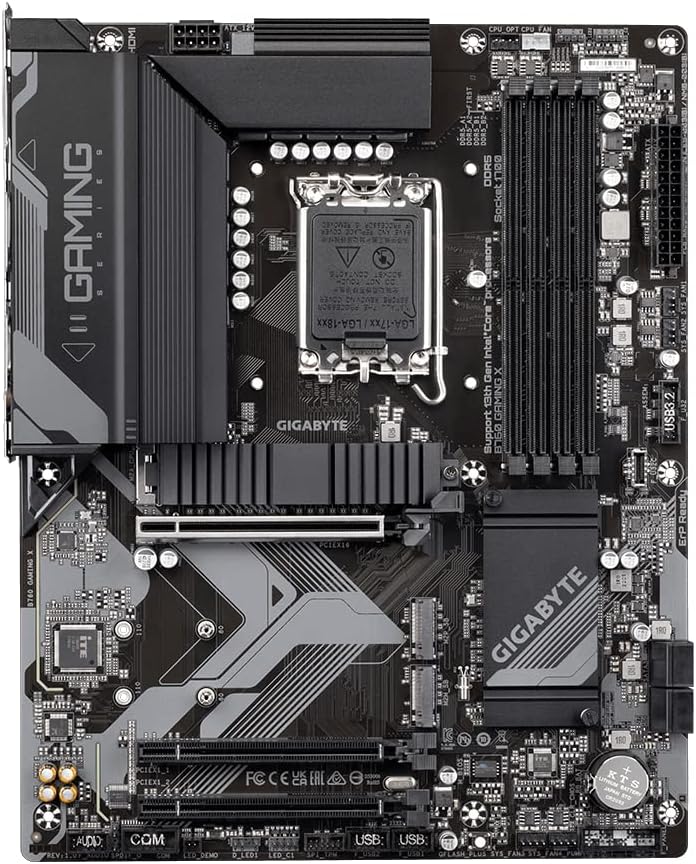

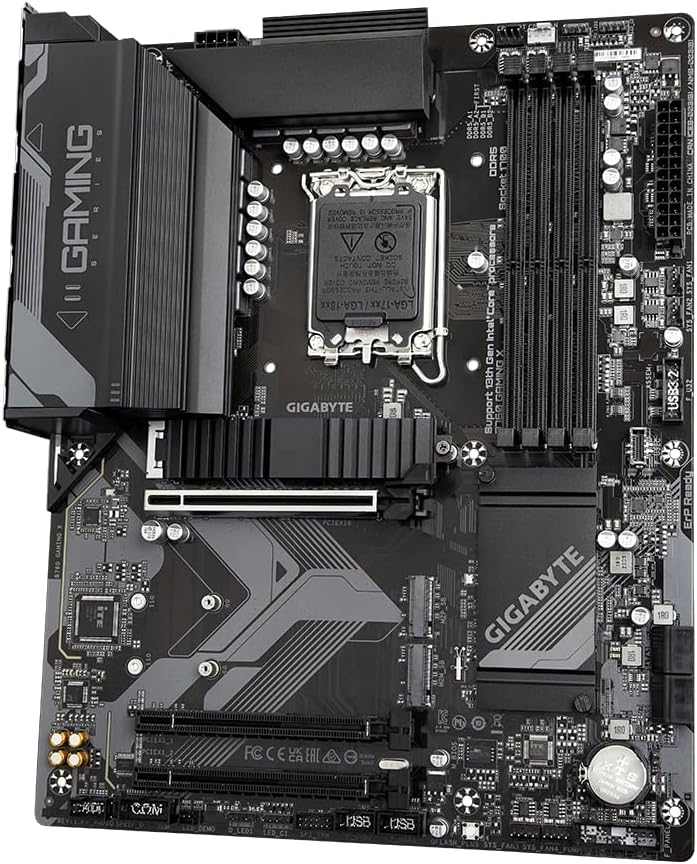

Gigabyte B760 Gaming X ATX Motherboard

The Gigabyte B760 Gaming X motherboard is designed for Intel’s 1700 socket, supporting the latest DDR5 memory for enhanced performance and faster data transfer. Its ATX form factor provides ample connectivity and expansion options, including PCIe 4.0 slots to meet the demands of modern gaming and high-performance builds. Ideal for enthusiasts seeking stability and advanced features in a versatile platform.

Specifications

Chipset: Intel B760 Express

CPU Interface: Socket 1700

RAM Technology: DDR5 (Dual Channel)

RAM Slots: 4 x 288-pin

RAM Speeds: Up to DDR5 7600 (O.C.)

Max. Memory Support: 192GB

PCI Express 4.0 x16: 1

PCI Express 3.0 x1: 2

S-ATA 6Gb/s Port(s): 4

RAID: Raid 0/1/5/10

M.2 Socket(s): 2 x PCIe Gen 4.0 x4

LAN Speed: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

On-Board Audio:
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

On-Board Video: Processor with integrated graphics is required

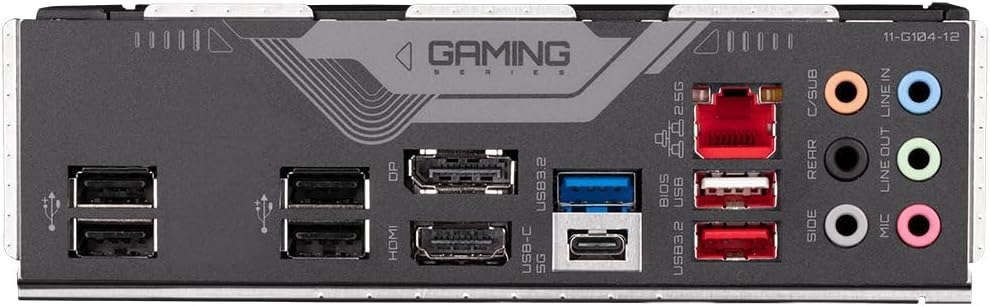

Back USB 2.0 Port(s): 5

Back USB 3.2 Port(s) Type-A Gen 1: 1

Back USB 3.2 Port(s) Type-C Gen 1: 1

Back USB 3.2 Port(s) Type-A Gen 2: 1

Back HDMI Port(s): 1

Back DisplayPort(s): 1

Back LAN Port(s): 1

Back Audio Jack(s): 6

24-pin ATX Power: 1

8-pin ATX Power: 1

USB 2.0 Header(s): 2

USB 3.2 Header(s) Gen 1: 1

USB 3.2 Header(s) Gen 2: 1

COM Port Header(s): 1

Front Panel Audio Connector: 1

TPM Header(s): 1

S/PDIF Out Header(s): 1

Internal Other Port(s): 2 x Addressable LED Strip Headers, 2 x RGB LED Strip Headers
