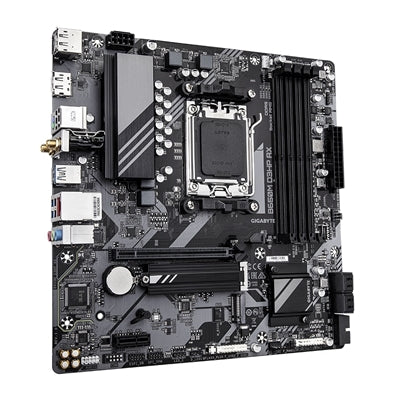

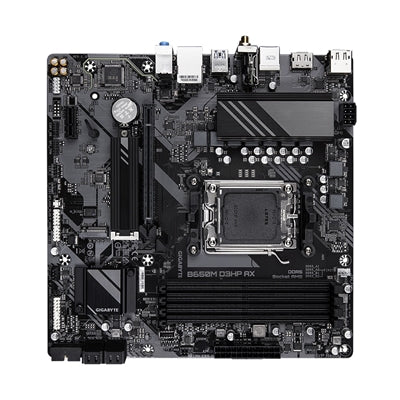

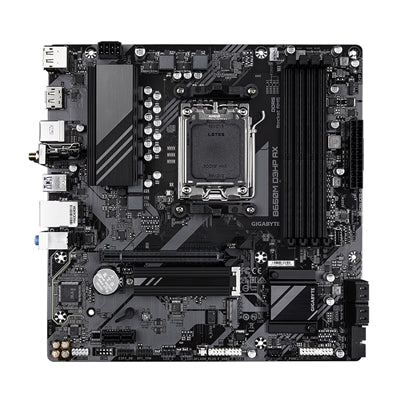

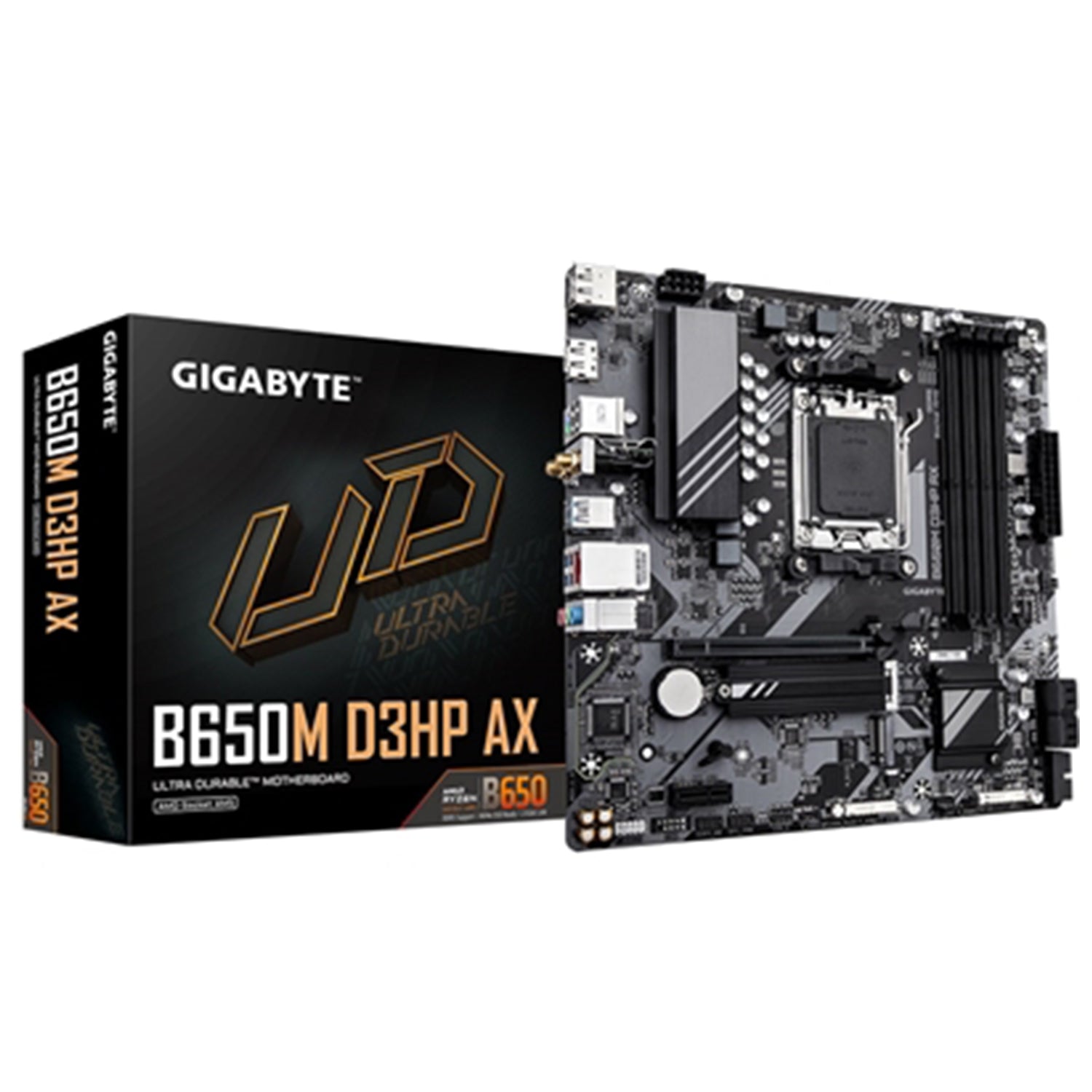

Gigabyte B650M D3HP AX Micro‑ATX AM5 Motherboard – DDR5, Wi‑Fi 6E, 2.5GbE
Gigabyte B650M D3HP AX Ultra Durable
Build a powerful and reliable AM5 system with the Gigabyte B650M D3HP AX, a Micro‑ATX motherboard engineered for gaming, productivity, and long‑term durability. Featuring the AMD B650 chipset, it supports Ryzen 7000 / 8000 / 9000 Series processors and delivers high‑speed DDR5 performance up to 7600+ MT/s (O.C.). With PCIe 4.0 x16 GPU support, dual PCIe 4.0 M.2 slots, Wi‑Fi 6E, 2.5GbE LAN, and triple display outputs (2 × DisplayPort + 1 × HDMI), this board provides a stable, future‑ready platform for modern gaming and workstation builds. Gigabyte Ultra Durable components, Q‑Flash Plus, and PCIe EZ‑Latch ensure easy installation and long‑term reliability.
Specifications
Type: Micro‑ATX Motherboard
Brand: Gigabyte
Model: B650M D3HP AX
Chipset: AMD B650
CPU Socket: AM5
Supported CPUs: Ryzen 7000 / 8000 / 9000 Series (with integrated graphics for display output)
RAM Type: DDR5 (Dual Channel)
RAM Slots: 4 × 288‑pin
RAM Speed Support: Up to DDR5 7600+ (O.C.)
Max Memory: 192GB
PCIe Slots: 1 × PCIe 4.0 x16 (GPU slot) 1 × PCIe 3.0 x1
Storage: 2 × M.2 Slots: • 1 × PCIe 4.0 x4 (CPU) – NVMe SSD • 1 × PCIe 4.0 x4 (Chipset) – NVMe SSD, 4 × SATA 6Gb/s
RAID Support: RAID 0/1/10 (SATA)
LAN: Realtek 2.5Gb Ethernet
Wireless: Wi‑Fi 6E
Bluetooth: 5.3
Audio: Realtek HD Audio
Channels: 7.1‑Channel High Definition Audio
Video Outputs: (Requires Ryzen CPU with integrated Radeon Graphics) 2 × DisplayPort 1 × HDMI
USB Connectivity
Rear I/O
USB‑C (USB 3.2 Gen 2)
USB‑A (USB 3.2 Gen 2)
USB‑A (USB 3.2 Gen 1)
USB‑A (USB 2.0)
2 × DisplayPort
HDMI
2.5Gb LAN
Wi‑Fi antenna connectors
Audio jacks
Internal Headers
USB 3.2 Gen 1 header
USB 2.0 headers
RGB/ARGB headers
Front panel connectors
TPM header
Multiple fan headers + AIO pump header
Power Connectors: 24‑pin ATX, 8‑pin CPU power
Form Factor: Micro‑ATX (244 × 244 mm)
Most Suitable For
Mid‑range AM5 gaming PCs
Ryzen 7000 / 8000 / 9000 Series builds
Dual M.2 NVMe storage setups
Wi‑Fi 6E + 2.5Gb LAN connectivity
Productivity, gaming, and home‑office systems
