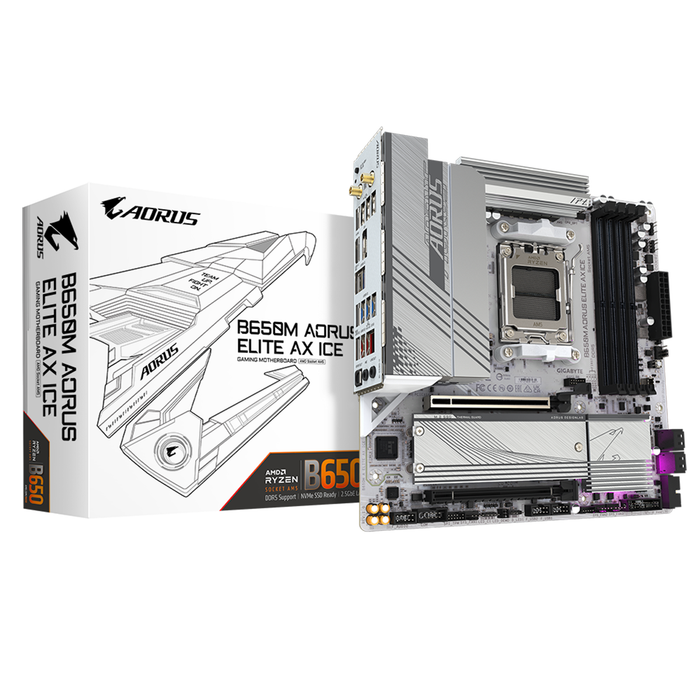

Gigabyte B650M AORUS ELITE AX ICE AM5 Micro‑ATX Motherboard – DDR5, PCIe 5.0, Wi‑Fi 6E
AORUS AM5 B650M ELITE ax ICE M‑ATX Motherboard
Build a powerful and modern AM5 system with the GIGABYTE B650M AORUS ELITE AX ICE, a premium Micro‑ATX motherboard designed for gaming, productivity, and high‑performance desktop builds. Powered by the AMD B650 chipset, it supports Ryzen 7000 Series processors and delivers ultra‑fast DDR5 performance up to DDR5‑8000 (O.C.). With PCIe 5.0 + PCIe 4.0 M.2, 2.5GbE LAN, Wi‑Fi 6E, USB‑C 20Gb/s, and advanced thermal design, this board provides next‑generation speed, stability, and reliability. AORUS features such as Twin 12+2+2 Digital VRM, M.2 Thermal Guard, EZ‑Latch, and Q‑Flash Plus ensure easy installation, excellent cooling, and long‑term durability — all wrapped in a clean ICE‑white Micro‑ATX design ideal for modern builds.
Specifications
Type: Micro‑ATX Motherboard
Brand: GIGABYTE
Model: B650M AORUS ELITE AX ICE
Chipset: AMD B650
CPU Socket: AM5
Supported CPUs: AMD Ryzen 7000 Series
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 × 288‑pin
RAM Speed Support: Up to DDR5‑8000 (O.C.)
Max Memory: 192GB
PCIe Slots: 2 × PCIe 4.0 x16
M.2 Slots: 1 × PCIe 5.0 x4, 1 × PCIe 4.0 x4
SATA Ports: 4 × SATA 6Gb/s
RAID Support: RAID 0/1/10
LAN: Realtek 2.5GbE LAN
Wireless: Wi‑Fi 6E (2.4/5/6 GHz)
Bluetooth: 5.3
Audio Codec: Realtek HD Audio
Channels: 2/4/5.1/7.1‑Channel High Definition Audio
Video Outputs: 1 × HDMI, 1 × DisplayPort (Requires Ryzen CPU with integrated graphics) Special Features:
Twin 12+2+2 Digital VRM
M.2 Thermal Guard, EZ‑Latch PCIe & M.2
Smart Fan 6, Q‑Flash Plus, USB‑C 20Gb/s front panel
USB‑C 10Gb/s rear panel
S/PDIF Out
USB Connectivity Rear I/O:
4 × USB 2.0
5 × USB 3.2 Gen1 Type‑A
2 × USB 3.2 Gen2 Type‑A
1 × USB 3.2 Gen2 Type‑C
HDMI, DisplayPort
2.5GbE LAN
2 × SMA antenna connectors
2 × Audio jacks
1 × S/PDIF Out
Q‑Flash Plus button
Internal Headers:
2 × USB 2.0 headers
1 × USB 3.2 Gen1 header
1 × USB 3.2 Gen2x2 Type‑C header
RGB & ARGB headers, TPM header
COM header
Front panel connectors
Multiple fan headers
Reset button
Power Connectors:
24‑pin ATX
8‑pin CPU power
Form Factor: Micro‑ATX (244 × 244 mm)
Package Contents: Motherboard
SATA cable
manual
support disk
M.2 screws
Most Suitable For
High‑performance AM5 gaming PCs
Ryzen 7000 Series builds
Compact Micro‑ATX systems
PCIe 5.0 NVMe + PCIe 4.0 GPU setups
Wi‑Fi 6E + 2.5Gb LAN connectivity
White‑themed ICE builds
