Gigabyte B550M GAMING X WIFI6 Micro‑ATX AM4 Motherboard | PCIe 5.0

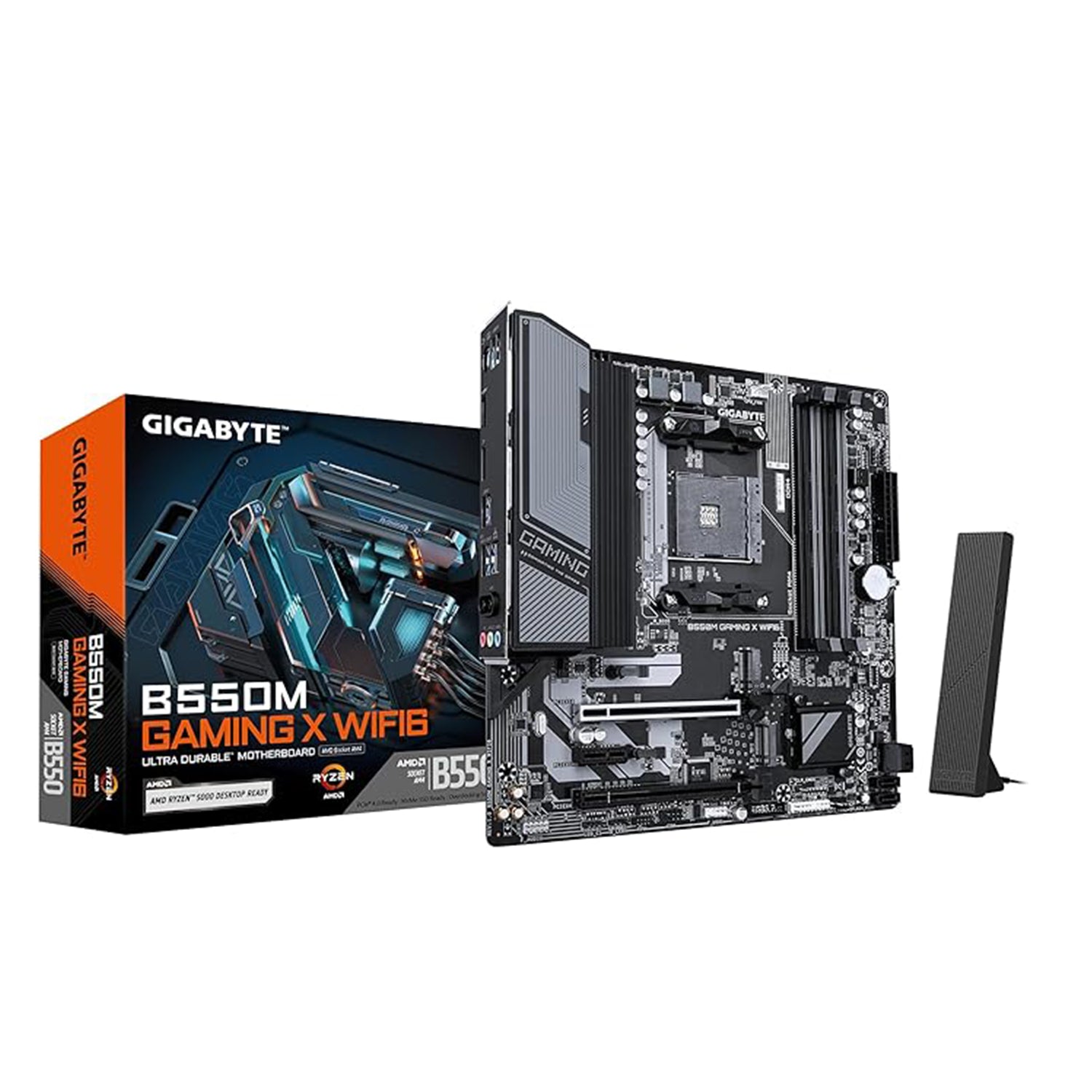

GIGABYTE B550M GAMING X WIFI6 Micro‑ATX Board

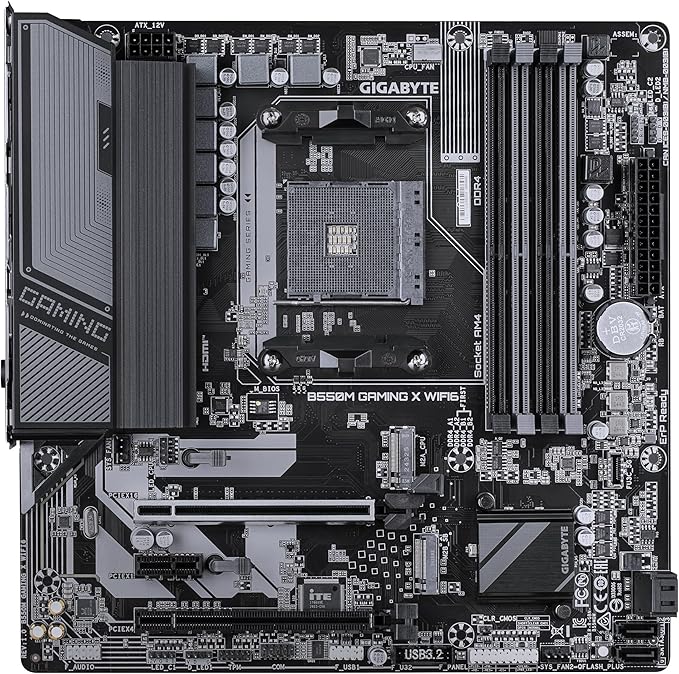

Build a powerful and feature‑rich AMD system with the Gigabyte B550M GAMING X WIFI6, a Micro‑ATX motherboard engineered for performance, stability, and modern connectivity. Powered by the AMD B550 chipset, it supports Ryzen 3000, 4000, and 5000 Series processors, delivering excellent capability for gaming, productivity, and everyday computing. With PCIe 5.0 and PCIe 4.0 support, dual M.2 slots, Wi‑Fi 6, Bluetooth 5.3, and ALC1220 HD Audio, this board offers a premium feature set for compact builds. Enhanced VRM cooling, EZ‑Latch PCIe release, and Q‑Flash Plus ensure long‑term durability, easy upgrades, and stable performance.

Specifications

Type: Micro‑ATX Motherboard
Brand: Gigabyte
Model: B550M GAMING X WIFI6
Chipset: AMD B550
CPU Socket: AM4
Supported CPUs: Ryzen 3000 / 4000 / 5000 Series
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 × 288‑pin
RAM Speed Support: Up to DDR4 3200 (O.C.)
Max Memory: 128GB
PCIe Slots:  1 × PCIe 5.0 x16, 1 × PCIe 3.0 x16, 1 × PCIe 3.0 x1
Storage: 4 × SATA 6Gb/s, 2 × M.2 slots (PCIe 4.0 + PCIe 3.0)
LAN: Realtek Gigabit LAN
Wireless: Wi‑Fi 6 (802.11ax)
Bluetooth: v5.3
Audio: Realtek ALC1220 HD Audio (2/4/5.1/7.1‑channel)
Video Outputs: HDMI, DisplayPort (Requires CPU with integrated graphics)

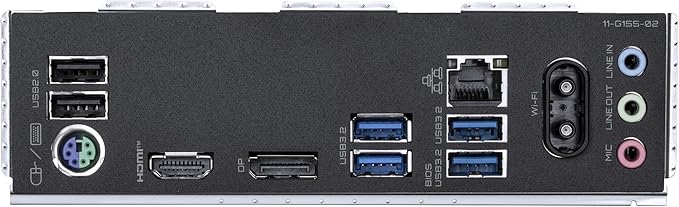

USB Ports (Rear): 2 × USB 2.0, 4 × USB 3.2 Gen1 Type‑A
Special Features:
EZ‑Latch PCIe Quick Release
VRM Thermal Armor
Dual M.2 including PCIe 4.0
Q‑Flash Plus
RGB & ARGB Headers
Form Factor: Micro‑ATX (244 × 244 mm)
Most Suitable For: Gaming, productivity, high‑performance compact builds
