GIGABYTE B550 EAGLE WIFI6 Micro-ATX AM4 Motherboard

Gigabyte B550 EAGLE WIFI6 ATX Motherboard

Build a powerful and future‑ready AMD system with the Gigabyte B550 EAGLE WIFI6 motherboard. Designed for Ryzen 3000, 4000, and 5000 Series processors, this ATX board delivers excellent performance with PCIe 4.0 support, dual M.2 slots, and compatibility with high‑speed DDR4 memory. With built‑in Wi‑Fi 6, Bluetooth 5.3, and Realtek Gigabit LAN, you get fast and stable connectivity for gaming, productivity, and everyday computing. Enhanced thermal design, PCIe EZ‑Latch, and RGB/ARGB headers make it ideal for modern, feature‑rich PC builds.

Specifications

Type: ATX Motherboard
Brand: Gigabyte
Model: B550 EAGLE WIFI6
Chipset: AMD B550
CPU Socket: AM4
Supported CPUs: Ryzen 3000 / 4000 / 5000 Series
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 × 288‑pin
RAM Speeds: Up to DDR4 3200 (O.C.)
Max Memory: 128GB
Expansion Slots: 1 × PCIe 4.0 x16, 4 × PCIe 3.0 x1
Storage: 4 × SATA 6Gb/s, 1 × M.2 PCIe Gen 3.0 x4, 1 × M.2 PCIe Gen 4.0 x4 / SATA
Networking: Realtek GbE LAN, Wi‑Fi 6 (2.4/5GHz), Bluetooth 5.3
Audio: Realtek HD Audio,  2/4/5.1/7.1‑channel support

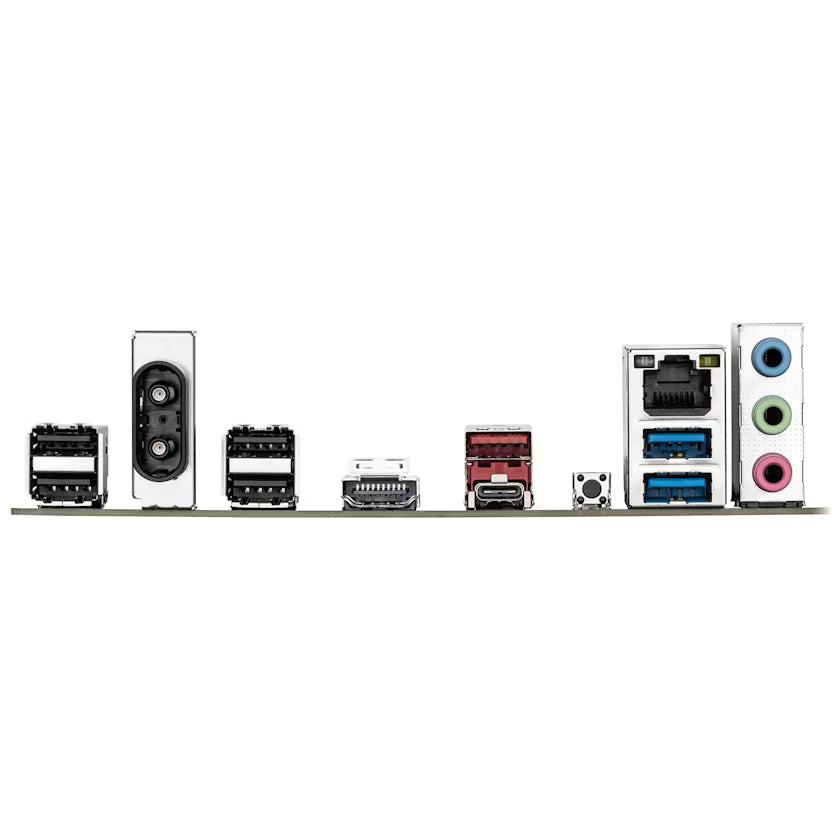

Rear I/O: 4 × USB 2.0, 2 × USB 3.2 Gen1 Type‑A, 1 × USB 3.2 Gen1 Type‑C, 1 × USB 3.2 Gen2 Type‑A, HDMI, LAN, 3 × Audio jacks, 2 × Wi‑Fi antenna connectors, Q‑Flash Plus button
Internal Headers: 2 × USB 2.0, 2 × USB 3.2 Gen1,  RGB & ARGB headers, TPM header
Form Factor: ATX
Dimensions: 305 × 244 mm
Warranty: 3 Years
Most Suitable For: Gaming, productivity, high‑performance builds
