GIGABYTE Aorus Elite X870M AM5 WiFi7 Motherboard – microATX, DDR5, PCIe 5.0

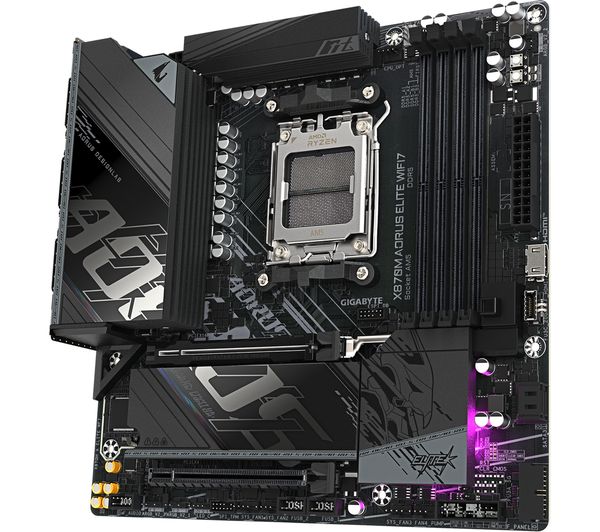

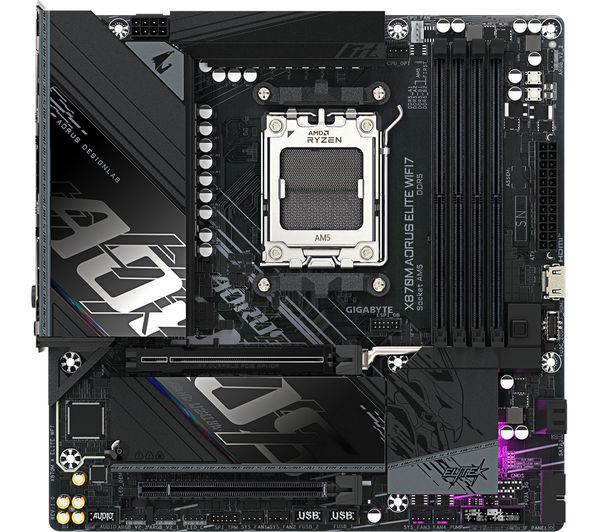

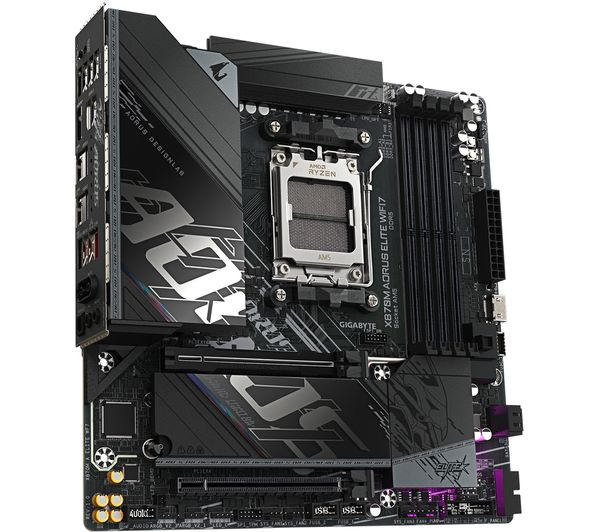

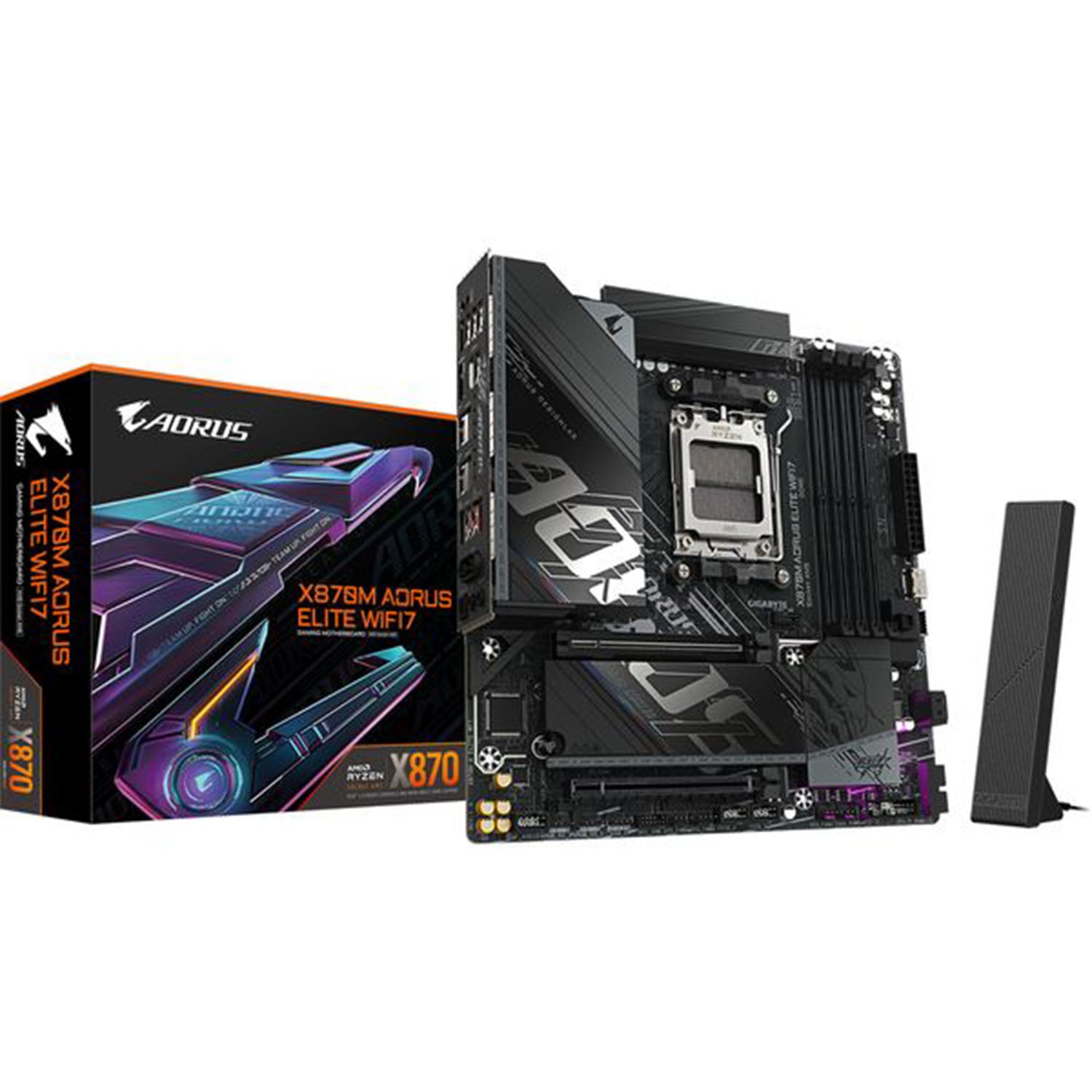

GIGABYTE Aorus Elite X870M AM5 WiFi7 Motherboard
The GIGABYTE Aorus Elite X870M is a compact microATX AM5 motherboard built for high‑performance Ryzen 7000 / 8000 / 9000 Series processors. Featuring PCIe 5.0 support, WiFi 7, 2.5GbE LAN, Twin Digital VRM Design, X3D Turbo Mode, and advanced thermal engineering, it delivers exceptional stability and speed for gaming and productivity. With four DDR5 DIMM slots supporting up to 256GB RAM, Smart Fan 6 cooling control, and multiple M.2 and SATA storage options, it is ideal for modern high‑end compact PC builds.
Specifications
Type: microATX Motherboard
Brand: GIGABYTE
Model: Aorus Elite X870M AM5 WiFi7
Chipset: AMD X870
CPU Socket: AM5
Supported CPUs: AMD Ryzen 7000 / 8000 / 9000 Series
Operating Systems Supported: Windows 11 or later
Colour: Black
Manufacturer’s Guarantee: 3 years
Memory
RAM Technology: DDR5
RAM Slots: 4 × DIMM
Max Memory: 256GB
Memory Standard: DDR5
Features: D5 Bionic Corsa signal design
PCIe Slots:
1 × PCIe 5.0 x16
1 × PCIe 4.0 x4
Storage
SATA Ports: 2 × SATA 6Gb/s
M.2 Slots: 2 × M.2
PCIe 5.0 Storage Support: Yes
Networking:
LAN: Realtek 2.5GbE LAN
Wireless: WiFi 7
WiFi Feature: WiFi EZ‑Plug antenna connector
Audio
Audio Ports: 3.5mm jacks × 2
Optical: S/PDIF Out
Video Outputs (Requires Ryzen CPU with integrated graphics)
HDMI: 2 × HDMI
DisplayPort: 2 × DisplayPort
Special Features
X3D Turbo Mode
Twin Digital VRM Design
Advanced Thermal Design
Smart Fan 6
AI Boost
D5 Bionic Corsa RAM signal enhancement
Q‑Flash Plus
Clear CMOS button

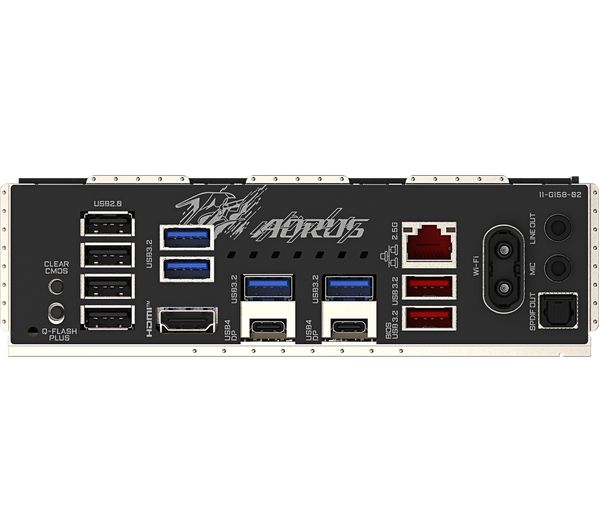

USB Connectivity Rear I/O
USB 2.0 × 8
USB 3.2 Gen1 × 4
USB 3.2 Gen2 × 2 (red)
USB Type‑C × 3
Internal Headers
24‑pin EATX
8‑pin ATX
CPU fan header
CPU pump header
System fan headers × 3
System fan/water pump header
Front panel
Front audio
USB headers
TPM header
RGB headers
Addressable RGB LED strip headers × 3
RGB LED strip header × 1
Clear CMOS jumper
Q‑Flash Plus
Form Factor: microATX
Dimensions: 70 × 244 × 244 mm
Weight: 2.1 kg
