Gigabyte A620I AX Mini ITX Gaming Motherboard, AMD Ryzen 8th Gen, DDR5
Gigabyte A620 Mini ITX Gaming Motherboard
The Gigabyte A620I AX Mini ITX motherboard is designed for AMD Ryzen 7th and 8th Gen processors, offering advanced support for DDR5 memory. Its compact Mini ITX form factor makes it ideal for powerful yet space-efficient gaming builds. Equipped with the AM5 socket, this motherboard delivers robust performance and future-proof compatibility, ensuring smooth gameplay and responsive multitasking for demanding enthusiasts.
Specifications
CPU Socket: Socket AM5
CPU Brand: AMD
Installed Processors (Max): 0 (1)
Supported Processor Manufacturer: AMD
Supported Processors: Ryzen 7000/ Ryzen 8000 Series Processors
64-bit Support: Yes
Socket: AM5

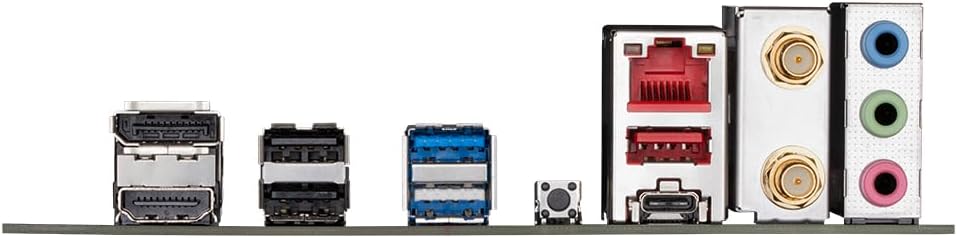

USB Ports: 1 x USB-C 3.0, 1 x USB 3.1, 1 x USB 3.0, 3 x USB 2.0
DisplayPorts: 1 x DisplayPort 1.4
HDMI Port: 1 x HDMI 2.1
RJ-45 Ports: 1 x RJ-45
Audio Line In Ports: 1 x 3.5mm Jack
Audio Line Out Ports: 1 x 3.5mm Jack
Microphone In Port: 1 x 3.5mm Jack
Antenna Connector(s): 2 x SMA Antenna
SATA Connectors: 2 x SATA III
USB Connectors
1 x USB-C 3.0 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
1 x USB 2.0 header (supports 2 ports)
Speaker: 1 x Speaker header
Front Panel Connectors: 1 x Front Panel, 1 x Front Audio
Cooling Fan Support: 1 x CPU fan header, 2 x System fan headers
Chassis Intrusion Connector: 1 x Chassis Intrusion header
Power Connector Port: 1 x 24-pin ATX, 1 x 8-pin EPS
Other Connectors
1 x M.2 slot, Socket 3, M Key, Type 2280 (PCIe Gen4)
1 x 3-pin ARGB LED header
1 x 4-pin RGB LED header
Memory Bus Speed: Up to 6400 MHz
Memory Type: DDR5
Maximum RAM: 96 GB
Memory Slot: 2 x DIMM
Northbridge: AMD A620
RAID Supported: Yes
RAID Format: RAID 0, 1
SATA Supported: Yes
Number of PCI Express Slots: 1 x PCI Express 4.0 x16 slot
Integrated Graphics Supported: Yes
Integrated Network: Realtek
Network Speeds Supported: Up to 2.5 Gbps
Wireless LAN: Yes (Wi-Fi 6E)
Wireless Network Speed: Up to 2.4 Gbps
Bluetooth: Bluetooth 5.3
Form Factor: Mini-ITX Motherboard
Width: 170 mm
Length: 170 mm
