Gigabyte 850W ATX PSU, Fully Modular, 80+ Gold, PCIe5, UD850GM PG5, Power Supply

Gigabyte 850W PSU, Fully Modular, 80+ Gold

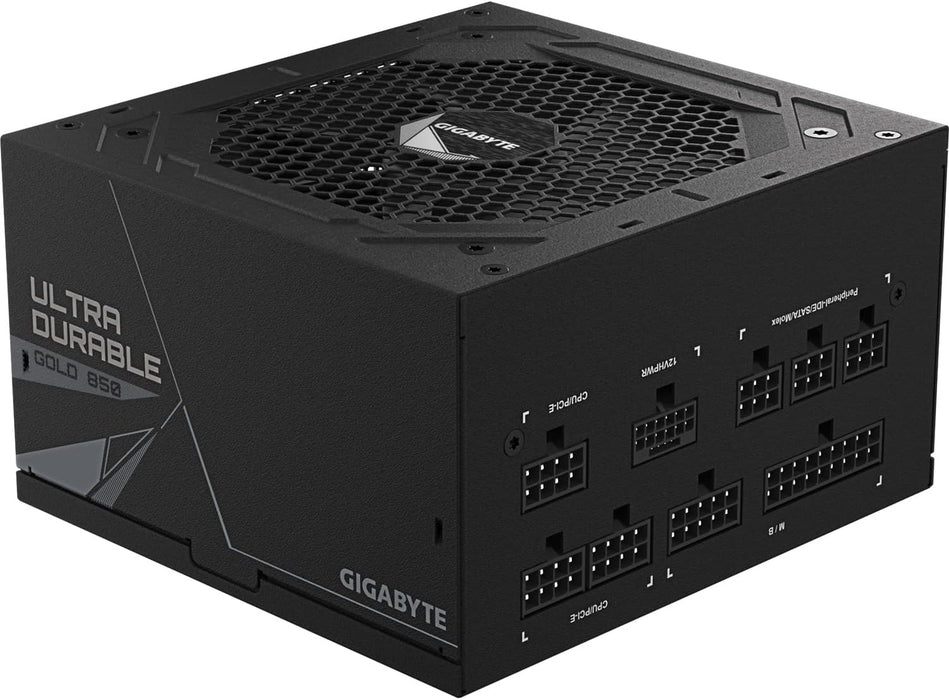

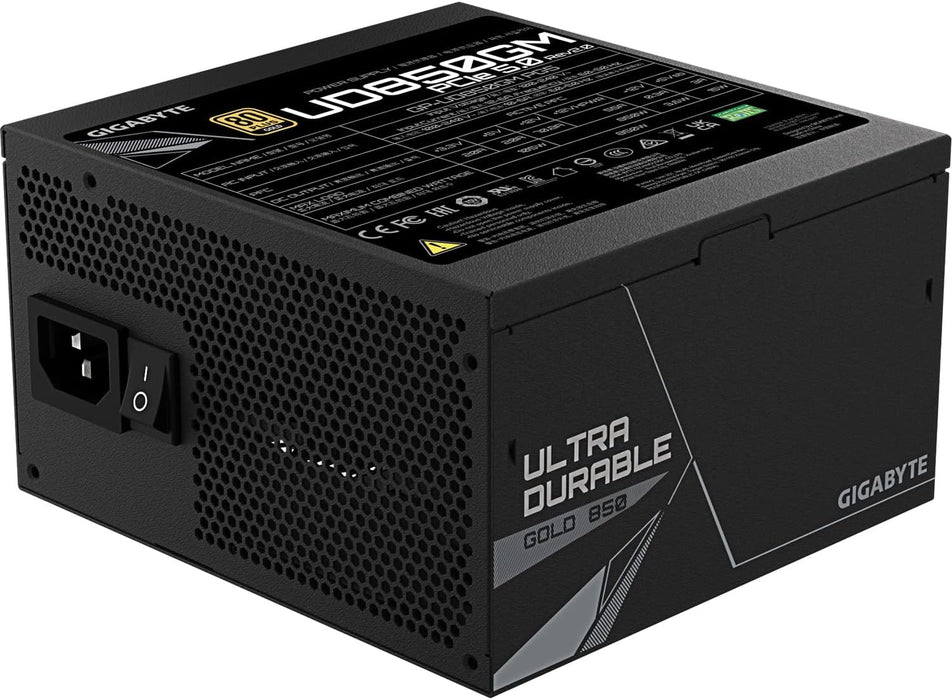

The Gigabyte UD850GM PG5 is a high-performance 850W power supply designed for demanding systems. Fully modular and certified 80+ Gold, it ensures efficient power delivery with minimal waste. Supporting PCIe 5.0 and ATX 3.0 standards, this PSU offers future-proof compatibility and stable operation for advanced components. Its modular design simplifies cable management, enhancing airflow and system cooling. Ideal for expert builders seeking reliable, efficient power in a versatile package.

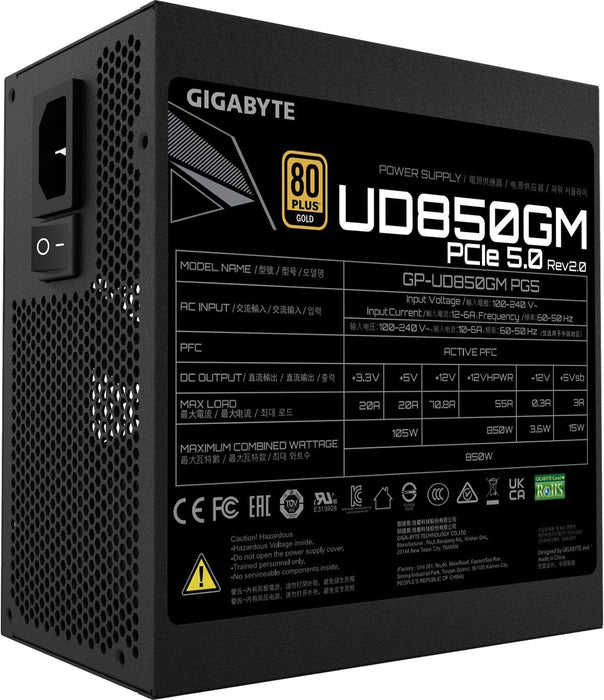

Specifications

Model: GP-UD850GM PG5

Type: Intel Form Factor ATX 12V

PFC: Active PFC (>0.9 typical)

Input Voltage: 100-240 Vac (full range)

Input Current: 12-6A

Input Frequency: 60-50 Hz

Wattage: 850W

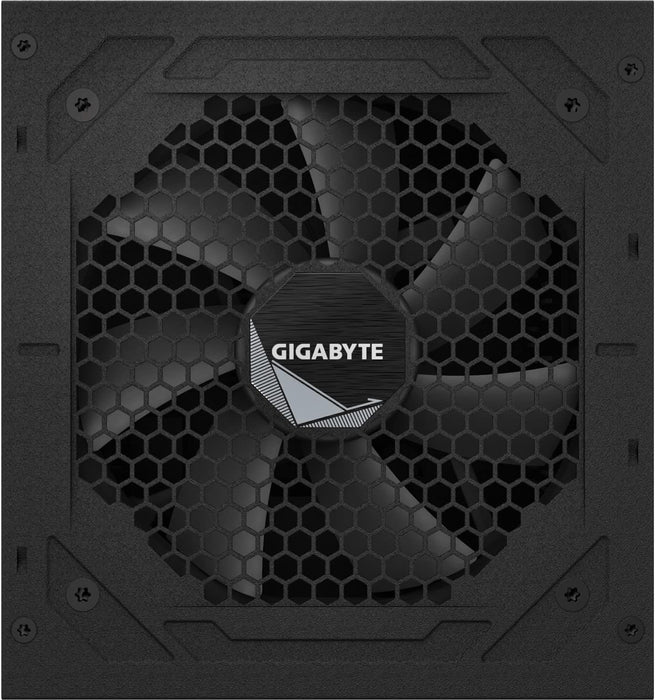

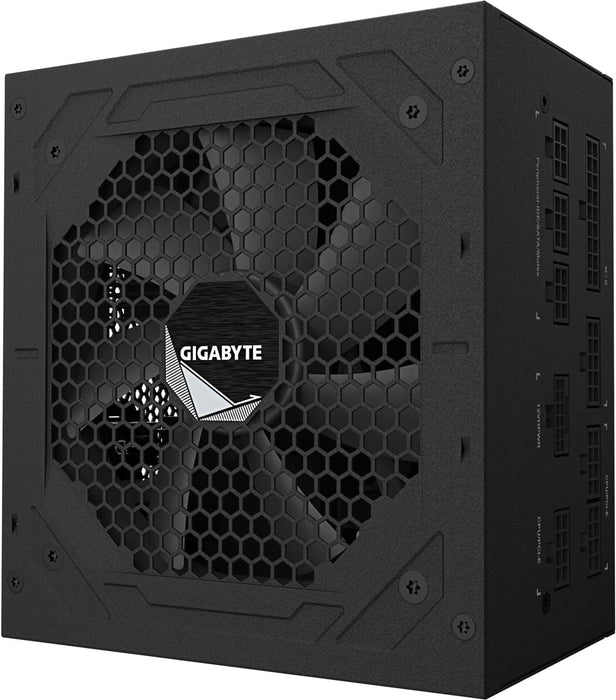

Fan Type: 120mm Hydraulic Bearing (HYB) fan

80 PLUS: Gold

Efficiency: 90% at typical load

MTBF: >100,000 hours

Protection: OVP / OPP / SCP / UVP / OCP / OTP

Power Good Signal: 100-150ms

Hold Up Time: >16ms

Cable Type: Flat, All black

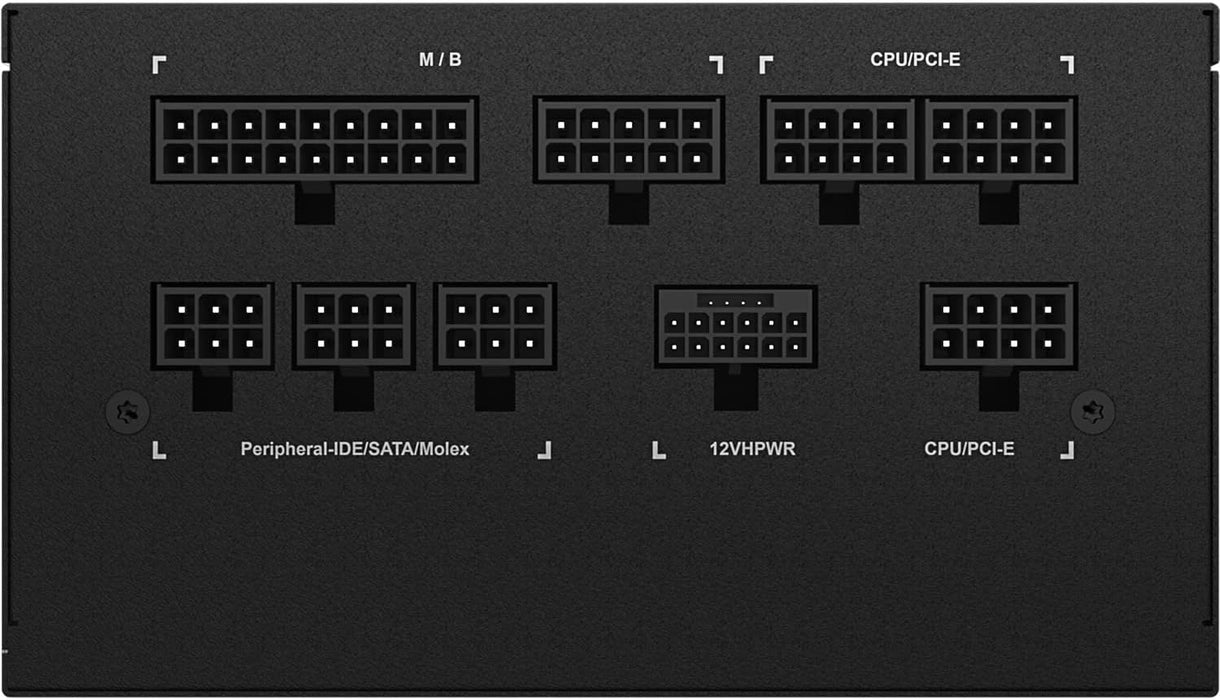

Connections
1 x 20+4 Motherboard pin
2 x 4+4 pin CPU
1 x 16-pin PCI-e
4 x 6+2 PCI-e
8 x SATA
3 x Peripheral
1 x Floppy

Product Dimension: 150 x 140 x 86 mm
