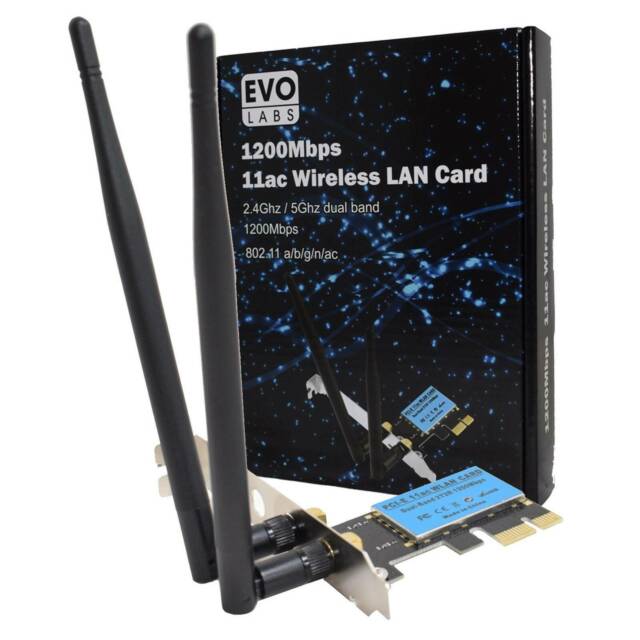

Evo Labs 1200Mbps 11ac Wireless LAN Card

£39.99
High Speed Wi-Fi – Up to 1200 Mbps Wi-Fi speeds (867 Mbps on 5 GHz band and 300 Mpbs on 2.4 GHz band)
802.11ac Dual Band – 3 times faster than the 802.11n standard, perfect for high-intensity network usage
Beam forming – Wi-Fi signals are strengthened towards certain direction where client exists
Multiple-Size Brackets – Low profile and full heigh brackets are both provided, suitable for all PCs
2x2 MIMO – Users can easily access to high-speed wireless connection
Broad Wireless Range – Two external antennas ensure greater Wi-Fi coverage and enhanced stability

Specifications

Wireless Standards:
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/g/b 2.4 GHz

Host Interface:
PCI Express

Signal Rate:
5 GHz
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)

Frequency Band:
2.4/5G dual band support

Radio Channel:
1 - 14 channels (Universal Domain Selection)

Wireless Mode:
Infrastructure Mode

Antenna Type:
Two Dual Band Detachable External Antennas

Roaming:
Full mobility and seamless roaming from cell to cell

Modulation:
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM

Data Security:
64/128-bit WEP Encryption
WPA, WPA-PSK, WPA2, WPA2-PSK. TKIP/AES

Network:
Auto-switch to use 802.11AC or 802.11N or 802.11b mode
Supports Ad-Hoc, Infrastructure WLAN network
Wireless roaming
Data rate auto fall-back under noisy environment or longer range distance
Site Survey with Profile function

Configuration and Management:
Plug-and-Play setup and installation
Management Utility supports 2000 / XP/ Vista

LED Indicator:
Link/Act

Operating System:
Windows 2000, XP, Vista, 7, 8, 10 , Linux

Weight:
50g

Dimensions:
120 (L) x 65 (W) x 15 (H) mm
