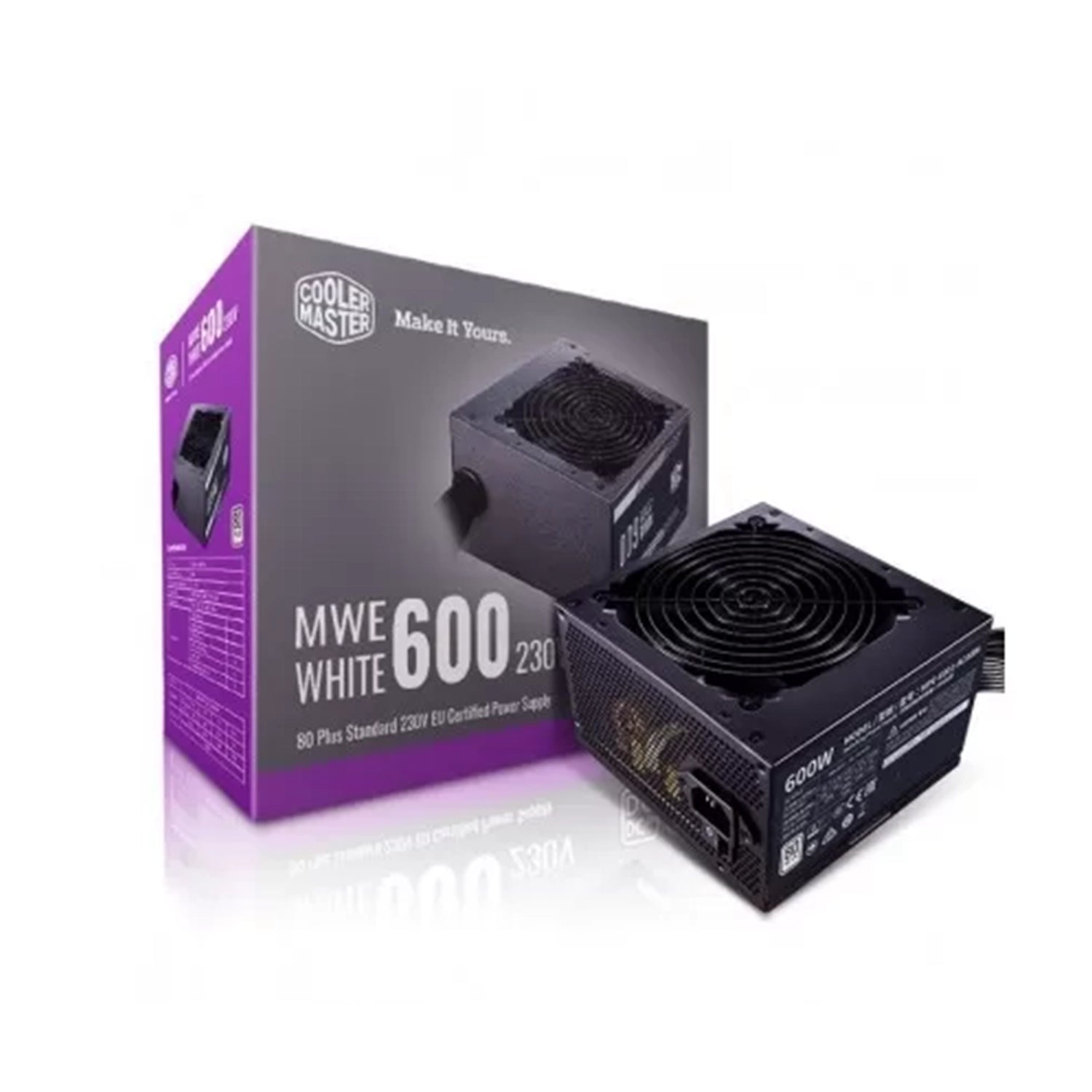

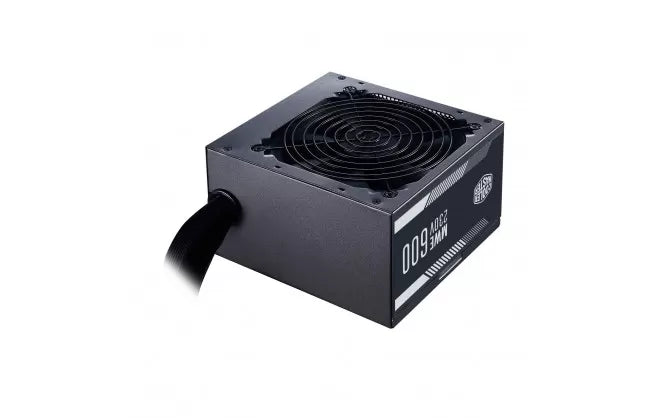

Cooler Master MWE White V2 600W 80+ ATX Power Supply

Cooler Master MWE White V2 600W 80+ PSU

The Cooler Master MWE White V2 600W is a reliable entry‑level ATX power supply featuring 80+ White efficiency, a quiet 120mm HDB cooling fan, and a stable single +12V rail. Designed for budget and mid‑range gaming systems, it delivers consistent power output with essential protections and dependable performance for everyday PC builds.

Specifications

Form Factor: ATX
Series: Cooler Master MWE White V2
Wattage: 600 W
Modular: Non‑Modular
Compatibility: Standard ATX Systems (Active PFC)
Connectors:

1 × ATX Motherboard (20+4‑pin)
1 × 4+4‑pin ATX/EPS (CPU)
2 × PCI‑e 6+2‑pin (GPU)
5 × SATA 3 × Peripheral (Molex)

Rail Design: Single +12V Rail
+12V Output: 49A (Typical for 600W MWE White V2 units)
AC Input: 200–240 VAC
Fan Type: 120mm Cooling Fan
Fan Bearing: HDB (Hydro Dynamic Bearing)
Zero RPM Mode: No
Noise: Low‑noise operation under typical loads
Certification: 80+ White Efficiency High efficiency for reduced heat and stable power delivery
Efficiency (Typical):

20% load: ~82%
50% load: ~85%
100% load: ~82%

Protection:
Over Temperature Protection (OTP)
Over Current Protection (OCP)
Over Power Protection (OPP)
Short Circuit Protection (SCP)
Over Voltage Protection (OVP)
Under Voltage Protection (UVP)

Package Contents

Cooler Master MWE White V2 600W Power Supply
DC Cable Set (Pre‑attached)
UK Power Cord
Mounting Screws
User Documentation

Dimensions (L×W×H): 140 × 150 × 86 mm
Gross Weight: ~1.5 kg
