Aorus B550 Aorus Elite V2 Socket AM4, B550, DDR4/S-ATA 600, ATX AMD Motherboards

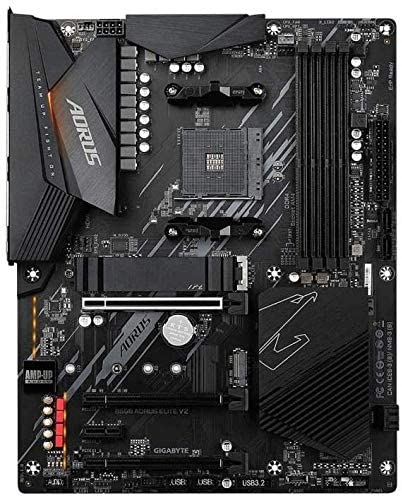

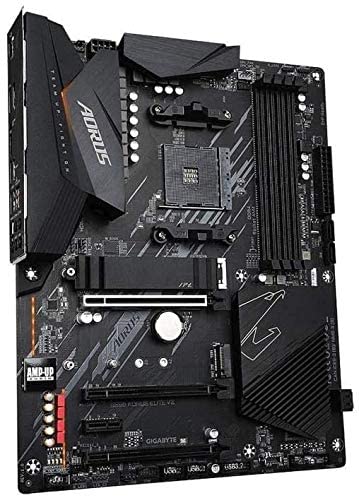

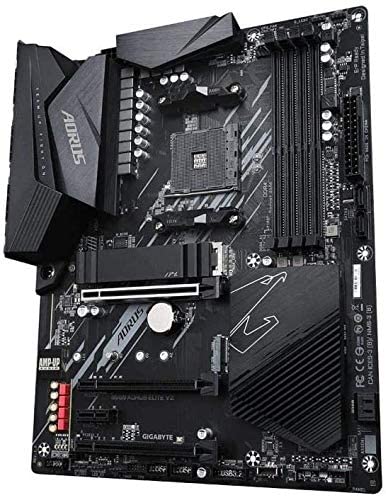

Aorus B550 Elite V2 AMD ATX Gaming Motherboard

The Aorus B550 Aorus Elite V2 is a high-performance ATX motherboard designed for AMD 5th Gen processors with AM4 socket compatibility. Supporting DDR4 memory and SATA 600 storage interfaces, it delivers robust connectivity and efficient data transfer. Engineered for gaming, this motherboard offers reliable power delivery and advanced features to optimize system stability and performance for demanding applications.

• Supports AMD Ryzen 5000 Series/3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors.
• Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs.
• 12+2 Phases Digital Twin Power Design with 50A DrMOS.
• Advanced Thermal Design with Enlarged Surface Heatsinks.
• Ultra-Durable PCIe 4.0 x16 Slot.
• Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with One Thermal Guard.
• AMP-UP Audio with ALC1200 and WIMA Capacitors.
• Blazing Fast 2.5GbE LAN with Bandwidth Management.
• Front USB 3.2 Gen1 Type-C and DisplayPort and HDMI for Multiple Display.
• RGB FUSION 2.0 Supports Addressable LED and RGB LED Strips.
• Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
• Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.
• Pre-installed IO Shield for Easy and Quick Installation.

BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset: AMD B550
CPU Interface: Socket AM4
CPU Support: gigabyte.com/Motherboard/B550-AORUS-ELITE-V2-rev-10/support#support-cpu
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 x 288-pin
RAM Speeds: Up to DDR4 4400 (O.C.)
Max. Memory Support: 128GB
PCI Express 3.0 x16: 3
PCI Express 3.0 x1: 1
S-ATA III Port(s): 4
M.2 Socket(s):
1 x SATA/PCIe 4.0 x4/x2 or SATA/PCIe 3.0 x4/x2
1 x SATA/PCIe 3.0 x4/x2
On-Board LAN: Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
On-Board Audio:
Realtek ALC1200 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
On-Board Video: AMD processor with integrated graphics is required

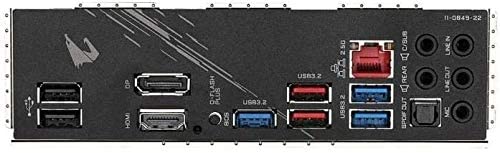

Back USB 2.0 Port(s): 2
Back USB 3.2 Port(s) Type-A Gen 2: 2
Back HDMI Port(s): 1
Back DisplayPort(s): 1
Back LAN Port(s): 1
Back Audio Jack(s): 5
Back S/PDIF Output Port(s): 1
Back Button(s): 1 x Q-Flash Plus
24-pin ATX Power: 1
8-pin ATX Power: 1
USB 2.0 Header(s): 2
USB 3.2 Header(s) Gen 2: 1
Front Panel Audio Connector: 1
TPM Header(s): 1
Internal Other Port(s):
1 x CPU Cooler LED Strip/RGB LED Strip Header
2 x Addressable LED Strip Headers
2 x RGB LED Strip Headers
Form Factor: Standard ATX
Product Width: 244mm
Product Length: 305mm
Package Width: 27.5cm
Package Length: 34cm
Package Height: 8cm
Gross Weight: 1.62Kg

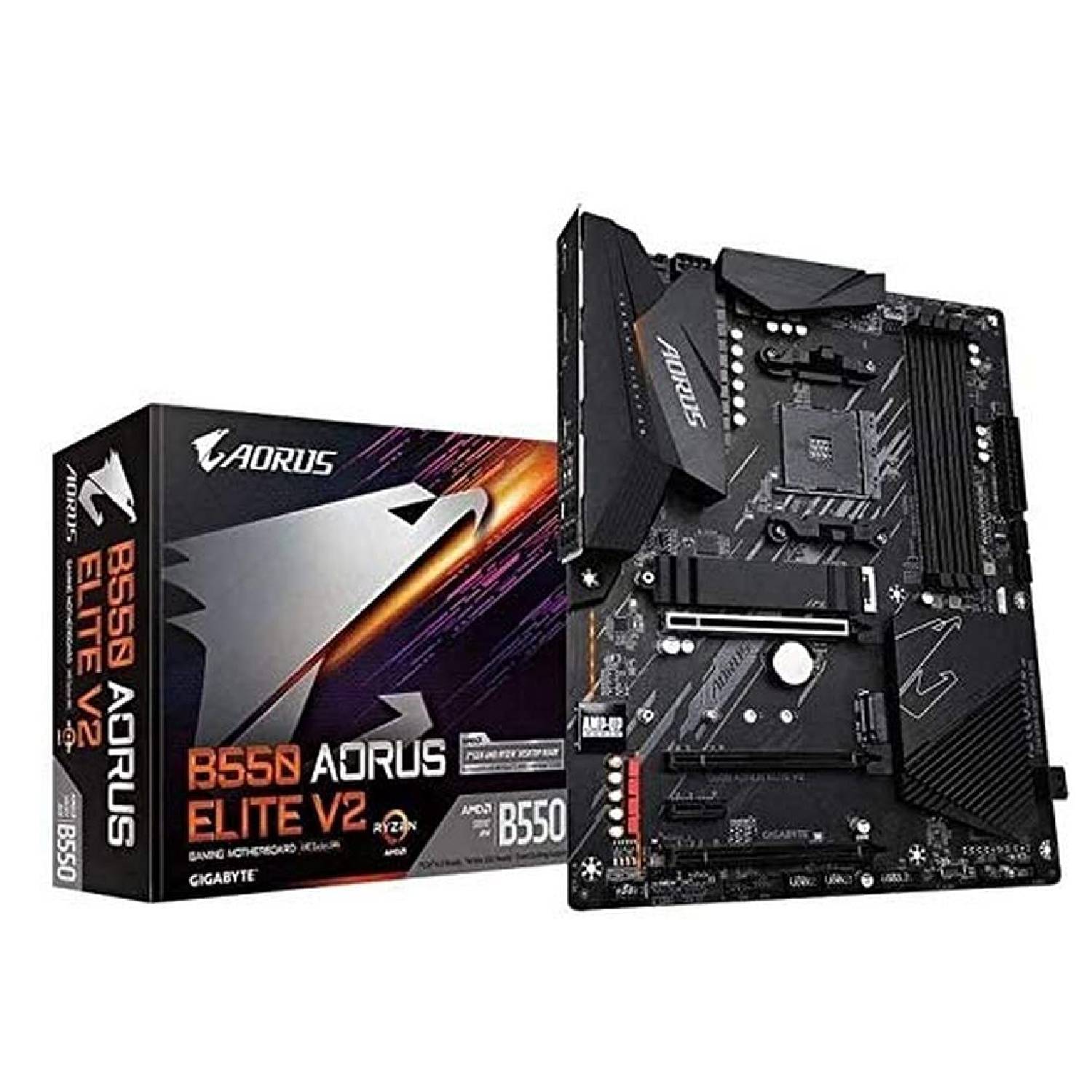

Package Contents:
B550 AORUS ELITE V2
Support Disk
1 x G Connector
2 x SATA cables
Manual
