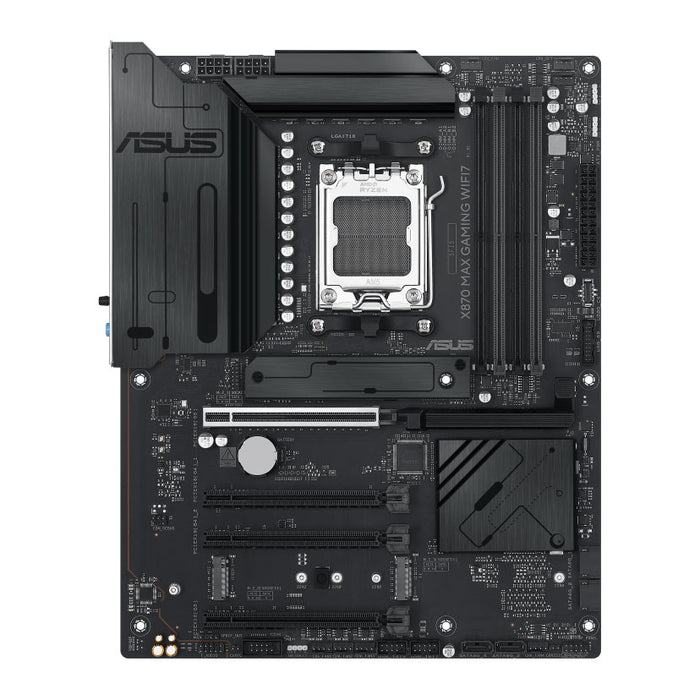

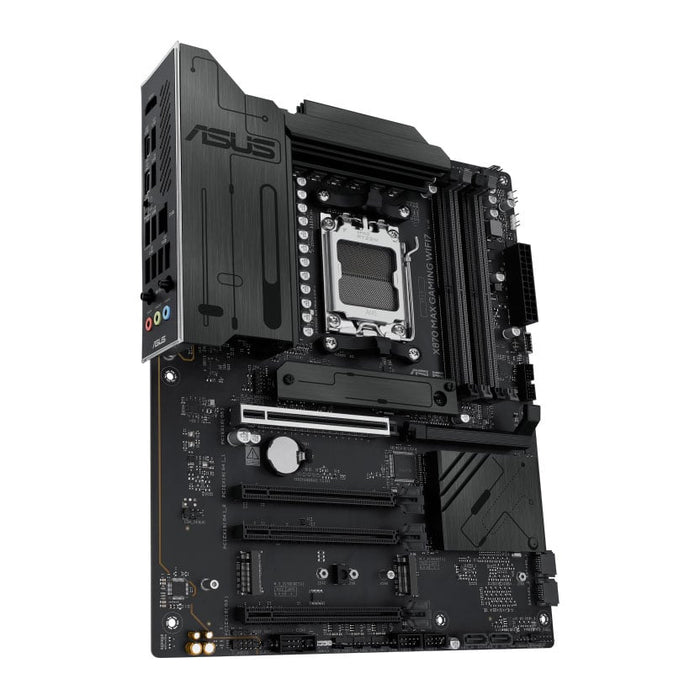

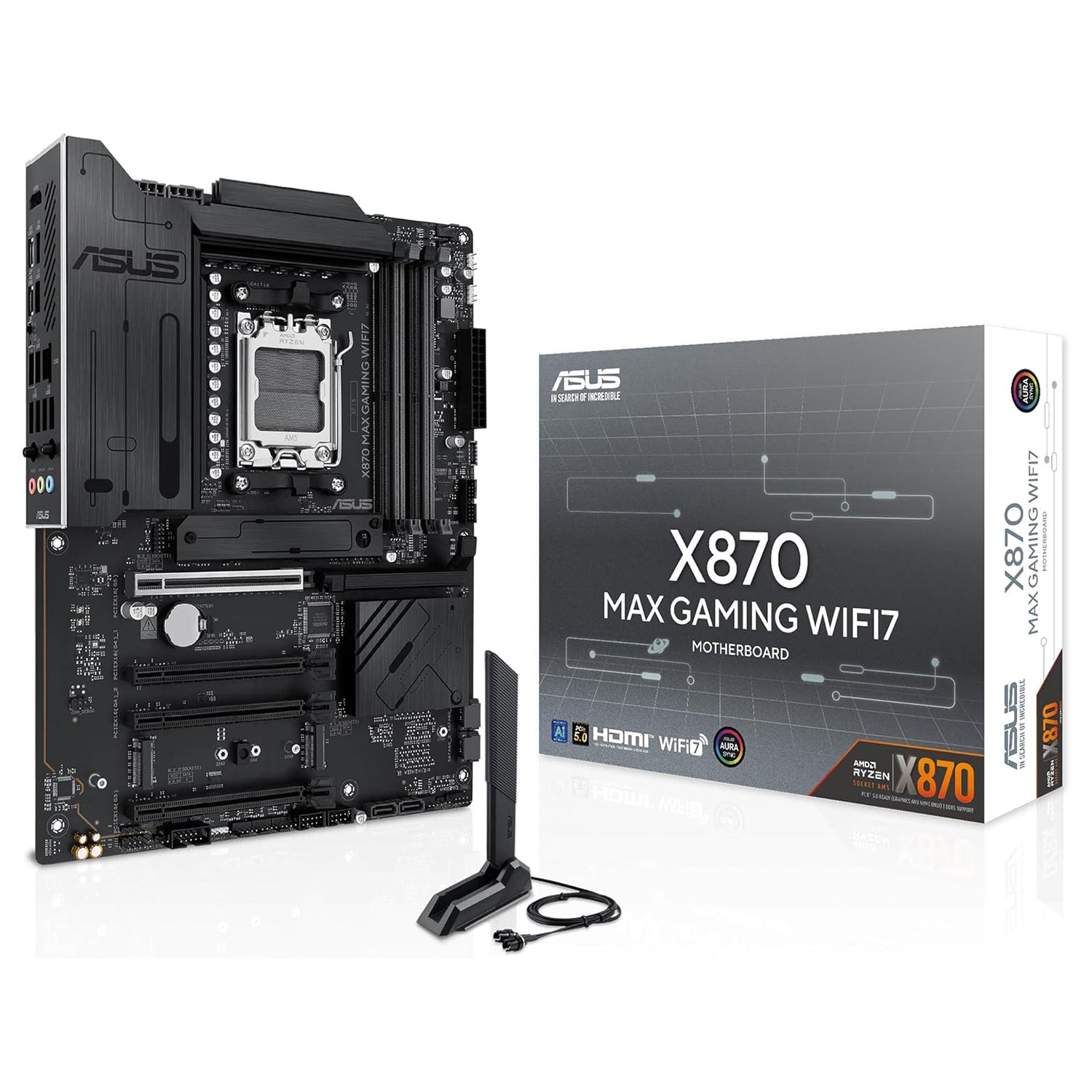

Asus X870 Max Gaming WiFi Motherboard, AMD AM5, ATX, DDR5, WiFi7 for AI & Editing

Asus X870 MAX Gaming Motherboard WiFi

The Asus X870 Max Gaming WiFi7 motherboard delivers cutting-edge performance for AMD AM5 processors with support for the latest DDR5 memory. Its ATX form factor ensures compatibility with a wide range of cases, while built-in WiFi7 provides ultra-fast, low-latency wireless connectivity essential for AI applications and content editing. Designed for demanding gamers and professionals, this board offers robust power delivery and advanced connectivity options to maximize system stability and responsiveness.

Specifications

Motherboard Type: Desktop

Form Factor: ATX

Socket: AMD AM5

Chipset: AMD X870

RAM Technology
DDR5 (Dual Channel)
ECC and Non-ECC, Un-buffered Memory*
Supports AMD EXPO
ASUS Enhanced Memory Profile
*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

RAM Slots: 4 x DIMM

RAM Speeds: Up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 CPUs

Maximum Memory: 256GB

Graphics
Integrated Graphics
Graphics specifications may vary between CPU types

Graphics Ports: 1 x HDMI, 2 x USB4 (40Gbps) support USB Type-C display outputs

PCI/PCI Express
Ryzen 9000 & 7000 CPUs: 1 x PCIe 5.0 x16 (supports x16 mode)
Ryzen 8000 CPUs: 1 x PCIe 4.0 x16 (supports x8/x4 mode)
AMD X870 Chipset: 2 x PCIe 4.0 x16 (support x1 mode), 1 x PCIe 3.0 x16 (supports x1 mode)

Storage
4 x SATA III
3 x M.2

Ryzen 9000 & 7000 CPUs:
M.2_1 (2280) - PCIe 5.0 x4
M.2_2 (2242/2260/2280) - PCIe 4.0 x4

Ryzen 8000 CPUs:
M.2_1 (2280) - PCIe 4.0 x4
M.2_2 (2242/2260/2280) - PCIe 4.0 x4/x2

X870E Chipset:
M.2_3 (2280) - PCIe 4.0 x4

RAID
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10

Wireless
Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth v5.4

LAN: 2.5GB LAN

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported
Rear:
2 x USB4 (40Gbps) Type-C
1 x USB 10Gbps Type-A
3 x USB 5Gbps Type-A
4 x USB 2.0

Front:
1 x USB 20Gbps Type-C
2 x USB 5Gbps
4 x USB 2.0

Back Panel I/O Ports
2 x USB4 (40Gbps) Type-C
1 x USB 10Gbps Type-A
3 x USB 5Gbps Type-A
4 x USB 2.0
1 x HDMI
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button

Internal I/O Connectors
1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
4 x 4-pin Chassis Fan
1 x 24-pin Main
2 x 8-pin +12V CPU
3 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 20Gbps Type-C
1 x USB 5Gbps
2 x USB 2.0
3 x Addressable RGB Gen2 1 x Clear CMOS
1 x Chassis Intrusion
1 x COM Port
1 x Front Panel Audio
1 x S/PDIF Out
1 x SPI TPM (14-1 pin)
1 x 10-1 pin System Panel

Accessories
2 x SATA 6Gb/s cables
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber package
1 x Screw package for M.2 SSD
1 x Quick start guide
