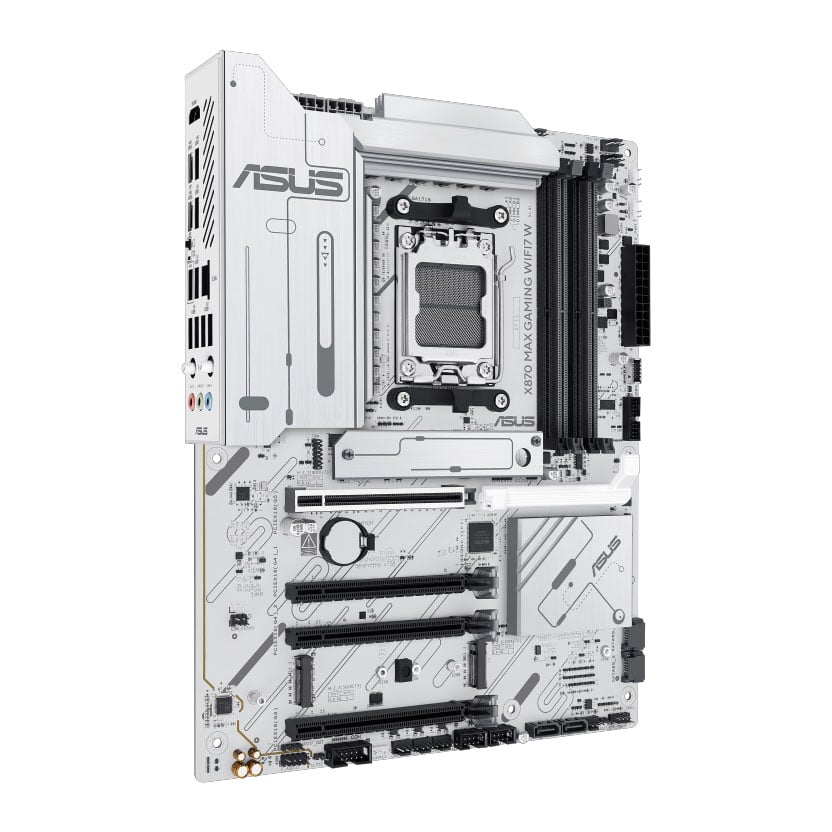

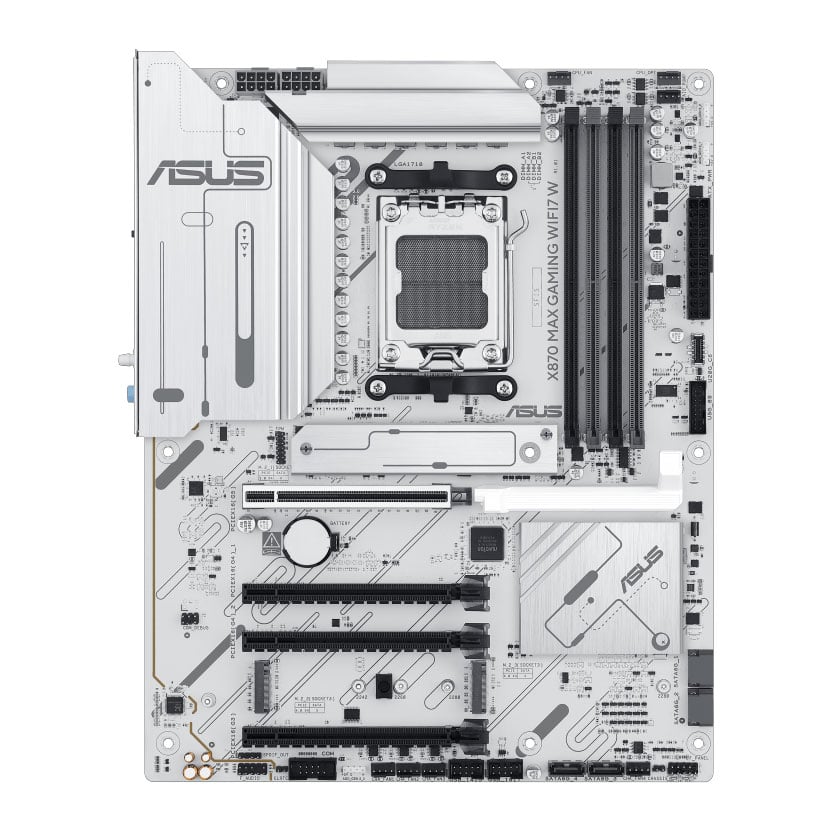

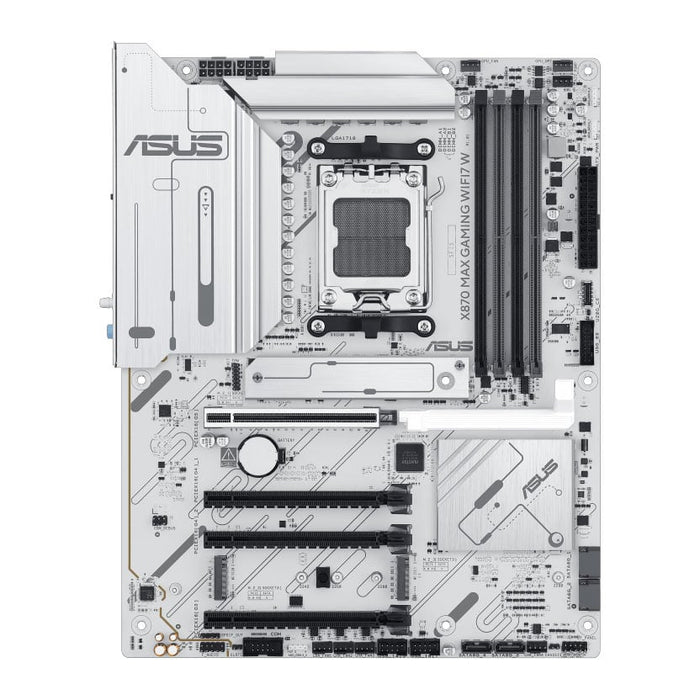

ASUS X870 Max Gaming WIFI 7 W AMD AM5 DDR5 PCIe 5.0 ATX Motherboard, White

Asus X870 Max Gaming WiFi ATX Motherboard

The ASUS X870 Max Gaming WIFI 7 W delivers cutting-edge performance for AMD Ryzen 7000 series processors on the AM5 socket. This ATX motherboard features DDR5 memory support for blazing-fast data speeds, PCIe 5.0 connectivity for next-generation graphics cards and storage devices, and integrated WiFi 7 for ultra-low latency gaming and streaming. The white aesthetic complements modern builds while robust power delivery ensures stable overclocking. Ideal for enthusiasts demanding maximum bandwidth and reliability in a premium gaming platform.

Specifications

Motherboard Type: Desktop

Form Factor: ATX

Socket: AMD AM5

Chipset: AMD X870

RAM Technology
DDR5 (Dual Channel)
ECC and Non-ECC, Un-buffered Memory*
Supports AMD EXPO
ASUS Enhanced Memory Profile

*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

RAM Slots: 4 x DIMM

RAM Speeds: Up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 CPUs

Maximum Memory: 256GB

Graphics
Integrated Graphics
Graphics specifications may vary between CPU types

Graphics Ports: 1 x HDMI, 2 x USB4 (40Gbps) support USB Type-C display outputs

PCI/PCI Express
Ryzen 9000 & 7000 CPUs: 1 x PCIe 5.0 x16 (supports x16 mode)
Ryzen 8000 CPUs: 1 x PCIe 4.0 x16 (supports x8/x4 mode)
AMD X870 Chipset: 2 x PCIe 4.0 x16 (support x1 mode), 1 x PCIe 3.0 x16 (supports x1 mode)

Storage
4 x SATA III
3 x M.2

Ryzen 9000 & 7000 CPUs:
M.2_1 (2280) - PCIe 5.0 x4
M.2_2 (2242/2260/2280) - PCIe 4.0 x4

Ryzen 8000 CPUs:
M.2_1 (2280) - PCIe 4.0 x4
M.2_2 (2242/2260/2280) - PCIe 4.0 x4/x2

X870E Chipset:
M.2_3 (2280) - PCIe 4.0 x4

RAID
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10

Wireless
Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth v5.4

LAN: 2.5GB LAN

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported
Rear:
2 x USB4 (40Gbps) Type-C
1 x USB 10Gbps Type-A
3 x USB 5Gbps Type-A
4 x USB 2.0

Front:
1 x USB 20Gbps Type-C
2 x USB 5Gbps
4 x USB 2.0

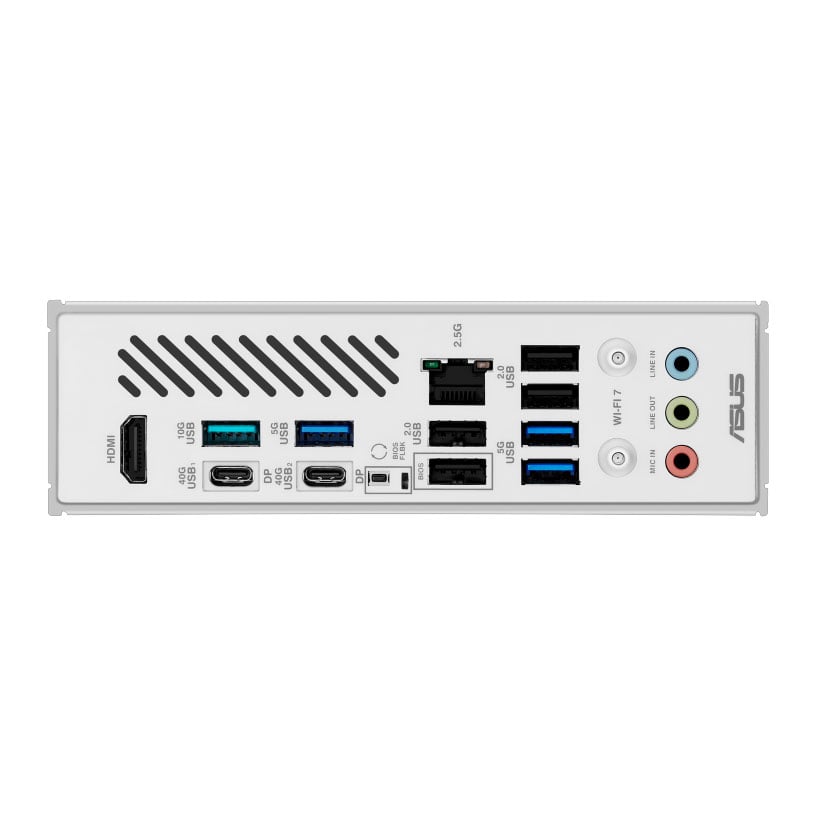

Back Panel I/O Ports
2 x USB4 (40Gbps) Type-C
1 x USB 10Gbps Type-A
3 x USB 5Gbps Type-A
4 x USB 2.0
1 x HDMI
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button

Internal I/O Connectors
1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
4 x 4-pin Chassis Fan
1 x 24-pin Main
2 x 8-pin +12V CPU
3 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 20Gbps Type-C
1 x USB 5Gbps
2 x USB 2.0
3 x Addressable RGB Gen2 1 x Clear CMOS
1 x Chassis Intrusion
1 x COM Port
1 x Front Panel Audio
1 x S/PDIF Out
1 x SPI TPM (14-1 pin)
1 x 10-1 pin System Panel

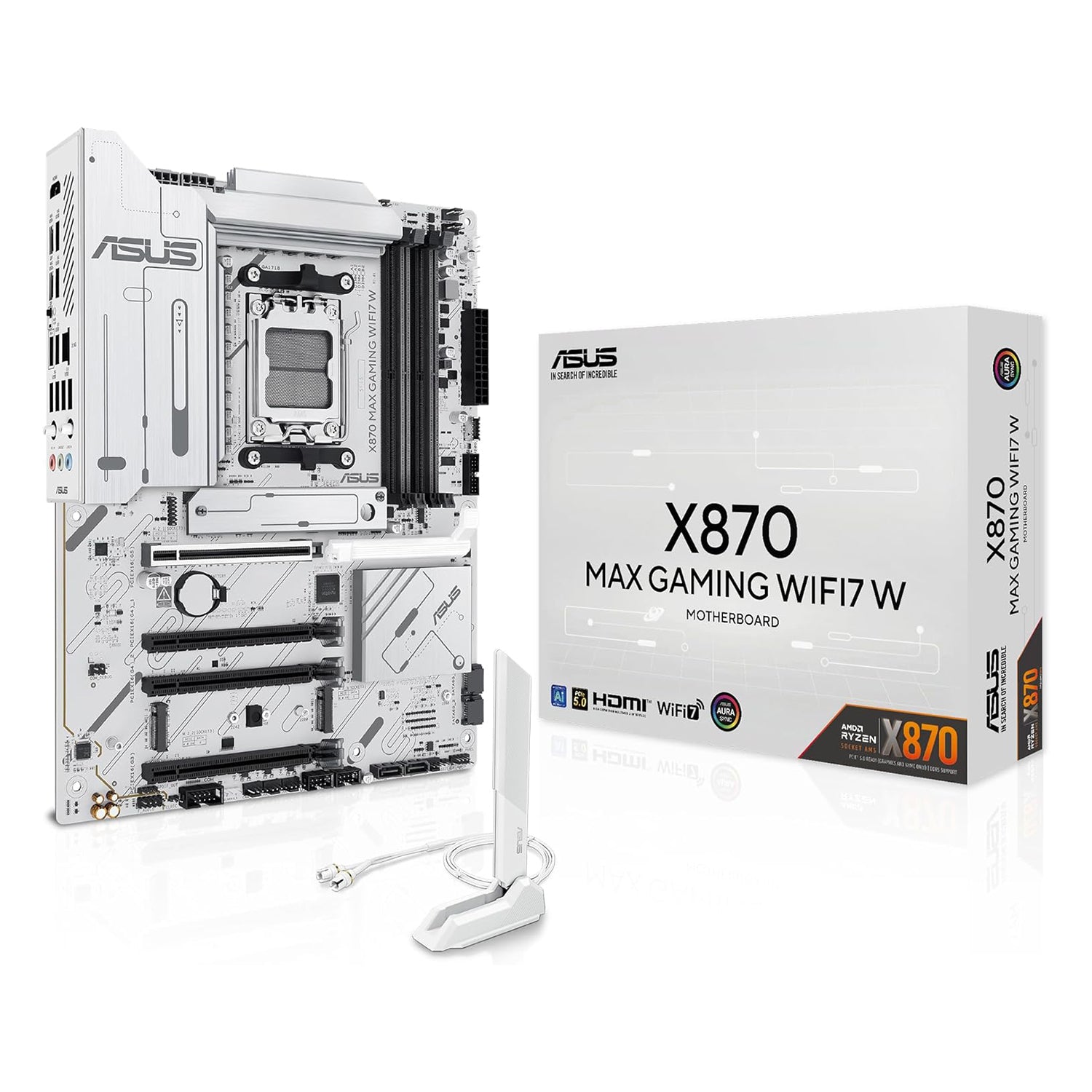

Accessories
2 x SATA 6Gb/s cables
1 x ASUS WiFi Q-Antenna
1 x M.2 rubber package
1 x Screw package for M.2 SSD
1 x Quick start guide
