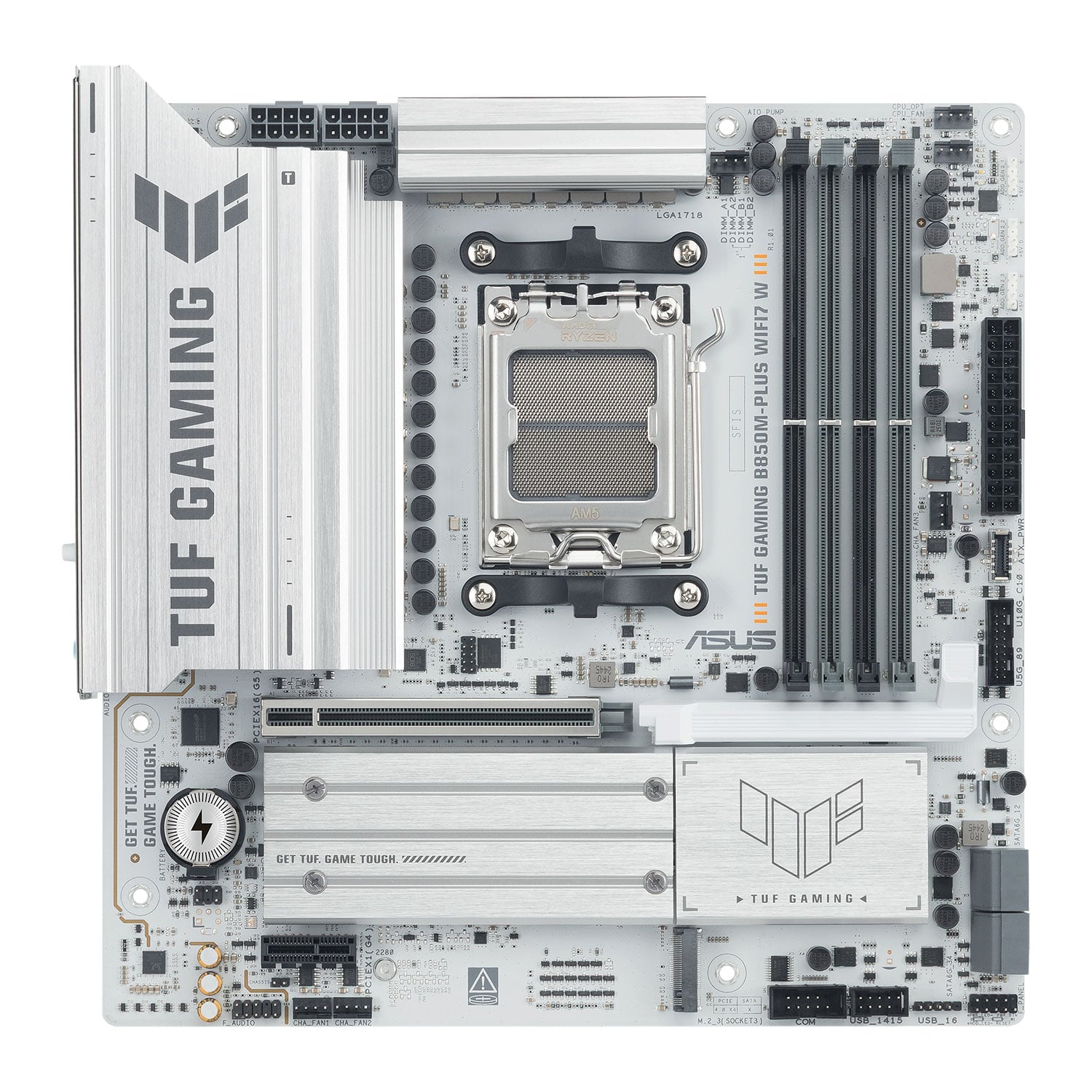

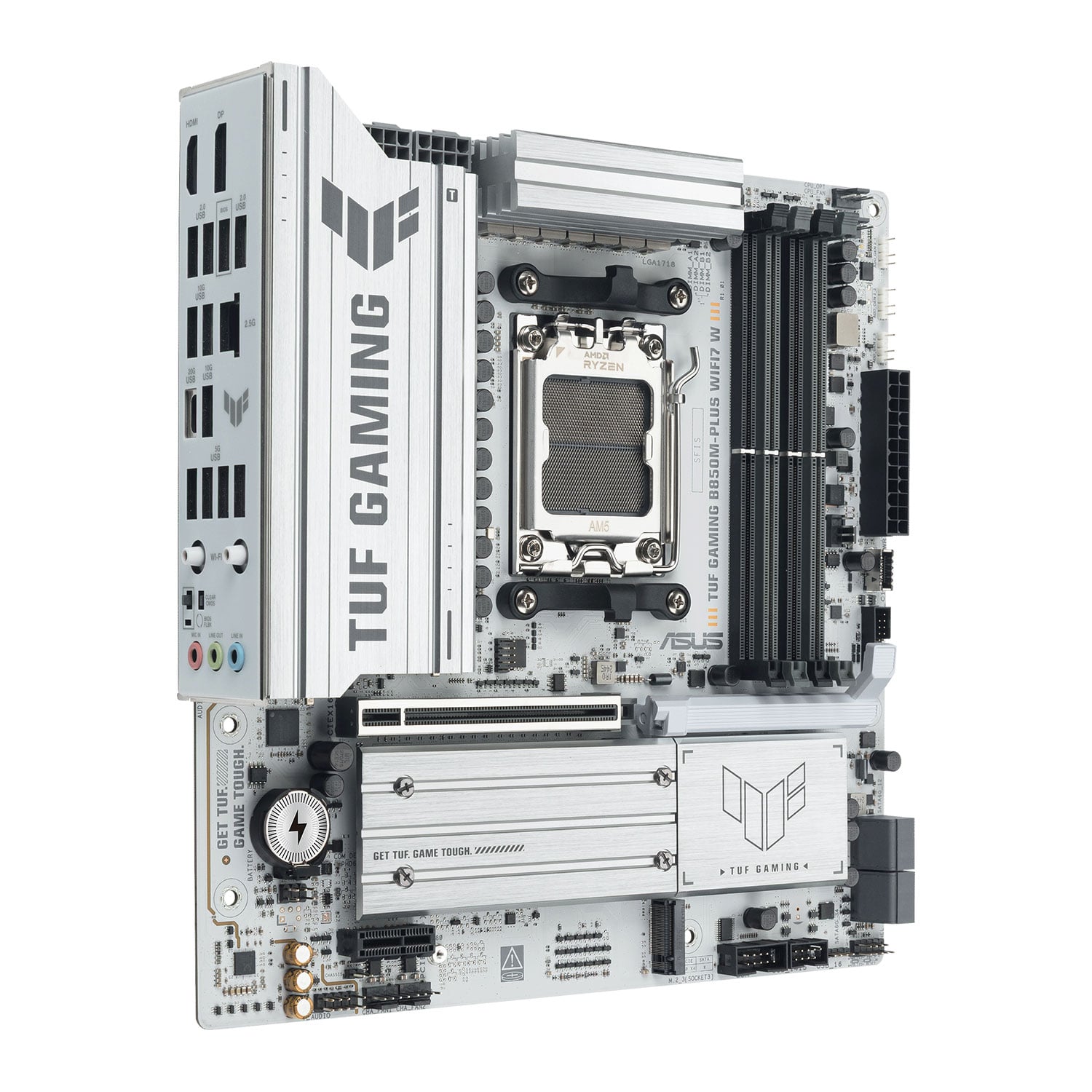

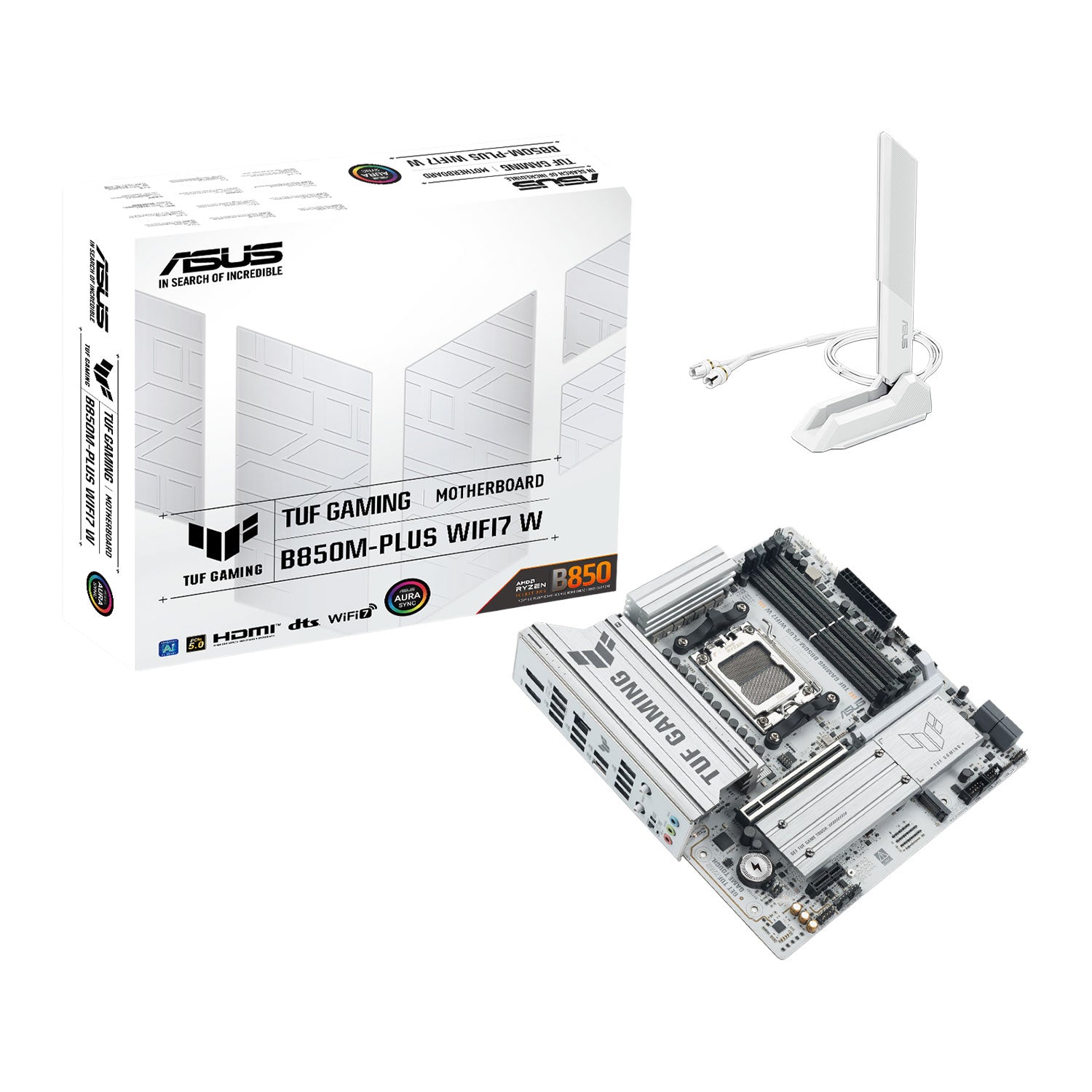

Asus Tuf Gaming B850M-Plus WiFi7 W Gaming Motherboard AMD AM5 Micro ATX
Asus Tuf Gaming B850 Micro ATX AMD Gaming Motherboard
High-performance gaming motherboard designed for AMD Ryzen processors with AM5 socket compatibility. The TUF Gaming B850M-Plus WiFi7 delivers robust power delivery, advanced cooling solutions, and comprehensive overclocking support for competitive gaming and content creation.
Compact micro-ATX form factor fits smaller cases without compromising features. Integrated WiFi 7 connectivity provides ultra-fast wireless performance for lag-free online gaming. Multiple USB 3.2 and Thunderbolt ports enable quick data transfers and peripheral connectivity.
Built with military-grade TUF components for enhanced durability and stability. Extensive BIOS customization options cater to enthusiasts seeking fine-tuned system performance. Premium audio circuitry and shielded power stages minimize electrical noise for clean signal integrity.
Optimized for next-generation Ryzen 9000 series processors while supporting a broad range of AM5 CPUs. RGB lighting integration syncs with compatible peripherals for cohesive system aesthetics. Comprehensive VRM design ensures stable power delivery during intensive gaming sessions and multitasking workloads.
Specifications
Edition: TUF GAMING B850M-PLUS WiFi7 W
Form Factor: MicroATX
CPU Socket: AM5
Chipset: AMD B850
Memory Type: DDR5
Memory Channel: Dual (2)
Memory Type (ECC): Non-ECC
Memory Type (R/U): UDIMM (Unbuffered)
Memory Speed (Mhz): DDR5 - 8000(OC)
Max. Memory Capacity: 256GB
Audio: 7.1 Channel HD Audio
Primary GPU Interface: PCIe 5.0 (x16)
Integrated Graphics: Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors: DisplayPort, HDMI
Expansion Slots: 1 x PCIe 4.0 x1, 1 x PCIe 4.0 x16 (x4 Bandwidth), 1 x PCIe 5.0 x16, 4 x SATA 6GB/s
SATA Support: SATA3
Storage Mode Support: RAID 0, RAID 1, RAID 10, RAID 5
Internal I/O: 1 x 24-pin (Power), 1 x 4-pin AIO_PUMP Connector, 3 x 4-pin CHA_FAN connector, 1 x 4-pin CPU Fan Connector, 1 x 4-pin CPU OPT Fan Connector, 2 x 8-pin (Power), 3 x Addressable Gen 2 Header, 1 x Chassis Intrusion connector, 1 x Front Panel Audio Header, 1 x Front Panel Connector, 3 x M.2, 4 x SATA III - 6Gb/s, 1 x Serial (COM) Header, 2 x USB 2.0 Header, 1 x USB 3.2 Gen1 Header, 1 x USB 3.2 Gen2 Type-C Header
Network Interface Type: 802.11be Wi-Fi 7, Wired 2.5 Gigabit LAN
Network Chip/Modules: 1 x 802.11be WiFi 7 + BT5.4, 1 x Realtek (2.5GbE LAN)

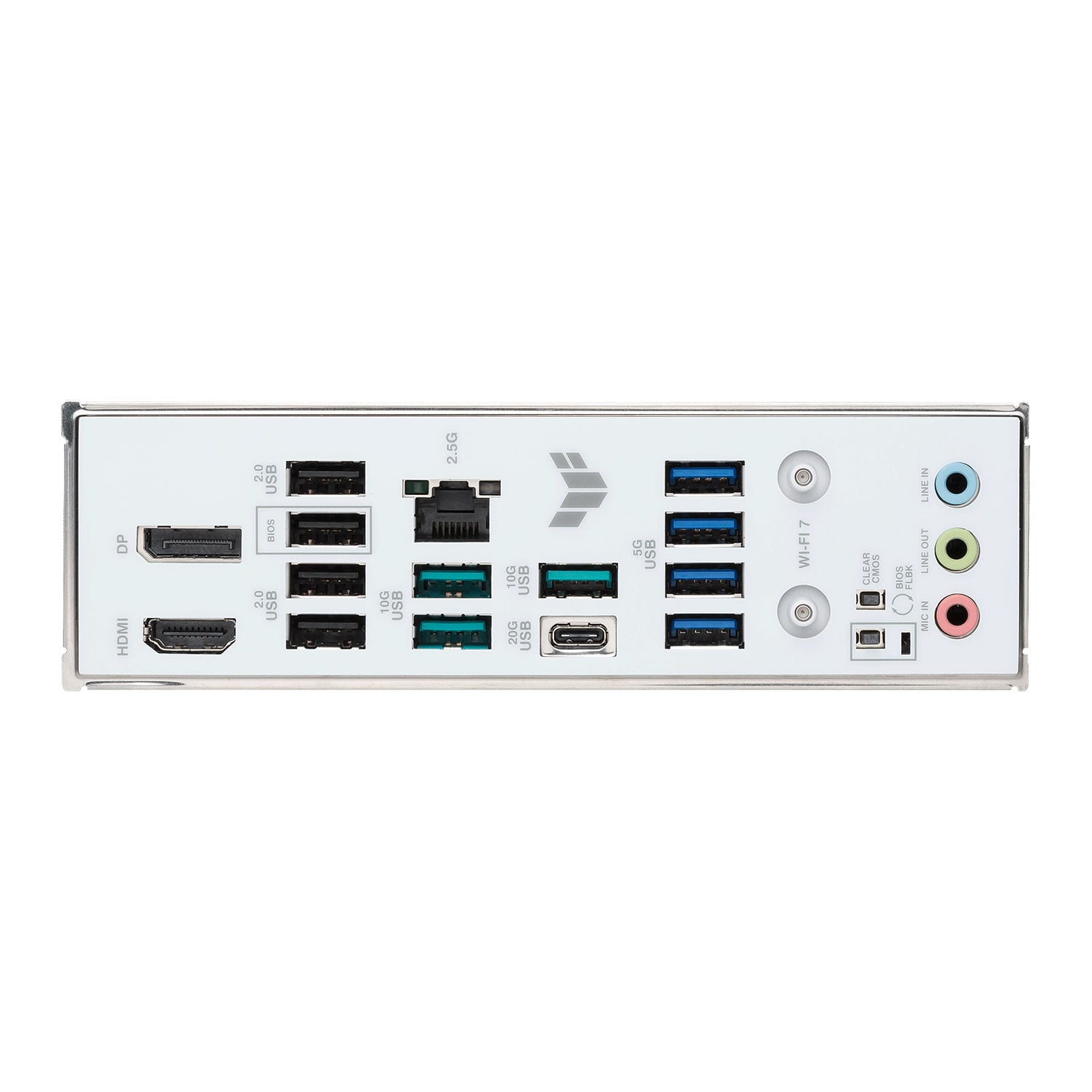

Rear I/O Connectors: 1 x BIOS Flashback Button, 1 x Clear CMOS Button, 1 x DisplayPort, 1 x HDMI, 1 x Line In, 1 x Line Out, 1 x Mic-In, 1 x RJ-45, 4 x USB 2.0, 4 x USB 3.2 Gen1 Type-A, 3 x USB 3.2 Gen2 Type-A, 1 x USB 3.2 Gen2x2 Type-C, 1 x WiFi Module
Board Dimensions: 244 x 244 mm
