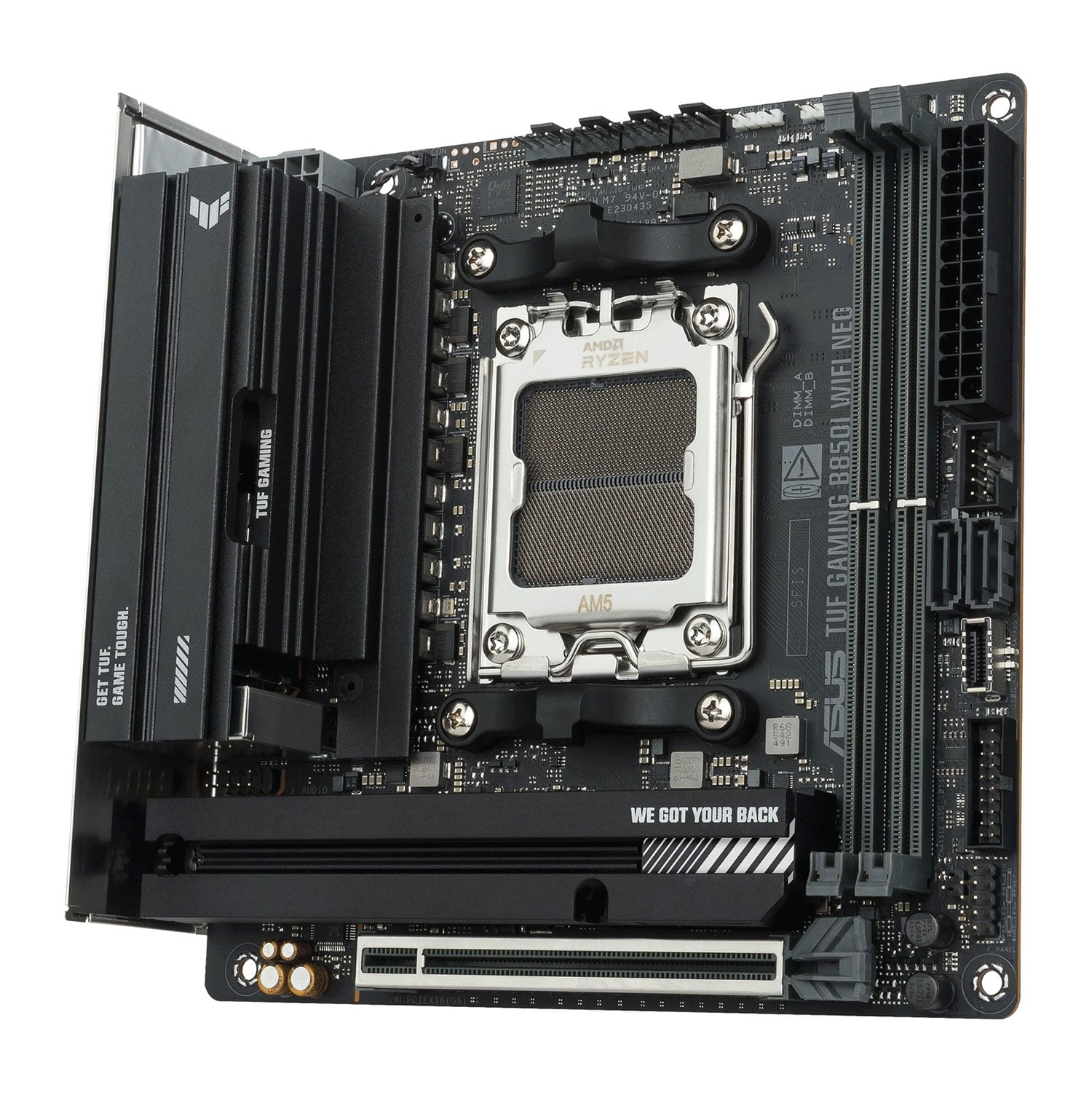

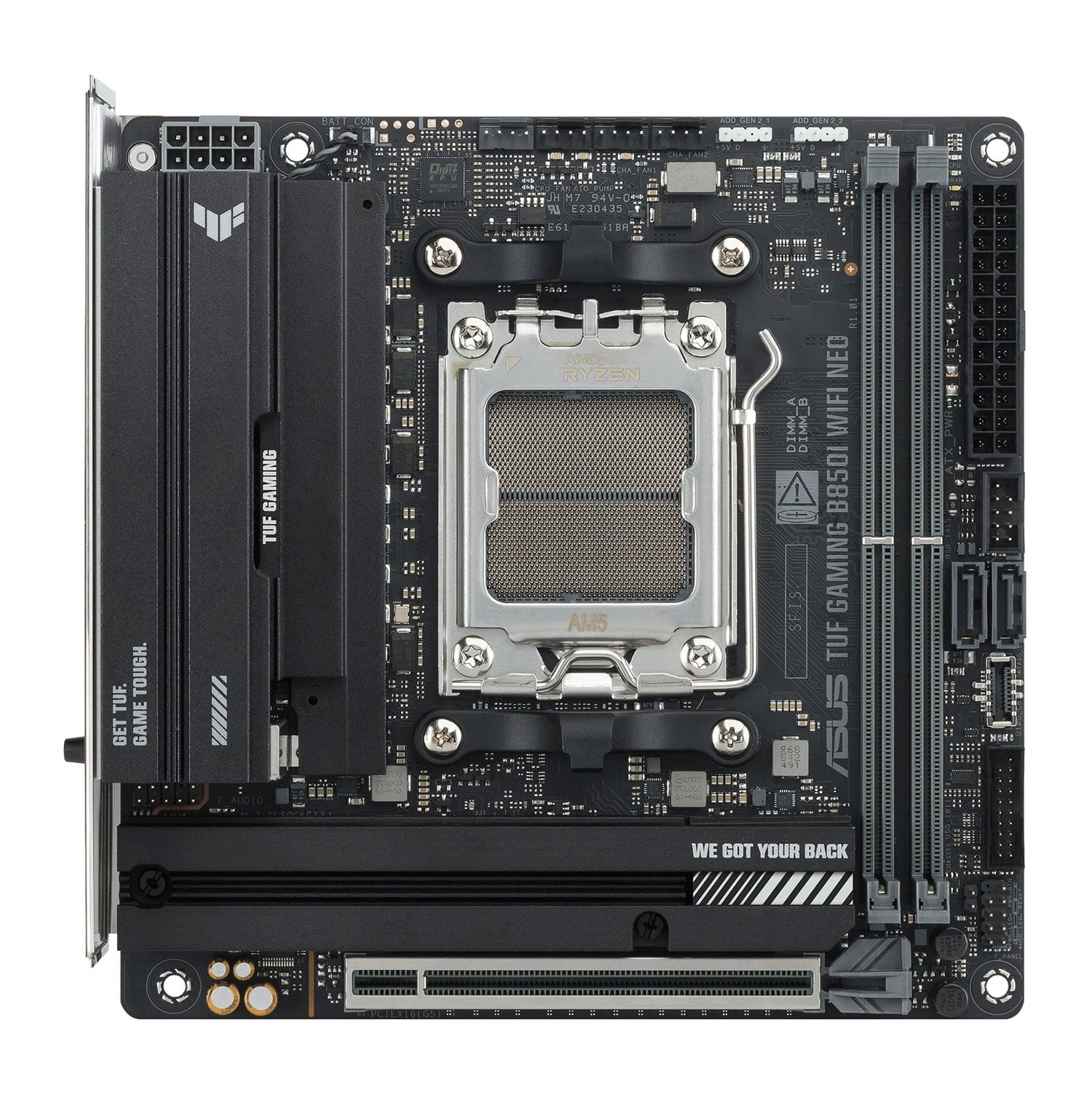

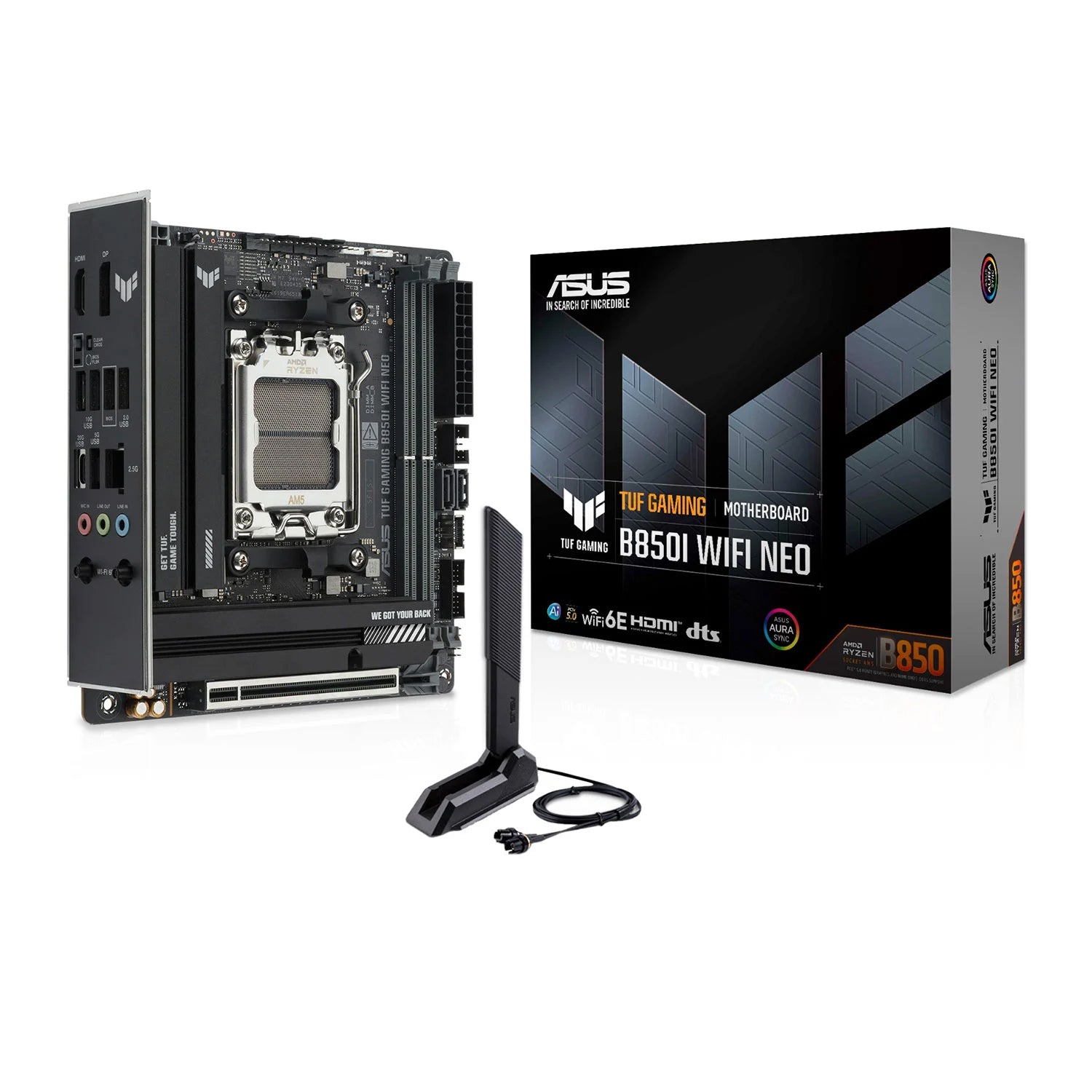

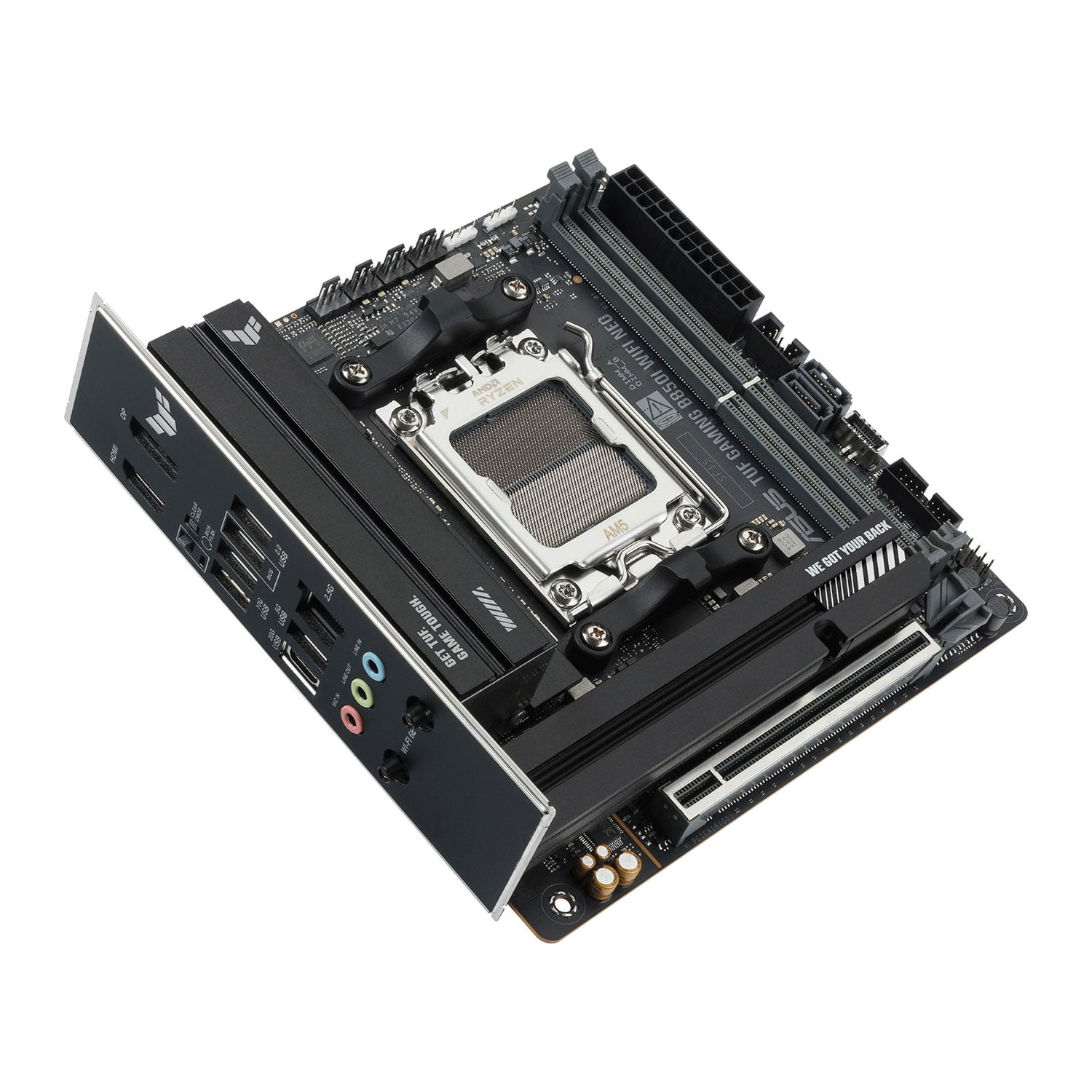

Asus Tuf Gaming B850I WiFi NEO Motherboard AMD B850 AM5 mini ITX
Asus Tuf Gaming Neo B850 Mini-ITX AMD Motherboard AM5
Compact power meets premium performance with the ASUS TUF Gaming B850I WiFi NEO. This mini-ITX motherboard harnesses AMD's B850 chipset for AM5 processors, delivering robust stability and overclocking potential in a space-efficient form factor.
Built for builders with limited chassis real estate, the B850I features comprehensive power delivery, PCIe 5.0 support, and integrated WiFi 6E connectivity. TUF-grade components ensure durability through demanding gaming sessions and intensive workloads. The NEO design balances feature density with thermal efficiency, making it ideal for high-performance SFF (Small Form Factor) builds.
Whether you're crafting a compact gaming rig or workstation, this motherboard combines ASUS reliability with modern AM5 platform capabilities.
Specifications
Edition: ASUS TUF GAMING B850I WIFI NEO
Form Factor: Mini-ITX
CPU Socket: AM5
Chipset: AMD B850
Memory Type: DDR5
Memory Channel: Dual (2)
Memory Type (ECC): ECC/Non-ECC
Memory Type (R/U): UDIMM (Unbuffered)
Memory Speed (Mhz): DDR5 - 8000(OC), DDR5 - 8200(OC), DDR5 - 9600(OC)
Max. Memory Capacity: 128GB
Audio: 7.1 Channel HD Audio
Primary GPU Interface: PCIe 5.0 (x16)
On-Board Graphics Connectors: DisplayPort 1.4, HDMI 2.1
Expansion Slots: 1 x M.2, 22-60/80, PCIe Gen4x4, 1 x M.2, 22-60/80, PCIe Gen5x4, 2 x SATA 6GB/s
SATA Support: SATA3
Storage Mode Support: RAID 0, RAID 1, RAID 10, RAID 5
Internal I/O: 1 x 24-pin (Power), 1 x 4-pin AIO_PUMP Connector, 2 x 4-pin CHA_FAN connector, 1 x 4-pin CPU Fan Connector, 1 x 8-pin (Power), 2 x Addressable Gen 2 Header, 1 x Chassis Intrusion connector, 1 x Front Panel Audio Header, 1 x Front Panel Connector, 1 x USB 2.0, 1 x USB 3.0 Header, 1 x USB 3.1 Gen1 Header
Network Interface Type: Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules: 1 x 802.11ax WiFi + BT5
Rear I/O Connectors: 3 x Audio I/O, 1 x BIOS Flashback Button, 1 x Clear CMOS Button, 1 x DisplayPort 1.4
1 x HDMI 2.1, x RJ-45, 2 x USB 2.0, 2 x USB 3.1 Type-A, 1 x WiFi Antenna connectors
Board Dimensions: 170 x 170 mm
