ASUS TUF GAMING B850‑BTF WIFI White – AM5 ATX Motherboard, DDR5, PCIe 5.0, Wi‑Fi 7

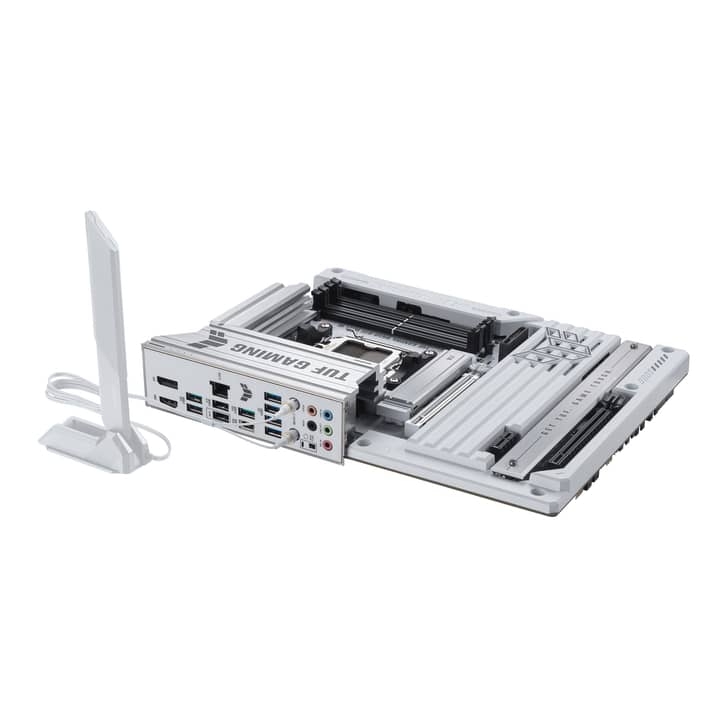

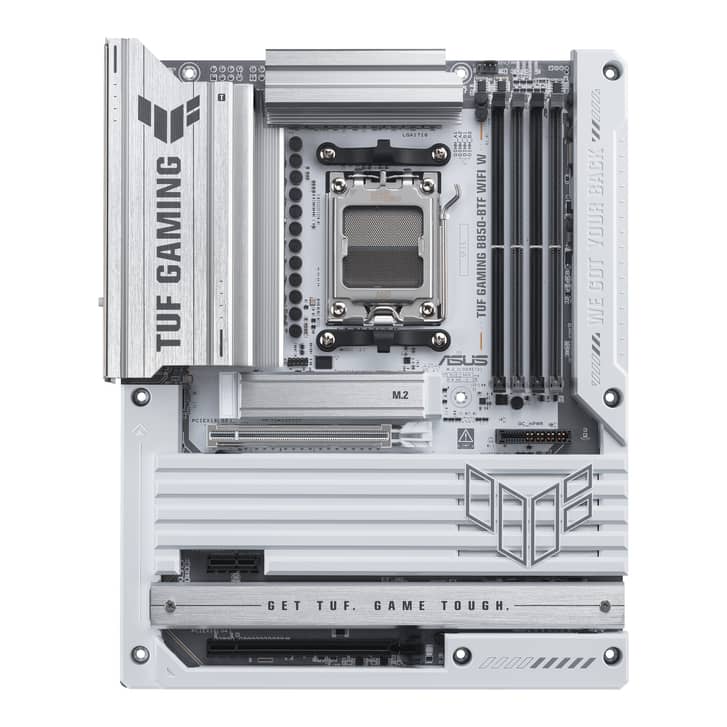

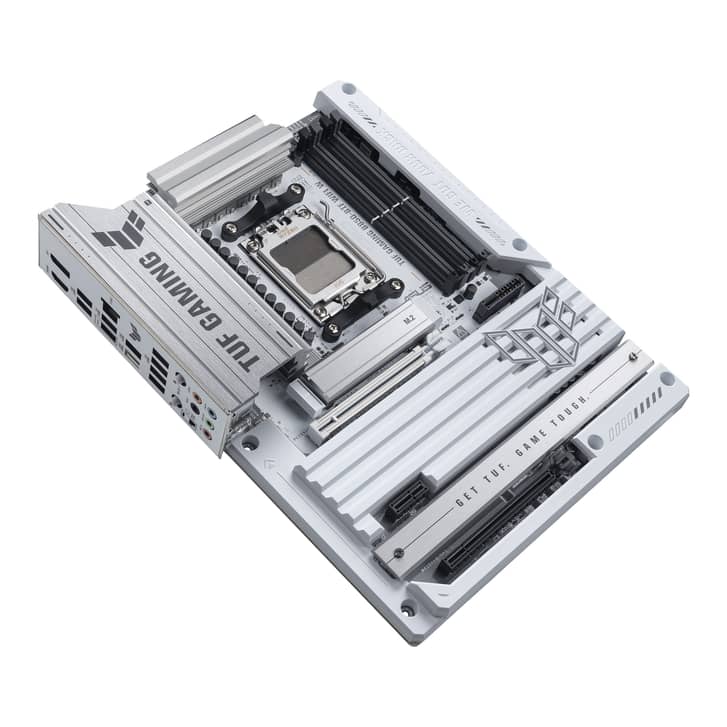

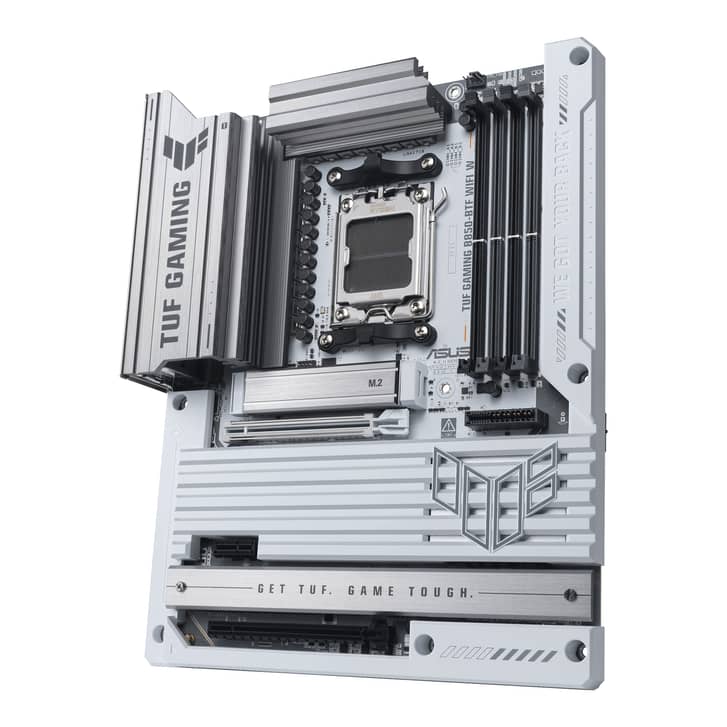

ASUS TUF GAMING B850‑BTF WIFI White
Build a modern AM5 system with the ASUS TUF GAMING B850‑BTF WIFI White, Back‑Connect a durable and feature‑rich ATX motherboard designed for Ryzen 7000 / 8000 / 9000 Series processors. Powered by the AMD B850 chipset, it delivers next‑generation performance with DDR5 up to 8000+ MT/s (O.C), PCIe Gen5 GPU support, triple M.2 slots, Wi‑Fi 7, 2.5Gb LAN, and advanced TUF thermal design. ASUS features such as TUF Protection, Q‑Design, Armoury Crate, BIOS FlashBack, and reinforced VRM heatsinks ensure stability, easy installation, and long‑term reliability — all wrapped in a clean white BTF back‑connect layout for cable‑hidden builds.
Specifications
Type: ATX Motherboard
Brand: ASUS
Model: TUF GAMING B850‑BTF WIFI White
Chipset: AMD B850
CPU Socket: AM5
Supported CPUs: AMD Ryzen 7000 / 8000 / 9000 Series
Memory
RAM Technology: DDR5
RAM Slots: 4 × DIMM
RAM Speed Support: Up to DDR5 8000+ MT/s (O.C)
Max Memory: 256GB
Features: Dual‑channel, ECC/Non‑ECC, AMD EXPO, AEMP
PCIe Slots
Ryzen 9000/7000: 1 × PCIe 5.0 x16
Ryzen 8000: 1 × PCIe 4.0 x16 (x8/x4 mode)
Chipset: 1 × PCIe 4.0 x16 (x4 mode), 1 × PCIe 4.0 x1
M.2 Slots
M.2_1: PCIe 5.0 x4 (9000/7000) / PCIe 4.0 x4 (8000)
M.2_2: PCIe 4.0 x4
M.2_3: PCIe 4.0 x4 (shared with PCIEX16 G4)
SATA Ports: 4 × SATA 6Gb/s
RAID Support
Ryzen 9000: RAID 0/1/5/10
Ryzen 8000: RAID 0/1
Ryzen 7000: RAID 0/1/10
Networking
LAN: Realtek 2.5Gb Ethernet (TUF LANGuard)
Wireless: Wi‑Fi 7 (2×2, up to 2.9Gbps)
Bluetooth: 5.4
Audio
Codec: Realtek ALC1220P
Channels: 7.1‑Channel HD Audio
Features: 120 dB SNR playback, 113 dB SNR recording, de‑pop circuit, jack detection
Video Outputs
(Requires Ryzen CPU with integrated graphics)
1 × DisplayPort (8K@30Hz)
1 × HDMI (4K@60Hz)
Special Features
ASUS TUF Protection
Q‑Design (Q‑Latch, Q‑LED)

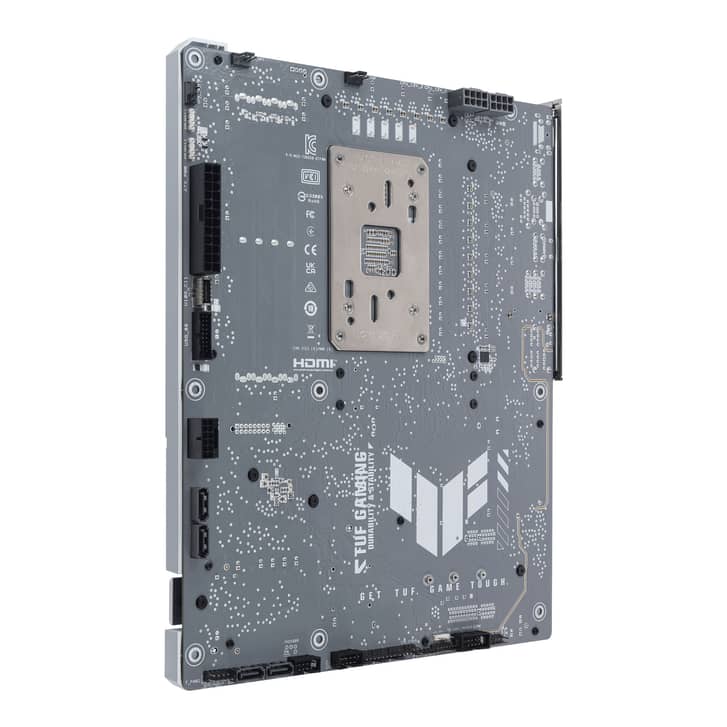

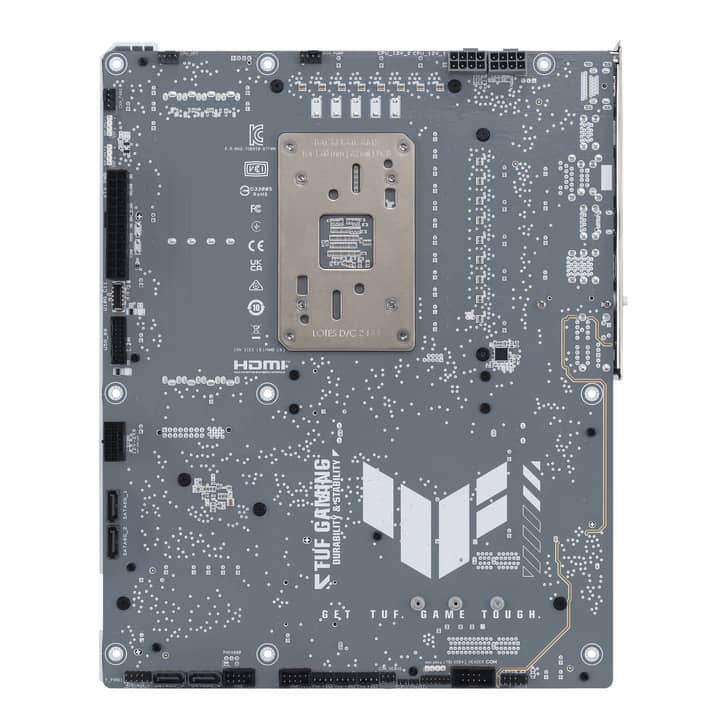

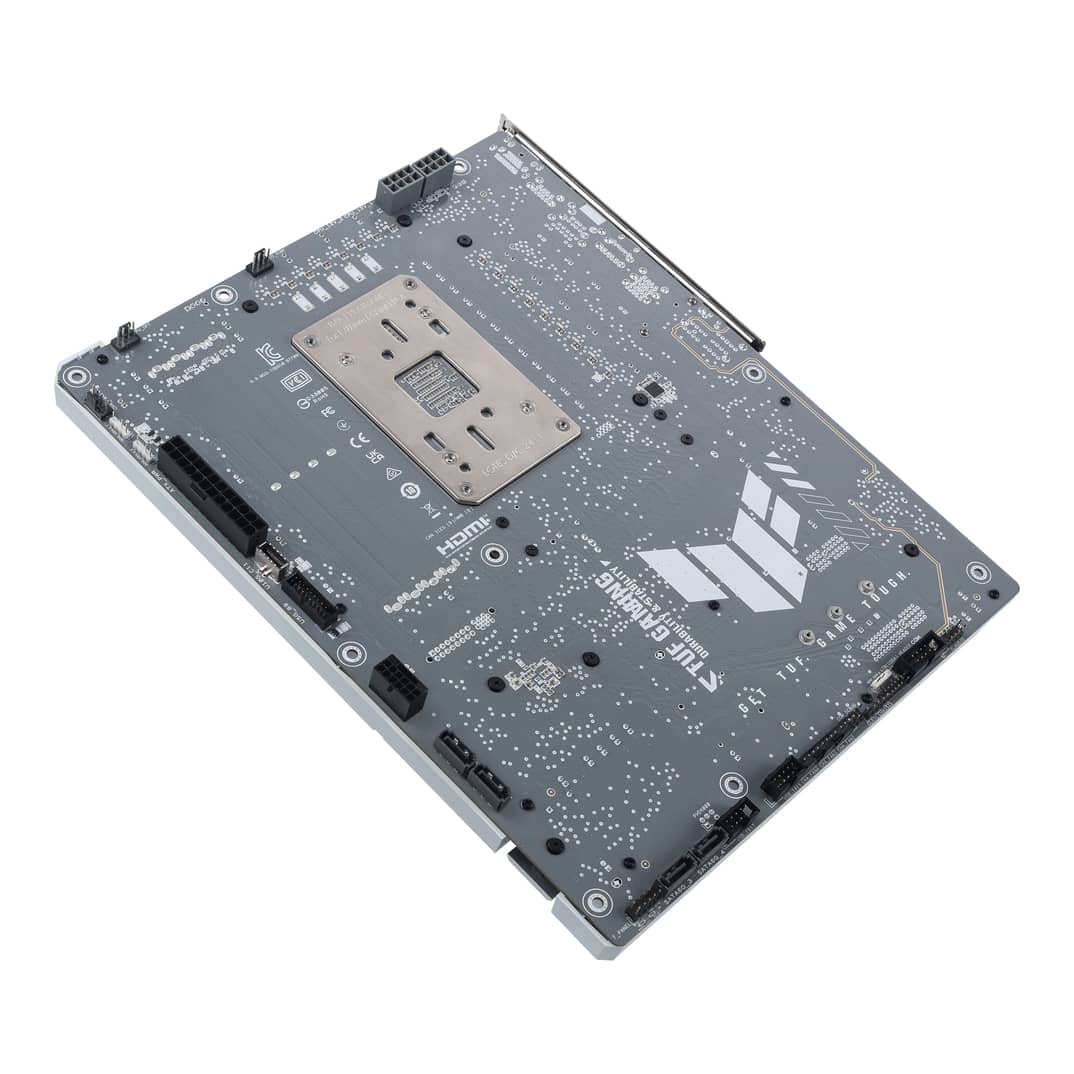

Back‑Connect BTF layout
M.2 & VRM heatsinks
BIOS FlashBack
Aura Sync RGB
AI Advisor
Armoury Crate
AEMP & EXPO memory tuning

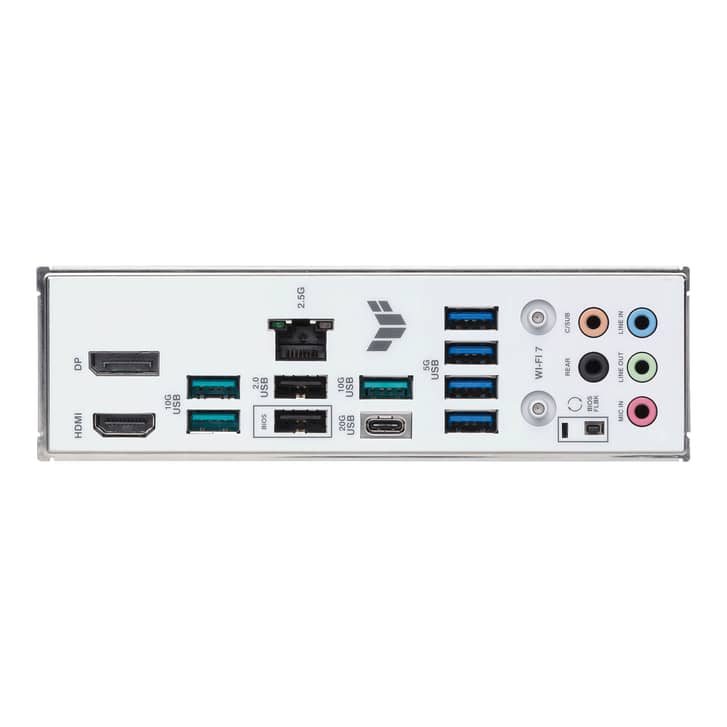

USB Connectivity Rear I/O
1 × USB‑C 20Gbps
3 × USB‑A 10Gbps
4 × USB‑A 5Gbps
2 × USB 2.0
DisplayPort
HDMI
2.5Gb LAN
Wi‑Fi antenna module
5 × audio jacks
BIOS FlashBack button
Internal Headers
24‑pin ATX
2 × 8‑pin CPU power
1 × 12V‑2×6 Aux power
1 × USB‑C 10Gbps
2 × USB 5Gbps
4 × USB 2.0
Thunderbolt header
RGB headers
Clear CMOS
Front panel
COM header
Audio header
1 × CPU fan
1 × CPU OPT
1 × AIO pump
4 × chassis fan headers
Form Factor: ATX (30.5 × 24.4 cm)

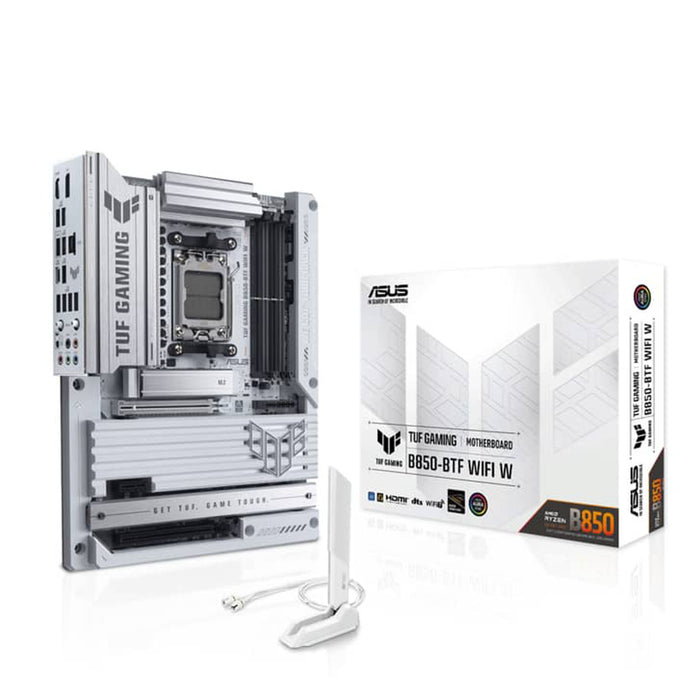

Package Contents
Motherboard
2 × SATA cables
Wi‑Fi antenna
M.2 rubber packs
Quick guide
TUF sticker
