Asus Tuf Gaming B760M-Plus Motherboard, Intel B760, 1700, Micro ATX, DDR5, PCIe5

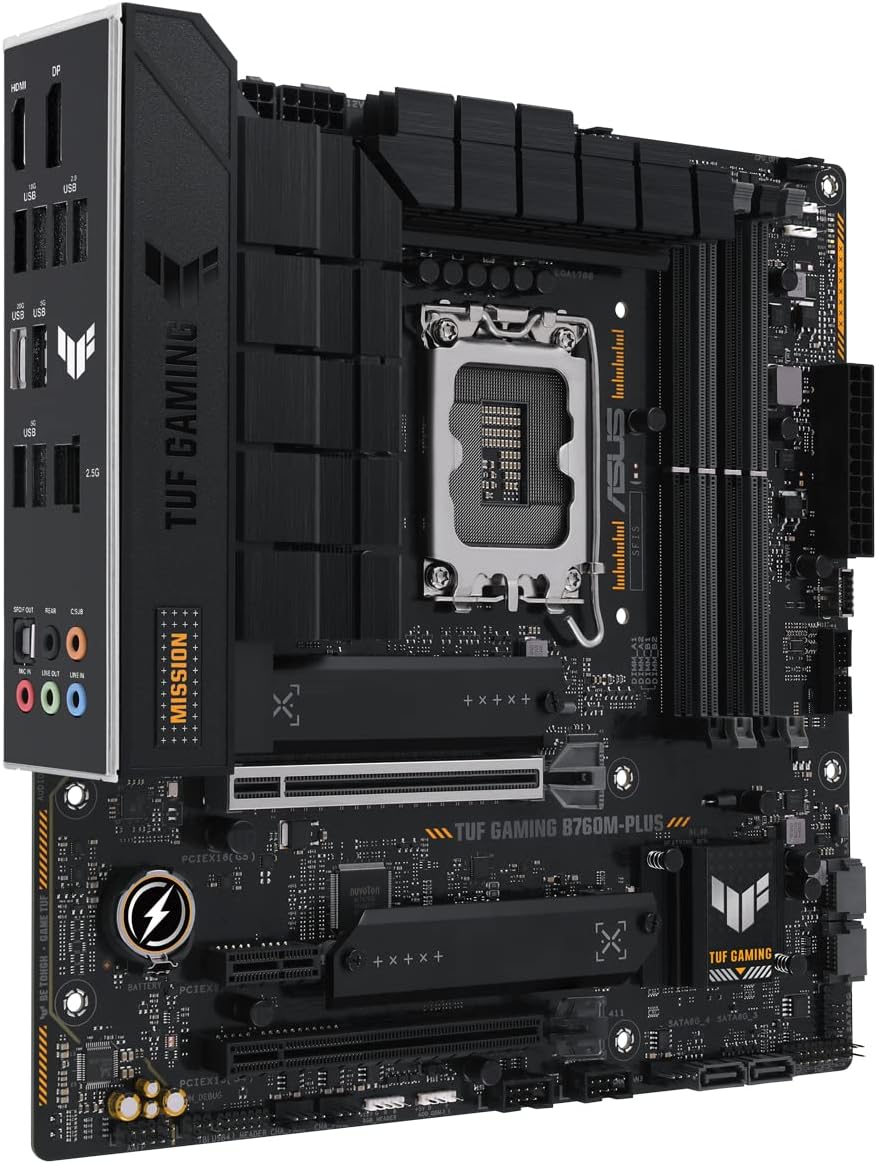

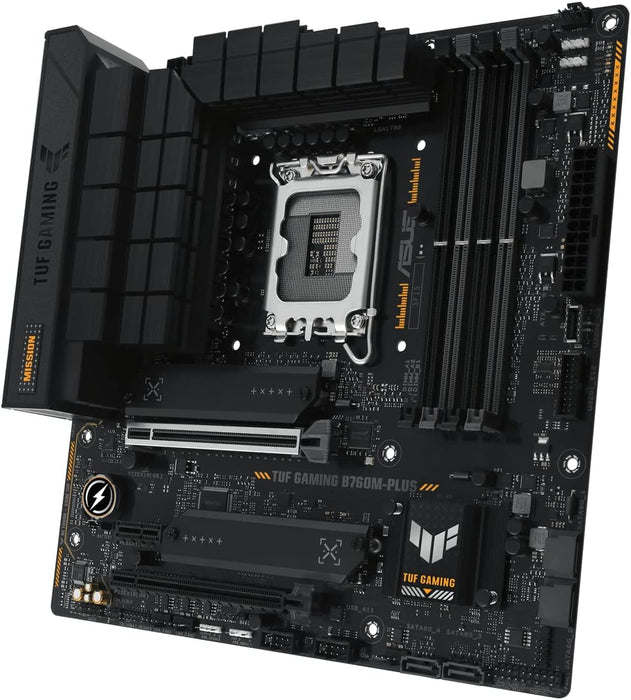

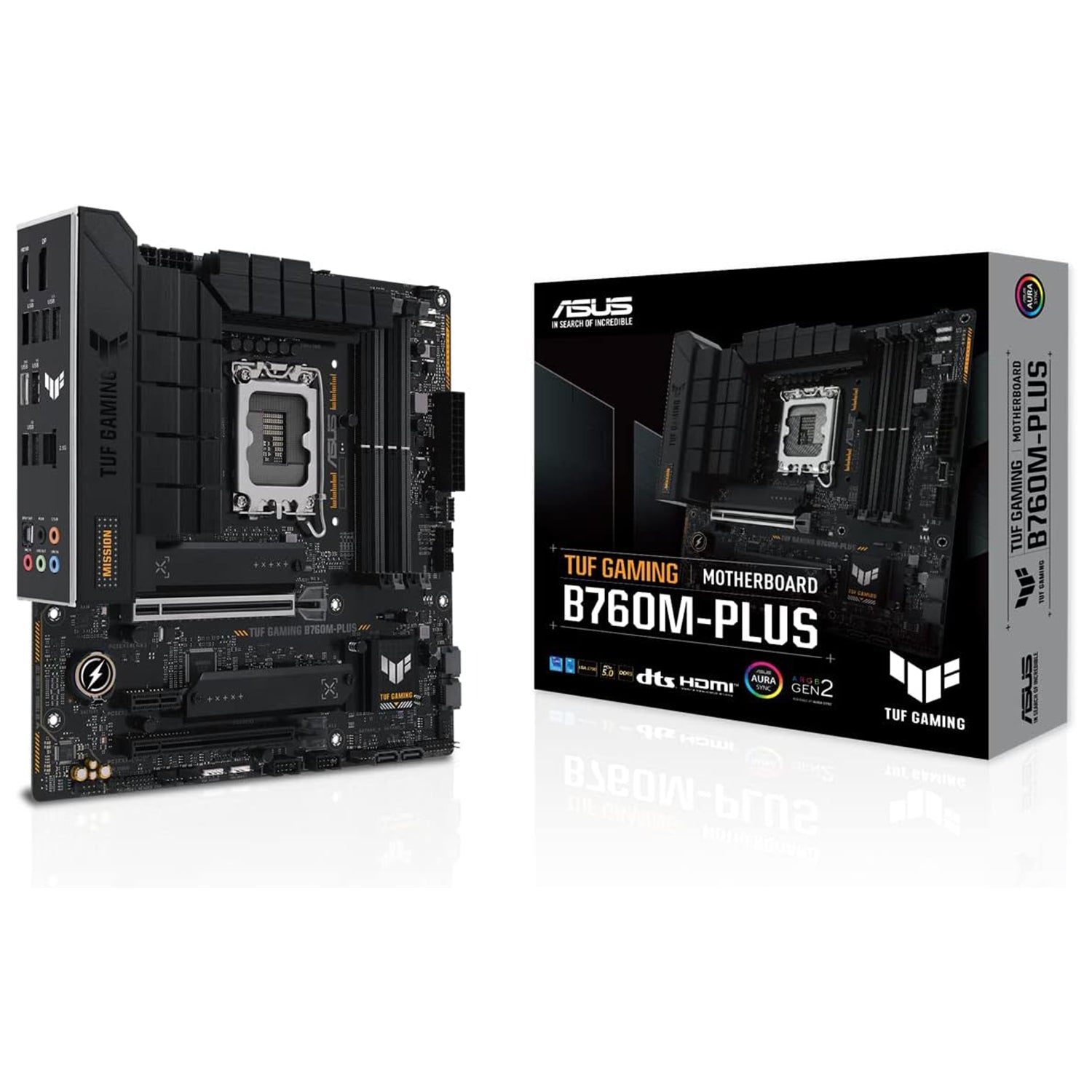

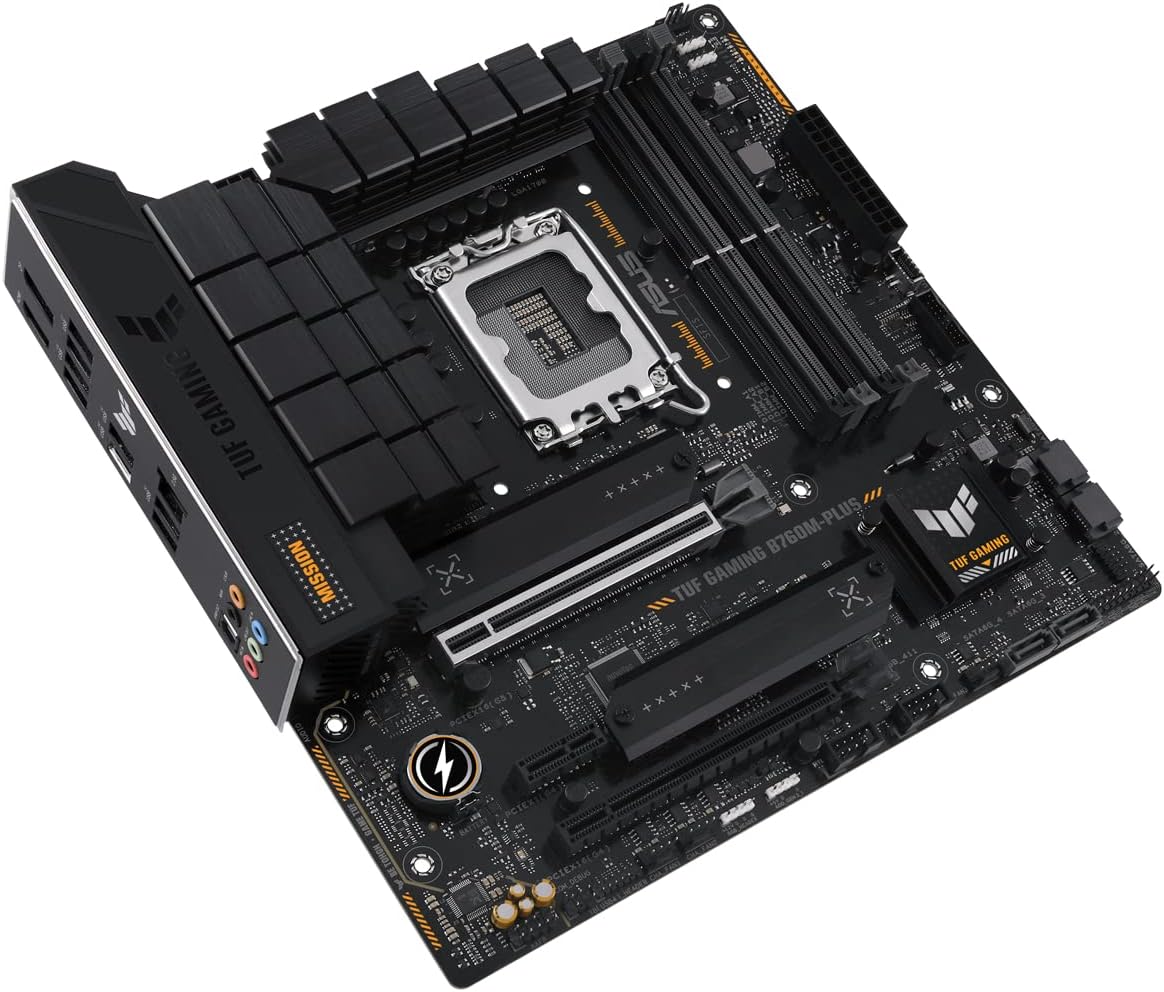

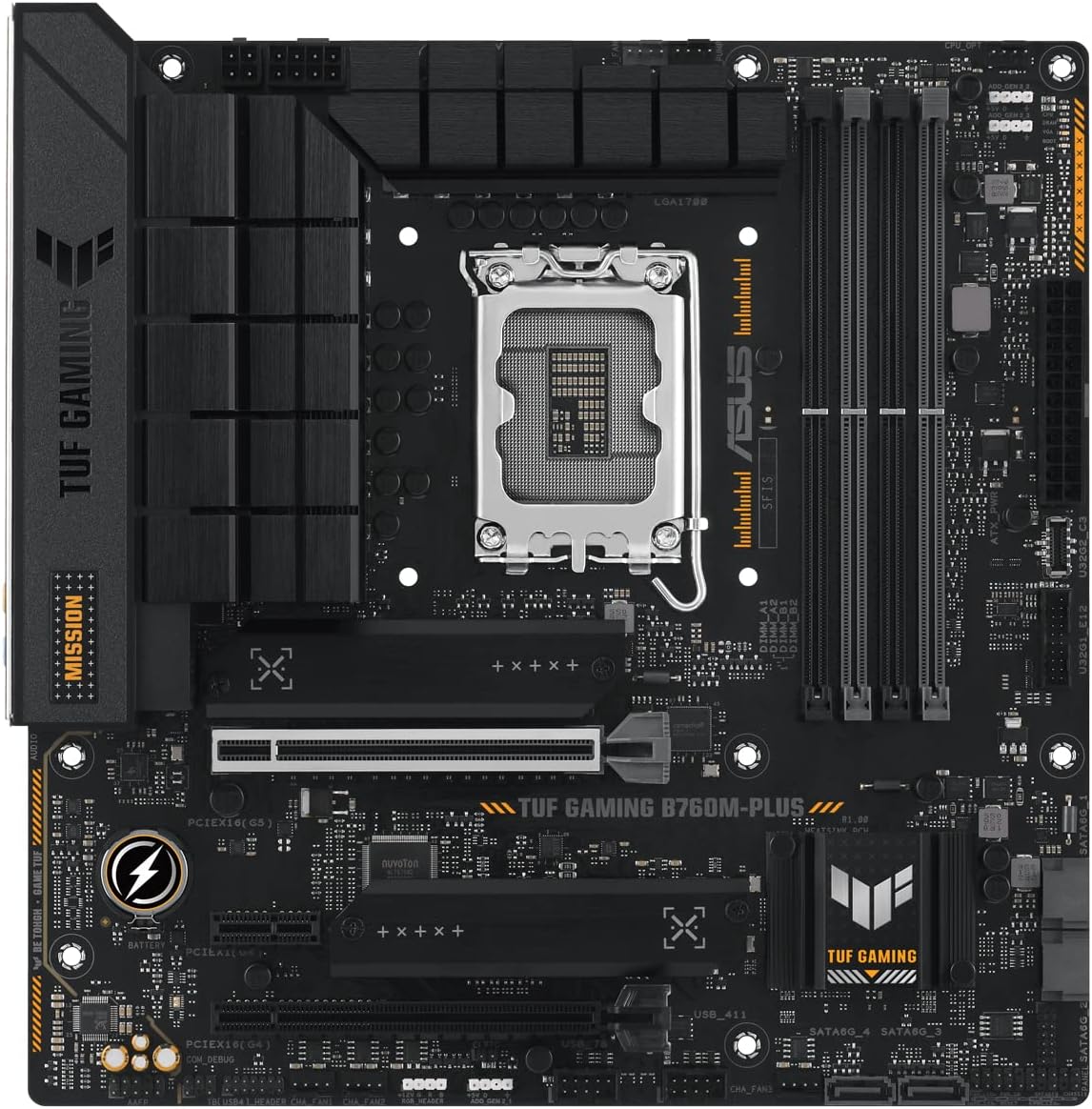

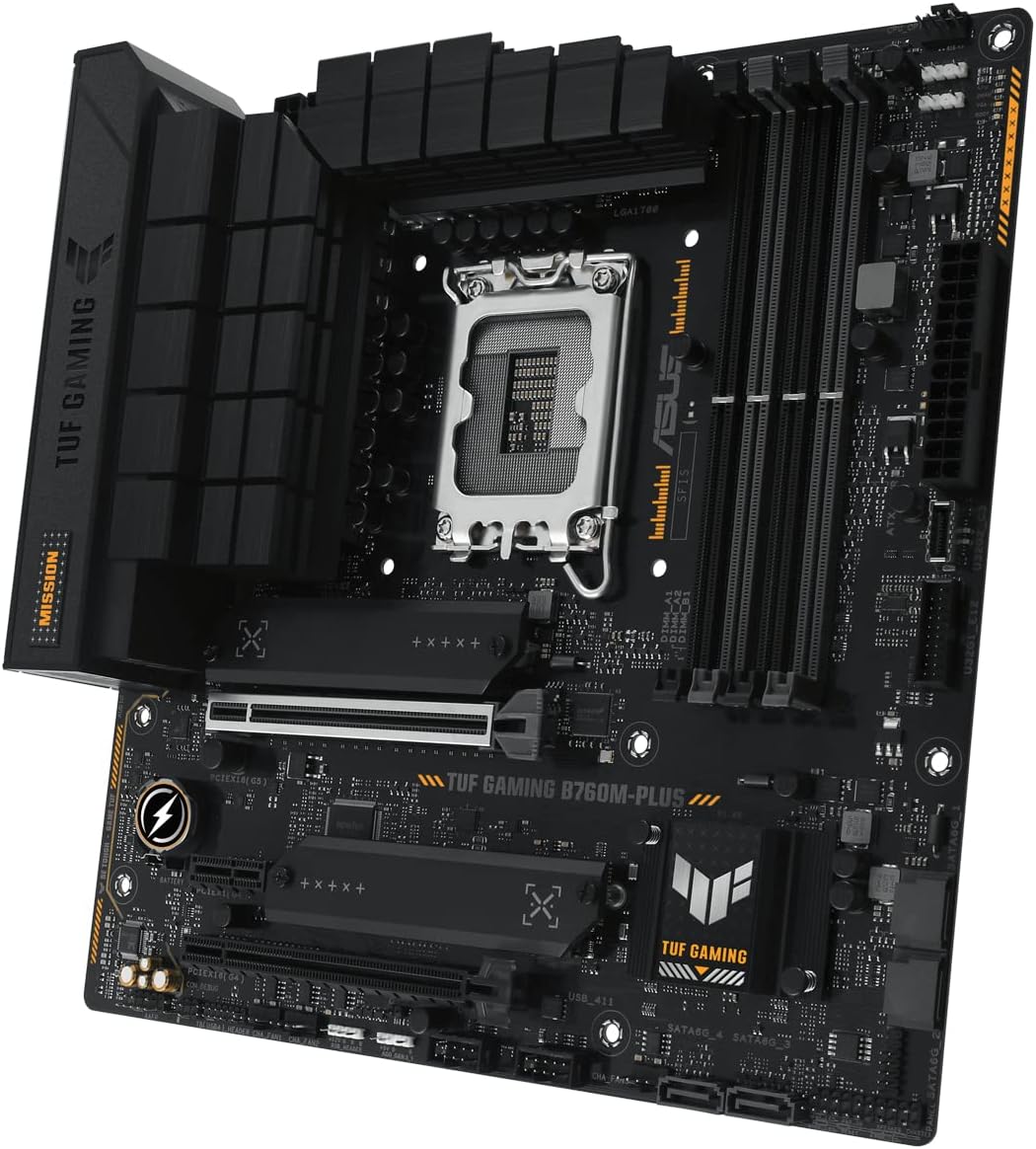

Asus Tuf Gaming B760M-Plus M-ATX Motherboard
The Asus TUF Gaming B760M-Plus is a robust Micro ATX motherboard designed for Intel 1700 socket processors, supporting DDR5 memory for cutting-edge performance. Equipped with PCIe 5.0 slots, it enables next-generation graphics and storage solutions, ensuring future-proof expandability. Built with military-grade components, this board balances durability and reliability, ideal for gamers and professionals seeking stable, high-speed computing in a compact form factor.
Specifications
Motherboard Type: Desktop
Form Factor: Micro ATX
Socket: Intel 1700
Chipset: Intel B760
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x DIMM
RAM Speeds: Up to 7200+(OC)
Maximum Memory: 192GB
Graphics
Integrated Graphics*
*Graphics specifications may vary between CPU types
Graphics Ports: 1 x HDMI, 1 x DisplayPort
PCI/PCI Express
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (supports x4 mode)
1 x PCIe 4.0 x1
Storage
4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
Wireless: No
LAN: 2.5GB LAN
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported
Rear:
1 x USB 3.2 Gen2x2 USB Type-C
2 x USB 3.2 Gen2 Type-A
3 x USB 3.2 Gen1 Type-A
2 x USB 2.0
Front:
1 x USB 3.2 Gen2 USB Type-C
2 x USB 3.2 Gen1
4 x USB 2.0

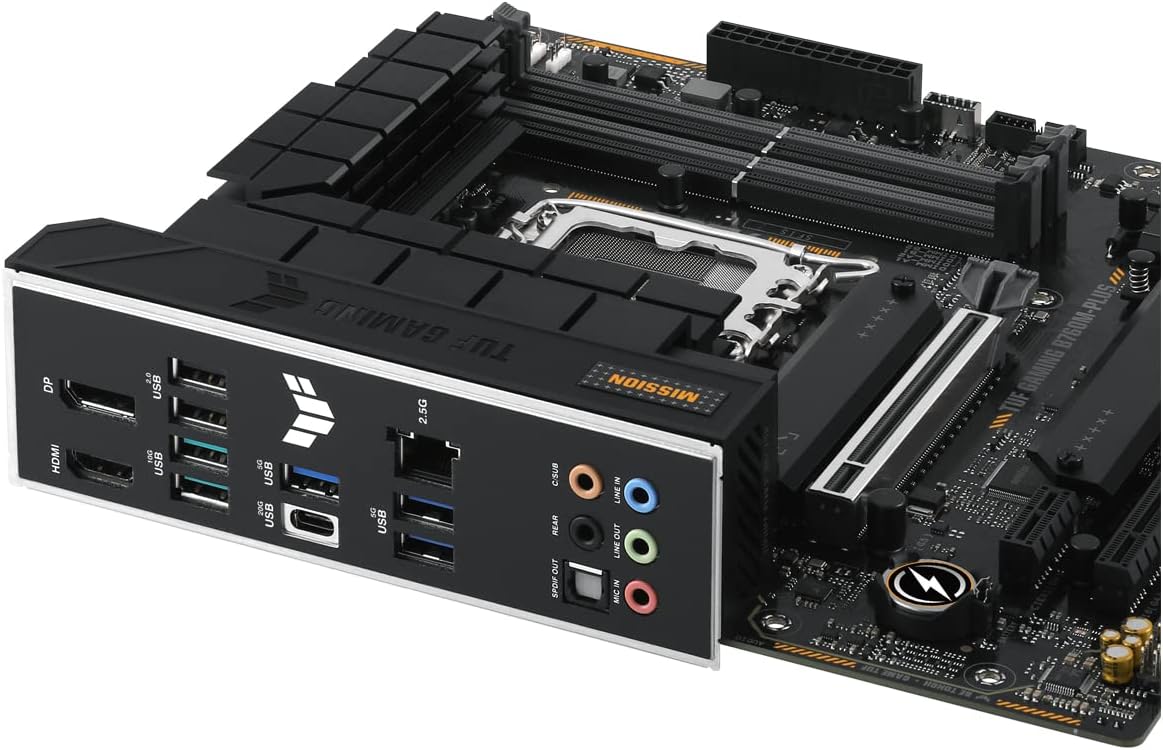

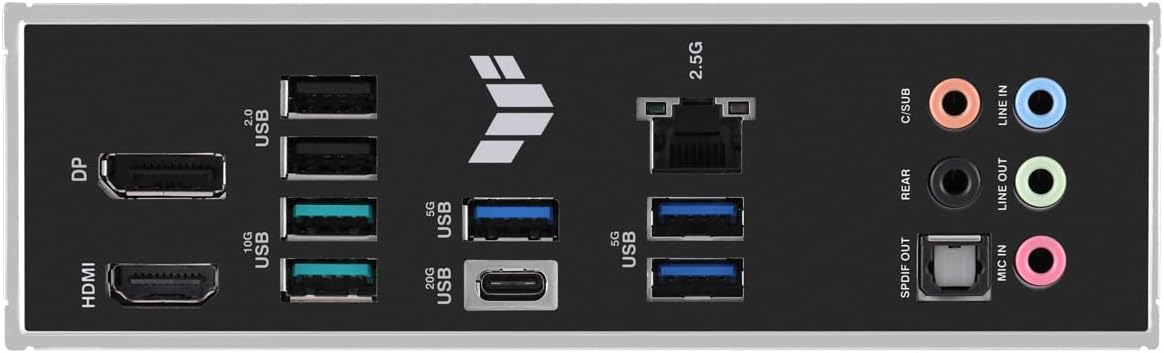

Back Panel I/O Ports
1 x USB 3.2 Gen2x2 Type-C
2 x USB 3.2 Gen2 Type-A
3 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Realtek 2.5Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out
Internal I/O Connectors
1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
3 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x 4-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0 3 x Addressable Gen2
1 x AURA RGB
1 x Clear CMOS
1 x Front Panel Audio
1 x 20-3 pin System Panel
1 x Thunderbolt (USB4)

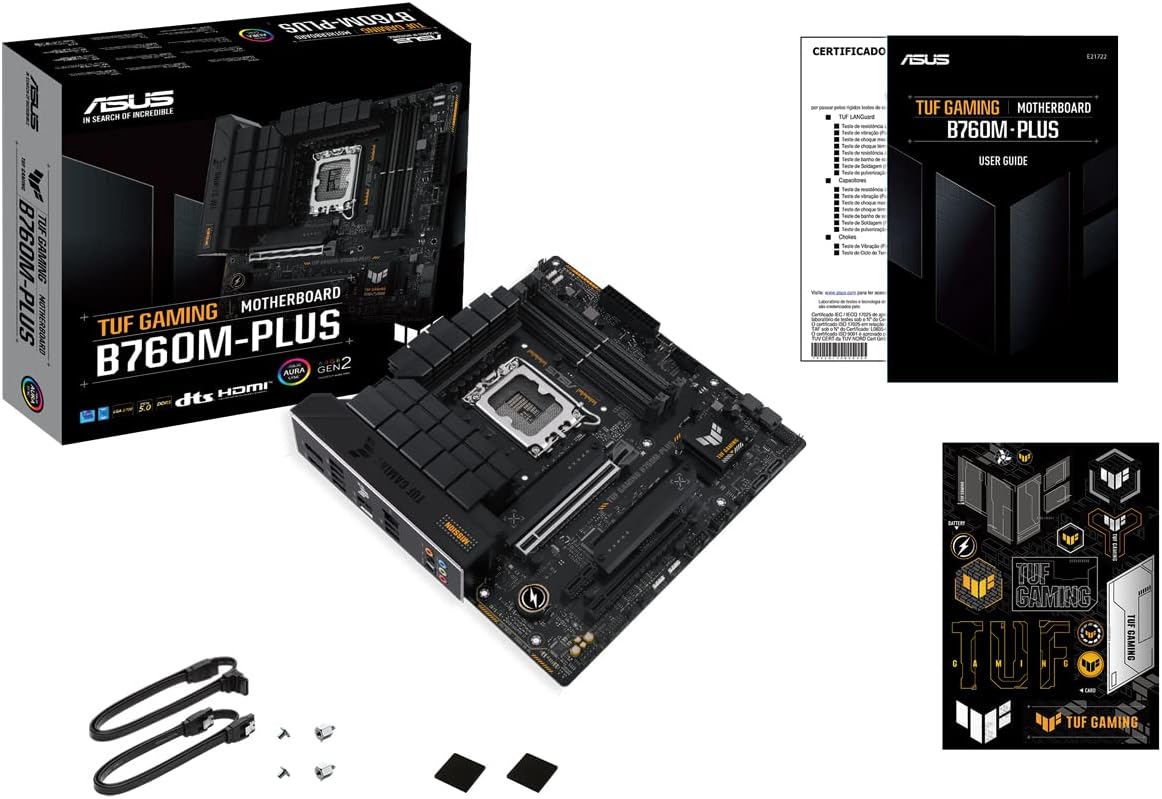

Accessories
2 x SATA 6Gb/s cables
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
1 x TUF Gaming sticker
1 x TUF Certification card
1 x User guide
