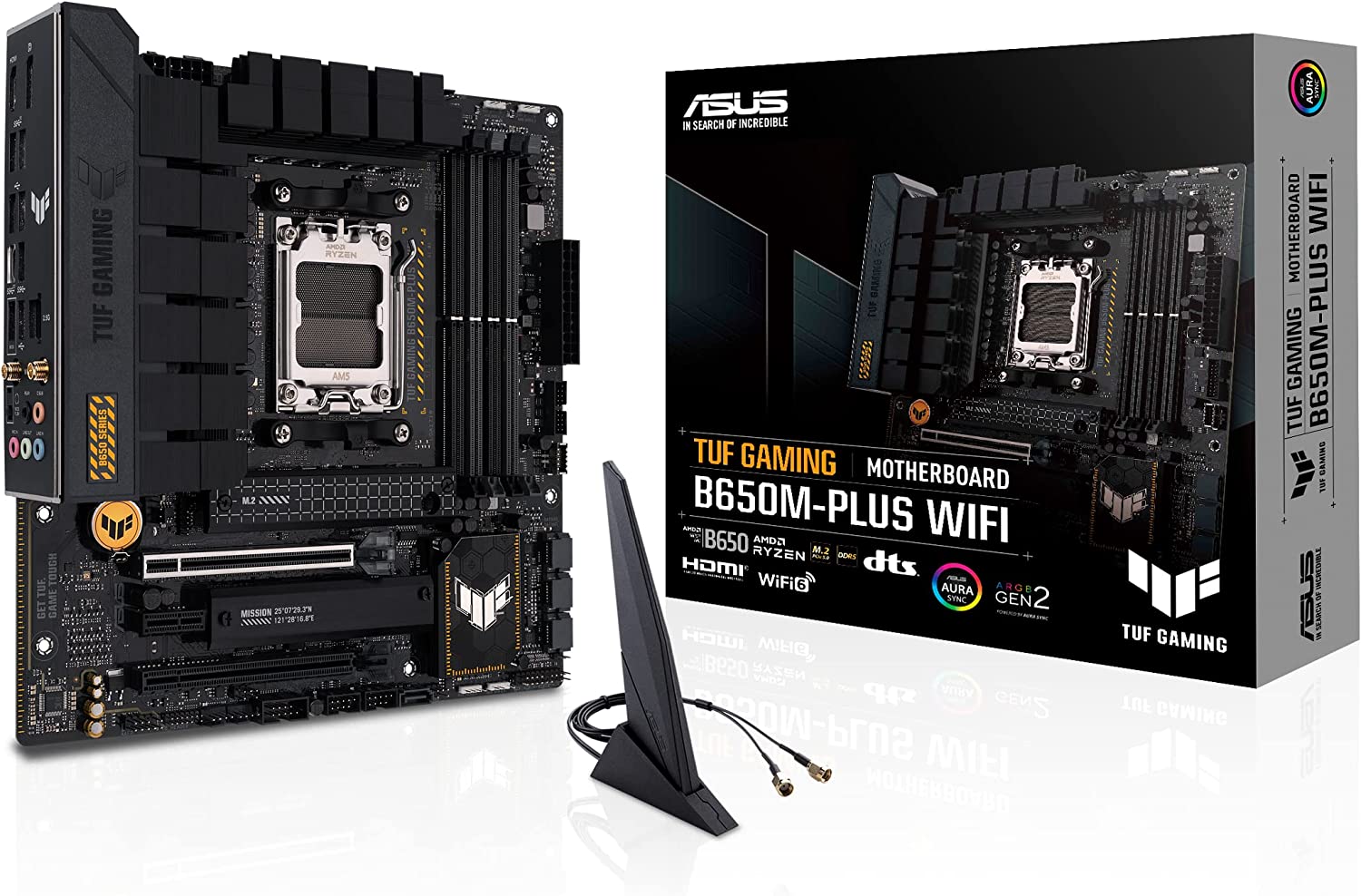

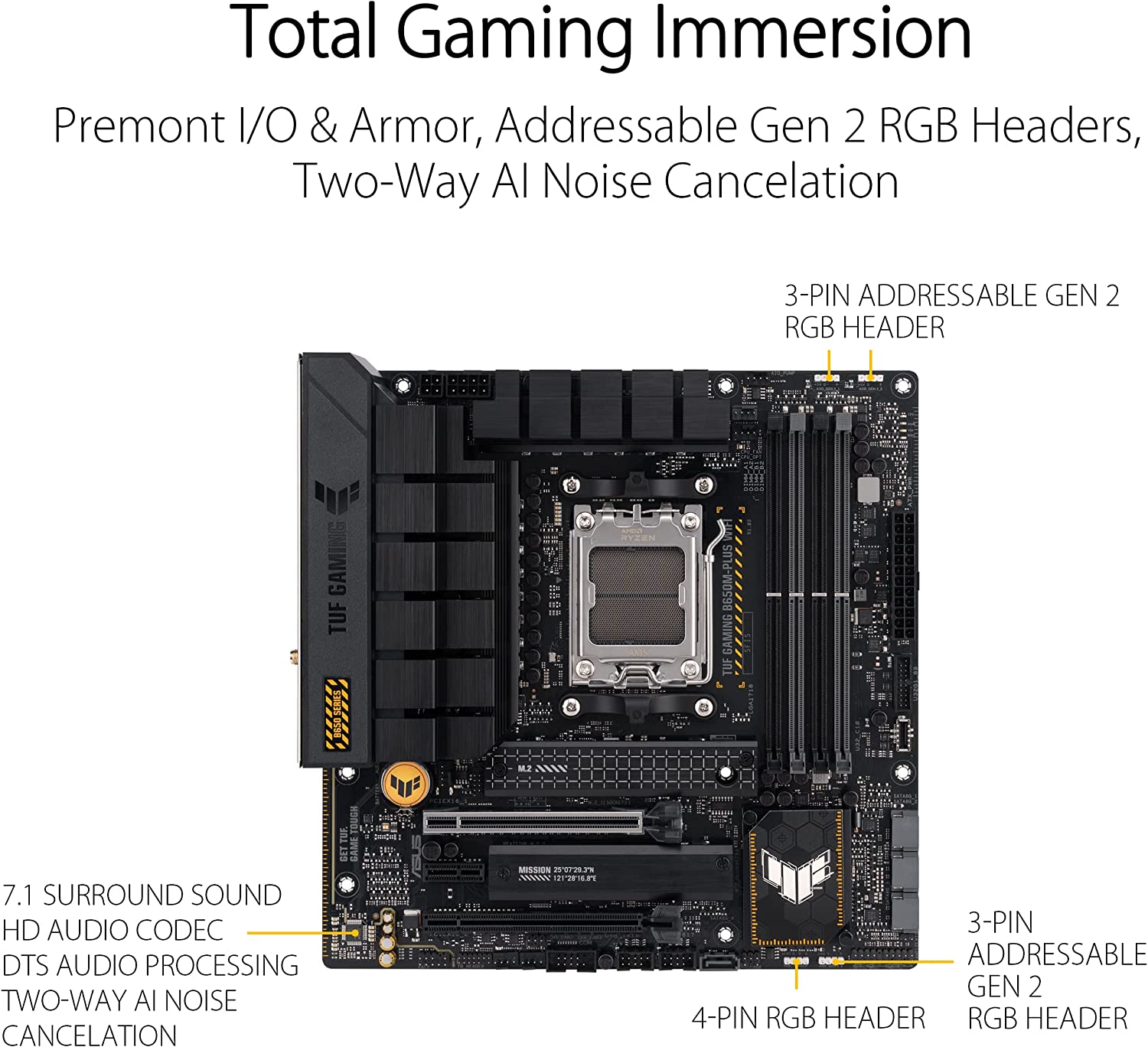

Asus Tuf Gaming B650M-PLUS WIFI Motherboard, AMD B650, AM5, Micro ATX, 4 DDR5, HDMI, DP, Wi-Fi 6, 2.5G LAN, PCIe4, 2x M.2
Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

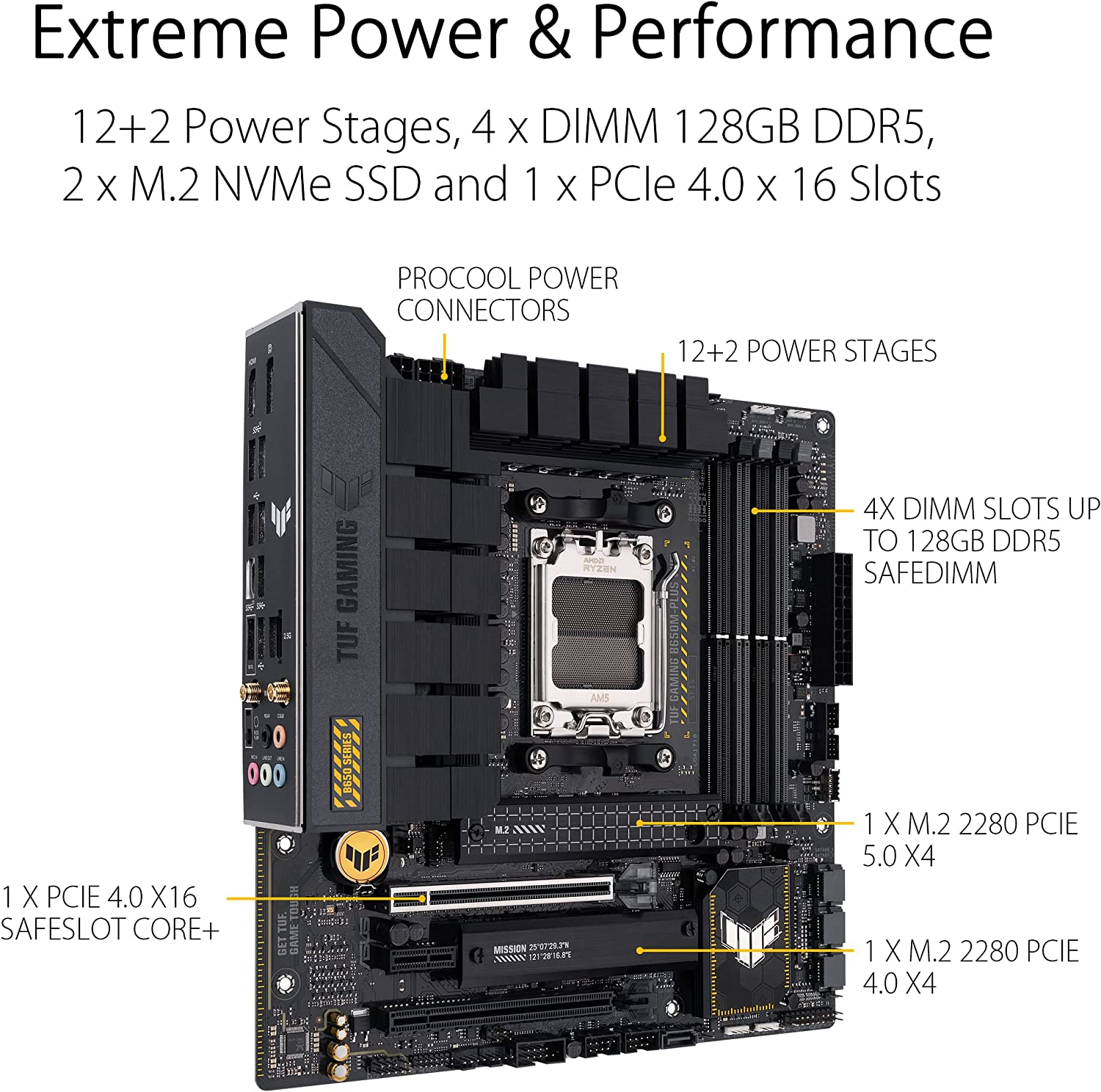

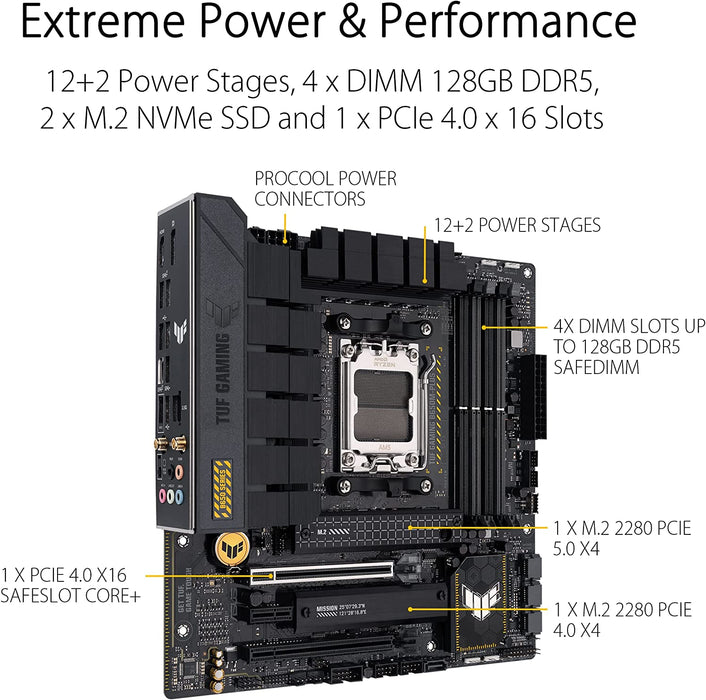

- 12+2 power stages (rated 60A) with enlarged VRM heatsinks
- PCIe® 5.0 for graphics cards and M.2 storage
- DDR5 memory module support
- USB 3.2 Gen 2x2 Type-C® and a front-panel USB 3.2 Gen 1 Type-C® header
- 2.5 Gb Ethernet
- WiFi 6
- Two-Way AI Noise Cancelation
Specifications
Motherboard Type: Desktop
Form Factor: Micro ATX
Socket: AMD AM5
Chipset: AMD B650
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x DIMM
RAM Speeds: Up to 6400+(OC)
Maximum Memory: 128GB
Graphics
Integrated Graphics*
*Graphics specifications may vary between CPU types
Graphics Ports
1 x HDMI
1 x Display
PortPCI/PCI Express
1 x PCIe 4.0/3.0 x16
1 x PCIe 4.0/3.0 x16 (supports x4 mode)
1 x PCIe 4.0/3.0 x1
Storage
4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - PCIe
RAID: AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10
Wireless
Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
LAN: 2.5GB LAN
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported
1 x USB 3.2 Gen2x2 Type-C (at back)
2 x USB 3.2 Gen2 Type-A (at back)
3 x USB 3.2 Gen1 Type-A (1 at back, 2 at mid-board)
8 x USB 2.0 (4 at back, 4 at mid-board)
1 x Front USB 3.2 Gen1 Type-C connector

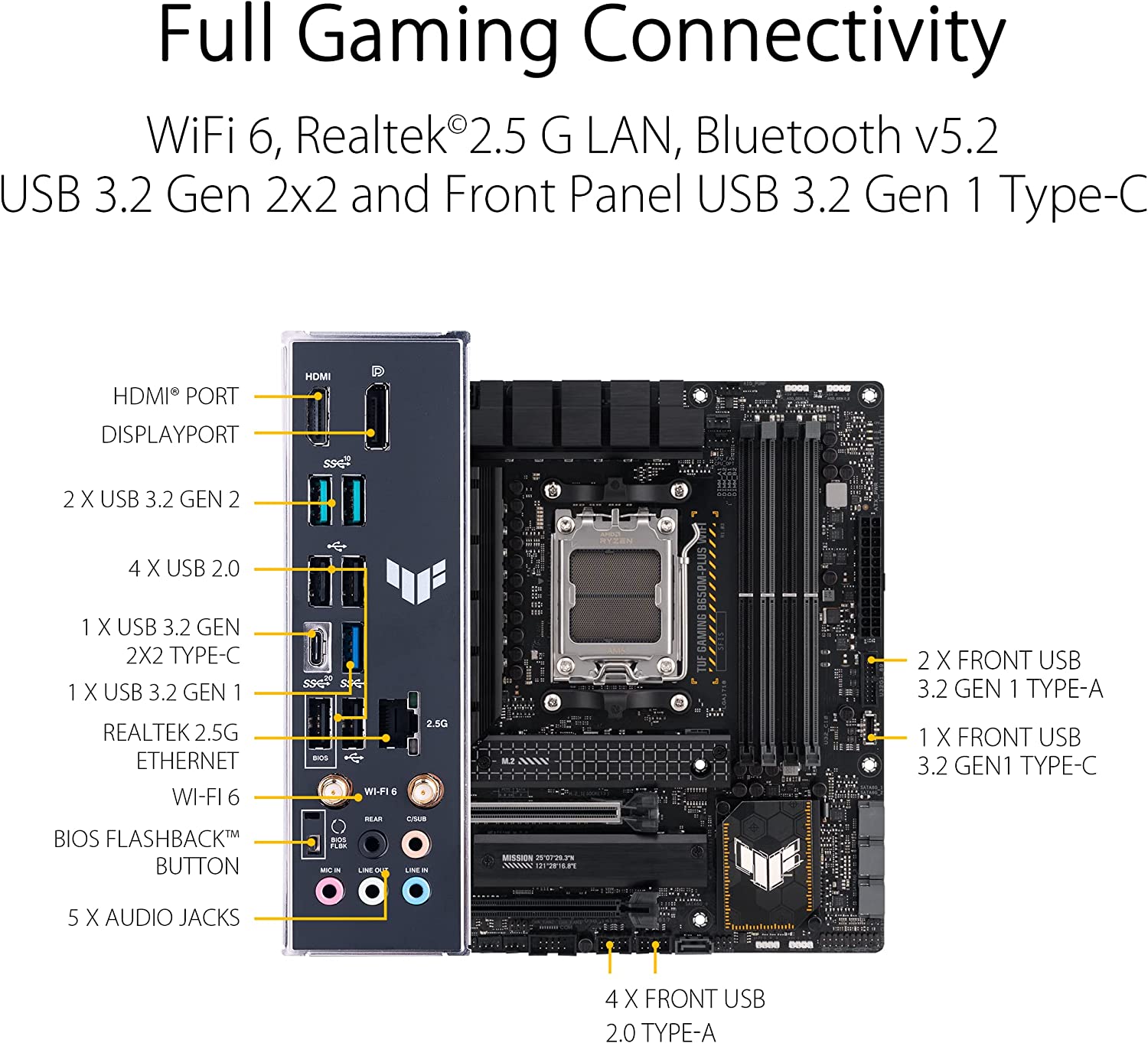

Back Panel I/O Ports
1 x USB 3.2 Gen2x2 Type-C
2 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen1 Type-A
4 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet
5 x Audio jacks
1 x BIOS FlashBack button
Internal I/O Connectors

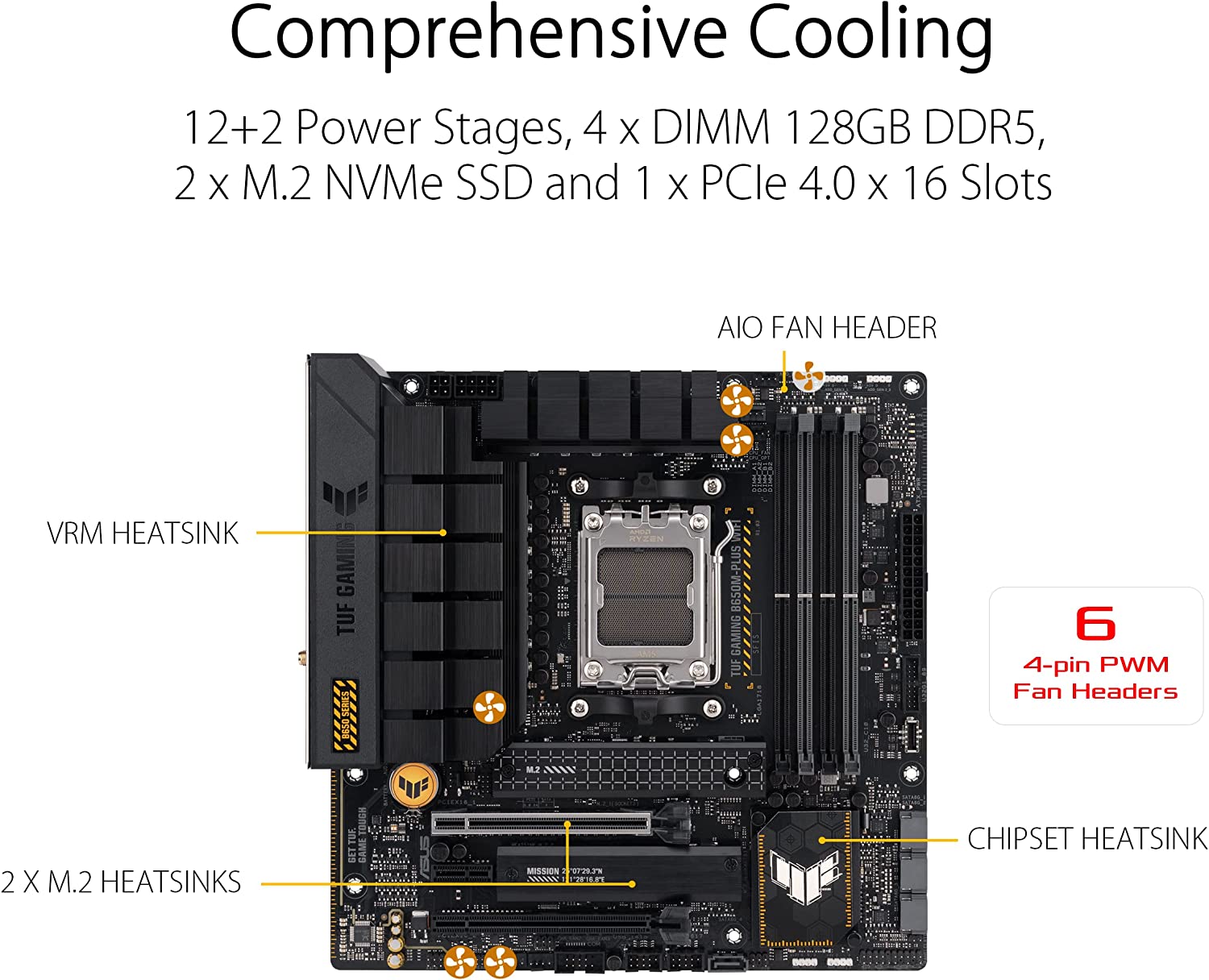

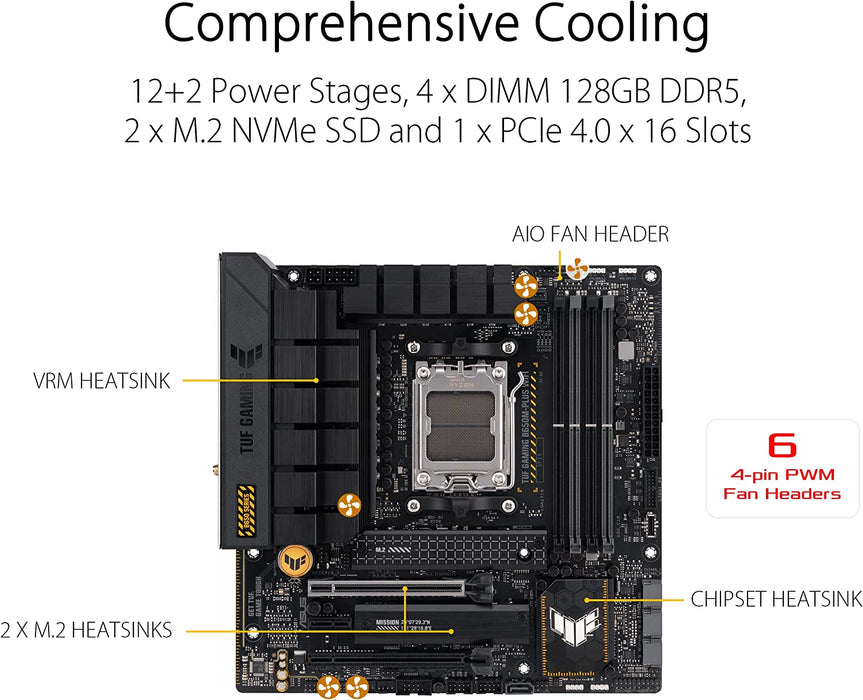

1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
3 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x 4-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB Gen 3.2 Gen1 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0 3 x Addressable Gen2

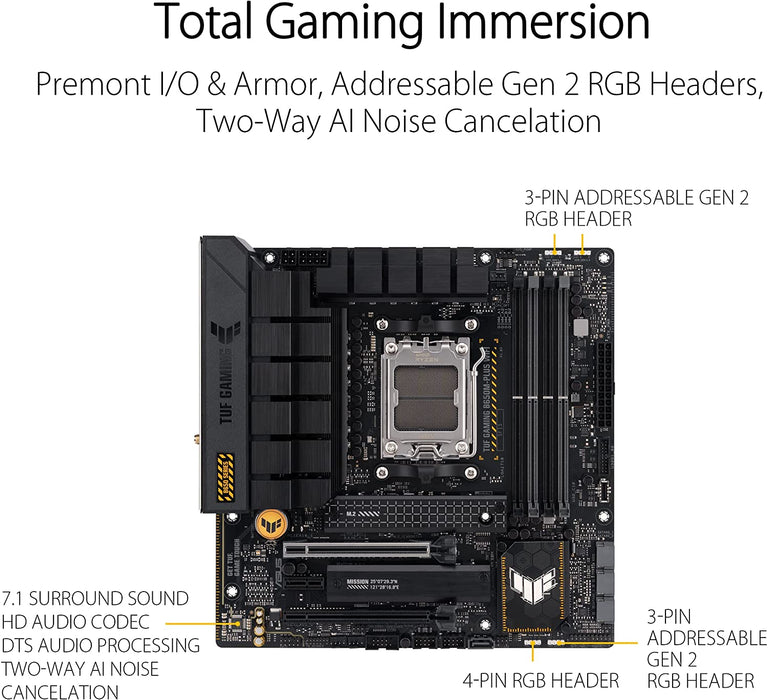

1 x Aura RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x 20-3 pin System Panel
1 x Thunderbolt (USB4)
