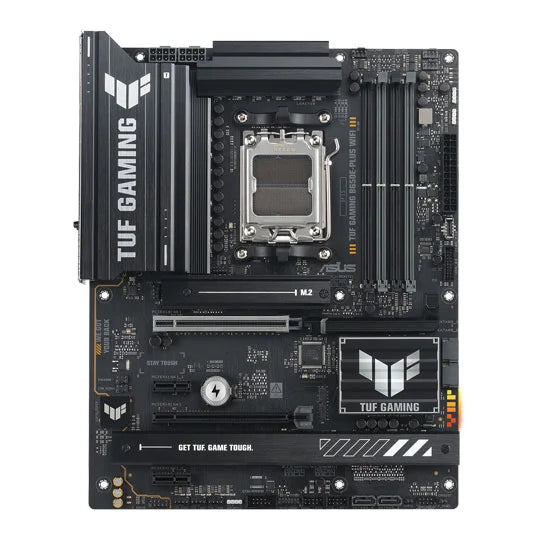

Asus TUF Gaming B650E‑PLUS WiFi AM5 ATX Motherboard | DDR5 | PCIe 5.0 | WiFi 6E
Asus TUF GAMING B650E‑PLUS WIFI
Build a powerful and reliable AM5 system with the Asus TUF Gaming B650E‑PLUS WIFI, an ATX motherboard engineered for gaming, productivity, and long‑term durability. Featuring the AMD B650E chipset, it supports Ryzen 7000 / 8000 / 9000 Series processors and delivers high‑speed DDR5 performance up to 6400+ MT/s (O.C.). With PCIe 5.0 x16 GPU support, PCIe 5.0 M.2, triple M.2 slots, Wi‑Fi 6E, 2.5Gb LAN, and TUF‑grade military components, this board provides a stable, future‑ready platform for modern gaming and workstation builds. Asus EZ‑DIY features such as M.2 Q‑Latch, BIOS FlashBack, and SafeSlot reinforcement ensure easy installation and long‑term reliability.
Specifications
Type: ATX Motherboard
Brand: ASUS
Model: TUF GAMING B650E‑PLUS WIFI
Chipset: AMD B650E
CPU Socket: AM5
Supported CPUs: Ryzen 7000 / 8000 / 9000 Series
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 × 288‑pin
RAM Speed Support: Up to DDR5 6400+ (O.C.)
Max Memory: 128GB
PCIe Slots
1 × PCIe 5.0 x16 (GPU slot, SafeSlot Reinforced)
1 × PCIe 4.0 x16 (x4 mode)
1 × PCIe 4.0 x1
Storage
3 × M.2 Slots: • 1 × PCIe 5.0 x4 (CPU) • 2 × PCIe 4.0 x4 All with heatsinks
4 × SATA 6Gb/s
RAID Support: RAID 0/1/10
Networking
LAN: Realtek 2.5Gb Ethernet
Wireless: Wi‑Fi 6E
Bluetooth: 5.2
Audio
Codec: Realtek ALC S1200A
Channels: 7.1‑Channel High Definition Audio
Enhancements: TUF‑grade capacitors, EMI shielding
Video Outputs
(Requires CPU with integrated graphics)
HDMI 2.1
DisplayPort 1.4
USB Connectivity
Rear I/O
1 × USB‑C 20Gbps (USB 3.2 Gen 2x2)
4 × USB‑A 10Gbps (USB 3.2 Gen 2)
2 × USB‑A 5Gbps (USB 3.2 Gen 1)
2 × USB 2.0
HDMI
DisplayPort
2.5Gb LAN
Wi‑Fi antenna ports
5 × audio jacks
BIOS FlashBack button
Internal Headers
USB 3.2 Gen 1 Type‑C (front panel)
USB 3.2 Gen 1 header (2 ports)
USB 2.0 headers (4 ports)
3 × Addressable Gen2 RGB headers
1 × Aura RGB header
TPM header
Clear CMOS header
Front panel audio
Multiple fan headers + AIO pump header
Power Connectors
24‑pin ATX
8‑pin + 4‑pin CPU power
Form Factor: ATX (305 × 244 mm)
Most Suitable For
High‑end gaming
Ryzen 7000 / 8000 / 9000 builds
PCIe 5.0 GPU + PCIe 5.0 NVMe systems
Wi‑Fi 6E + 2.5Gb LAN connectivity
