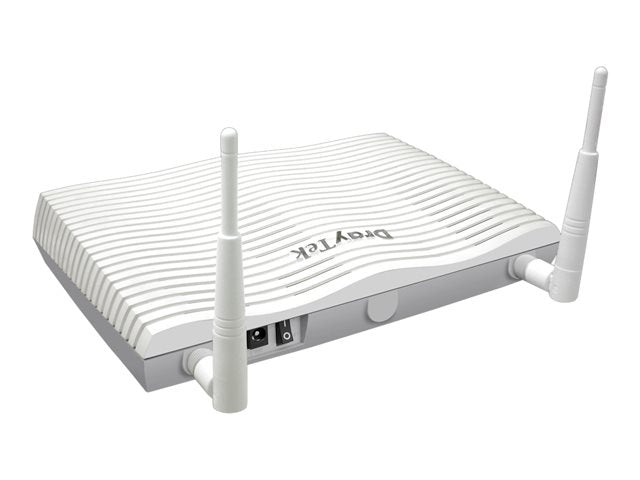

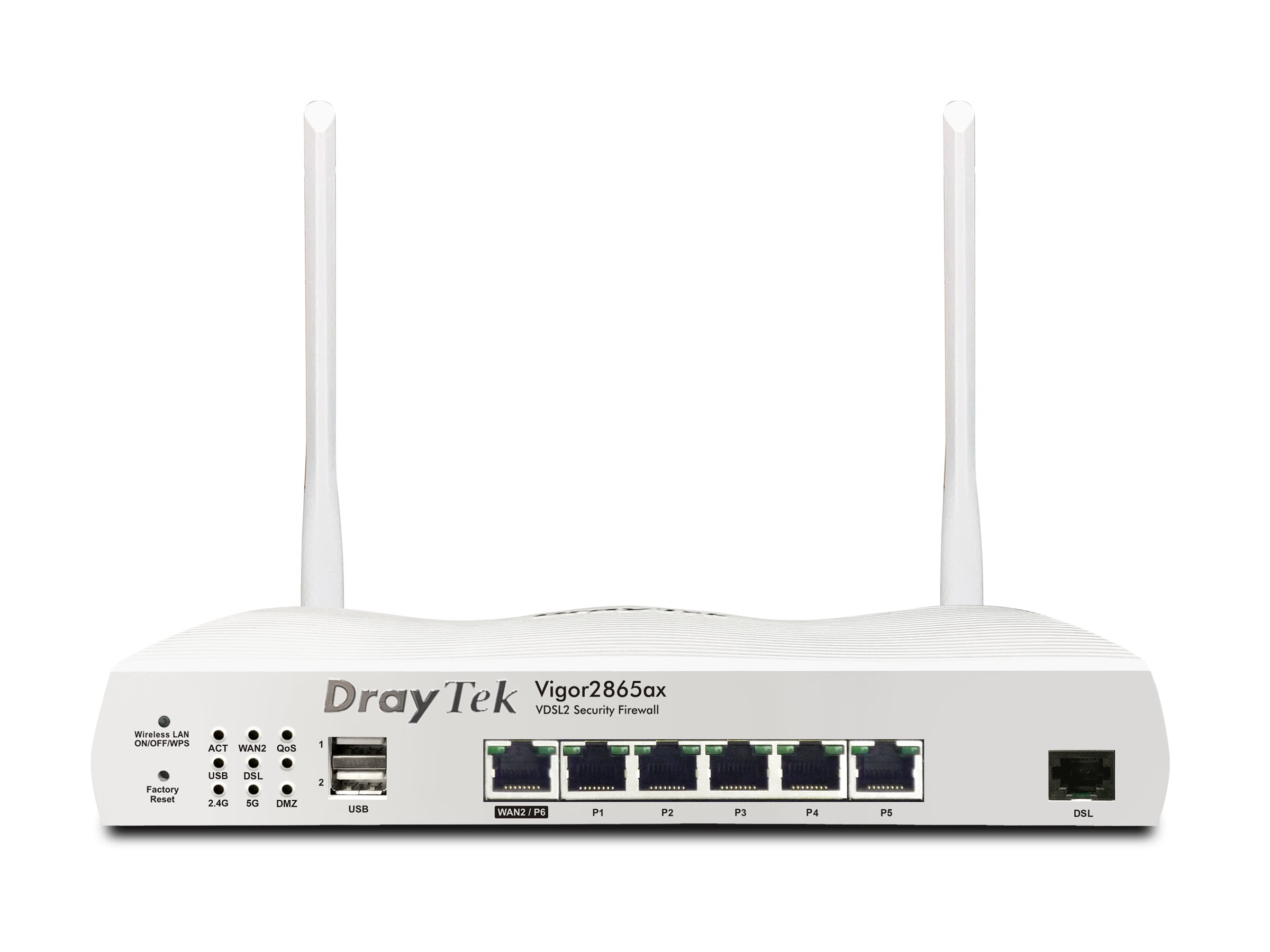

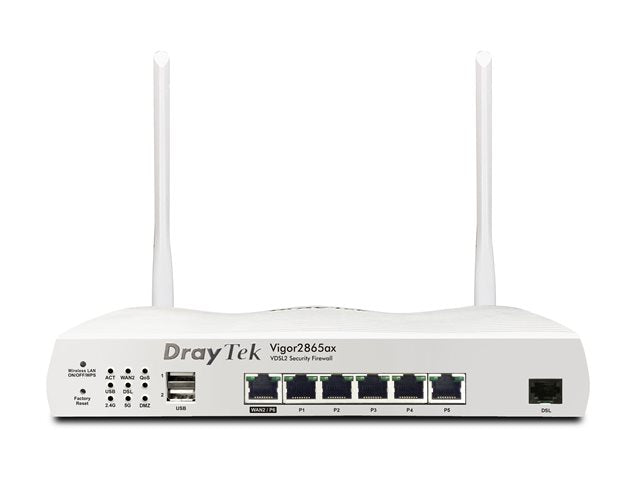

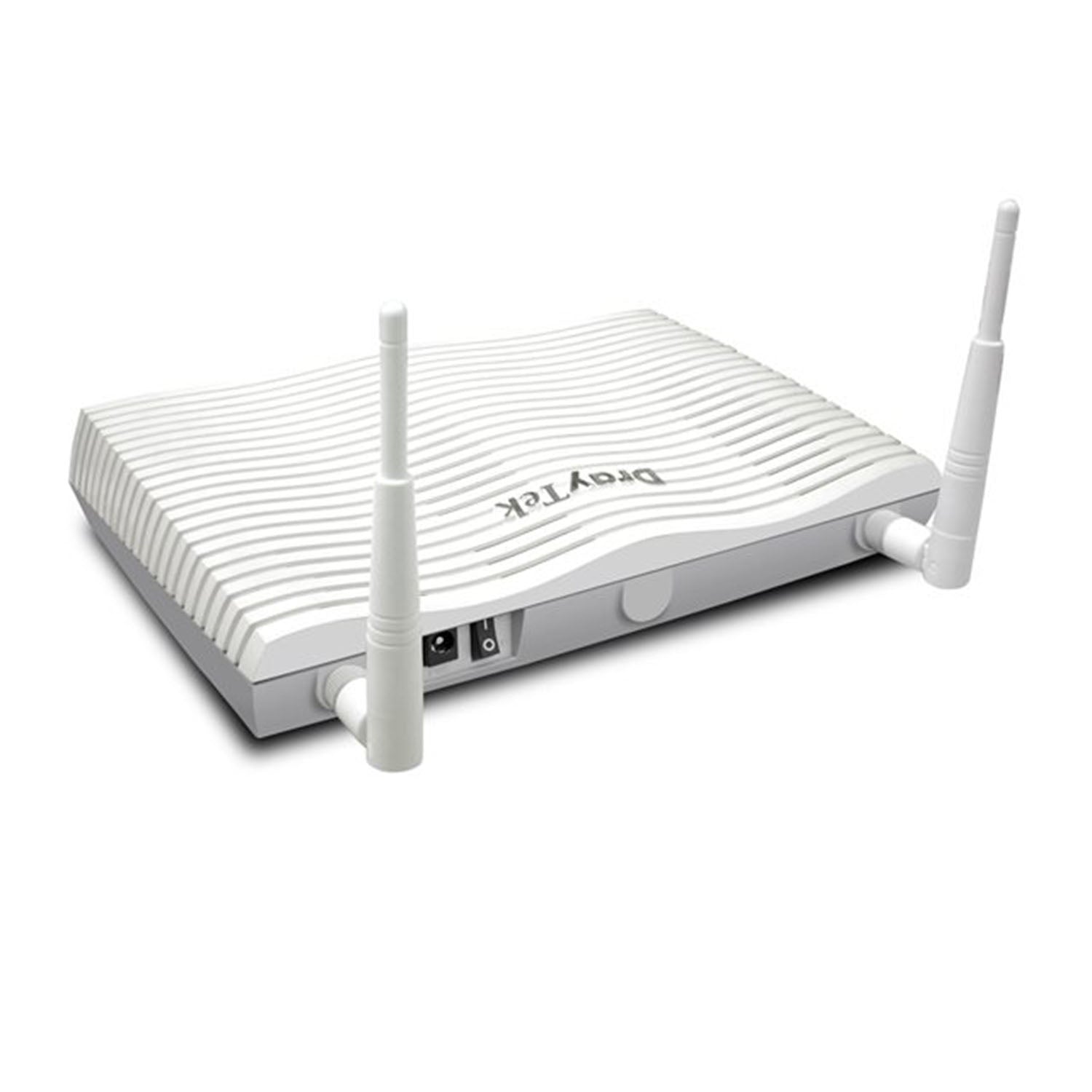

Draytek Vigor 2865ax Wi‑Fi 6 Router – VDSL2/ADSL2+ Modem, Dual‑WAN, VPN, AX3000
Draytek Vigor 2865ax Wi‑Fi 6 Router
The Draytek Vigor 2865ax is a high‑performance business‑class router featuring a built‑in VDSL2/ADSL2+ modem, dual‑band Wi‑Fi 6 AX3000, advanced VPN capabilities, load balancing, firewall protection, and centralised AP/switch management. With support for multiple WAN connections, SSL VPN, VoIP‑friendly QoS, DrayDDNS, and enterprise‑grade routing protocols, it is ideal for offices, remote workers, and multi‑branch networks requiring reliability, security, and flexibility.
Specifications
Type: Wireless Router / DSL Modem / 6‑Port Switch
Brand: Draytek
Model: Vigor 2865ax
Enclosure Type: Desktop / Wall‑mountable
Wi‑Fi Standard: Wi‑Fi 6 (802.11ax)
Wi‑Fi Rating: AX3000
Antenna: 2 × external detachable aerials
Weight: 780 g
Dimensions: 24.1 × 16.5 × 4.4 cm
Warranty: 2 years
Wireless
Bands: 2.4 GHz / 5 GHz
Standard: Wi‑Fi 6 AX3000
Antenna Type: External detachable
WAN / LAN Connectivity
WAN Ports: VDSL2/ADSL2+ RJ‑11 Gigabit Ethernet WAN Gigabit WAN/LAN combo port
LAN Ports: 5 × Gigabit RJ‑45
USB Ports: 2 × USB 2.0 (4G/3G modem support)
Routing & Protocols
Routing Protocols: RIP, BGP, GRE, static IPv4/IPv6, PBR
Network Protocols: PPTP, L2TP, IPSec, PPPoE, DHCP, DNS, DDNS, Bonjour
Remote Management: SNMP v2/v3, Telnet, HTTP/HTTPS, SSH, CLI, TR‑069, TR‑104
Performance
NAT Throughput: 800 Mbps
VPN Throughput (IPSec 256‑bit AES): 300 Mbps
VPN Throughput (SSL): 130 Mbps
Concurrent VPN Tunnels: 32
Concurrent SSL VPN Tunnels: 16
NAT Sessions: 60,000
VLANs: 16
DSL / Modem
Supported Standards: ADSL, ADSL2, ADSL2+, VDSL2, Vplus 35b
ITU Protocols: G.992.1, G.992.3 Annex A, G.992.5 Annex A, G.993.2, G.993.5
Security
Firewall: Stateful firewall, DoS protection, anti‑spoofing
Filtering: URL filtering, keyword filtering, web category filtering
Authentication: RADIUS, TACACS+, LDAP, X.509 certificates
Encryption: DES, 3DES, MPPE, AES, SSL, SHA‑1, IKEv2
VoIP
Protocols: SIP, H.323
Features: VoIP‑friendly QoS, automatic port forwarding
Special Features
Load balancing
DrayDDNS
Bandwidth management
Mesh support
Central AP management
Central switch management
Multiple SSID support
Failover protection
Airtime fairness
LAN‑to‑LAN bridging
OpenVPN pass‑through
High Availability
Cloud management
WPS button
Brute Force Protection
Environmental
Operating Temperature: 0°C – 45°C
Humidity: 10–90% non‑condensing
Box Contents
Draytek Vigor 2865ax Router
2 × External aerials
Network cable
Power adapter
Documentation
