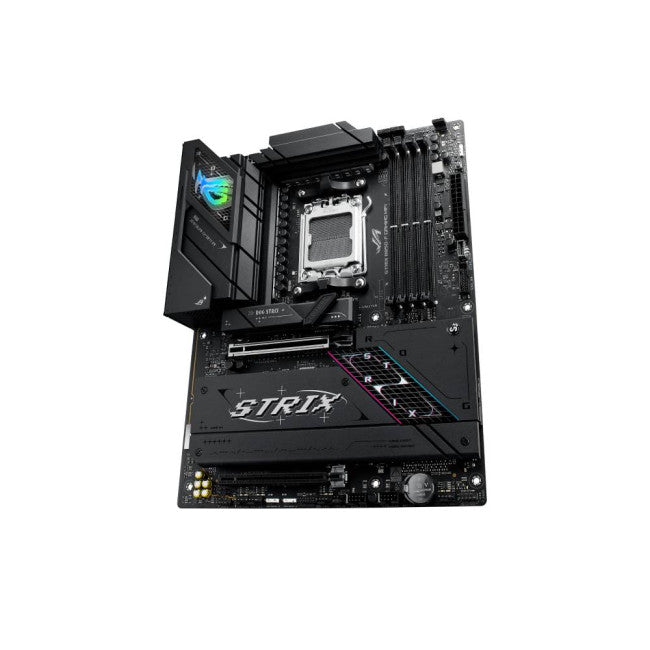

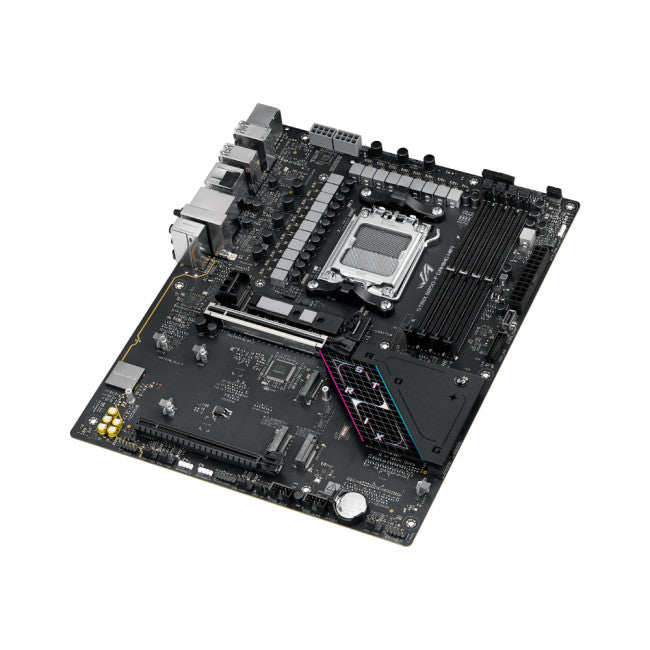

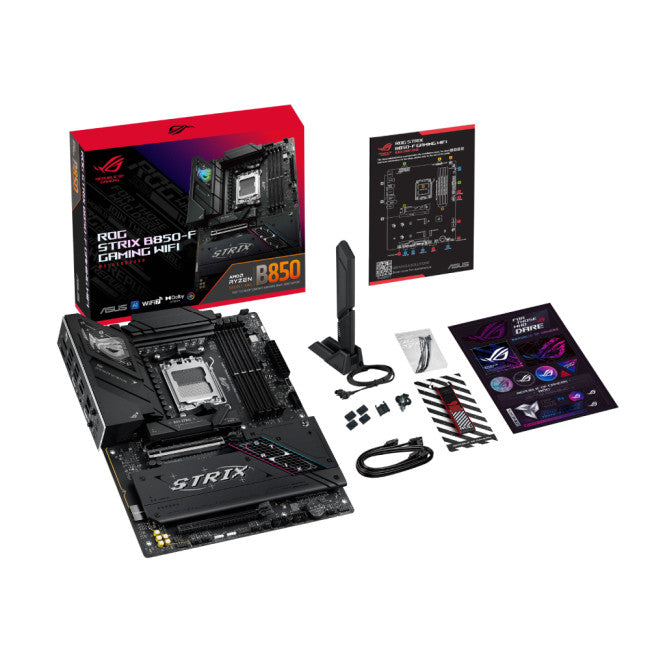

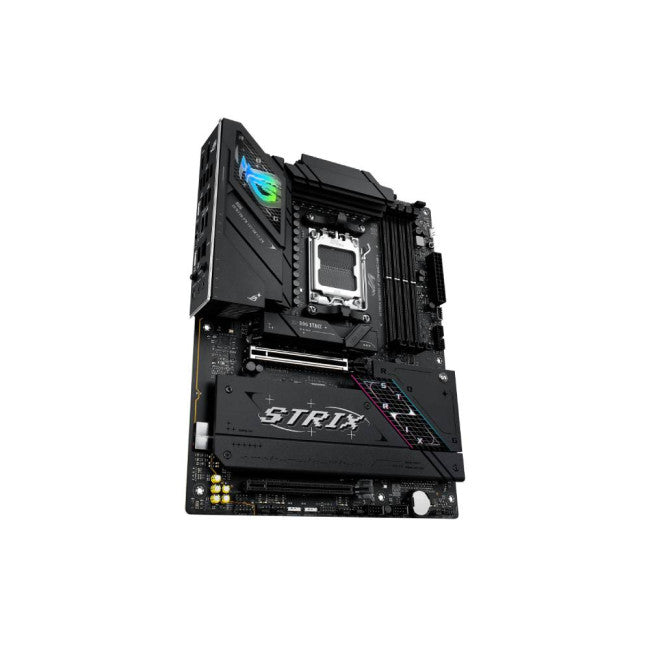

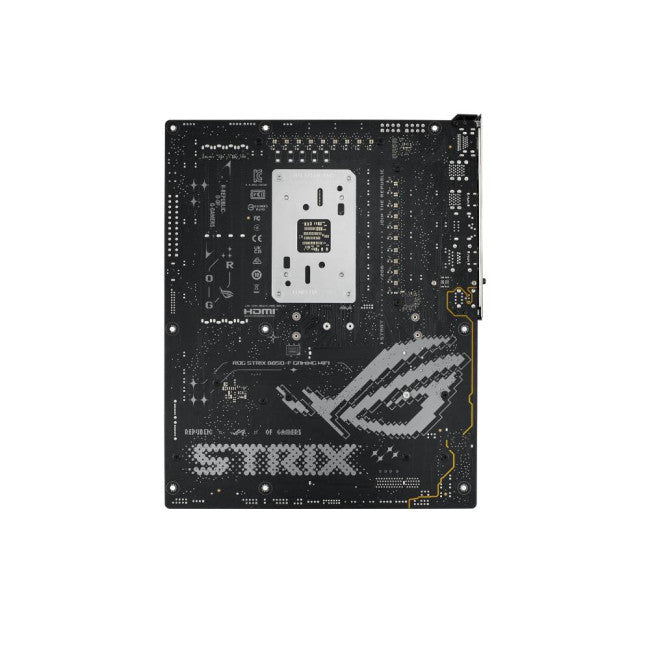

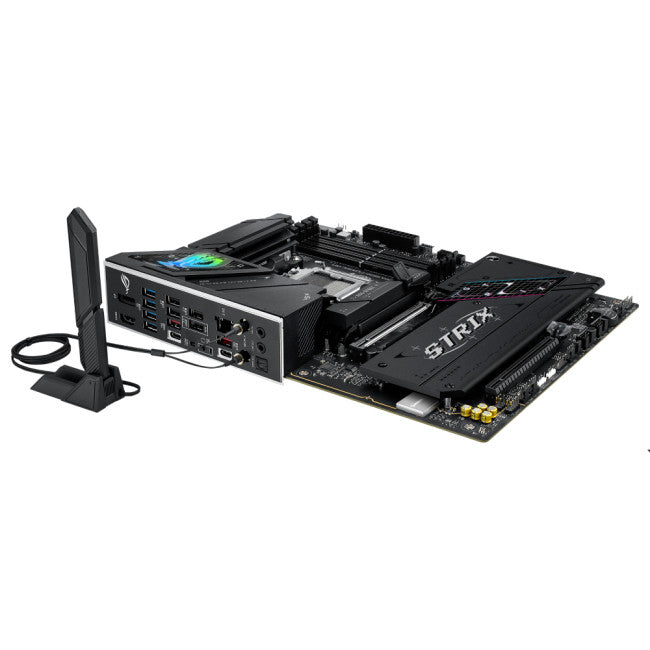

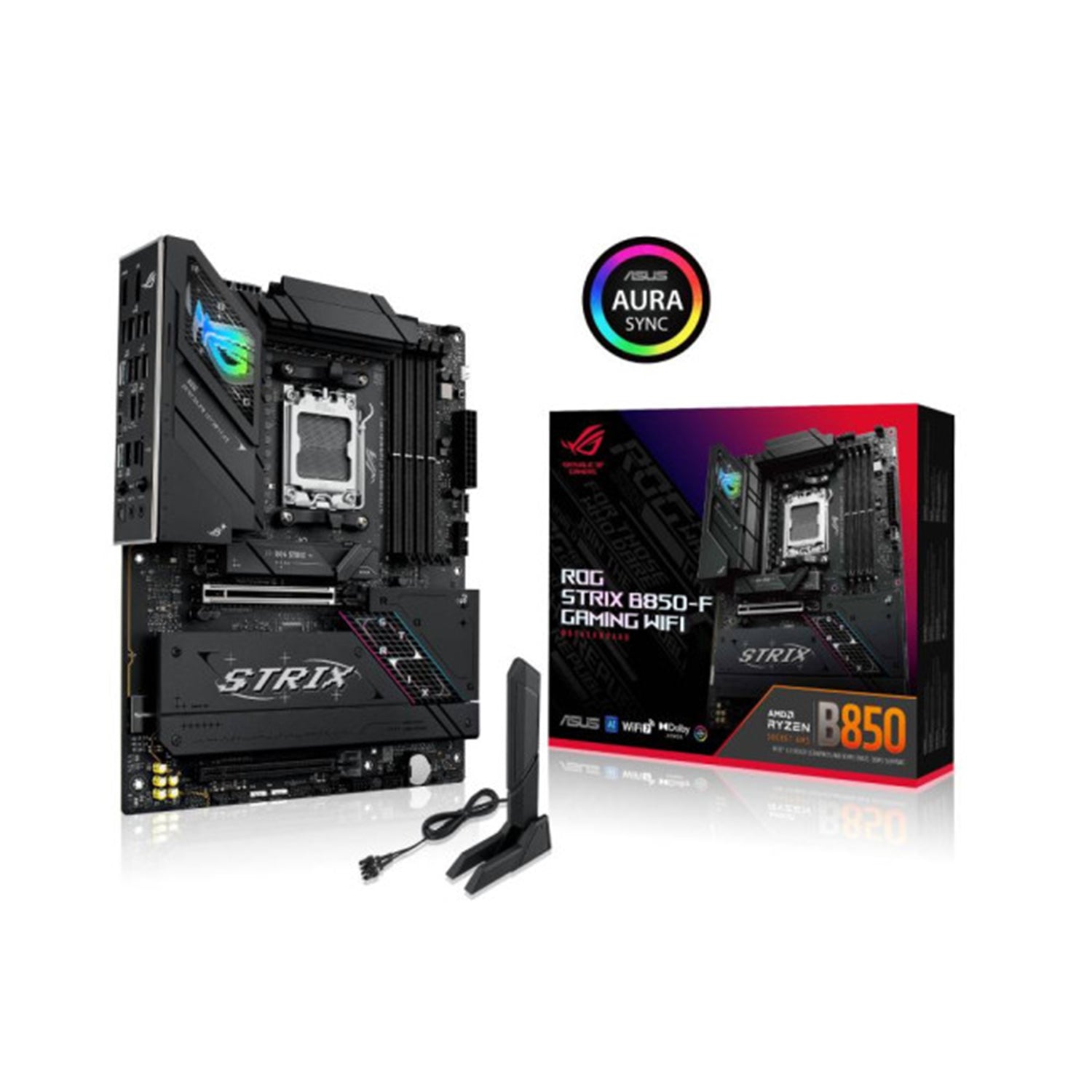

ASUS ROG STRIX B850‑F GAMING WIFI AM5 ATX Motherboard – DDR5 192GB, PCIe 5.0
ASUS ROG STRIX B850‑F GAMING WIFI ATX Board
Build a next‑generation AM5 system with the ASUS ROG STRIX B850‑F GAMING WIFI, an ATX motherboard engineered for high‑end gaming, creator workloads, and performance‑driven PC builds. Powered by the AMD B850 chipset, it supports Ryzen 7000 / 8000 / 9000 Series processors and delivers cutting‑edge DDR5 performance with PCIe 5.0 expansion, Wi‑Fi 7, 2.5GbE LAN, and four ultra‑fast M.2 slots. With robust 16+2+2 power stages, AI‑enhanced optimisation, advanced cooling, and ROG‑exclusive features, the B850‑F provides stability and efficiency for demanding AM5 systems.
Designed with the signature ROG Strix aesthetic, the board includes reinforced PCIe slots, Q‑Release mechanisms, BIOS FlashBack, and creator‑focused connectivity. Whether for gaming, streaming, or workstation‑grade workloads, the ROG STRIX B850‑F delivers premium performance and future‑proof capability.
Specifications
Type: ATX Motherboard
Brand: ASUS
Model: ROG STRIX B850‑F GAMING WIFI
Chipset: AMD B850
CPU Socket: AM5
Supported CPUs: Ryzen 7000 / 8000 / 9000 Series (with integrated graphics for display output)
RAM Type: DDR5 (Dual Channel)
RAM Slots: 4 × 288‑pin
RAM Speed Support: Up to DDR5‑8000+ (O.C.)
Max Memory: 192GB
PCIe Slots: 1 × PCIe 5.0 x16 (GPU slot) Additional PCIe 5.0 / 4.0 chipset‑based slots
M.2 Slots: 4 × M.2 (PCIe 5.0 + PCIe 4.0 mix depending on CPU/chipset lanes)
LAN: 2.5GbE Ethernet
Wireless: Wi‑Fi 7 (802.11be)
Bluetooth: Integrated (chipset‑based)
SATA Ports: 2 × SATA 6Gb/s (Overclockers listing)
RAID Support: RAID 0/1/10 (per chipset capability)
Audio Codec: High‑Definition Audio
Channels: 7.1‑Channel HD Audio
Video Outputs: 1 × HDMI (Requires Ryzen CPU with integrated Radeon Graphics)

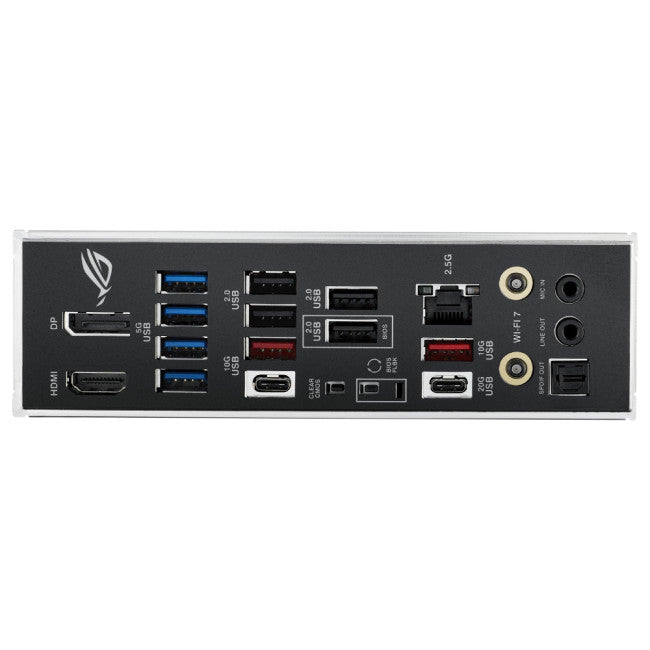

USB Connectivity – Rear I/O
Up to 19 USB ports total (varies by configuration)
USB4 Type‑C
USB‑C (USB 3.2 Gen2)
USB‑A (USB 3.2 Gen2)
USB‑A (USB 3.2 Gen1)
USB‑A (USB 2.0)
HDMI
2.5GbE LAN
Wi‑Fi antenna connectors
Audio jacks
Internal Headers
USB 3.2 Gen2x2 front‑panel Type‑C header
USB 3.2 Gen1 headers
USB 2.0 headers
RGB & ARGB headers
Front panel connectors
TPM header
Multiple fan headers
BIOS FlashBack button
Power Connectors: 24‑pin ATX 8‑pin CPU power + 8‑pin CPU power (dual EPS)
Form Factor: ATX (305 × standard width)
