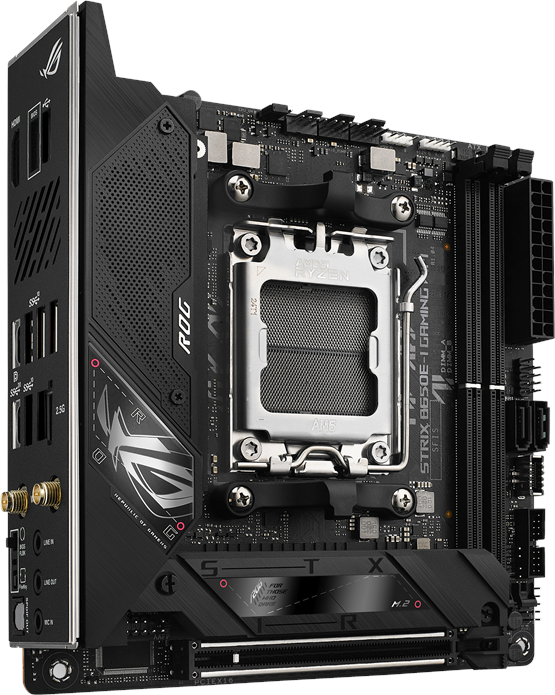

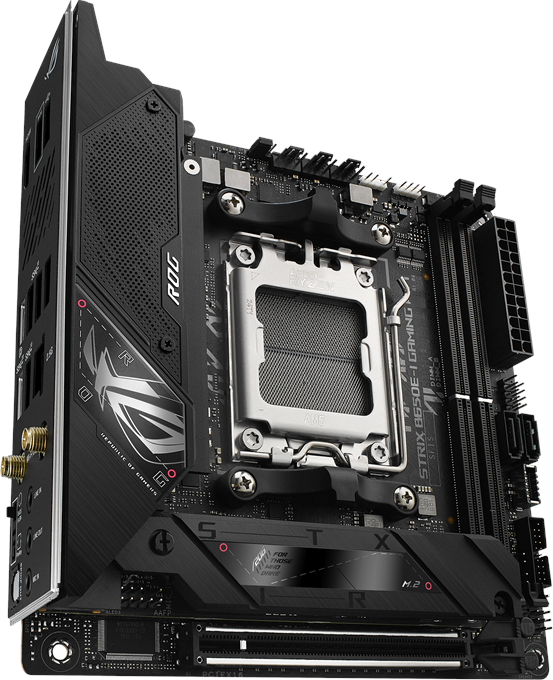

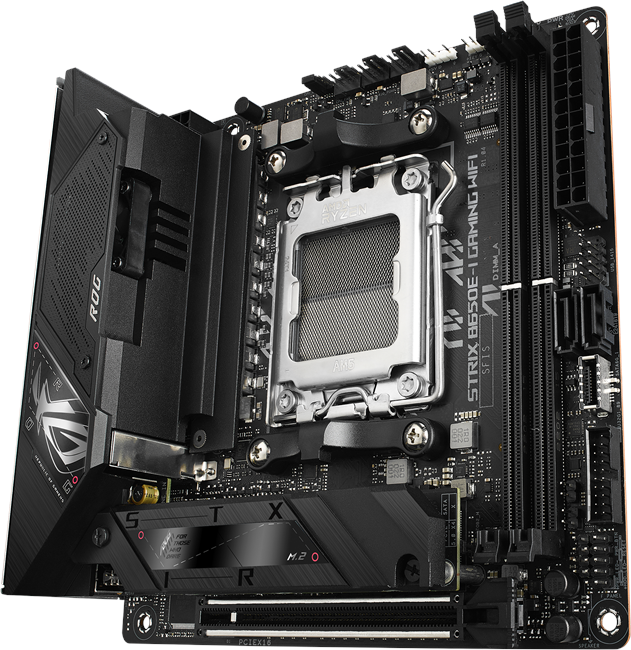

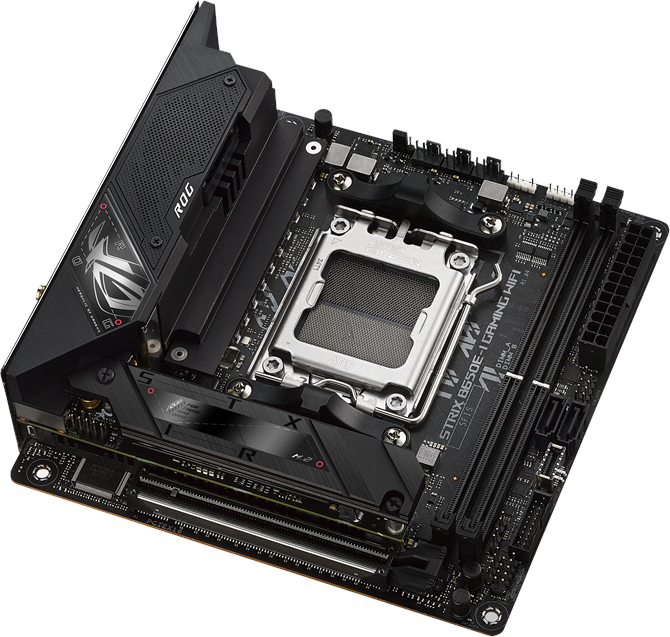

ASUS ROG Strix B650E‑I Gaming WiFi – AM5 Mini‑ITX Motherboard, DDR5, PCIe 5.0, Wi‑Fi 6E

ASUS AM5 ROG STRIX B650E‑I GAMING WIFI

Build a powerful and compact AM5 system with the ASUS ROG Strix B650E‑I Gaming WiFi, a premium Mini‑ITX motherboard engineered for high‑performance Ryzen builds. Powered by the AMD B650E chipset, it supports Ryzen 7000 / 8000 / 9000 Series processors and delivers ultra‑fast DDR5 performance with strong overclocking capability. With PCIe 5.0 GPU support, PCIe 5.0 + PCIe 4.0 M.2 slots, Wi‑Fi 6E, Bluetooth 5.2, 2.5GbE LAN, USB‑C connectivity, and advanced ROG thermal design, this board provides next‑level speed, stability, and reliability. ASUS features such as ROG SupremeFX audio, BIOS FlashBack, Q‑Design, and optimized VRM cooling ensure easy installation, excellent performance, and long‑term durability — all in a compact Mini‑ITX form factor ideal for small‑form‑factor gaming builds.

Specifications

Type: Mini‑ITX Motherboard
Brand: ASUS
Model: ROG Strix B650E‑I Gaming WiFi
Chipset: AMD B650E
CPU Socket: AM5
Supported CPUs: AMD Ryzen 7000 / 8000 / 9000 Series

Memory
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 2 × 288‑pin
RAM Speed Support: DDR5 6400+ OC (varies by CPU and DIMM)
Max Memory: 64GB

Expansion & Storage
PCIe Slots: 1 × PCIe 5.0 x16
M.2 Slots:1 × PCIe 5.0 x4, 1 × PCIe 4.0 x4
SATA Ports: 2 × SATA 6Gb/s
RAID Support: RAID 0/1

Networking
LAN: Intel 2.5GbE
Wireless: Wi‑Fi 6E
Bluetooth: 5.2

Audio
Audio Codec: ROG SupremeFX (ALC4080)
Channels: 7.1‑Channel High Definition Audio

Video Outputs: 1 × HDMI, 1 × USB‑C DisplayPort Alt Mode
(Requires Ryzen CPU with integrated graphics)

Special Features
ROG SupremeFX audio
PCIe 5.0 GPU + PCIe 5.0 M.2
Optimized VRM cooling
Q‑Design (Q‑Latch M.2, Q‑LED)
BIOS FlashBack
USB‑C front panel support
Aura Sync RGB
High‑performance VRM heatsinks
Compact Mini‑ITX layout

USB Connectivity Rear I/O
USB 2.0
USB 3.2 Gen1 Type‑A
USB 3.2 Gen2 Type‑A
USB 3.2 Gen2 Type‑C
USB 3.2 Gen2x2 Type‑C
HDMI
LAN port
Wi‑Fi antenna connectors
Audio jacks
BIOS FlashBack button

Internal Headers
USB 2.0 headers
USB 3.2 Gen1 header
USB 3.2 Gen2x2 Type‑C header
RGB & ARGB headersTPM header
COM header
Front panel connectors
Multiple fan headers
Clear CMOS header
Thermal sensor header

Power Connectors
24‑pin ATX
8‑pin CPU power

Form Factor: Mini‑ITX (170 × 170 mm)

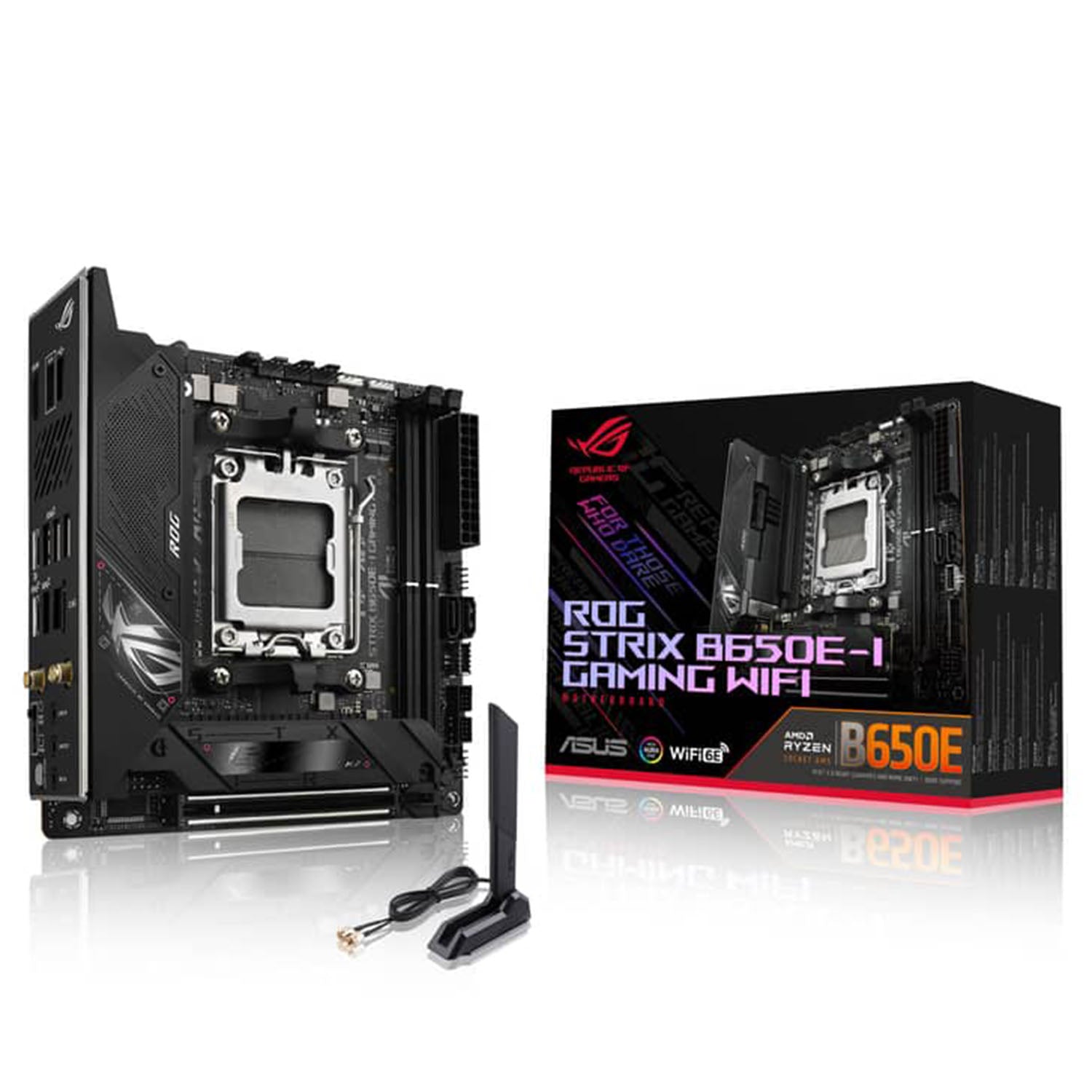

Package Contents
Motherboard
SATA cables
Wi‑Fi antennas
M.2 screws
M.2 Q‑Latch package
ROG USB 2.0 splitter
Panel cable
Thermal pads
ROG keychain
Stickers
Manual & support materials
