ASUS ROG Strix B650‑A Gaming WIFI ATX AM5 Motherboard – DDR5, Wi‑Fi 6E

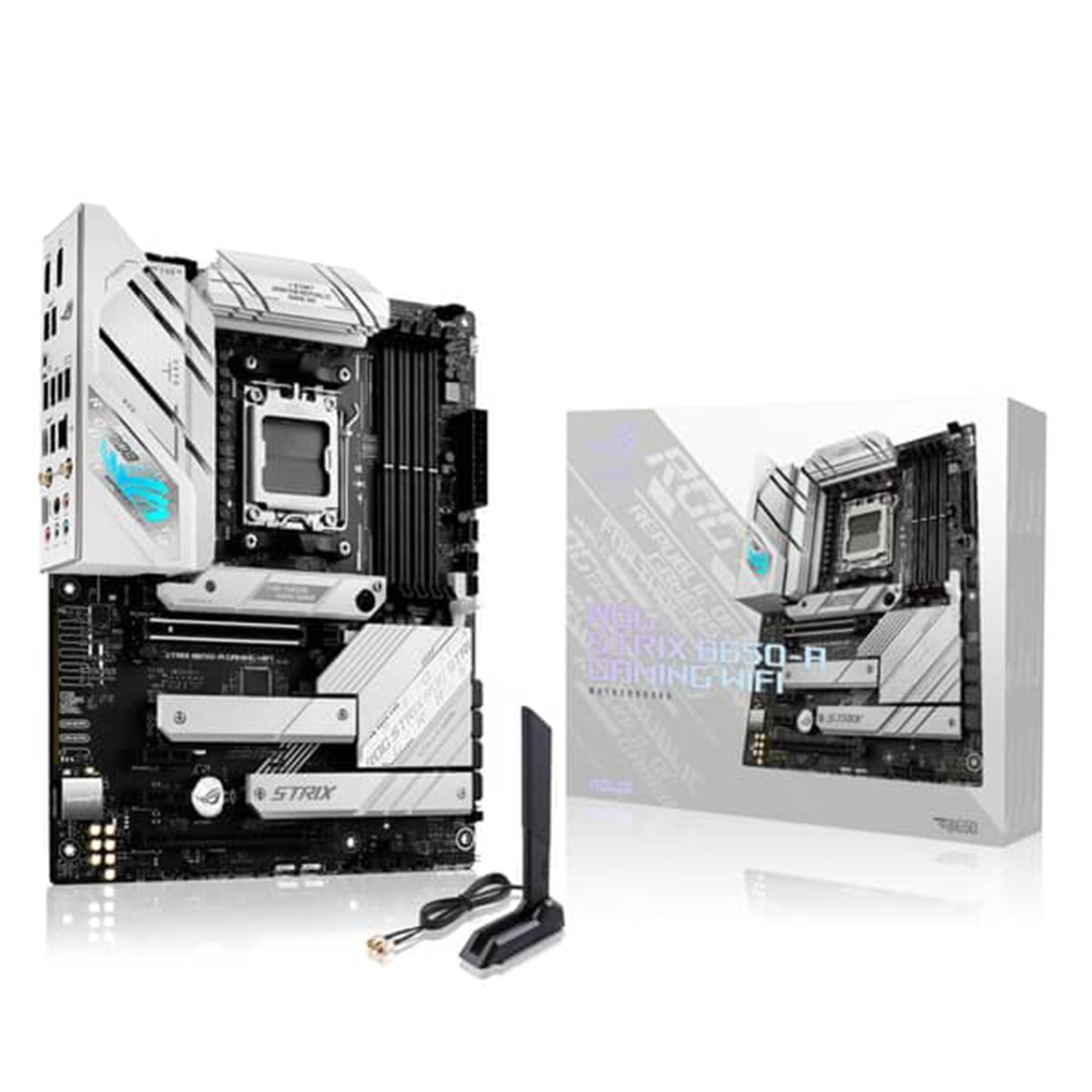

ASUS ROG Strix B650‑A Gaming WIFI
Build a stylish, high‑performance AM5 system with the ASUS ROG Strix B650‑A Gaming WIFI, an ATX motherboard designed for gaming, content creation, and long‑term reliability. Featuring the AMD B650 chipset, it supports Ryzen 7000 / 8000 / 9000 Series processors and delivers high‑speed DDR5 performance up to 6400+ MT/s (O.C.). With PCIe 4.0 x16 GPU support, triple M.2 slots, Wi‑Fi 6E, 2.5Gb LAN, and multiple display outputs, this board provides a powerful and future‑ready platform for modern gaming and productivity builds. ROG enhancements such as Q‑Latch M.2, BIOS FlashBack, and reinforced SafeSlot PCIe ensure easy installation and long‑term durability. The signature white ROG aesthetic makes it perfect for clean, premium‑looking PC builds.
Specifications
Type: ATX Motherboard
Brand: ASUS
Model: ROG Strix B650‑A Gaming WIFI
Chipset: AMD B650
CPU Socket: AM5
Supported CPUs: Ryzen 7000 / 8000 / 9000 Series (with integrated graphics for display output)
RAM Type: DDR5 (Dual Channel)
RAM Slots: 4 × 288‑pin
RAM Speed Support: Up to DDR5 6400+ (O.C.)
Max Memory: 128GB
PCIe Slots: 1 × PCIe 4.0 x16 (SafeSlot Reinforced) 1 × PCIe 4.0 x4 1 × PCIe 4.0 x1
Storage: 3 × M.2 Slots: • 1 × PCIe 5.0 x4 (CPU) – NVMe SSD • 2 × PCIe 4.0 x4 (Chipset) – NVMe SSD, 4 × SATA 6Gb/s
RAID Support: RAID 0/1/10 (SATA)
LAN: Realtek 2.5Gb Ethernet
Wireless: Wi‑Fi 6E
Bluetooth: 5.2
Audio: SupremeFX (Realtek ALC4080)
Channels: 7.1‑Channel High Definition Audio
Enhancements: Premium capacitors, EMI shielding
Video Outputs: (Requires Ryzen CPU with integrated Radeon Graphics) 1 × HDMI 2.1 1 × DisplayPort 1.4
USB Connectivity
Rear I/O
1 × USB‑C 20Gbps (USB 3.2 Gen 2x2)
4 × USB‑A 10Gbps (USB 3.2 Gen 2)
2 × USB‑A 5Gbps (USB 3.2 Gen 1)
2 × USB 2.0
HDMI
DisplayPort
2.5Gb LAN
Wi‑Fi antenna ports
5 × audio jacks
BIOS FlashBack button
Internal Headers
USB‑C 10Gbps (front panel)
USB 3.2 Gen 1 header
USB 2.0 headers
3 × Addressable Gen2 RGB headers
1 × Aura RGB header
TPM header
Clear CMOS header
Front panel audio
Multiple fan headers + AIO pump header
Power Connectors: 24‑pin ATX, 8‑pin + 4‑pin CPU power
Form Factor: ATX (305 × 244 mm)
Most Suitable For
High‑end gaming PCs
Ryzen 7000 / 8000 / 9000 builds
White‑themed PC builds
PCIe 5.0 NVMe storage setups
Wi‑Fi 6E + 2.5Gb LAN connectivity
