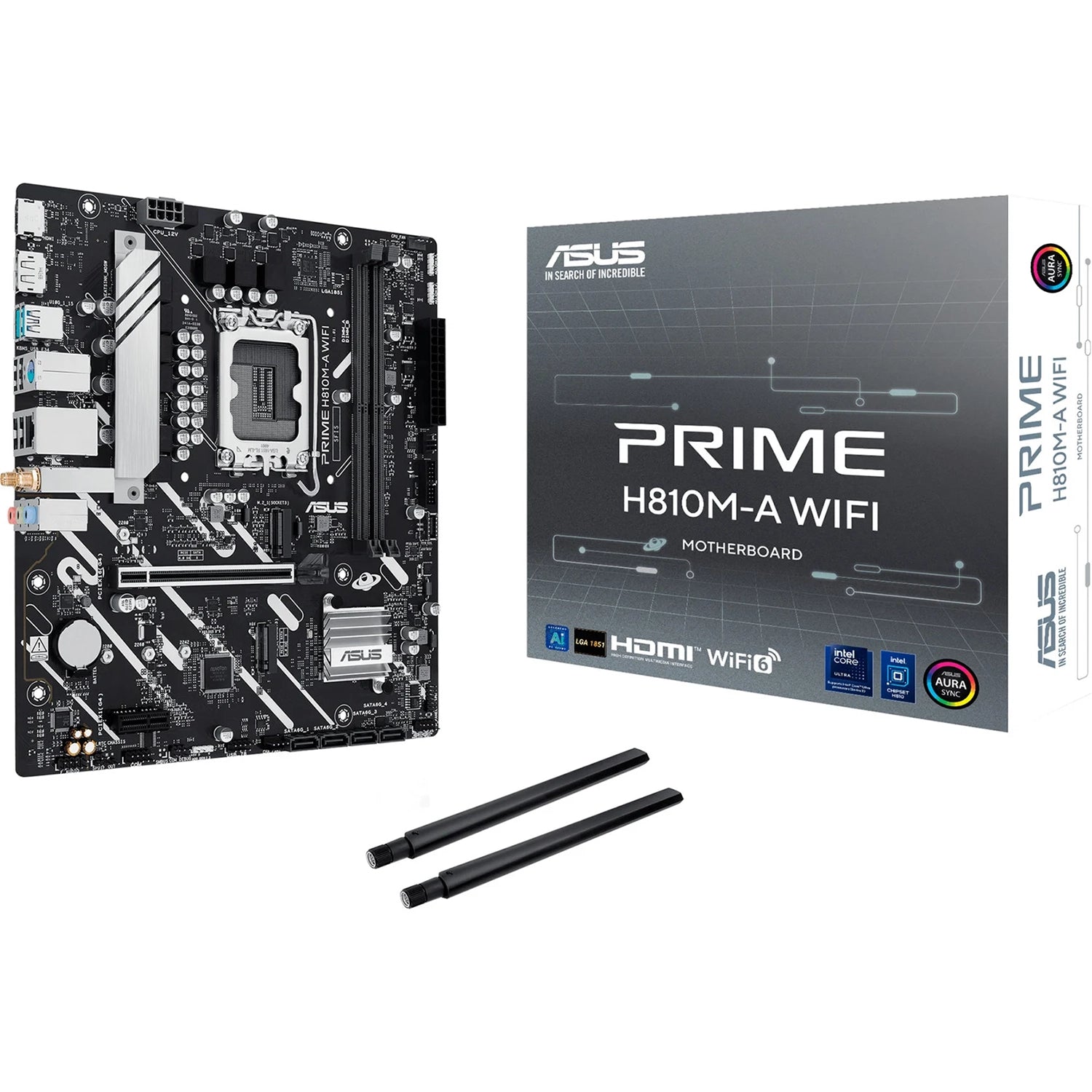

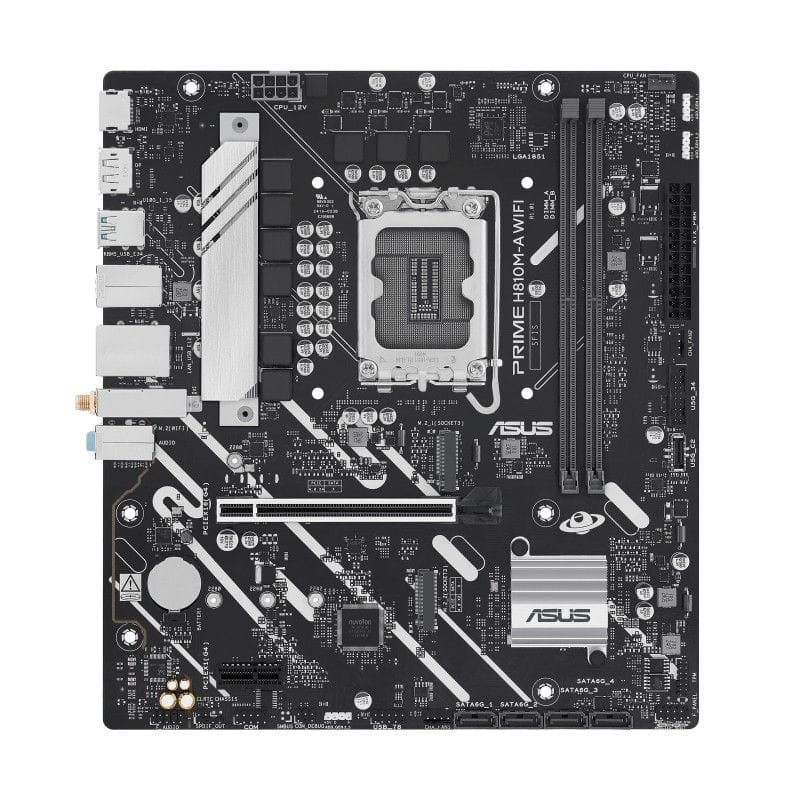

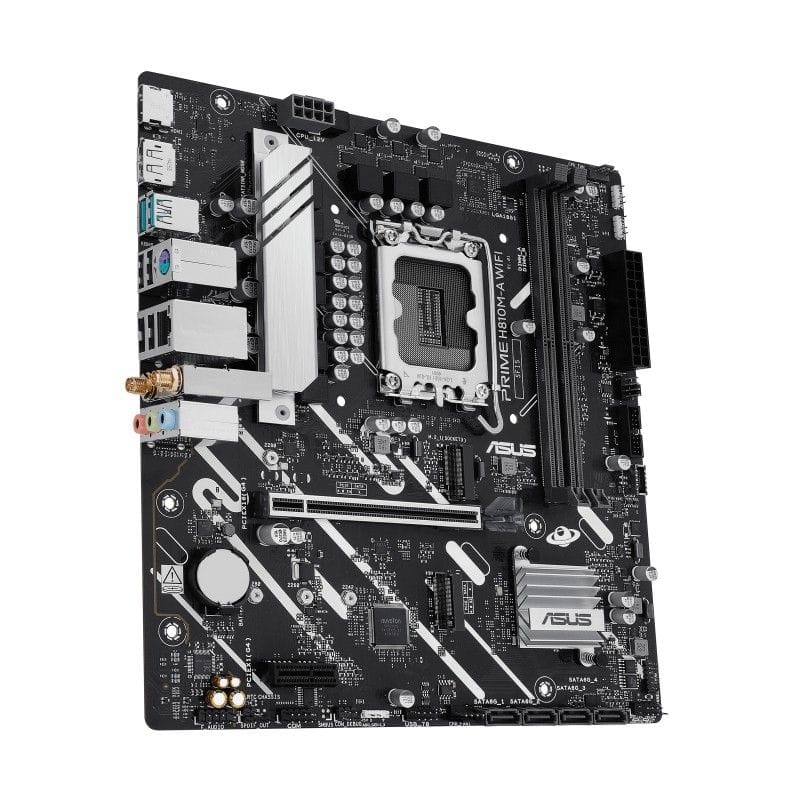

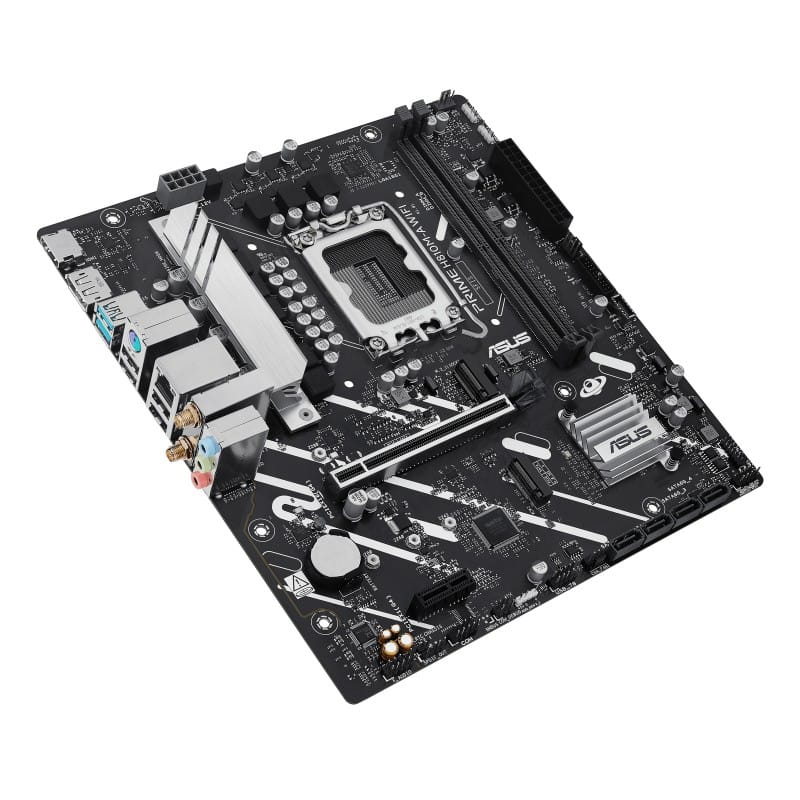

ASUS PRIME H810M‑A WIFI Micro‑ATX Motherboard – LGA 1851, DDR5, Wi‑Fi 6
ASUS PRIME H810M‑A WIFI LGA 1851 Micro‑ATX
The ASUS PRIME H810M‑A WIFI is a dependable and efficient Micro‑ATX motherboard designed for Intel’s latest LGA 1851 (Socket V1) processors, including Intel Core Ultra (Series 2). Built on the Intel H810 chipset, it delivers essential performance, stability, and connectivity for business, office, and everyday productivity systems.
With support for DDR5 memory, dual M.2 PCIe 4.0 slots, Wi‑Fi 6, Bluetooth 5.3, and a full suite of rear I/O including HDMI, DisplayPort, USB 3.2 Gen2, and Gigabit LAN, this board provides a solid foundation for modern Intel builds. ASUS 5X Protection III safeguards, UEFI BIOS, and corporate‑grade reliability make it ideal for system integrators and long‑term deployments.
Specifications
Type: Micro‑ATX Motherboard
Brand: ASUS
Model: PRIME H810M‑A WIFI
Chipset: Intel H810
CPU Socket: LGA 1851 (Socket V1)
CPU Support: Intel Core Ultra (Series 2)
Memory
Dual‑Channel DDR5
2 × DDR5 DIMM Slots
Supports DDR5‑SDRAM
Non‑ECC
Max Capacity: 128GB
Up to DDR5 5600+ MHz (OC) (based on chipset capability)
Unbuffered memory support
PCIe Slots: 1 × PCIe 4.0 x16 (GPU), 1 × PCIe 4.0 x1
Storage
M.2 Slots: 2 × M.2 PCIe 4.0 x4 (2280)
SATA: 4 × SATA III 6Gb/s
RAID Support: RAID 0 / 1 / 5 / 10 (per chipset capability), NVMe RAID supported via M.2 slots
Networking
Gigabit Ethernet (1GbE)
Wi‑Fi 6 (802.11ax)
Bluetooth 5.3
WiFi‑AP antenna jack on rear I/O
Audio
Realtek 7.1‑Channel HD Audio
Audio shielding
Premium audio capacitors
Video Outputs (requires CPU with integrated graphics)
1 × HDMI
1 × DisplayPort
1 × VGA
USB Connectivity

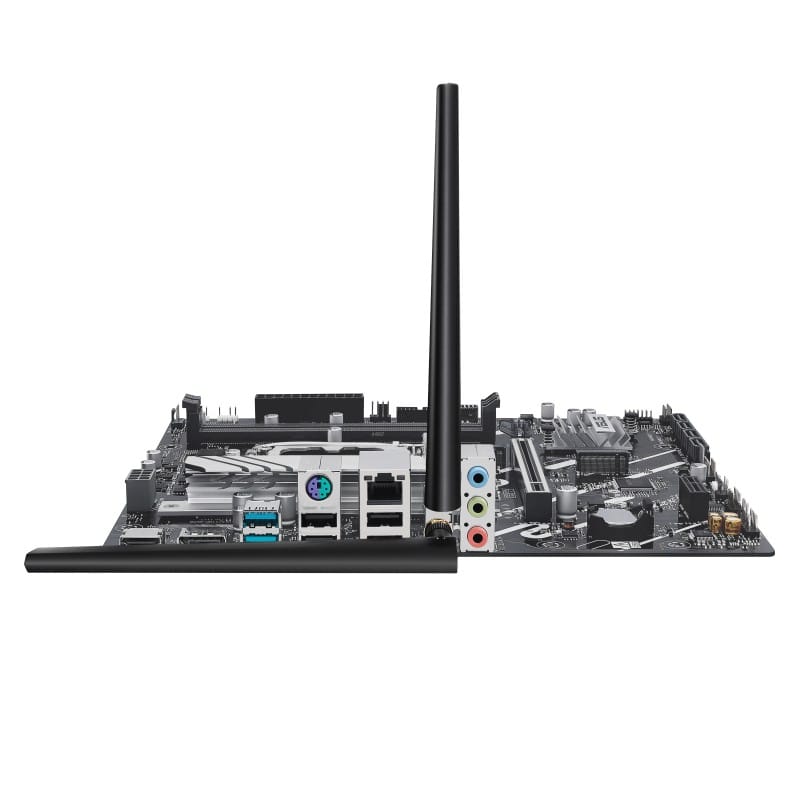

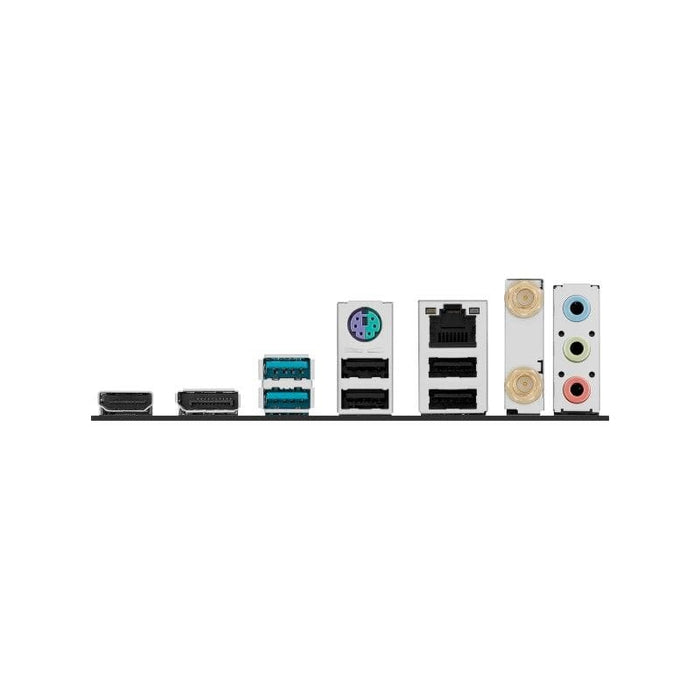

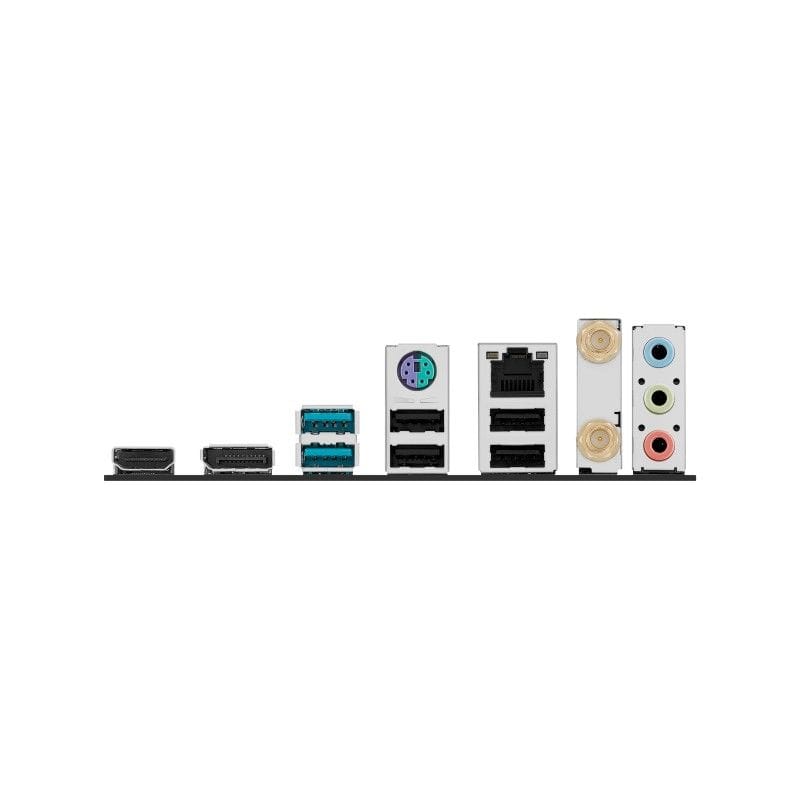

Rear I/O:
4 × USB 2.0
2 × USB 3.2 Gen2 Type‑A
1 × PS/2
HDMI
DisplayPort
VGA
1Gb LAN
WiFi antenna jack
Audio jacks
Internal Headers:
USB 3.2 Gen1 header
USB 2.0 header
Front panel audio
TPM header
CPU fan header
2 × chassis fan headers
24‑pin ATX power
12V CPU power (8‑pin)
Power Connectors: 24‑pin ATX, 8‑pin 12V CPU power
Form Factor Micro‑ATX: 244 mm × 222 mm

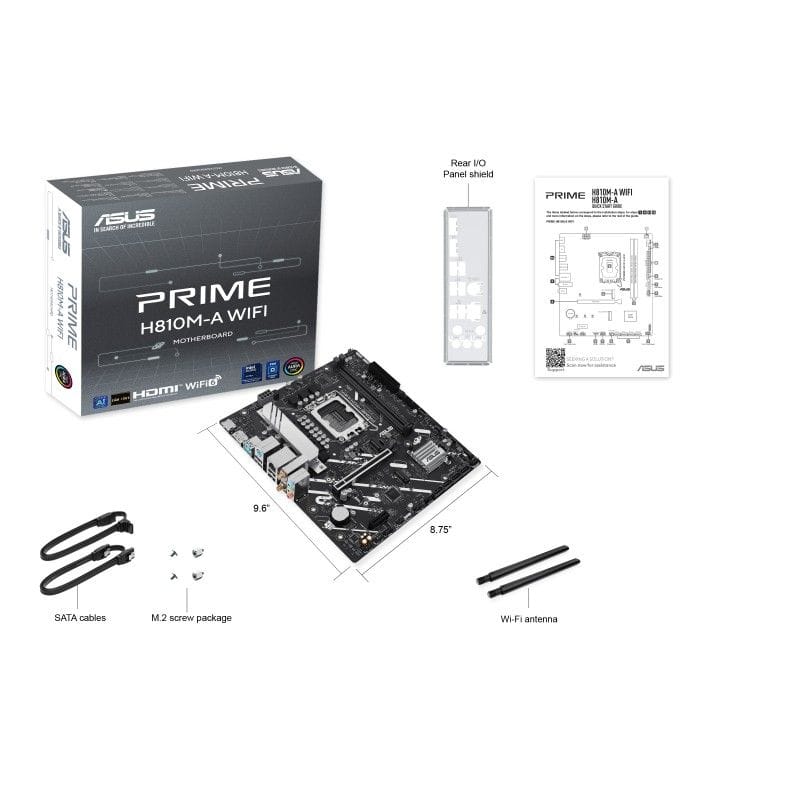

Included Accessories
SATA cables
Screws (as listed in packaging content)
Most Suitable For
Budget‑friendly Intel LGA 1851 builds
Office & productivity PCs
Corporate Stable Model (CSM) deployments
Wi‑Fi enabled business systems
System integrators & OEM builds
