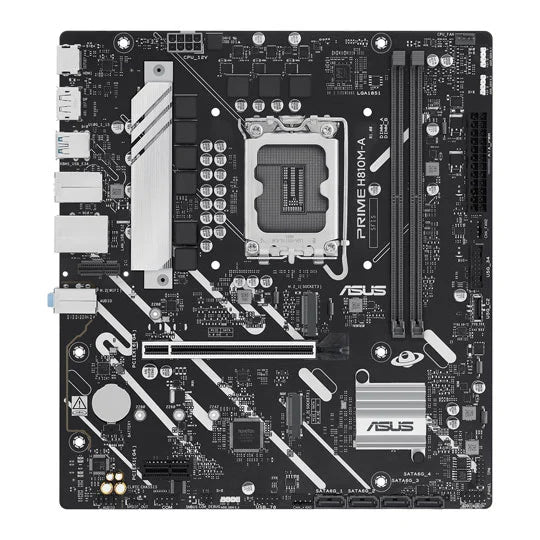

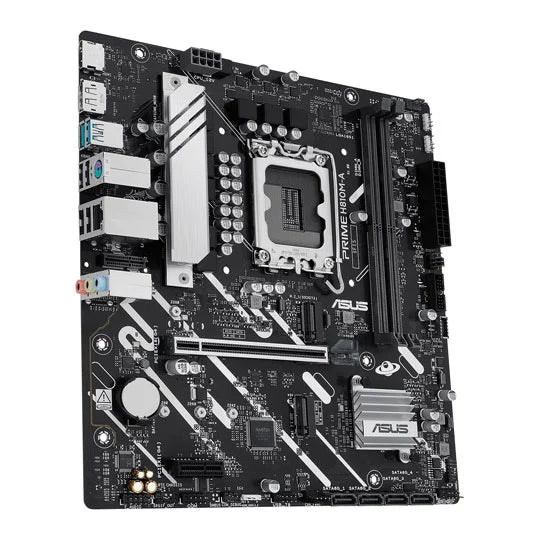

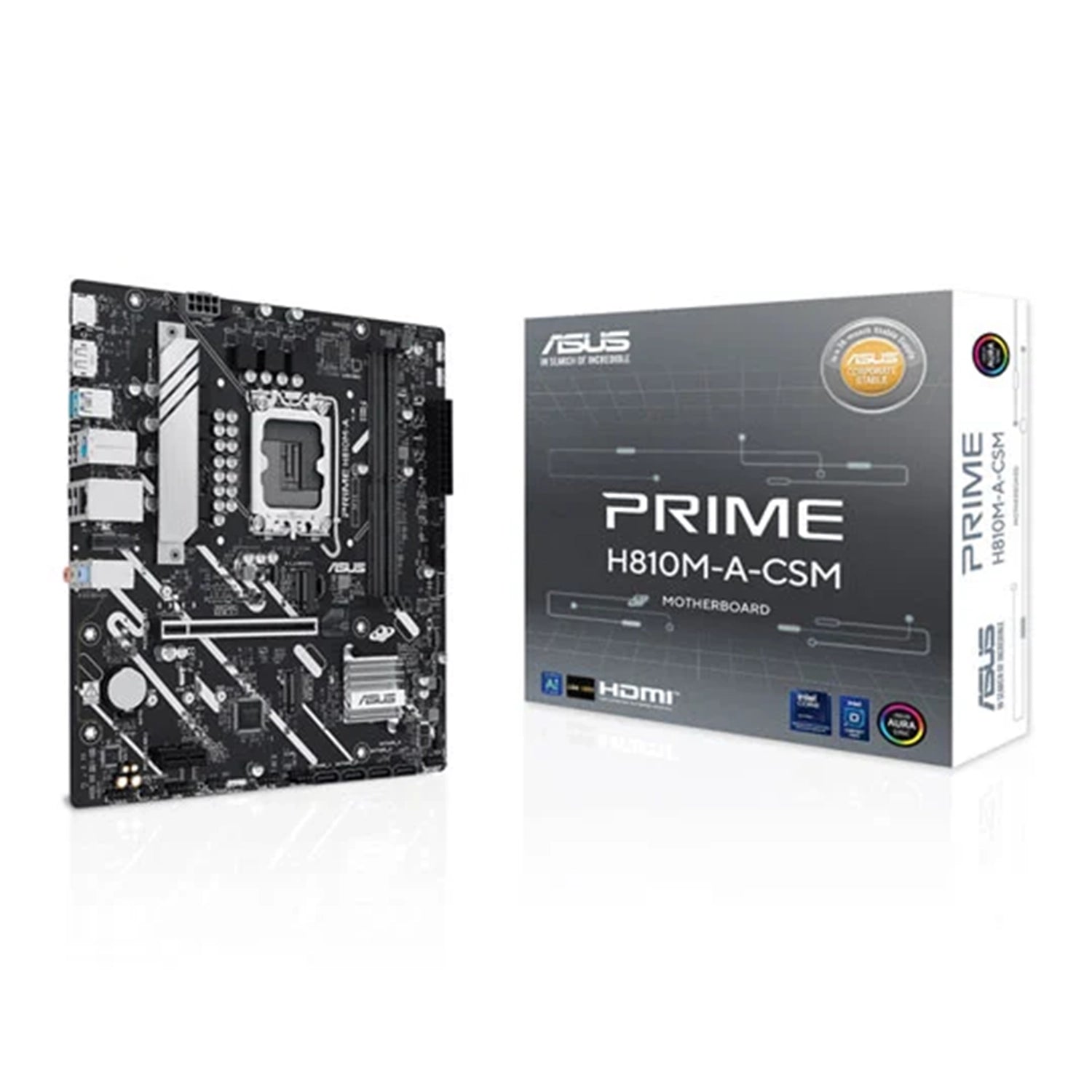

ASUS PRIME H810M‑A‑CSM Micro‑ATX Motherboard – LGA 1851, DDR5
ASUS PRIME H810M LGA 1851 Micro‑ATX
The ASUS PRIME H810M‑A‑CSM is a reliable and efficient Micro‑ATX motherboard built for Intel’s latest LGA 1851 (Socket V1) processors, including Intel Core Ultra and next‑generation desktop CPUs. Powered by the Intel H810 chipset, it delivers essential performance, stability, and connectivity for business, office, and everyday computing environments.
Designed under ASUS’s CSM (Corporate Stable Model) program, the board offers long‑term availability, enhanced security, and IT‑focused management features. With support for DDR5 memory, PCIe 4.0 expansion, M.2 NVMe storage, and comprehensive I/O connectivity, the PRIME H810M‑A‑CSM provides a dependable foundation for productivity‑focused systems.
Its robust power delivery, ASUS 5X Protection III hardware safeguards, and efficient cooling design make it ideal for system integrators, business deployments, and cost‑effective home or office builds.
Specifications
Type: Micro‑ATX Motherboard
Brand: ASUS
Model: PRIME H810M‑A‑CSM
Chipset: Intel H810
CPU Socket: LGA 1851 (Socket V1)
CPU Support: Intel Core Ultra / Next‑Gen Intel LGA 1851 CPUs
Memory
Dual‑Channel DDR5
2 × DDR5 DIMM Slots
Supports non‑ECC unbuffered memory
Up to DDR5 5600+ MHz (OC)
Max Capacity: 96GB
Intel XMP 3.0 support
PCIe Slots:1 × PCIe 4.0 x16 (GPU), 1 × PCIe 3.0 x1
Storage
M.2 Slots:1 × M.2 PCIe 4.0 x4 (NVMe, 2280)
SATA: 4 × SATA 6Gb/s
Networking: Realtek 1Gb Ethernet, ASUS LANGuard surge protection
Audio
Realtek 7.1‑Channel HD Audio
Audio shielding
Premium audio capacitors
Video Outputs (requires CPU with integrated graphics)
1 × HDMI 2.1 (4K 60Hz)
1 × DisplayPort 1.4
1 × VGA
USB Connectivity
Rear I/O:
1 × USB‑C 3.2 Gen1
2 × USB‑A 3.2 Gen1
4 × USB 2.0
HDMI
DisplayPort
VGA
1Gb LAN
Audio jacks
Internal Headers:
USB 3.2 Gen1 header
USB 2.0 headers
RGB header
CPU fan, chassis fan header
TPM header
Front panel audio
Power Connectors: 24‑pin ATX, 8‑pin 12V CPU power
Form Factor Micro‑ATX: 24.4 cm × 21.0 cm
Most Suitable For
Business & office PCs
Corporate Stable Model (CSM) deployments
Budget‑friendly Intel LGA 1851 builds
Everyday productivity systems
System integrators & OEM builds
