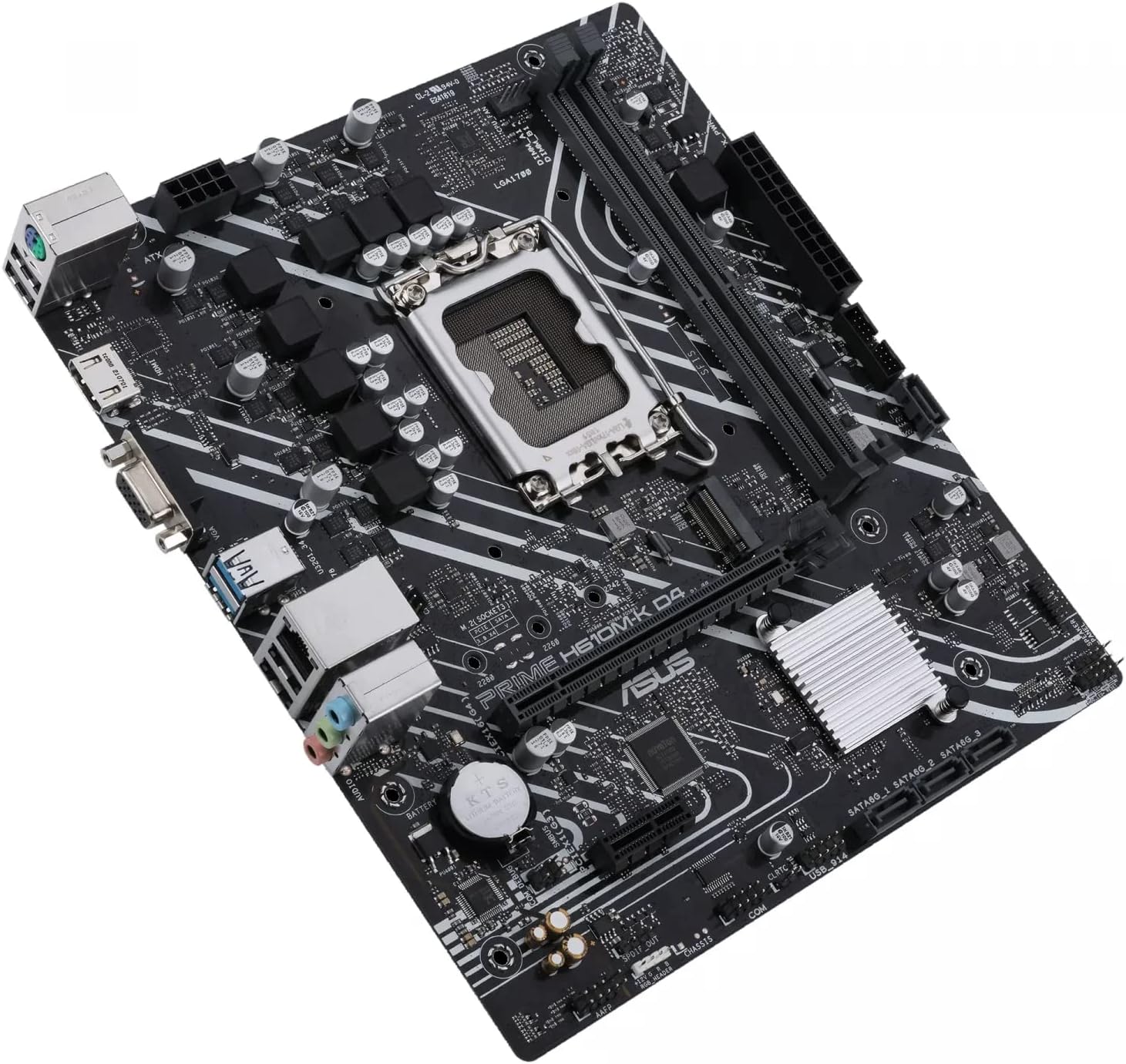

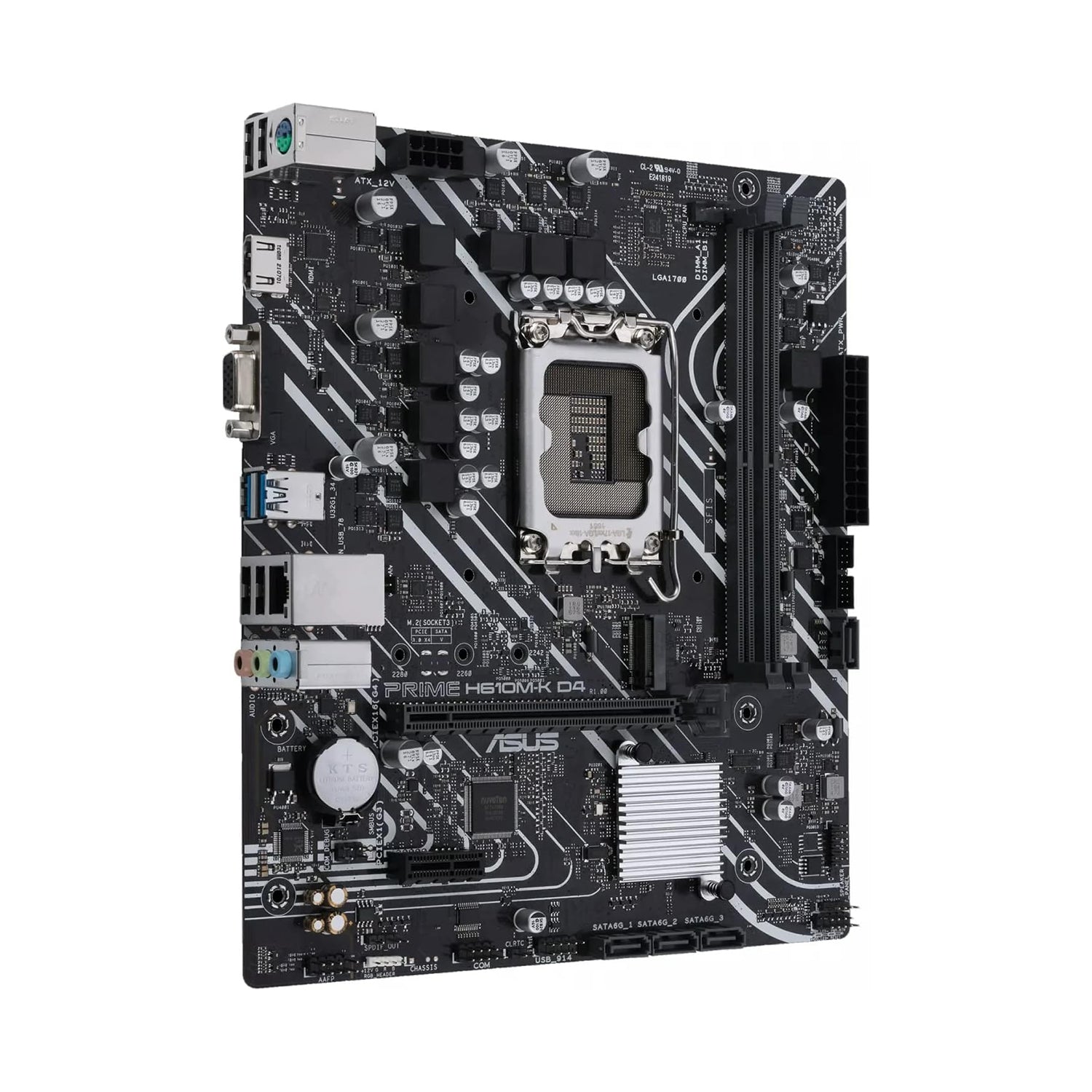

Asus Prime H610M-R D4-SI Gaming Motherboard, Intel 1700, Micro ATX, DDR4, PCIe4, M.2

Asus H610M Motherboard Micro ATX

Experience seamless gaming with the Asus Prime H610M-R D4-SI Gaming Motherboard. This Micro ATX board is equipped with Intel 1700 processor, DDR4 memory and PCIe4 for lightning fast performance. The M.2 slot allows for faster data transfer, and VGA, DVI, and HDMI ports support multiple display options. Take your gaming to the next level with this top-of-the-line motherboard from Asus Prime.

Specifications

Motherboard Type: Desktop

Form Factor: Micro ATX

Socket: Intel 1700

Chipset: Intel H610

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 2 x DIMM

RAM Speeds: Up to 3200MHz

Maximum Memory: 64GB

Graphics
Integrated Graphics*
*Graphics specifications may vary between CPU types

Graphics Ports: 1 x VGA, 1 x DVI-D, 1 x HDMI

Multi-GPU Support: No

PCI/PCI Express: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1

Storage
4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe

RAID: No

Wireless: No

LAN: GB LAN

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported
4 x USB 3.2 Gen1 Type-A (2 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)

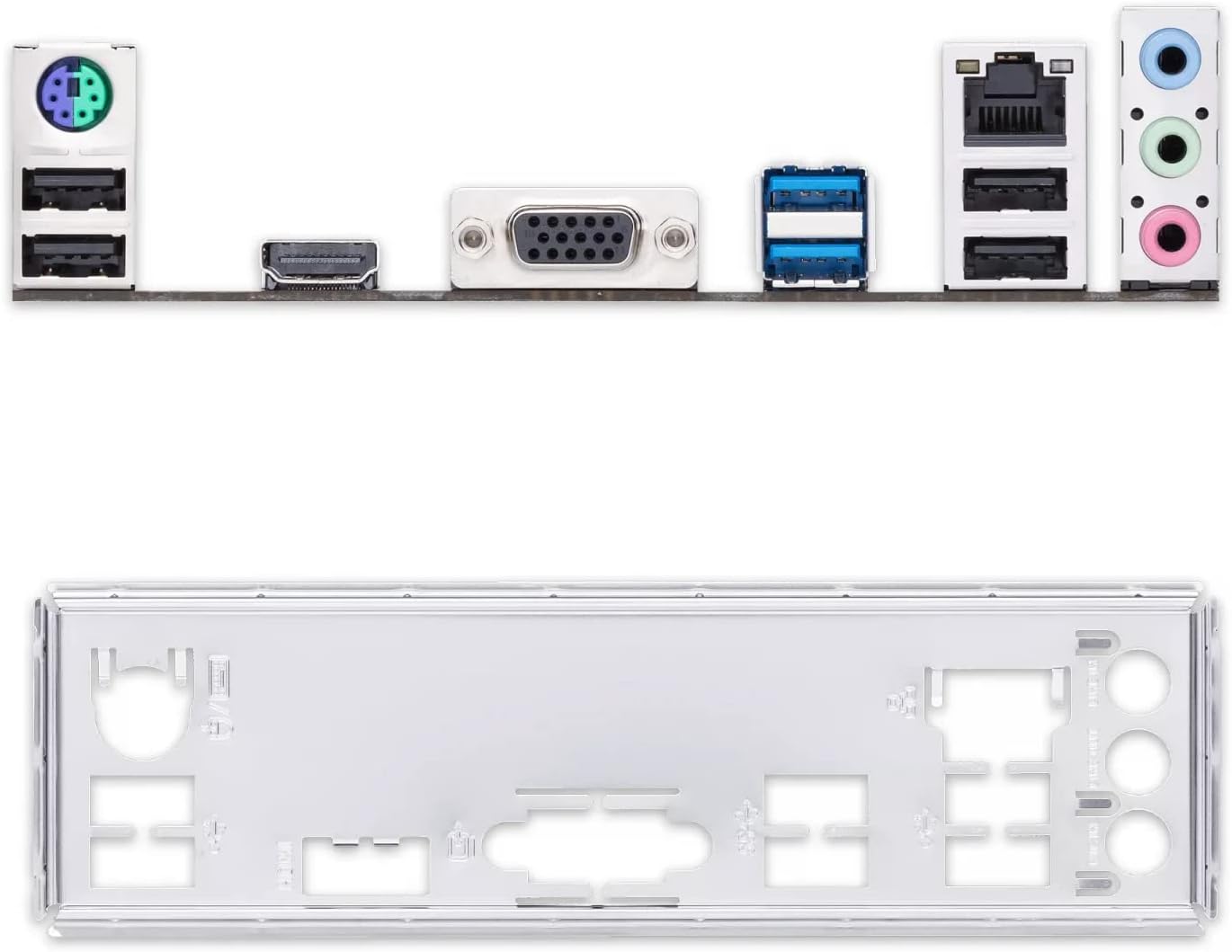

Back Panel I/O Ports
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x D-Sub
1 x DVI-D
1 x HDMI
1 x Realtek 1Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard
1 x PS/2 Mouse

Internal I/O Connectors
1 x 4-pin CPU Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 4-pin +12V
1 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
1 x Chassis Intrusion header
1 x COM Port
1 x Front Panel Audio
1 x LPT 1 x Clear CMOS
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel
