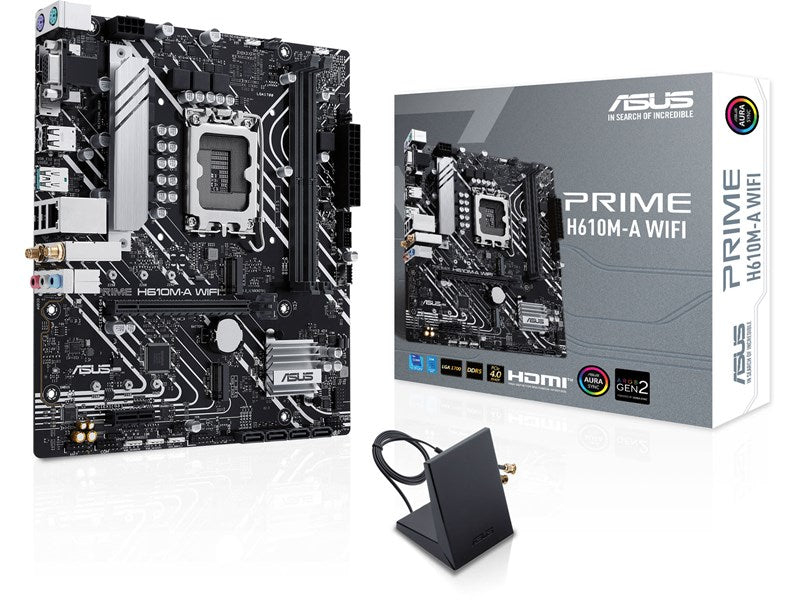

ASUS PRIME H610M-A WIFI (Socket 1700/H610/DDR5/S-ATA 6Gb/s/Micro ATX)

Product Name:

ASUS PRIME H610M-A WIFI (Socket 1700/H610/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.asus.com

Model Number:

PRIME H610M-A WIFI

EAN:

4711387301777

UPC:

197105301771

Package Type:

Retail

Warranty:

3 Years

BIOS:

128 Mb Flash ROM, UEFI AMI BIOS

Chipset:

Intel H610

CPU Interface:

Socket 1700

CPU Support:

https://www.asus.com/motherboards-components/motherboards/prime/prime-h610m-a-wifi/helpdesk_knowledge/?model2Name=PRIME-H610M-A-WIFI

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR5 5600 (O.C.)

Max. Memory Support:

96GB

PCI Express 4.0 x16:

1

PCI Express 3.0 x1:

1

S-ATA 6Gb/s Port(s):

4

M.2 Socket(s):

• 1 x PCIe Gen 3.0 x4
• 1 x PCIe Gen 3.0 x2

On-Board LAN:

• 1 x Intel 1Gb Ethernet
• ASUS LANGuard

Wireless NIC:

Wi-Fi 5

Wireless Technology:

• Wi-Fi 5 (802.11 a/b/g/n/ac)
• Supports 2.4/5GHz frequency band

Bluetooth:

v5.0

On-Board Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Mouse Port:

1

Back PS/2 Keyboard Port:

1

Back USB 2.0 Port(s):

4

Back USB 3.2 Port(s) Type-A Gen 2:

1

Back VGA Port(s):

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

1 x Wi-Fi Module

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

2

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

S/PDIF Out Header(s):

1

Internal Other Port(s):

• 3 x Addressable Gen 2 headers
• 2 x AURA RGB headers

Form Factor:

Micro ATX

Product Width:

216mm

Product Length:

244mm

Package Width:

26.5cm

Package Length:

27cm

Package Height:

5.5cm

Gross Weight:

1.00Kg

Special Features:

• Intel LGA 1700 Socket: Ready for 13th and 12th Gen Intel processors.
• Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Intel 1Gb Ethernet, WIFI 5 and USB 3.2 Gen 2 support, front USB 3.2 Gen 1 Type-C.
• Comprehensive Cooling: VRM heatsink, PCH heatsink and Fan Xpert 2+.
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x ASUS Wi-Fi moving antennas
• 1 x I/O Shield
• 1 x Screw package for M.2 SSD
• 1 x User guide
