Asus Prime H610M-A WIFI D4 Gaming Motherboard, Intel H610, 1700, Micro ATX, DDR4, Wi-Fi, PCIe4

Asus H610M-A WiFi Gaming Motherboard M-ATX

Introducing the Asus Prime H610M-A WIFI D4 Gaming Motherboard. Designed for optimal gaming performance with DDR4 technology and Intel 1700 processor. Experience ultra-fast data transfer with PCIe 4.0 and stay connected with Wi-Fi capabilities. Upgrade your gaming setup with the reliable and powerful Asus Prime motherboard.

Specifications

Motherboard Type: Desktop

Form Factor: Micro ATX

Socket: Intel 1700

Chipset: Intel H610

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 2 x DIMM

RAM Speeds: Up to 3200MHz

Maximum Memory: 64GB

Graphics
Integrated Graphics*
*Graphics specifications may vary between CPU types

Graphics Ports: 1 x VGA, 1 x HDMI, 1 x DisplayPort

PCI/PCI Express: 1 x PCIe 4.0 x16 slot, 1 x PCIe 3.0 x1 slot

Storage
4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - PCIe

Wireless
Wi-Fi 5
Wi-Fi 5 (802.11 a/b/g/n/ac)
Supports 2.4/5GHz frequency band
Bluetooth v5.0

LAN: GB LAN

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported
2 x USB 3.2 Gen2 Type-A (at back)
2 x USB 3.2 Gen1 Type-A (at mid-board)
7 x USB 2.0 (4 at back, 3 at mid-board)

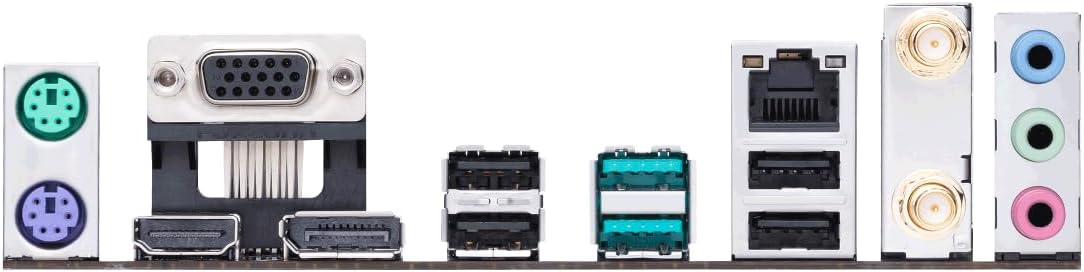

Back Panel I/O Ports
2 x USB 3.2 Gen2 (Type-A)
4 x USB 2.0 (Type-A)
1 x DisplayPort
1 x HDMI
1 x D-Sub
1 x Wi-Fi Module
1 x Intel 1Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard
1 x PS/2 Mouse

Internal I/O Connectors
1 x 4-pin CPU Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
3 x Addressable Gen2
2 x AURA RGB
1 x Clear CMOS
1 x Front Audio 1 x COM Port
1 x S/PDIF Out
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel

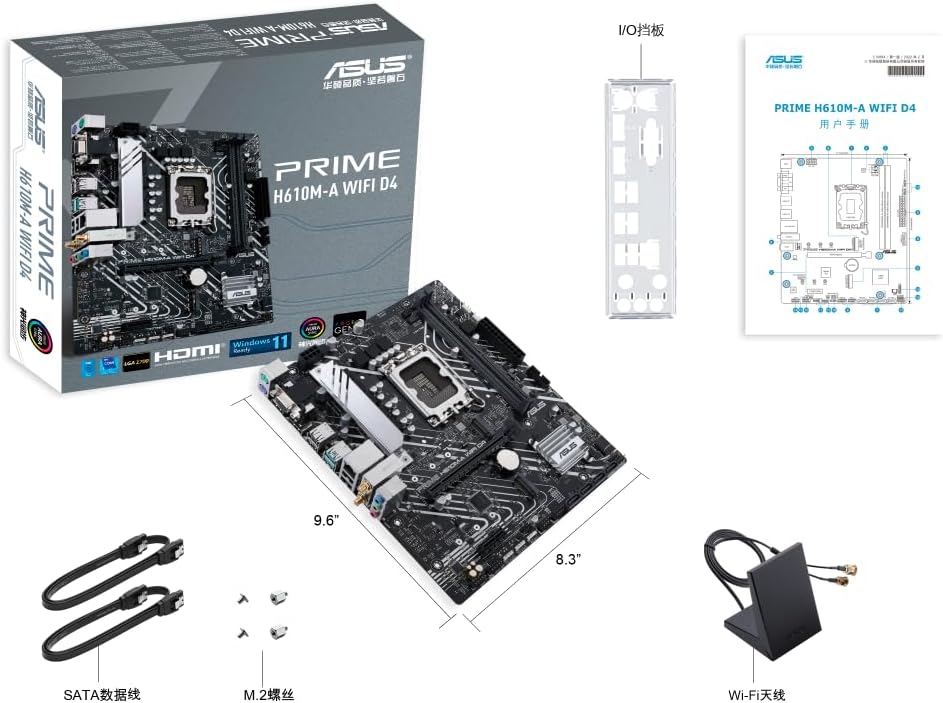

Accessories
2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 SSD screw package
1 x Support DVD
1 x User guide
