Asus Prime H510M-K R2.0 M-ATX Motherboard, Intel H470, 1200, Micro ATX, DDR4, VGA, HDMI, M.2

Original price £79.99 - Original price £79.99
Original price
£79.99 - £79.99
Current price £79.99

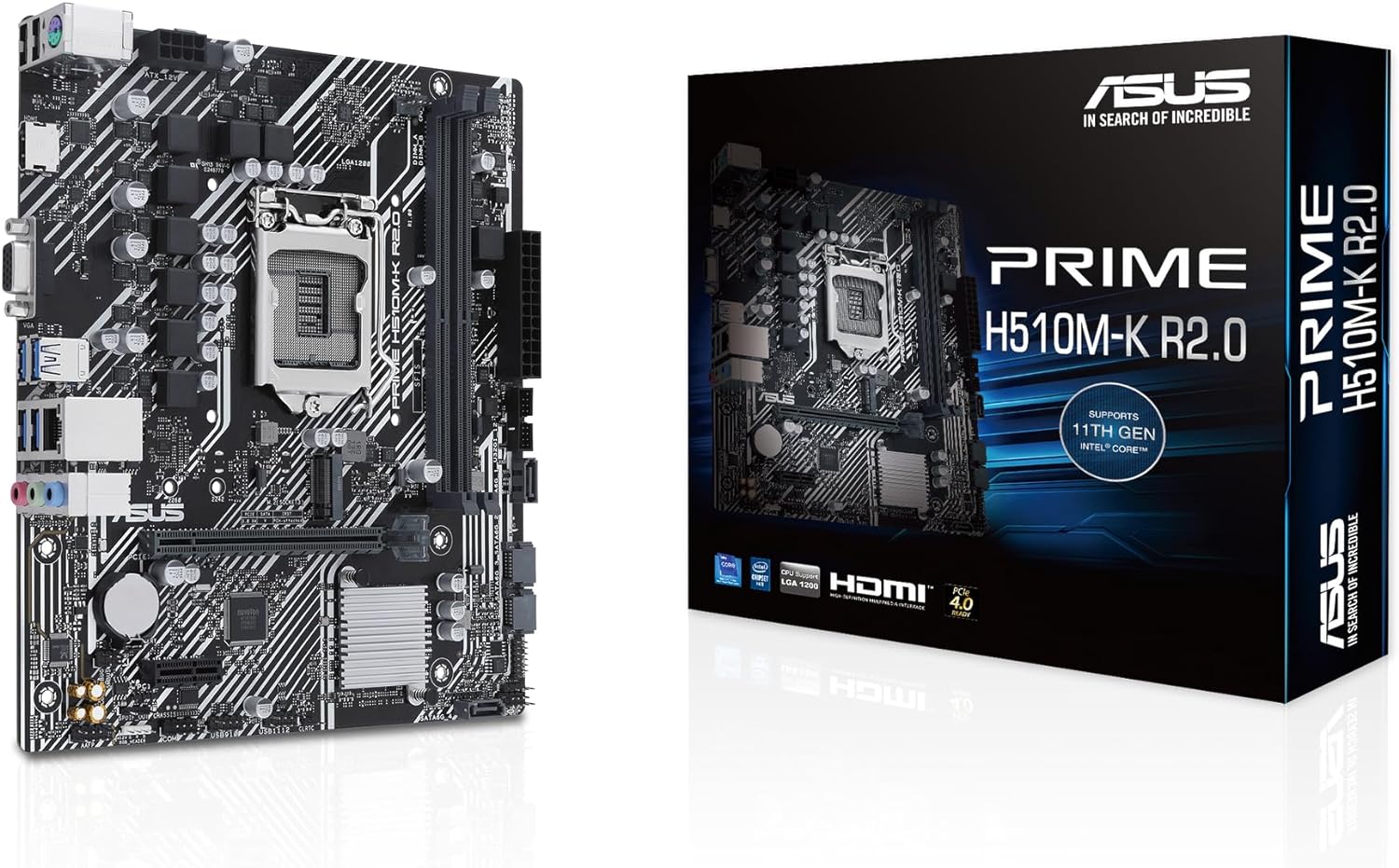

Asus Prime H510M-K R2.0 M-ATX Motherboard

The Asus Prime H510M-K R2.0 M-ATX Motherboard is a powerful and reliable option for gaming enthusiasts. With its Intel H470 chipset and DDR4 support, this micro ATX motherboard offers fast and smooth performance. The inclusion of VGA, HDMI, and M.2 slots adds versatility and convenience to your gaming setup.


Motherboard Type: Desktop

Form Factor: Micro ATX

Socket: Intel 1200 - Comet Lake

Chipset: Intel H470

RAM Technology: DDR4 (Dual Channel)

RAM Slots: 2 x DIMM

RAM Speeds: Up to 3200(OC)

Maximum Memory: 64GB

Integrated Graphics*
*Graphics specifications may vary between CPU types

Graphics Ports
1 x VGA
1 x HDMI

PCI/PCI Express
1 x PCIe 4.0/3.0 x16
1 x PCIe 3.0 x1

1 x M.2 (2242/2260/2280) - SATA & PCIe

Wireless: No


Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported
6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)

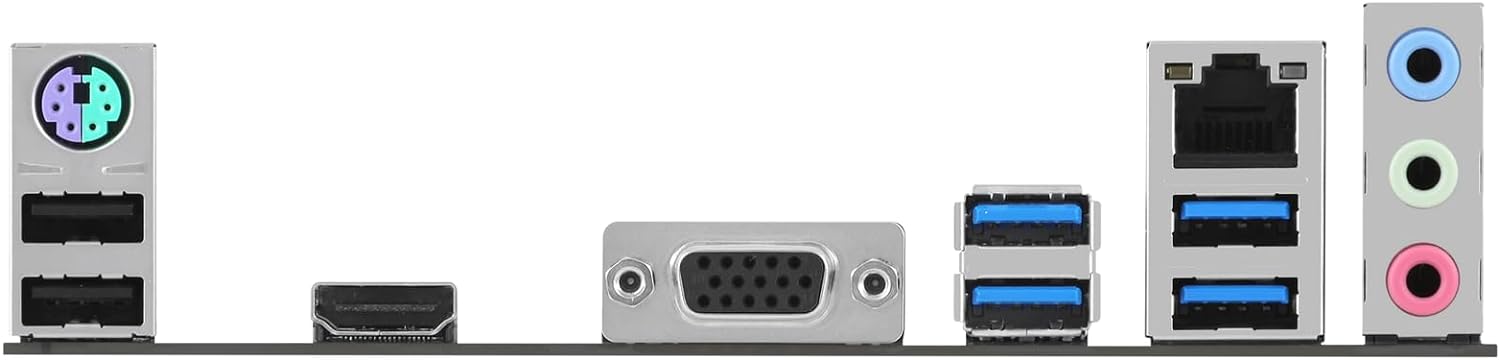

Back Panel I/O Ports
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x VGA
1 x HDMI
1 x Realtek 1Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo

Internal I/O Connectors
1 x 4-pin CPU Fan
1 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1
2 x USB 2.0
1 x RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio 1 x S/PDIF Out
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel

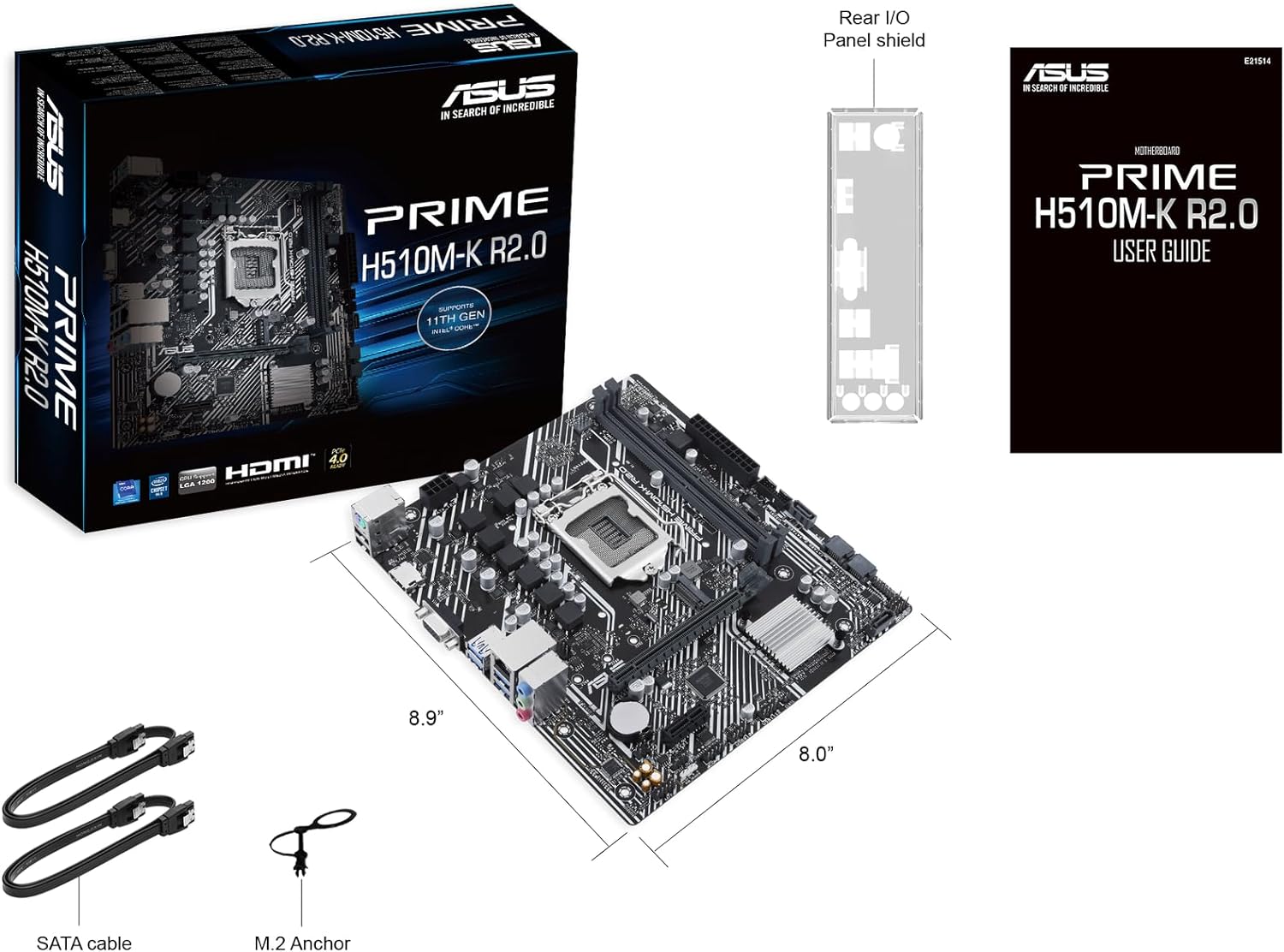

2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 Anchor
1 x User guide
