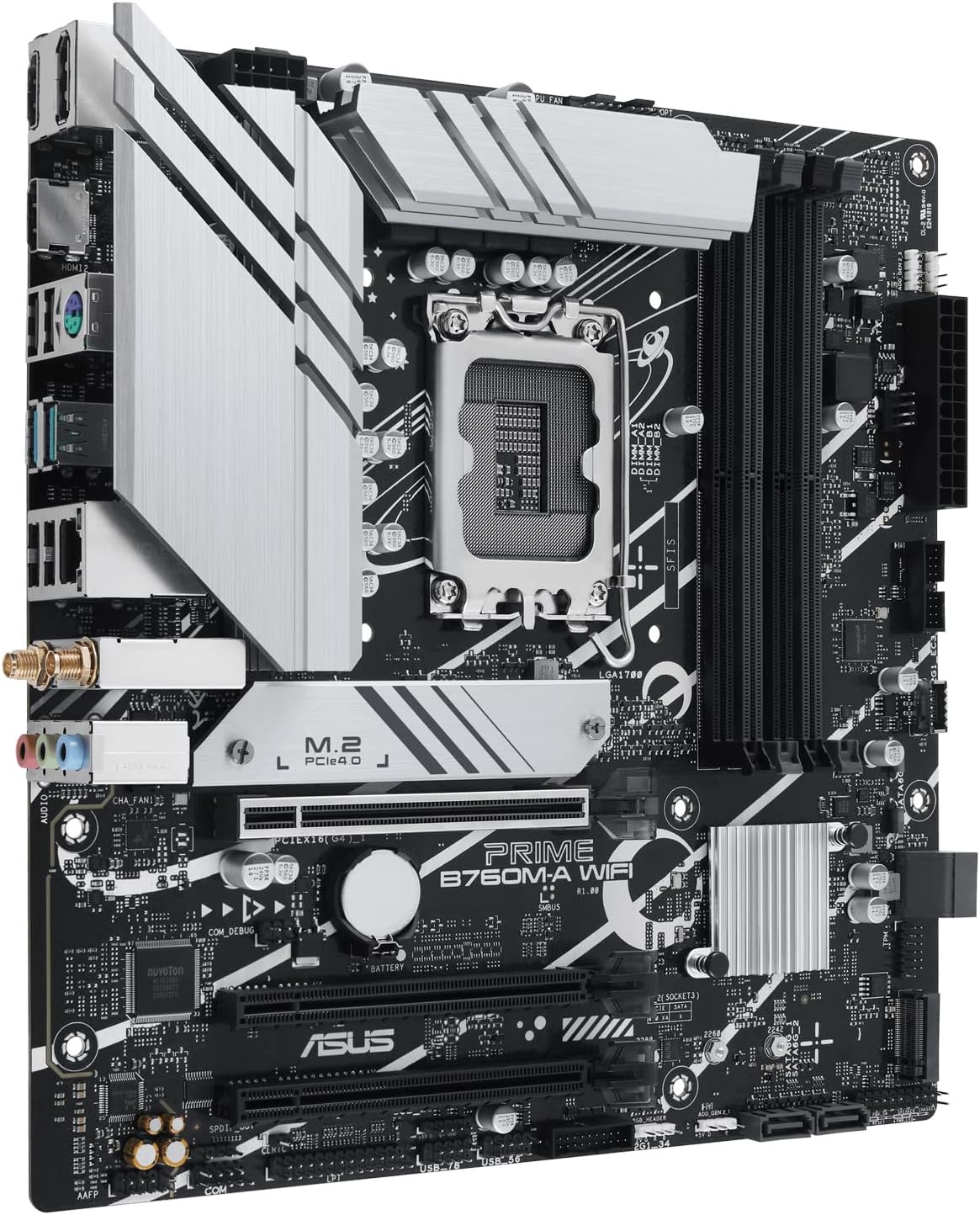

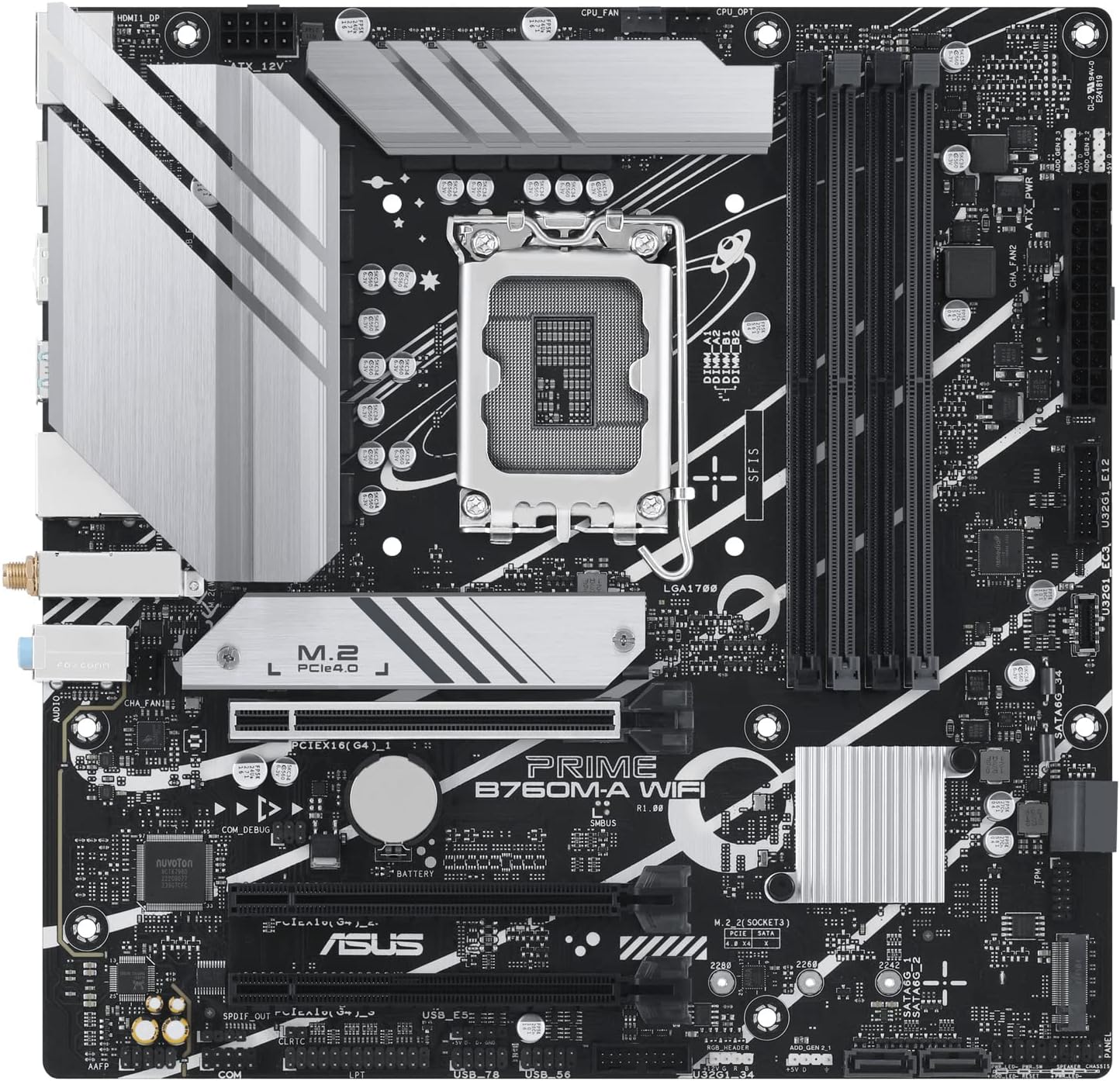

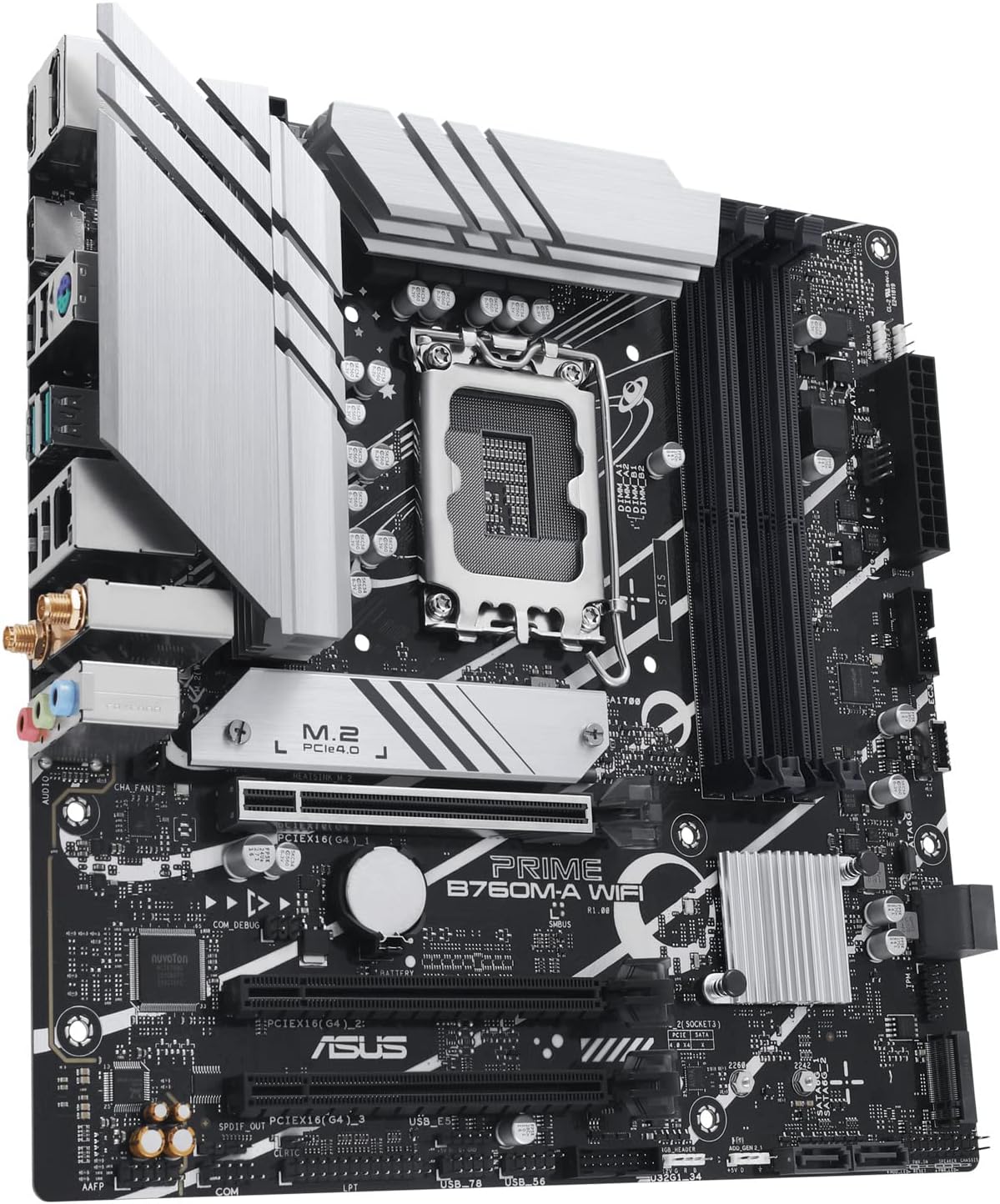

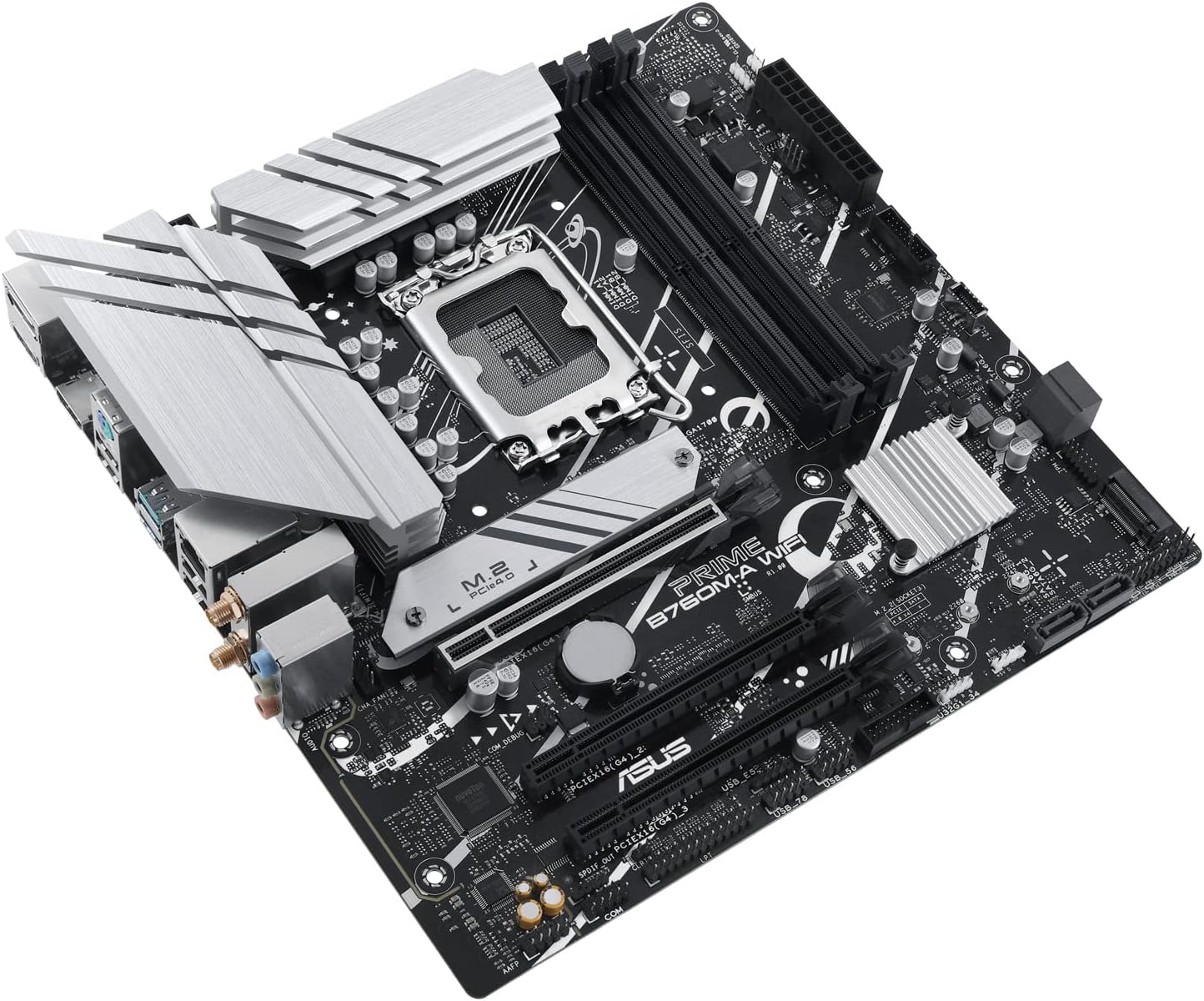

Asus Prime B760M-A WiFi M-ATX Gaming Motherboard

Introducing the Asus Prime B760M-A WiFi Gaming Motherboard, equipped with the latest Intel B760 processor and high-speed DDR5 memory for superior performance. With built-in Wi-Fi 6 and 2.5G LAN, this Micro ATX motherboard offers lightning-fast connectivity. Enjoy seamless gaming with PCIe 4.0 and M.2 support for lightning-fast data transfer. Upgrade your gaming experience with the Asus Prime B760M-A.

Specifications

Motherboard Type: Desktop

Form Factor: Micro ATX

Socket: Intel 1700

Chipset: Intel B760

RAM Technology: DDR5 (Dual Channel)

RAM Slots: 4 x DIMM

RAM Speeds: Up to 7200+(OC)

Maximum Memory: 128GB

Graphics
Integrated Graphics*
*Graphics specifications may vary between CPU types

Graphics Ports
2 x HDMI
1 x DisplayPort

PCI/PCI Express
1 x PCIe 4.0 x16
1 x PCIe 4.0 x16 (supports x4 mode)
1 x PCIe 4.0 x16 (supports x1 mode)

Storage
4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - PCIe

RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10

Wireless
Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2

LAN: 2.5GB LAN

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported
2 x USB 3.2 Gen2 Type-A (at back)
4 x USB 3.2 Gen1 (at mid-board)
9 x USB 2.0 (4 at back, 5 at mid-board)
1 x Front Panel Type-C USB 3.2 Gen1 Header

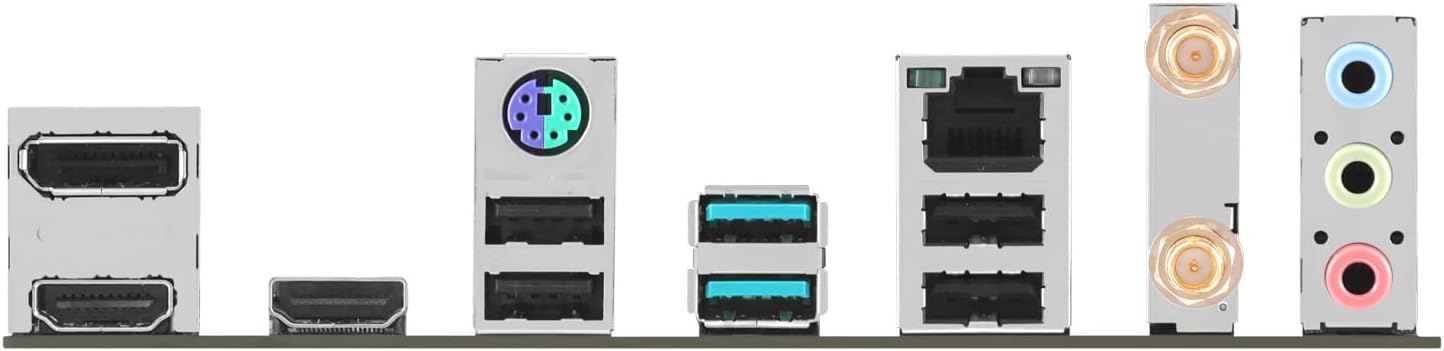

Back Panel I/O Ports
2 x USB 3.2 Gen2 Type-A
4 x USB 2.0
1 x DisplayPort
2 x HDMITM
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo

Internal I/O Connectors
1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
2 x USB 3.2 Gen1
1 x USB 3.2 Gen1 Type-C
2 x USB 2.0
1 x USB 2.0
3 x Addressable Gen2 1 x Aura RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x LPT
1 x S/PDIF Out
1 x SPI TPM (14-1pin)
1 x 20-3 pin System Panel

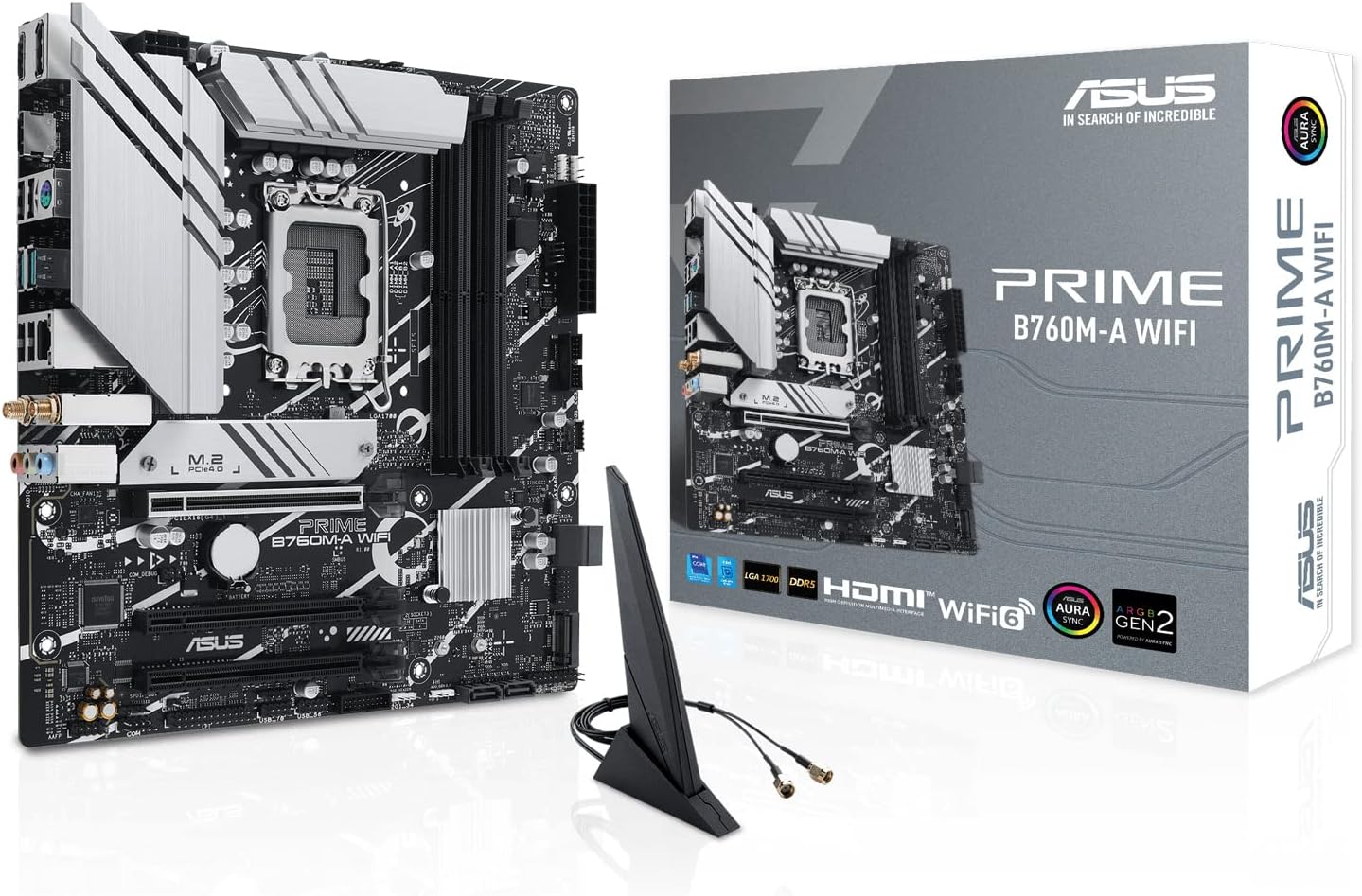

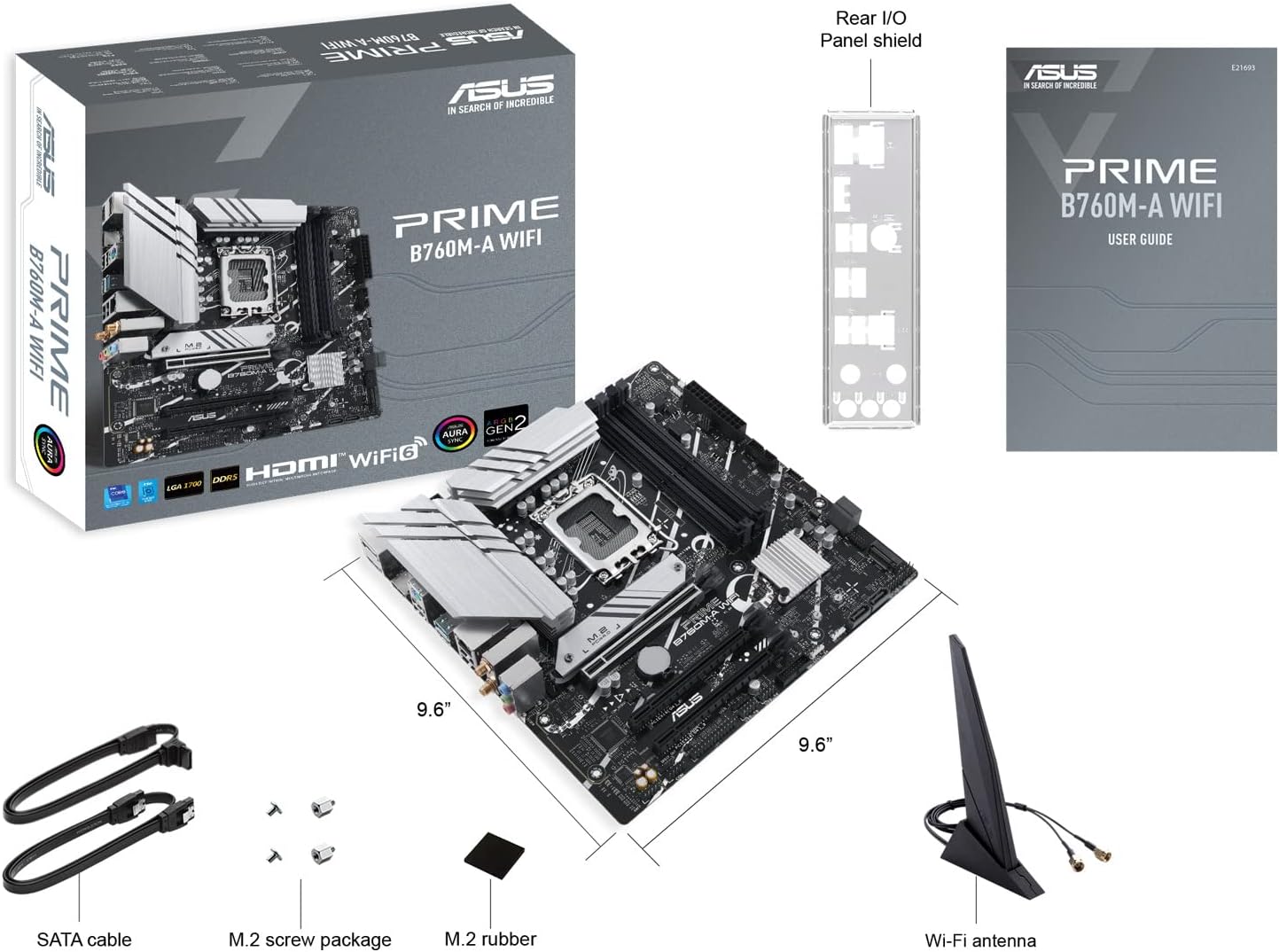

Accessories
2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antennas
1 x I/O Shield
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
1 x User guide
