Asus Prime B650M-R Motherboard, AMD B650, AM5, Micro ATX, DDR5, HDMI, 2.5G LAN, PCIe4, M.2

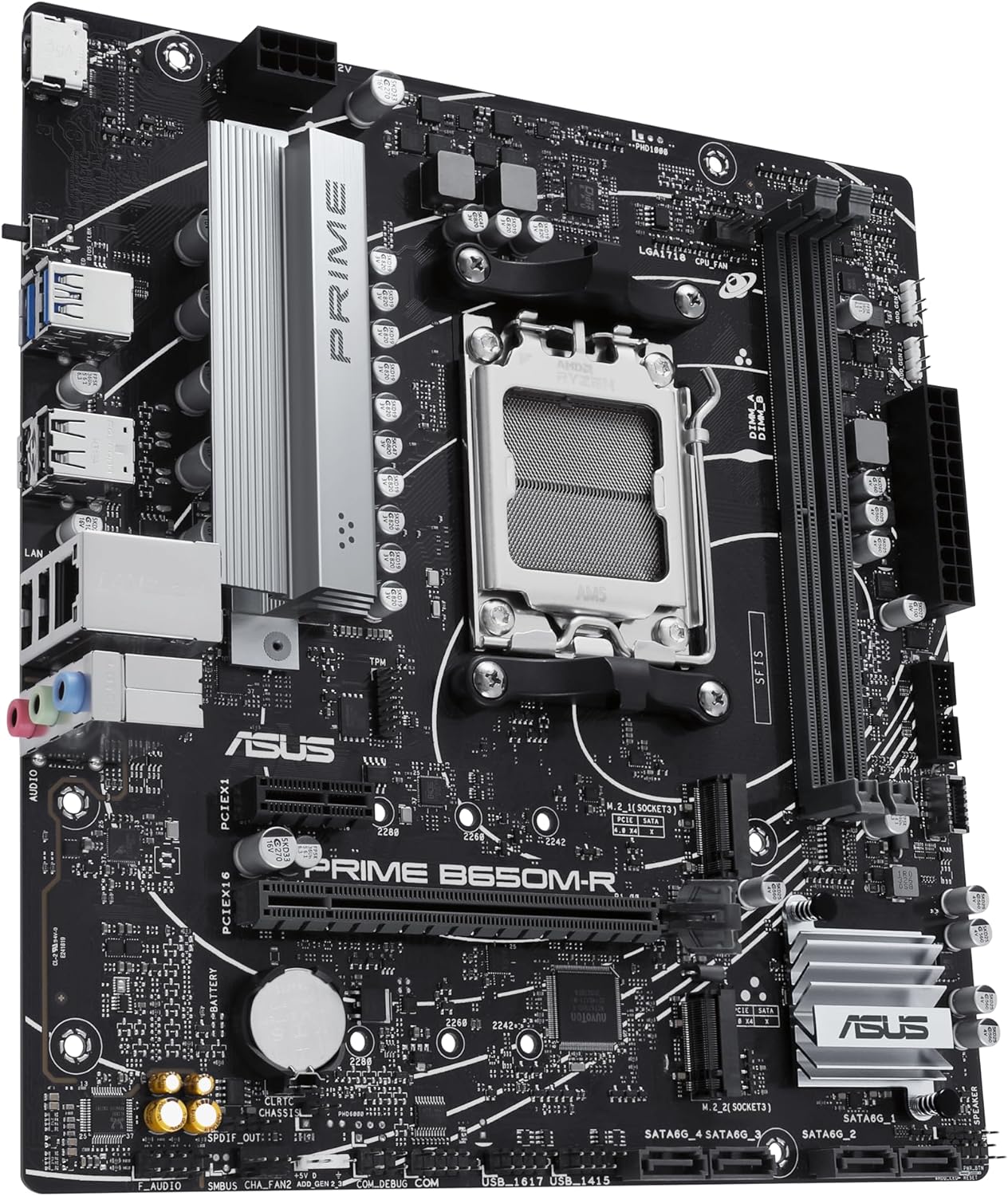

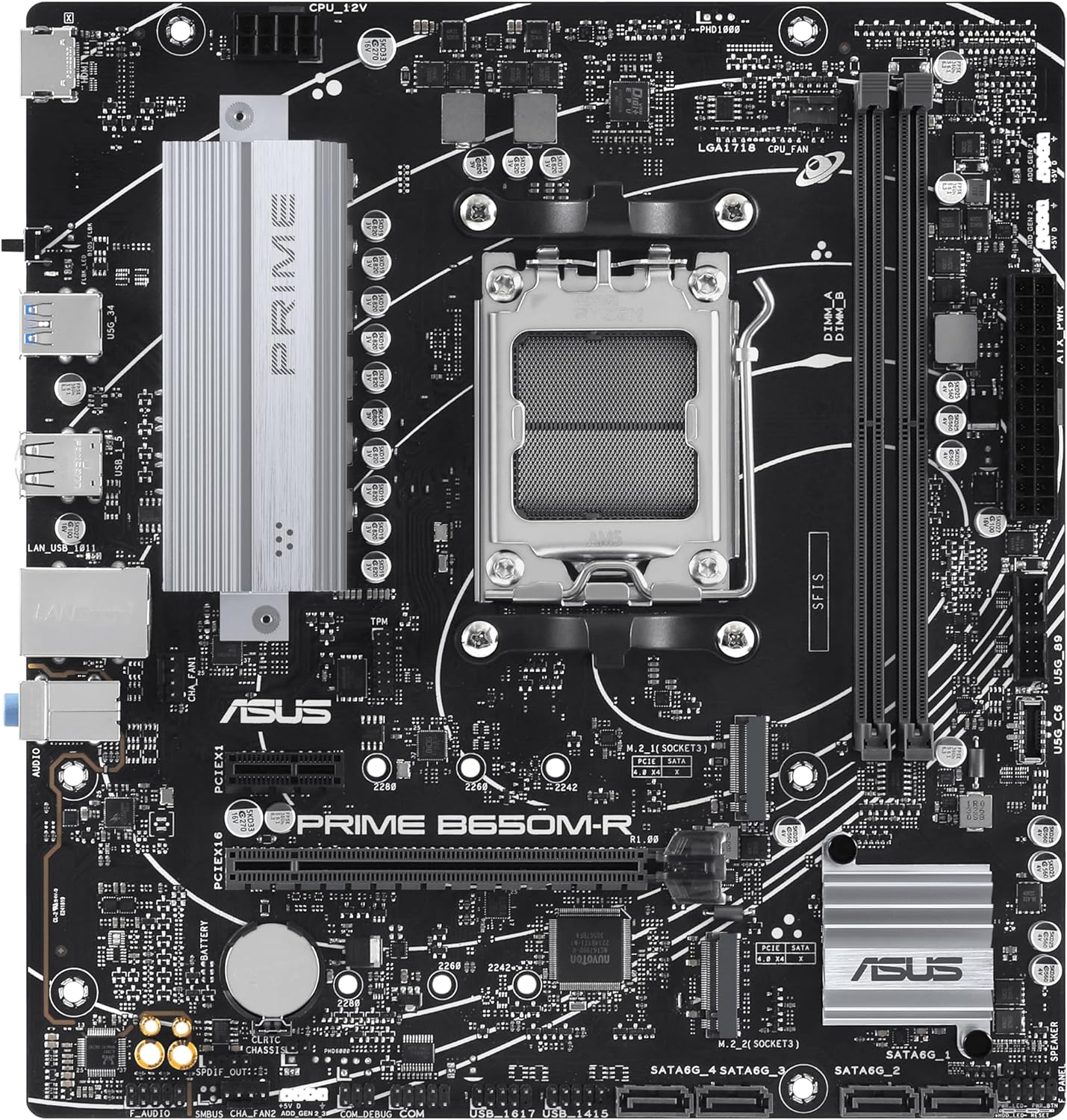

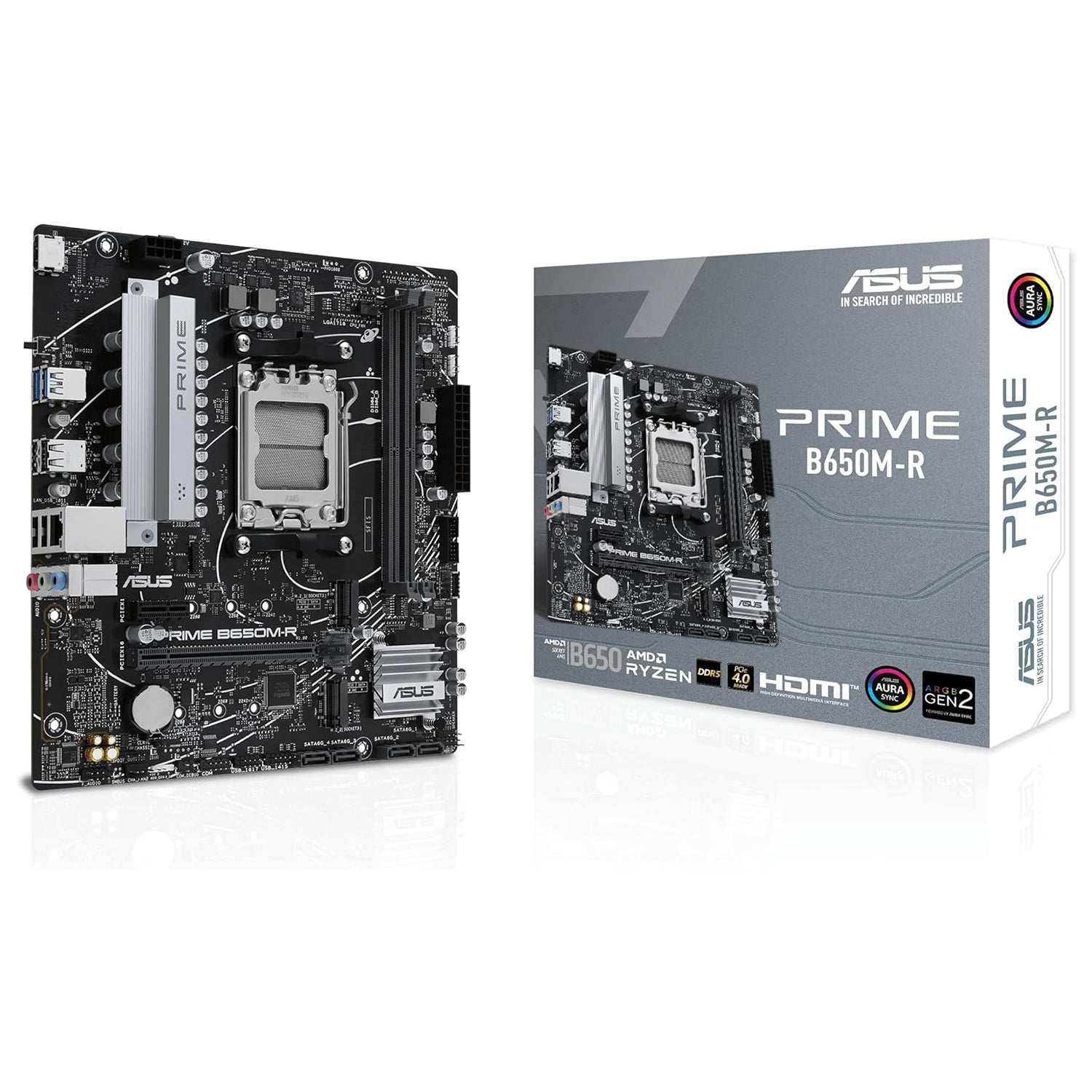

Asus Prime B650M-R M-ATX Gaming Motherboard

Elevate your gaming experience with the Asus Prime B650M-R motherboard. Designed for AMD B650 and AM5 CPUs, this micro ATX board supports DDR5 RAM and boasts a 2.5G LAN connection and PCIe4 slots for lightning-fast data transfer. Plus, with HDMI and M.2 support, you can easily connect and expand your setup.

Specifications

Motherboard Type: Desktop

Form Factor: Micro ATX

Socket: AMD AM5

Chipset: AMD B650

RAM Technology
DDR5 (Dual Channel)
ECC, Un-buffered Memory
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II

RAM Slots: 2 x DIMM

RAM Speeds: Up to 7200+(OC)

Maximum Memory: 96GB

Graphics
Integrated Graphics*
*Graphics specifications may vary between CPU types

Graphics Ports: 1 x HDMI

PCI/PCI Express
1 x PCIe 4.0 x16 (supports x16 mode)
1 x PCIe 4.0 x1

Storage
4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4

RAID: AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10

Wireless: No

LAN: 2.5GB LAN

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported
Rear:
2 x USB 5Gbps Type-A
4 x USB 2.0

Front:
1 x USB 5Gbps USB Type-C
2 x USB 5Gbps
4 x USB 2.0

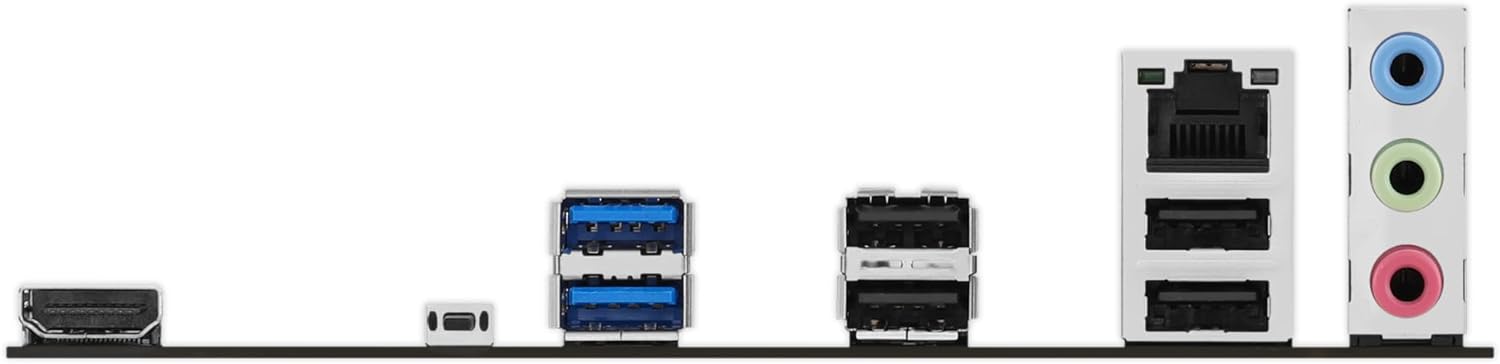

Back Panel I/O Ports
2 x USB 5Gbps Type-A
4 x USB 2.0
1 x HDMI
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button

Internal I/O Connectors
1 x 4-pin CPU Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 5Gbps Type-C
1 x USB 5Gbps
2 x USB 2.0
3 x Addressable Gen2
1 x Clear CMOS
1 x COM Port 1 x Front Panel Audio
1 x S/PDIF Out
1 x Speaker
1 x SPI TPM (14-1pin)
1 x 10-1 pin System Panel

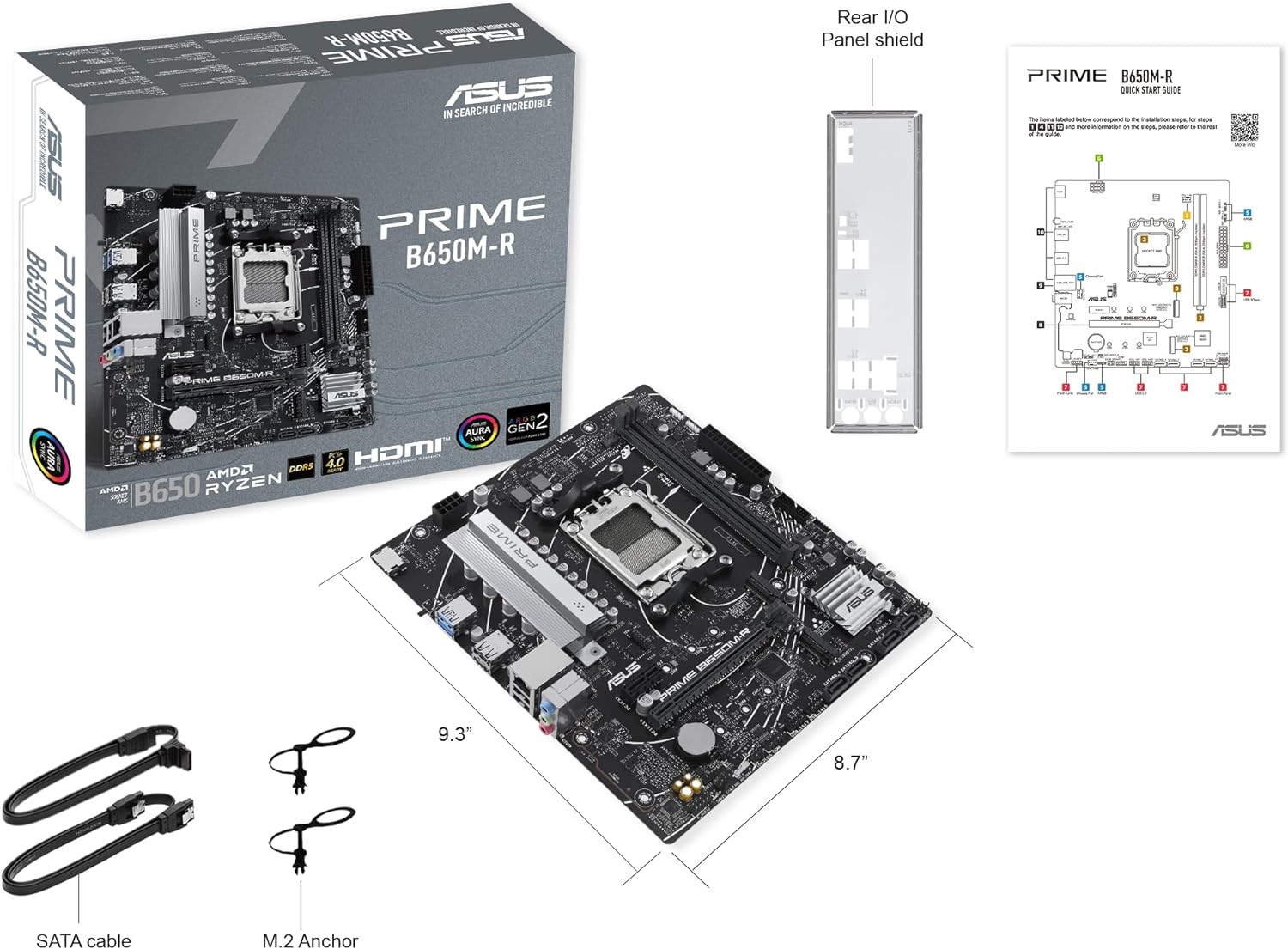

Accessories
2 x SATA 6Gb/s cables
1 x I/O Shield
2 x M.2 Anchors
1 x Quick start guide
