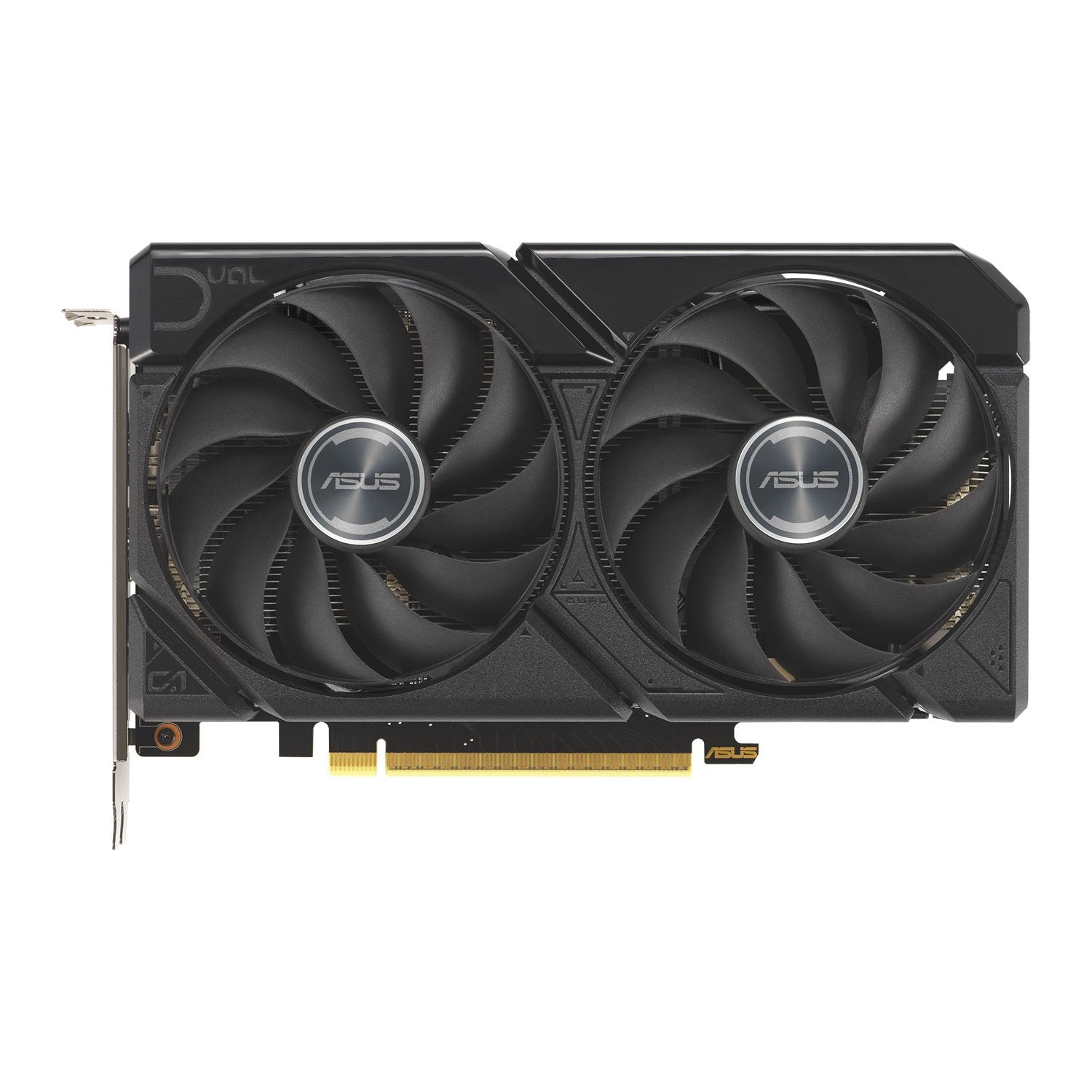

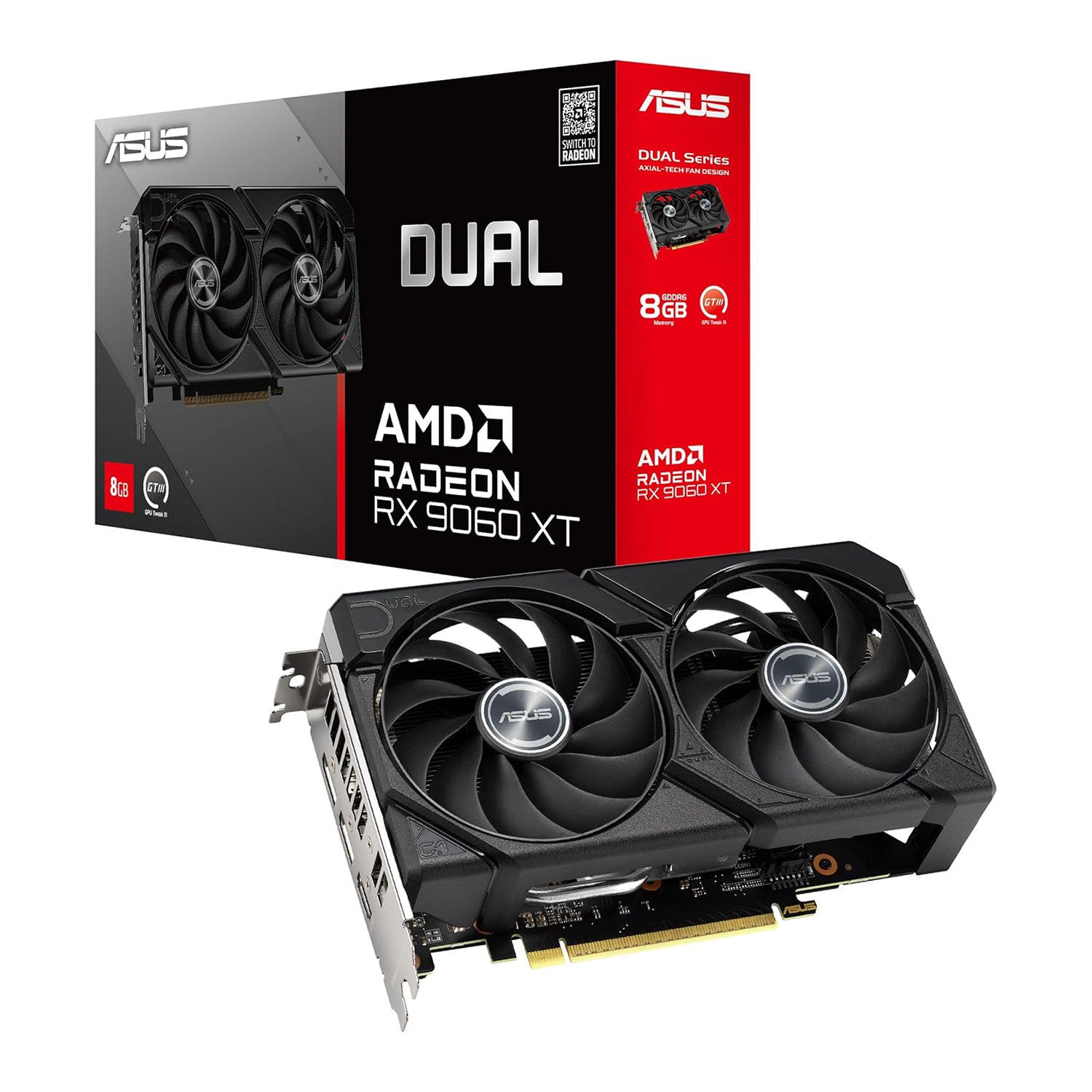

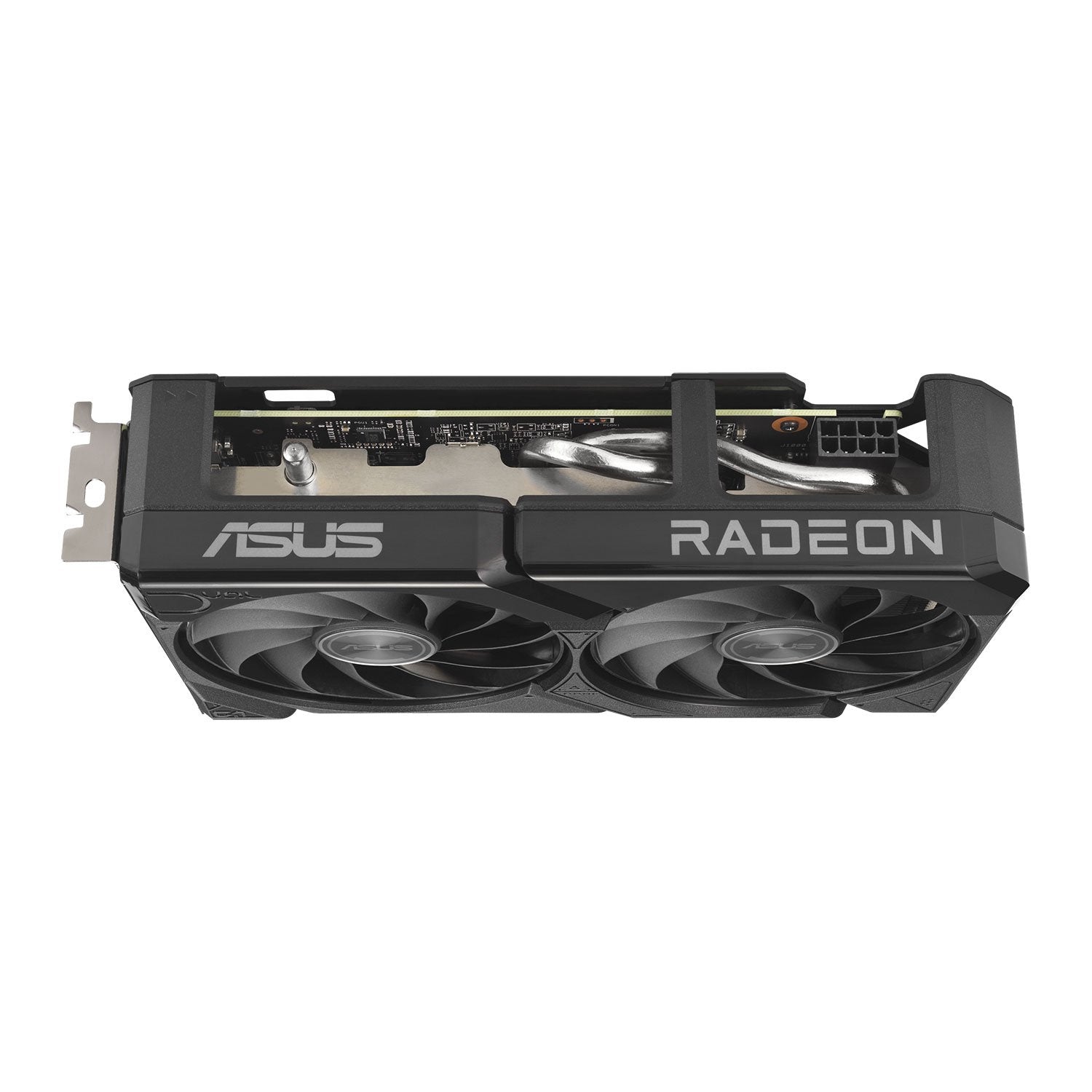

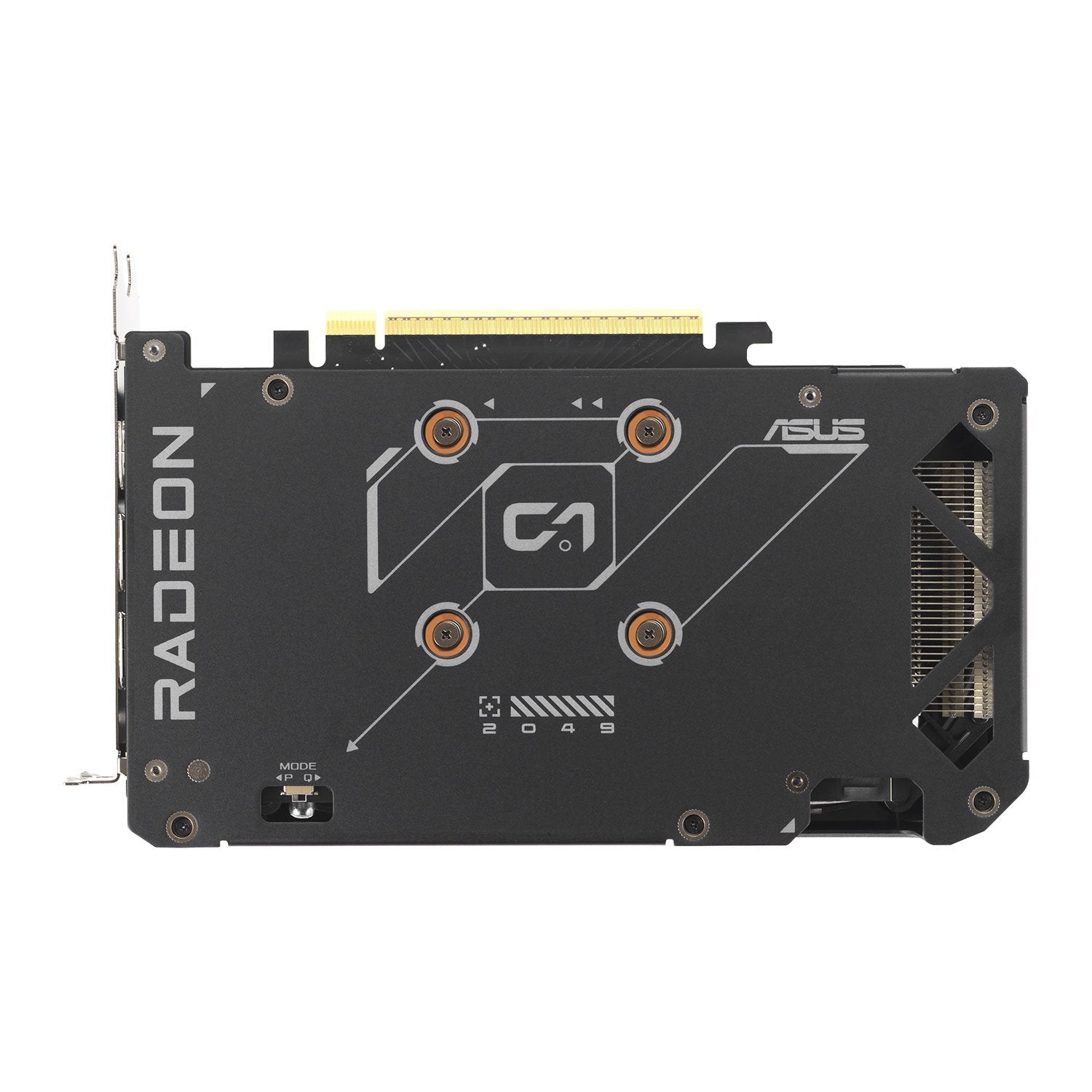

Asus Dual RX 9060XT Gaming Graphics Card, PCIe5, 8GB DDR6, 3150MHz Clock, Compact SFF-Ready

AMD Radeon RX 9060 XT Gaming Graphics Card

The Asus Dual RX9060 XT is a high-performance gaming graphics card featuring PCIe 5.0 support and 8GB of GDDR6 memory. With a boost clock of 3150 MHz, it delivers smooth gameplay and fast rendering. Its compact, small-form-factor design allows easy installation in SFF builds without sacrificing power. Ideal for gamers seeking robust graphics performance in a space-efficient package.

Specifications

Chipset Manufacturer: AMD

Interface: PCI Express 5.0

Graphics Chipset: AMD RX 9060 XT

Memory Size: 8GB

Memory Type: DDR6

Memory Interface: 128-bit

Engine Clock
OC Mode (GPU Tweak III):
Up to 3150 MHz (Boost Clock)
Up to 2550 MHz (Game Clock)

Default Mode:
Up to 3130 MHz (Boost Clock)
Up to 2530 MHz (Game Clock)

Memory Clock: 20 Gbps

CUDA Cores / Stream Processors: 2048 Stream Processors

Outputs: 1 x HDMI 2.1b, 2 x DisplayPort 2.1a

HDCP Support: Yes

Resolution: Digital Max Resolution 7680 x 4320

Multi-GPU Support: None

Max Display Support: 3

Cooling
Axial-Tech Fans
Dual-ball Fan Bearings
0dB Technology
Vented Backplate

PSU Requirements: 550W or greater recommended

Connectors Required: 1 x 8-pin

Software
ASUS GPU Tweak III & Drivers
AMD Software: Adrenalin Edition

Dimensions: 202 x 120 x 49 mm

Slot Size: 2.5 Slot
