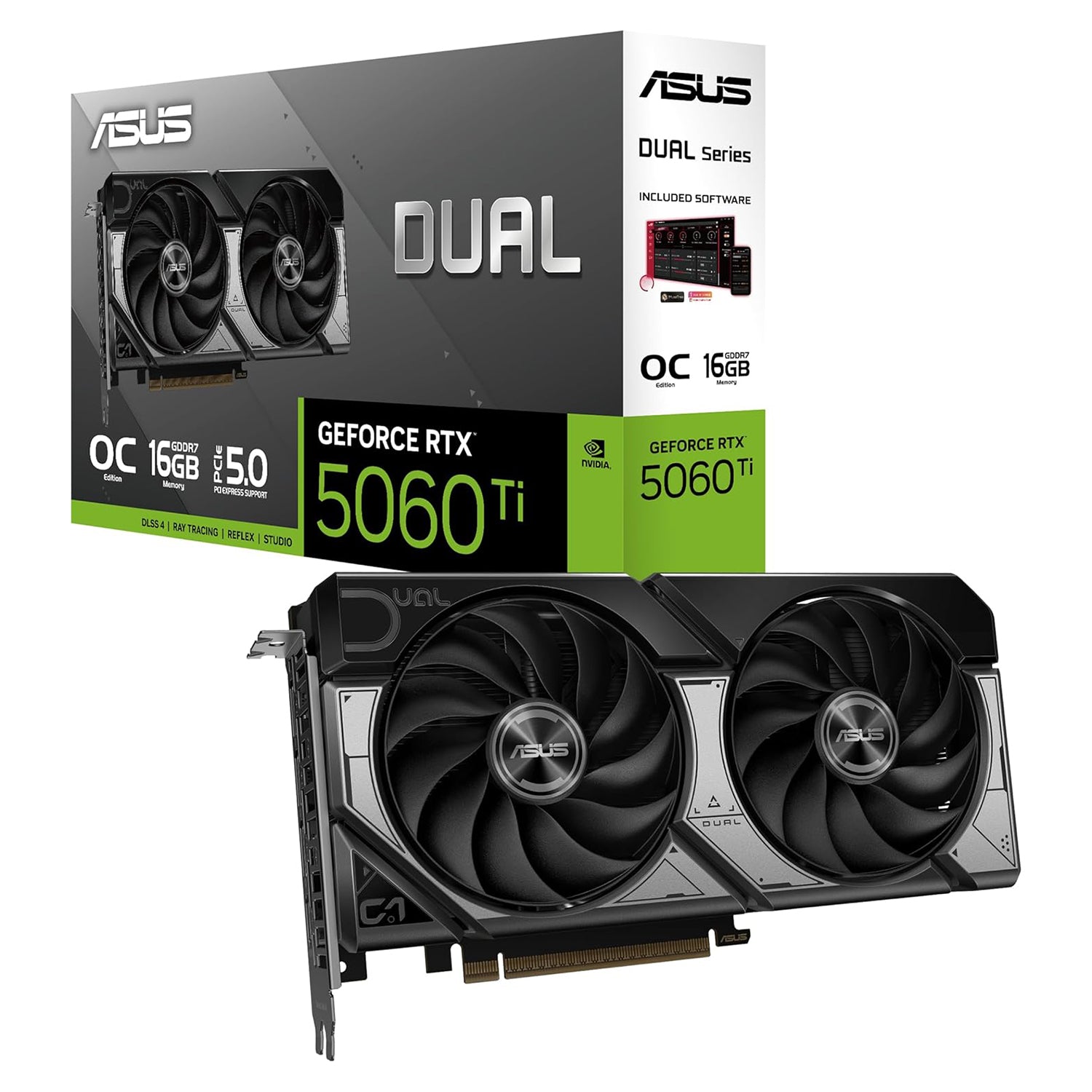

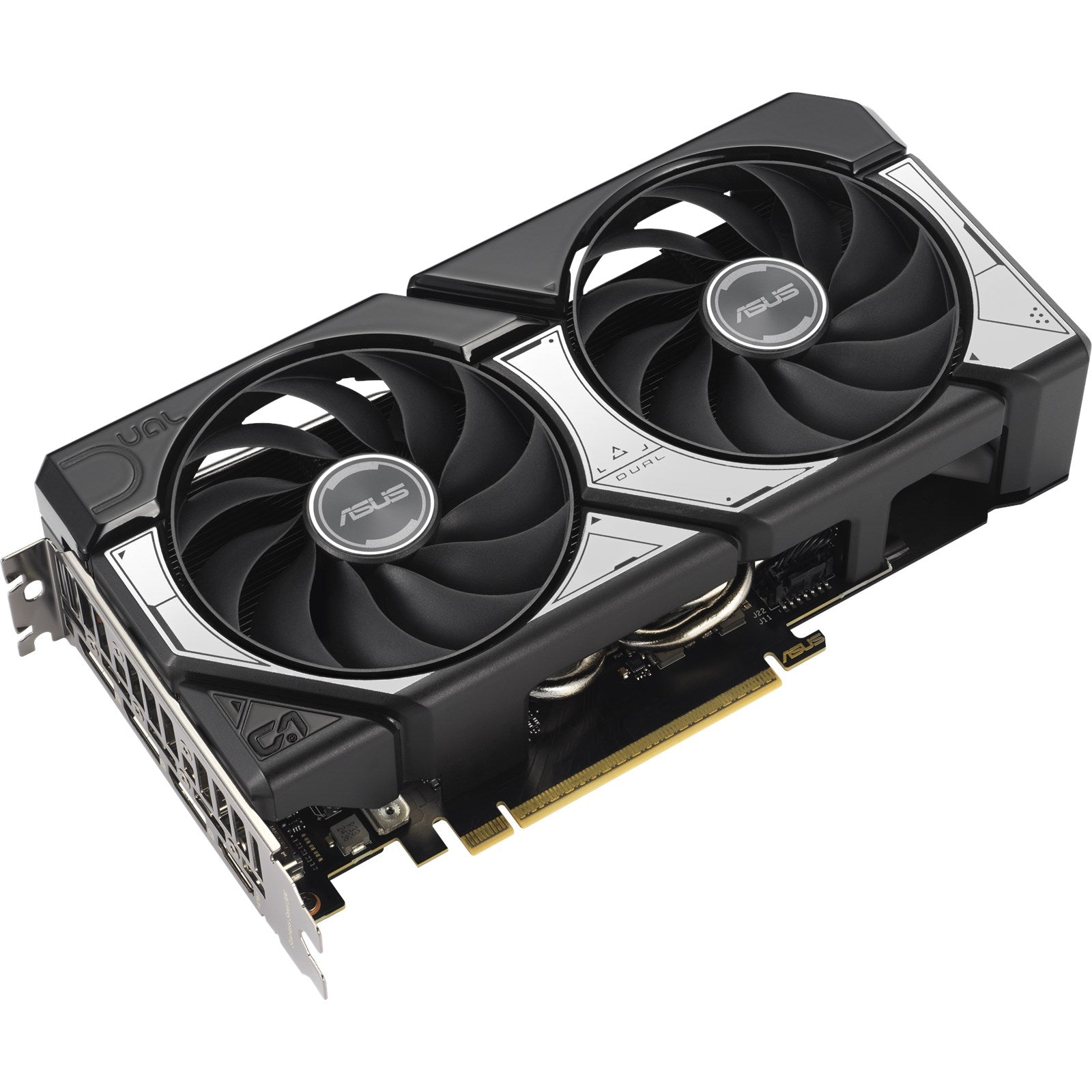

Asus Dual RTX 5060Ti OC Gaming Graphics Card, 16GB DDR7, 2632MHz, SFF-Ready, GPU
GeForce RTX 5060 Ti Gaming Graphics Card 16GB OC
The Asus Dual RTX 5060 Ti OC is a high-performance gaming graphics card featuring 16GB of DDR7 memory clocked at 2632MHz. Designed for compact small form factor (SFF) builds, it supports PCIe 5.0 for enhanced bandwidth and future-proofing. This GPU delivers powerful graphics processing capabilities, ideal for demanding gaming and creative workloads, while maintaining efficient cooling and a compact design suitable for space-constrained systems.
Specifications
Chipset Manufacturer: Nvidia
Interface: PCI Express 5.0
Graphics Chipset: Nvidia RTX 5060 Ti
Memory Size: 16GB
Memory Type: DDR7
Memory Interface: 128-bit
Engine Clock
OC mode: 2632MHz
Default mode: 2602MHz (Boost Clock)
Memory Clock: 28 Gbps
AI Performance: 767 TOPS
CUDA Cores / Stream Processors: 4608 CUDA Cores
Outputs: 1 x HDMI 2.1b, 3 x DisplayPort 2.1b
HDCP Support: Yes
Resolution: Digital Max Resolution 7680 x 4320
Max Display Support: 4
Cooling
Dual Fan
Axial-Tech Fan Design
Dual Ball Fan Bearings
0dB Technology

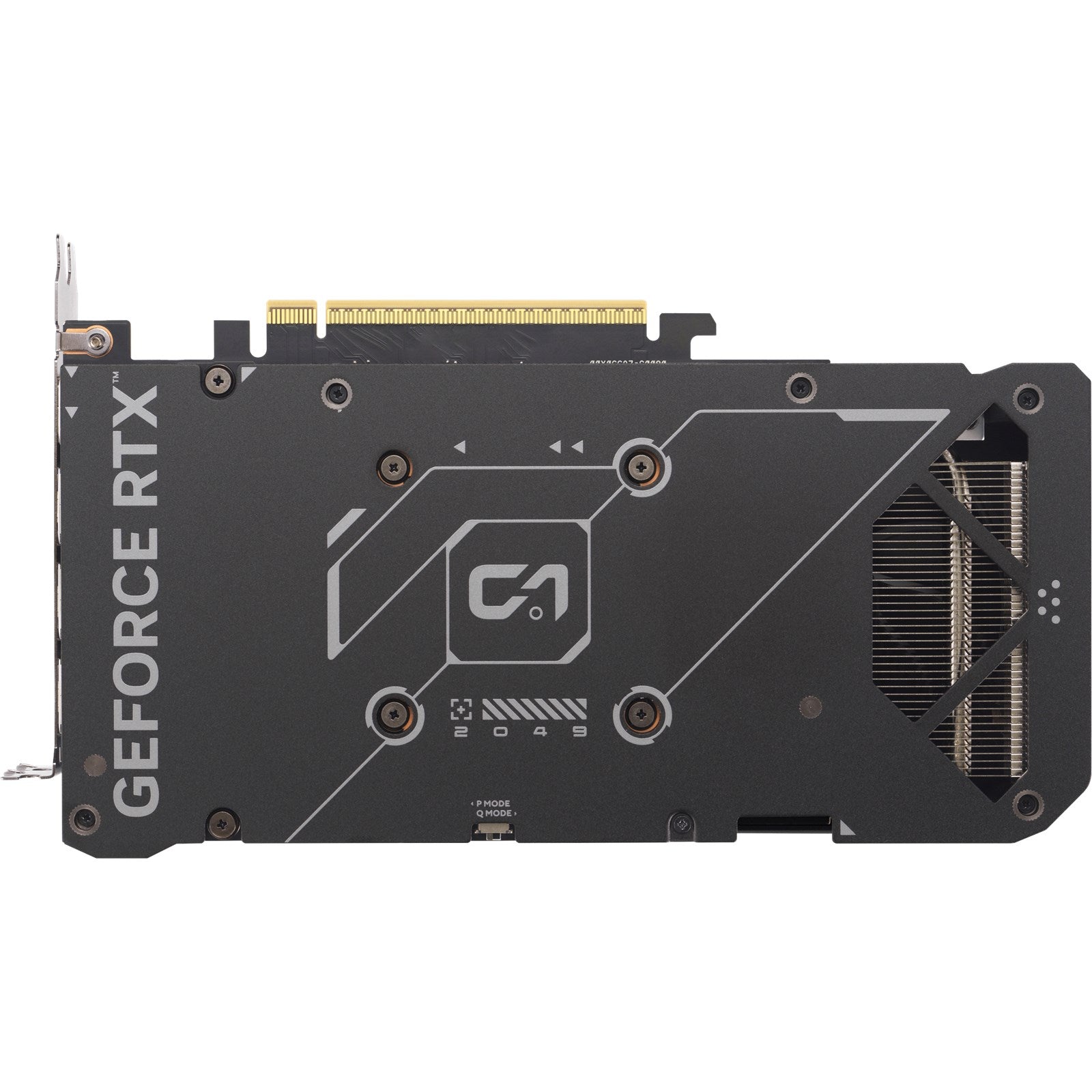

Vented Backplate
PSU Requirements: 550W or greater recommended
Connectors Required: 1 x 8-pin power
Software: ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver
Dimensions: 229 x 120 x 50 mm
Slot Size: 2.5 Slot
