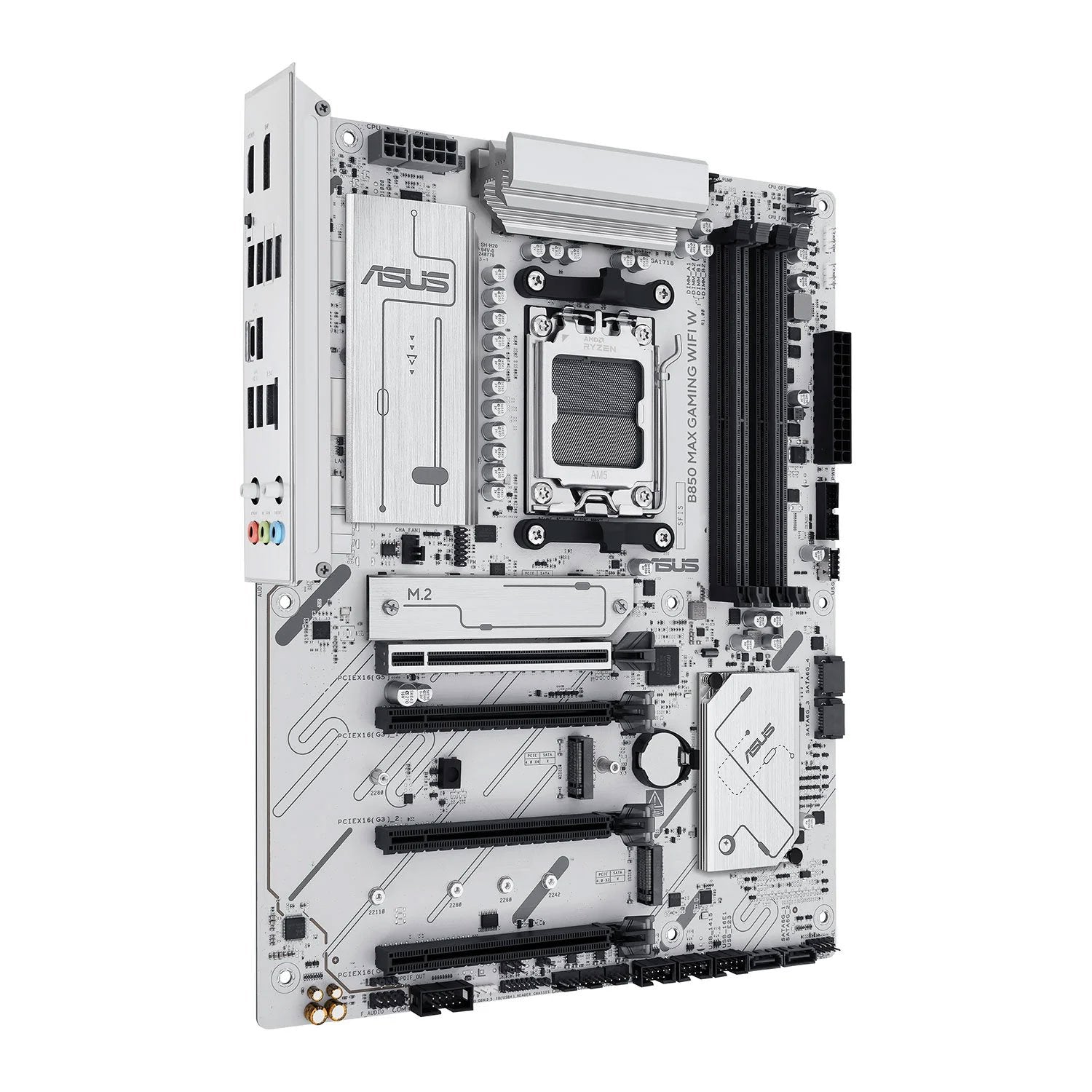

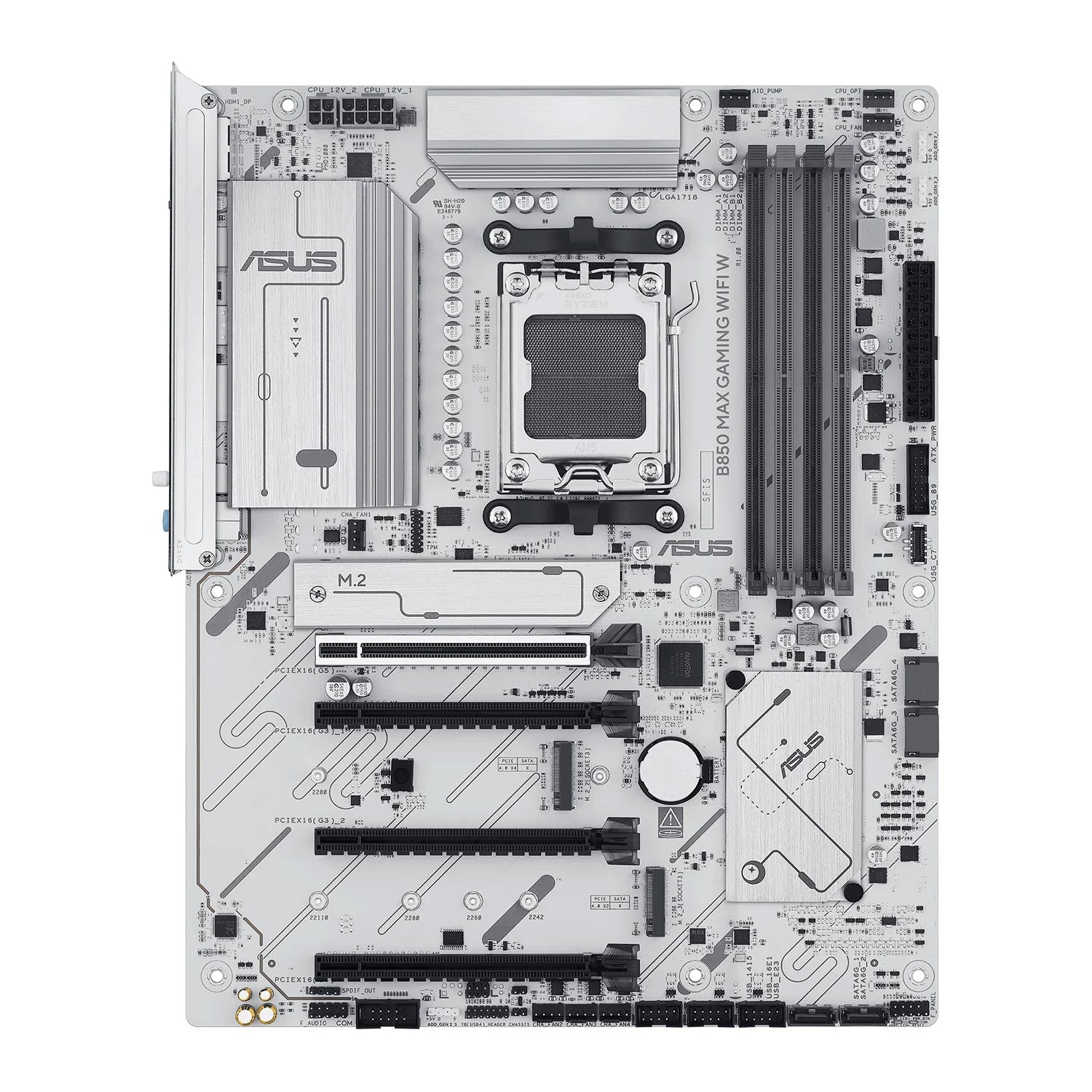

Asus B850 MAX Gaming WiFi W Motherboard, AMD AM5, ATX, DDR5, Wi-Fi 6E, 2.5G LAN, White

Asus B850 MAX Gaming WiFi W Motherboard ATX

The Asus B850 MAX Gaming WiFi W Motherboard is engineered for high-performance AMD AM5 systems, supporting the latest DDR5 memory for faster speeds and responsiveness. Its ATX form factor ensures broad compatibility and robust build quality. Featuring integrated Wi-Fi 6E and 2.5G LAN, it delivers ultra-fast, stable networking for seamless online gaming and streaming. The striking white design adds a modern aesthetic while maintaining advanced connectivity and cooling options to optimize your gaming rig’s performance. Ideal for enthusiasts seeking a reliable, future-proof platform.

Specifications

Motherboard Type: Desktop

Form Factor: ATX

Socket: AMD AM5

Chipset: AMD B850

RAM Technology
DDR5 (Dual Channel)
ECC and Non-ECC, Un-buffered Memory*
Supports AMD EXPO
ASUS Enhanced Memory Profile
*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

RAM Slots: 4 x DIMM

RAM Speeds: Up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 CPUs

Maximum Memory: 256GB

Graphics
Integrated Graphics
Graphics specifications may vary between CPU types

Graphics Ports: 1 x HDMI, 1 x DisplayPOrt

PCI/PCI Express
Ryzen 9000 & 7000 CPUs: 1 x PCIe 5.0 x16 (supports x16 mode)
Ryzen 8000 CPUs: 1 x PCIe 4.0 x16 (supports x8/x4 mode)
AMD B850 Chipset: 1 x PCIe 4.0 x16 (support x4 mode), 2 x PCIe 3.0 x16 (supports x1 mode)

Storage
4 x SATA III
3 x M.2

Ryzen 9000 & 7000 CPUs:
M.2_1 (2280) - PCIe 5.0 x4
M.2_2 (22280) - PCIe 4.0 x4

Ryzen 8000 CPUs:
M.2_1 (2280) - PCIe 4.0 x4
M.2_2 (2280) - PCIe 4.0 x4/x2

X870E Chipset:
M.2_3 (2242/2260/2280/2211) - PCIe 4.0 x2

RAID
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10

Wireless
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.3

LAN: 2.5GB LAN

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported
Rear:
1 x USB 10Gbps Type-C
3 x USB 10Gbps Type-A
2 x USB 5Gbps Type-A
2 x USB 2.0

Front:
1 x USB 5Gbps Type-C
2 x USB 5Gbps
6 x USB 2.0

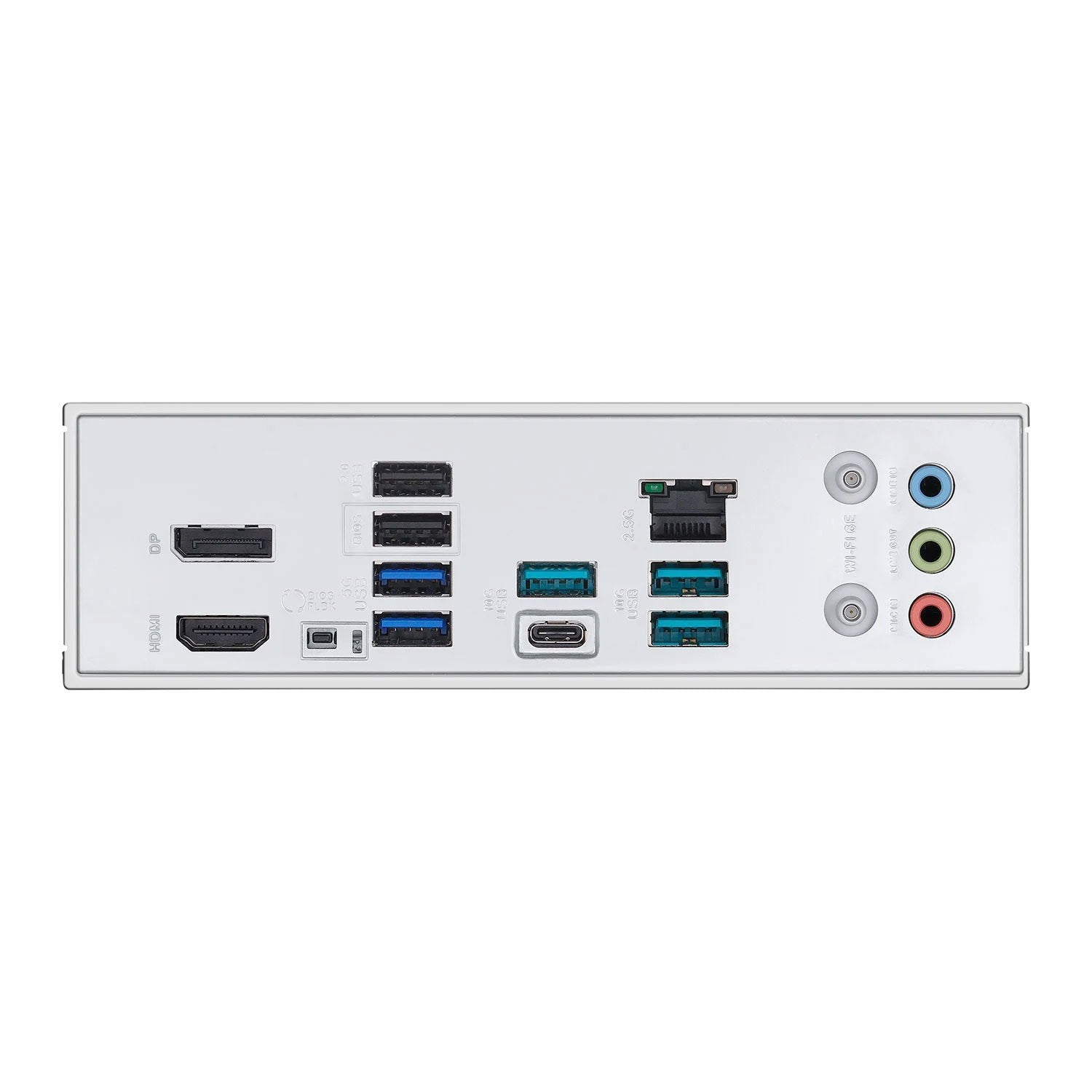

Back Panel I/O Ports
1 x USB 10Gbps Type-C
3 x USB 10Gbps Type-A
2 x USB 5Gbps Type-A
2 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x BIOS FlashBack button

Internal I/O Connectors
1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
4 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V CPU
1 x 4-pin +12V CPU
3 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 5Gbps Type-C
1 x USB 5Gbps 3 x USB 2.0
3 x Addressable RGB Gen2
1 x Clear CMOS
1 x Chassis Intrusion
1 x COM Port
1 x Front Panel Audio
1 x S/PDIF Out
1 x SPI TPM (14-1 pin)
1 x 10-1 pin System Panel
1 x Thunderbolt (USB4)

Accessories
2 x SATA 6Gb/s cables

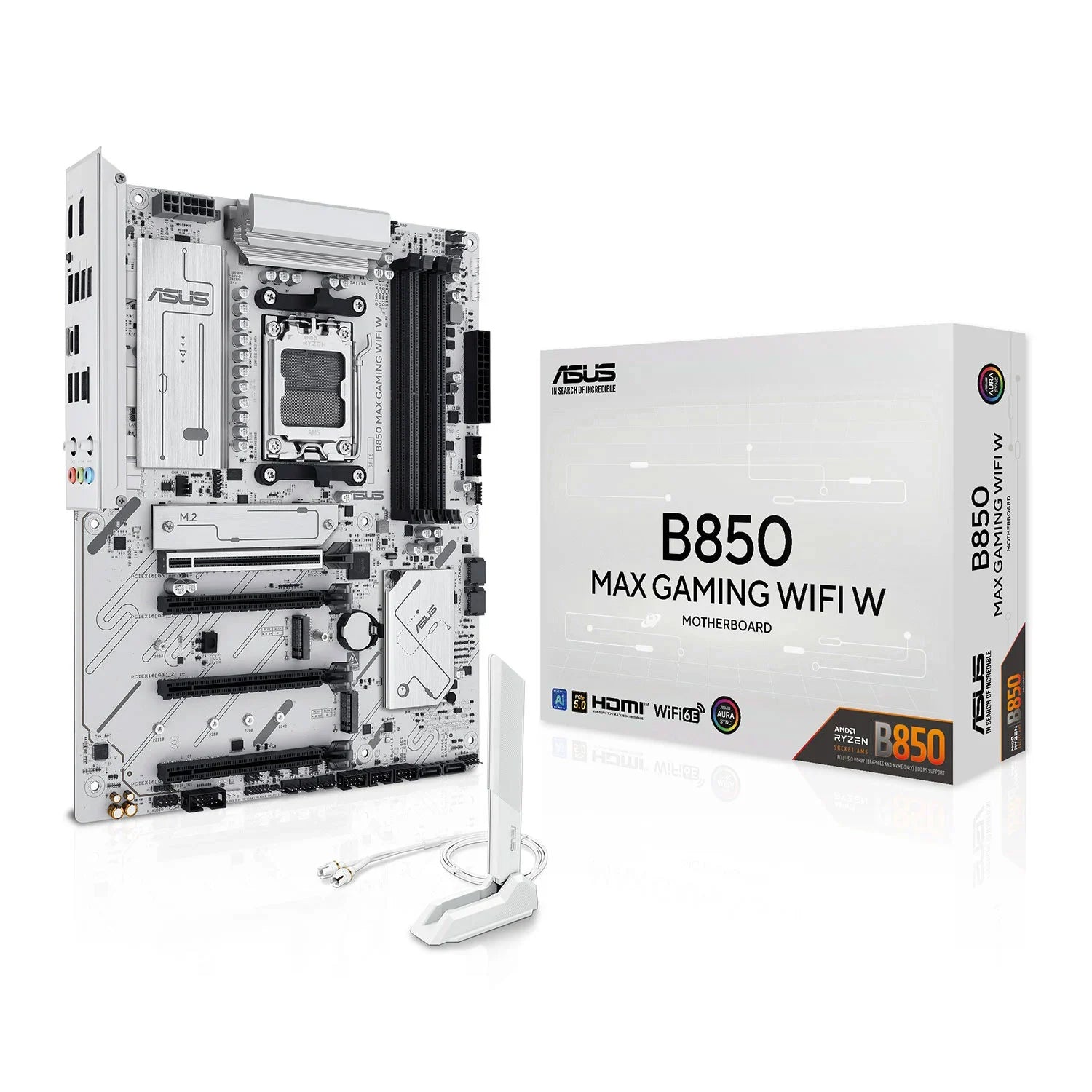

1 x ASUS WiFi Q-Antenna
1 x M.2 rubber packages
3 x Screw packages for M.2 SSD
1 x Quick start guide
