Asrock Z890 Lightning WiFi Motherboard, Intel Z890, 1851, ATX, DDR5, HDMI, TB4, Wi-Fi 7, 2.5G LAN, RGB, M.2

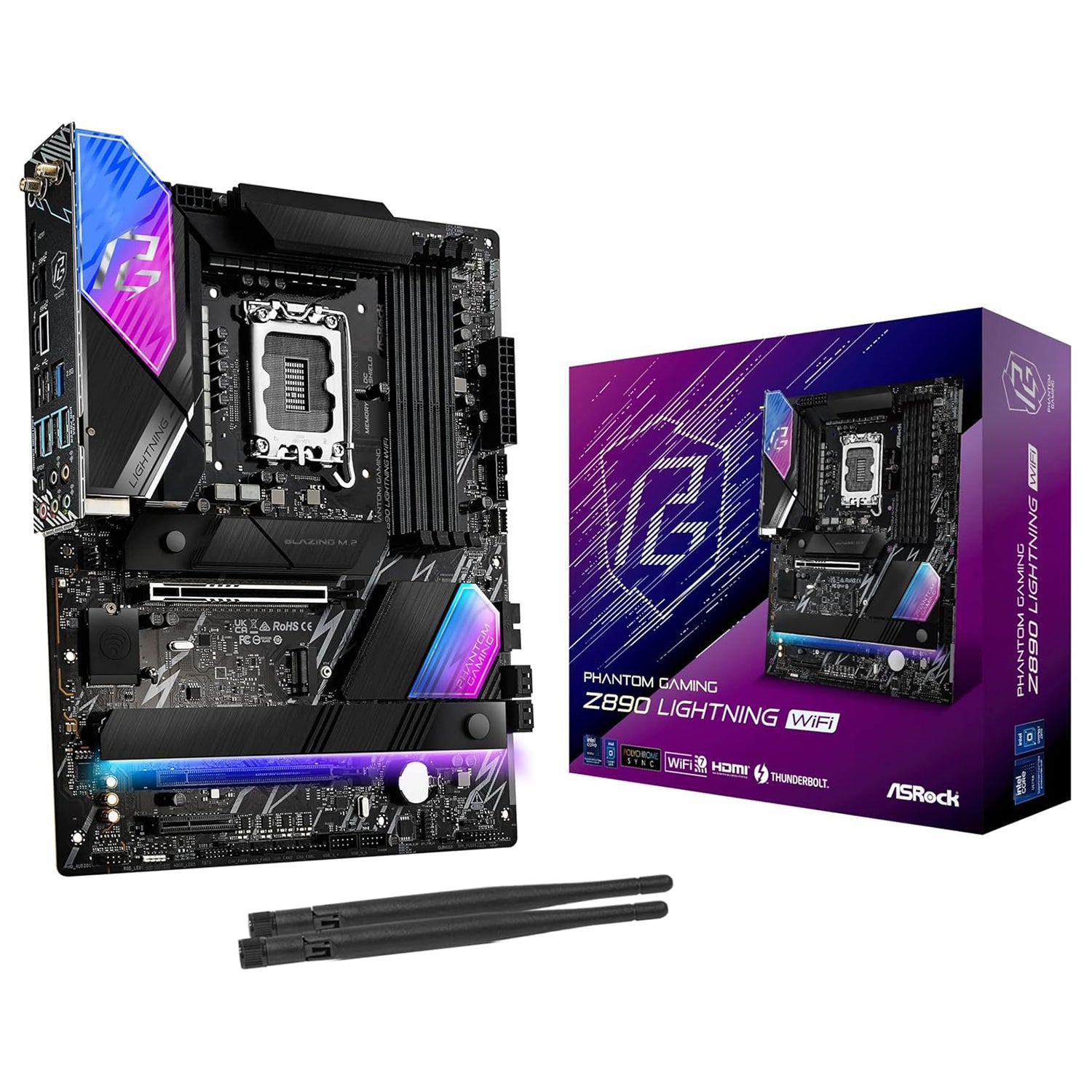

AsRock Z890 Lightning WiFi ATX Motherboard

Experience lightning-fast performance and seamless connectivity with the Asrock Z890 Lightning WiFi Motherboard. Featuring the latest Intel Z890 chipset and Socket 1851, this ATX motherboard supports DDR5 and is perfect for AI, gaming, editing, and 3D applications. Enjoy stunning visual effects with RGB lighting and stay connected with Wi-Fi 7 and 2.5G LAN.

Specifications

Motherboard Type: Desktop

Form Factor: ATX

Socket: Intel 1851

Chipset: Intel Z890

CPU Support: Support Intel Core Ultra Processors (Series 2)

RAM Technology
DDR5 (Dual Channel)
Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
Supports Intel XMP

RAM Slots: 4 x DIMM

RAM Speeds: Up to 9066MHz+(OC)

Maximum Memory: 256GB

Graphics
Integrated Graphics
Graphics specifications may vary between CPU types

Graphics Ports: 1 x HDMI, 2 x Thunderbolt 4

PCI/PCI Express
Intel Core Ultra CPUs (Series 2):
1 x PCIe 5.0 x16 (supports x16 mode)*

Intel Z890 Chipset:
1 x PCIe 4.0 x16 (supports x4 mode)
1 x PCIe 4.0 x4 (supports x4 mode)

* PCIE1 supports PCIe riser cards to extend one x16 slot to x8/x8 or x8/x4/x4 slots.

Storage
4 x SATA III
4 x M.2

Intel Core Ultra CPUs (Series 2):
M.2_1 (2280) - PCIe 5.0 x4
M.2_2 (2280) - PCIe 4.0 x4

Intel Z890 Chipset:
M.2_3 (2280) - PCIe 4.0 x4 & SATA
M.2_4 (2230/2242/2260/2280) PCIe 4.0 x4

RAID
Supports RAID 0, 1, 5 and 10 for SATA storage devices
Supports RAID 0, 1, 5 and 10 for M.2 NVMe storage devices

Wireless
802.11be 2x2 Wi-Fi 7 Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
Supports 2.4GHz/5GHz/6GHz frequency band
Supports 320MHz channel bandwidth w/ 6GHz frequency band
1 antenna to support 2 (Transmit) x 2 (Receive) diversity tech
Supports Bluetooth 5.4
Supports MU-MIMO

LAN: 2.5GB LAN

Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)

USB Ports Supported
Rear:
2 x Thunderbolt 4 (USB Type-C)
2 x USB 10Gbps Type-A (up to 15W PD 3.0)
4 x USB 5Gbps Type-A
2 x USB 2.0

Front:
1 x USB 20Gbps Type-C
4 x USB 5Gbps
4 x USB 2.0

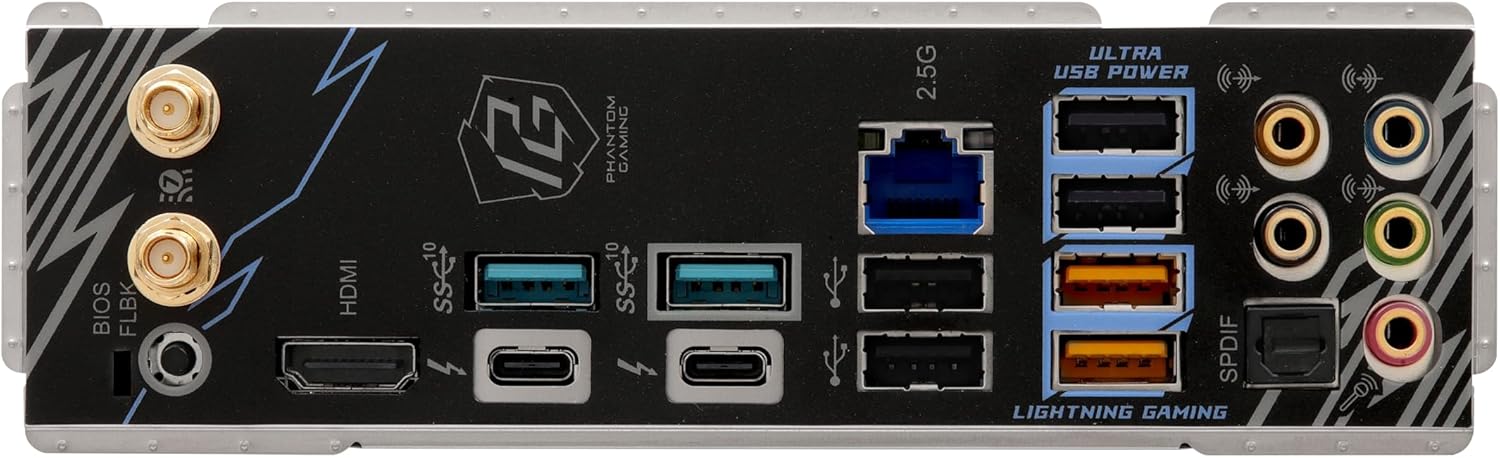

Back Panel I/O Ports
2 x Antenna
1 x HDMI
1 x Optical SPDIF Out
2 x Thunderbolt 4 Type-C
2 x USB 3.2 Gen2 Type-A Ports
4 x USB 3.2 Gen1
2 x USB 2.0
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks

Internal I/O Connectors
1 x Thermistor Cable
1 x SPI TPM
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
2 x CPU Fan
5 x Chassis Fan
1 x AIO Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V
1 x Front Panel Audio 2 x USB 2.0
2 x USB 3.2 Gen1
1 x Front Panel Type-C USB 3.2 Gen2x2

Accessories
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
1 x ARGB Splitter Cable
1 x Thermistor Cable
