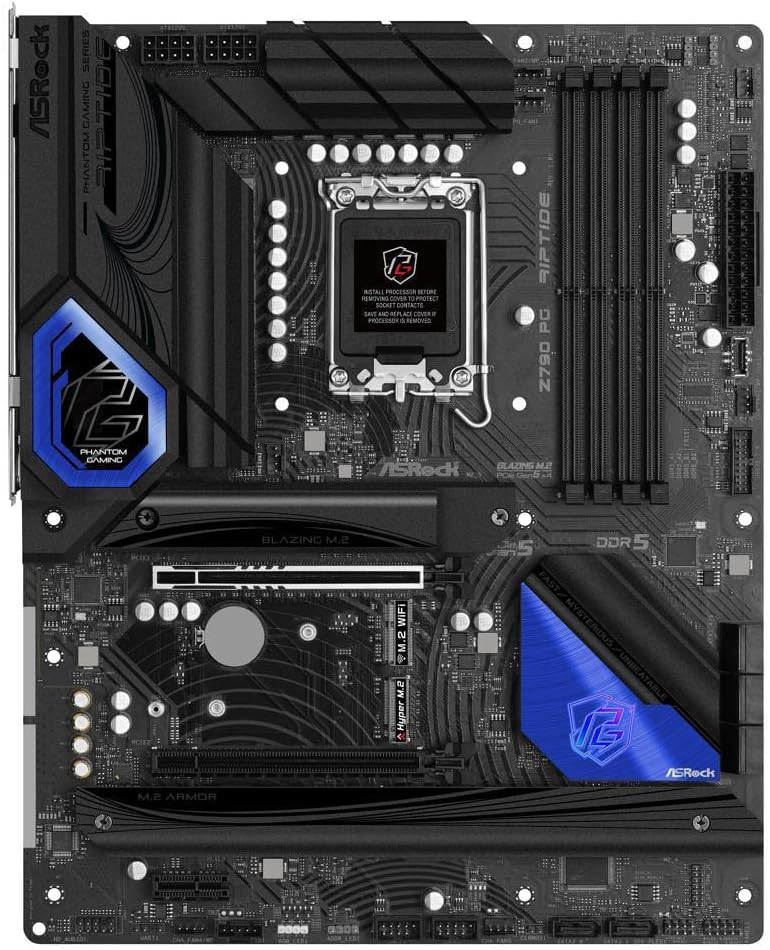

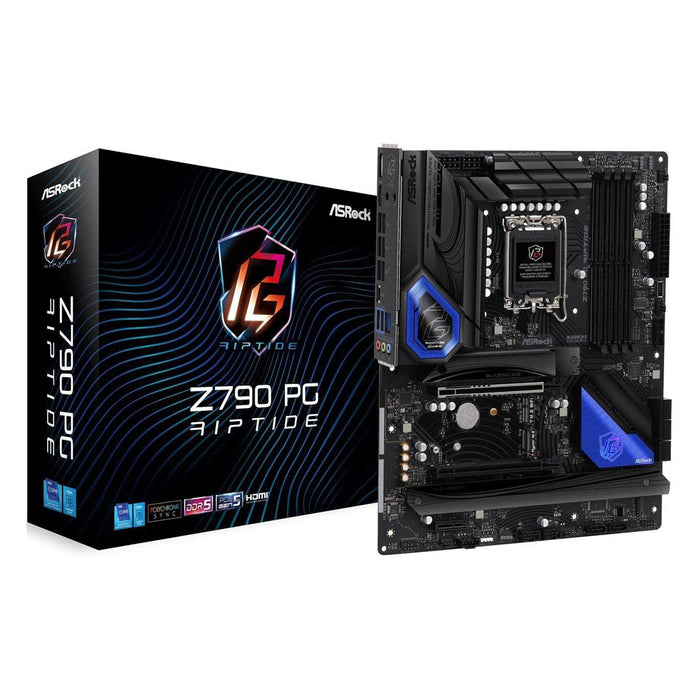

Asrock Z790 PG Riptide Gaming Motherboard, Intel 1700, ATX, DDR5, HDMI, DP, 2.5G LAN, PCIe5, M.2
AsRock Z790 ATX Gaming Motherboards, DDR5
The Asrock Z790 PG Riptide Gaming Motherboard is designed for gamers, featuring DDR5 technology and PCIe 5.0 support. With ATX form factor and 2.5G LAN, this motherboard promises high-performance and smooth gameplay. Its HDMI and DP ports provide stunning graphics, while M.2 support allows for fast data transfer.
Specifications
Motherboard Type: Desktop
Form Factor: ATX
Socket: Intel 1700
Chipset: Intel Z790
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x DIMM
RAM Speeds: Up to 6800+(OC)
Maximum Memory: 256GB
Graphics
Integrated Graphics*
*Graphics specifications may vary between CPU types
Graphics Ports: 1 x HDMI, 1 x DisplayPort
Multi-GPU Support: Supports AMD CrossFire
PCI/PCI Express
1 x PCIe 5.0 x16 (supports x16 mode)
1 x PCIe 4.0 x16 (supports x4 mode)
1 x PCIe 3.0 x1
Storage
8 x SATA III
1 x M.2 (2280) - PCIe
1 x M.2 (2280) - PCIe
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2260/2280) - PCIe
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Wireless: No
LAN: 2.5GB LAN
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
USB Ports Supported
1 x USB 3.2 Gen1 Type-C (at back)
2 x USB 3.2 Gen2 Type-A (at back)
6 x USB 3.2 Gen1 (4 at back*, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)
1 x Front Panel Type-C USB 3.2 Gen2x2 Header
*USB32_56 are Lightning Gaming Ports
Front Panel I/O Ports
2 x Antenna Mounting Points
1 x HDMI
1 x DisplayPort 1.4
2 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen1 Type-C
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x RJ-45 LAN
HD Audio Jacks
Internal I/O Connectors
1 x SPI TPM
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
1 x Chassis Fan
4 x Chassis/Water Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V
1 x Front Panel Audio
1 x Thunderbolt AIC 2 x USB 2.0
1 x USB 3.2 Gen1
1 x Front Panel Type-C USB 3.2 Gen2x2
Accessories
1 x User Manual
2 x SATA Data Cables
5 x Screws for M.2 Sockets
