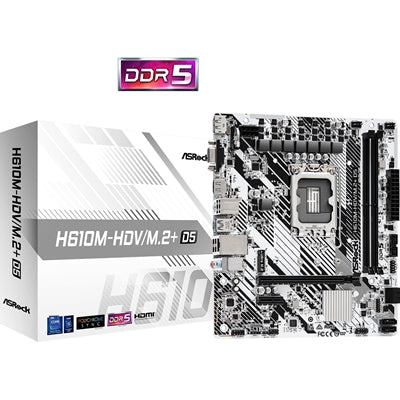

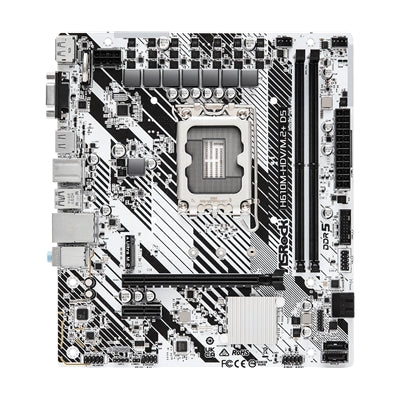

ASRock H610M-HDV/M.2+ D5 Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 1x M.2 Socket, 1x USB-C Port, GbE LAN, 1x D-Sub / 1x DisplayPort / 1x HDMI Port

ASRock H610M‑HDV/M.2+ D5 Intel Motherboard Micro‑ATX DDR5

The ASRock H610M‑HDV/M.2+ D5 Micro ATX motherboard is engineered for Intel LGA 1700 processors, supporting the latest DDR5 memory for improved speed, stability, and efficiency. Designed for everyday computing, gaming, and professional workloads, it delivers dependable performance in a compact form factor. With modern connectivity, fast storage support, and integrated display outputs, this board provides a reliable and versatile foundation for building a responsive and future‑ready PC.

Specifications

CPU Socket: LGA 1700
CPU Brand: Intel
Supported Processor Manufacturer: Intel
Supported Processors: Intel 12th & 13th Gen Core / Pentium / Celeron 64‑bit Support: Yes
Socket: LGA 1700

USB Ports: • 2 × USB 3.2 Gen1 • 4 × USB 2.0

Display Outputs: • 1 × HDMI • 1 × DisplayPort • 1 × D‑Sub

Keyboard/Mouse Combo Port: 1 × PS/2
RJ‑45 Ports: 1 × Gigabit LAN
Audio Ports: • 1 × Line In (3.5 mm) • 1 × Line Out (3.5 mm) • 1 × Microphone In (3.5 mm)

SATA Connectors: 4 × SATA III

USB Connectors (Internal Headers)

• 1 × USB‑C 3.2 Gen1 header (supports 1 port) • 1 × USB 3.2 Gen1 header (supports 2 ports) • 2 × USB 2.0 headers (supports 4 ports)

Front Panel Connectors

• 1 × Front Panel • 1 × Front Audio

Cooling Fan Support

• 1 × CPU Fan Header • 1 × Pump Fan Header • 1 × System Fan Header

Serial & Security Headers

• 1 × COM Header • 1 × Chassis Intrusion Header • 1 × TPM Header

Power Connector Ports

• 1 × 24‑pin ATX • 1 × 8‑pin EPS

Other Connectors

• 1 × M.2 Slot (PCIe Gen3 x4, Type 2280) • 2 × 3‑pin ARGB Headers • 2 × 4‑pin RGB Headers

Memory

Memory Bus Speed: Up to 4800+ MHz (DDR5 OC)
Memory Type: DDR5
Maximum RAM: 64 GB
Memory Slots: 2 × DIMM

PCI Express Slots

• 1 × PCI Express 4.0 x16 Slot
• 2 × PCI Express 3.0 x1 Slots

Integrated Graphics Supported: Yes (via supported Intel CPUs)
