ASRock B860I WIFI Mini‑ITX Motherboard – LGA 1851, DDR5, PCIe 5.0
ASRock B860I WIFI (LGA 1851) DDR5 Mini‑ITX

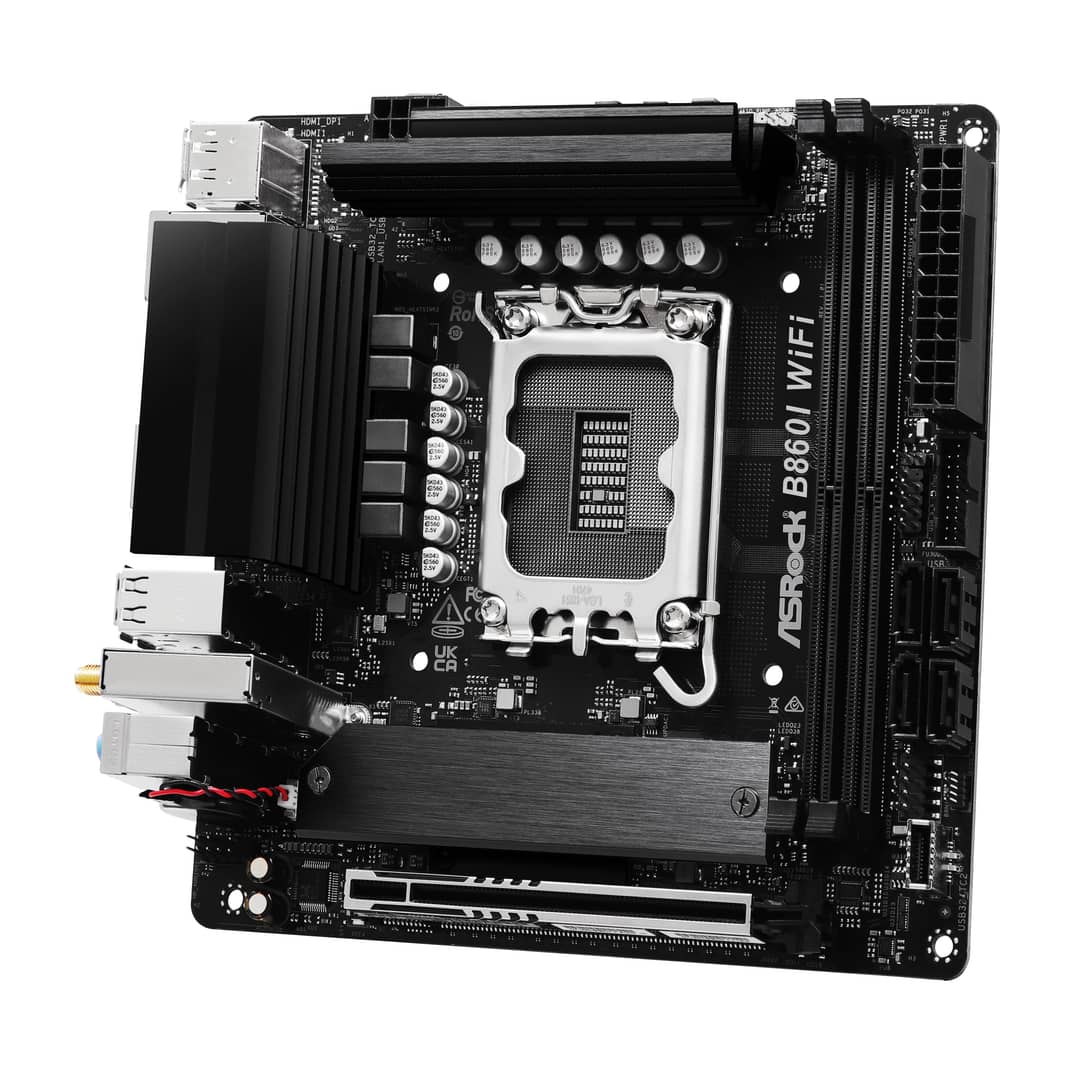

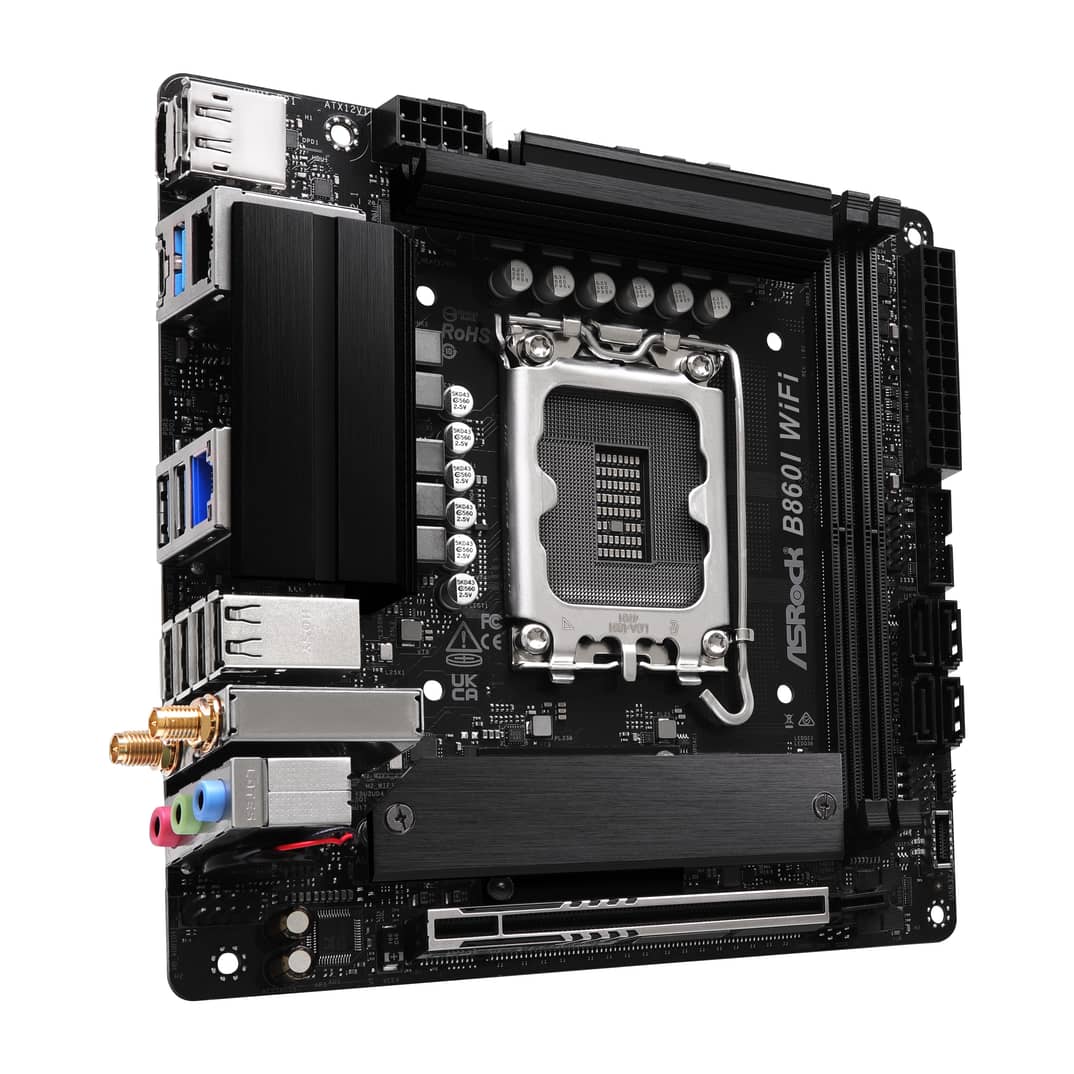

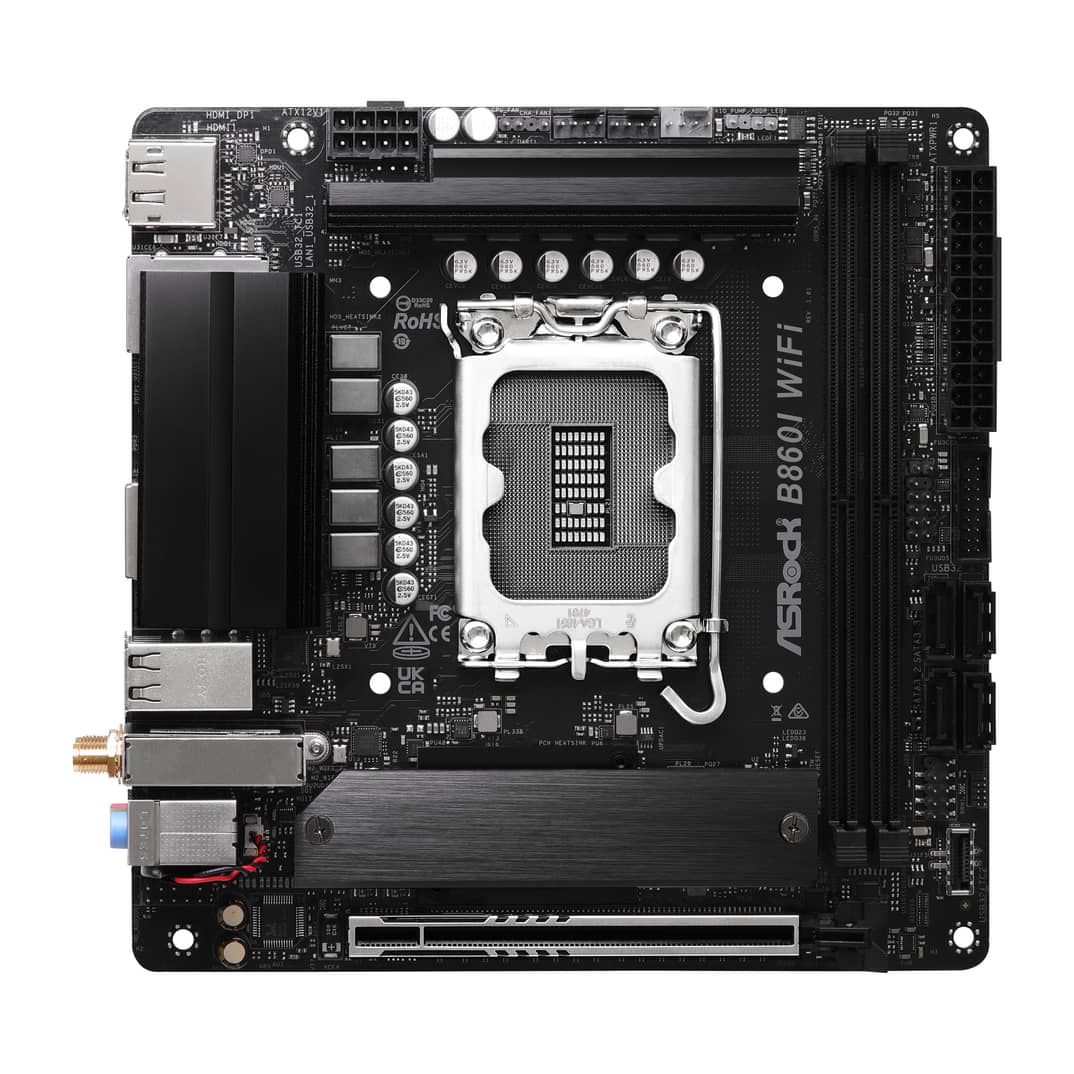

The ASRock B860I WIFI is a next‑generation Mini‑ITX motherboard designed for Intel’s latest LGA 1851 processors, including Intel Core Ultra CPUs. Built on the Intel B860 chipset, it delivers exceptional performance in a compact form factor, making it ideal for small‑form‑factor gaming PCs, home‑theatre systems, and high‑efficiency workstations.
Supporting DDR5 memory up to 8933+ MHz (OC), PCIe Gen 5.0 x16, dual M.2 slots (PCIe 5.0 + PCIe 4.0), and Wi‑Fi 6E, the B860I WIFI offers cutting‑edge connectivity and ultra‑fast storage options. With 2.5Gb + 1Gb LAN, HDMI 2.1, DisplayPort 1.4, and premium audio powered by Realtek ALC897 with Nahimic enhancements, this board provides a powerful and feature‑rich platform for modern Intel builds.
Its robust power delivery, advanced memory tuning, and compact 17×17 cm footprint make it a top choice for enthusiasts building high‑performance ITX systems.
Specifications
Type: Mini‑ITX Motherboard
Brand: ASRock
Model: B860I WIFI
Chipset: Intel B860
CPU Socket: LGA 1851
CPU Support: Intel Core Ultra Processors
Memory
Dual‑Channel DDR5
2 × DDR5 DIMM Slots
Supports DDR5 non‑ECC unbuffered
Up to 8933+ MHz (OC)
Native 6400 MHz support
Max Capacity: 128GB
Intel XMP 3.0 support
PCIe Slots: 1 × PCIe 5.0 x16 (GPU): 1 × M.2 Key‑E slot for WiFi/BT modules
Storage M.2 Slots: 1 × Blazing M.2 PCIe 5.0 x4 (2280), 1 × Hyper M.2 PCIe 4.0 x4 (2260/2280)
SATA: 4 × SATA3 6Gb/s
Networking
1 × 2.5Gb LAN (Dragon RTL8125BG)
1 × 1Gb LAN (Intel I219V)
Bandwidth control, priority control, gaming‑optimised profiles
Wi‑Fi 6E (802.11ax) dual‑band 2×2
Bluetooth 5.3
Audio
Realtek ALC897 7.1‑Channel HD Audio
Nahimic Audio enhancements
Video Outputs (requires CPU with integrated graphics) 1 × HDMI 2.1 (up to 4K 120Hz), 1 × DisplayPort 1.4 (up to 8K 60Hz / 5K 120Hz)
USB Connectivity
Rear I/O:
1 × USB‑C 3.2 Gen2x2
1 × USB‑A 3.2 Gen2
2 × USB 3.2 Gen1
4 × USB 2.0
HDMI
DisplayPort
2 × LAN ports
Internal Headers:
USB‑C 3.2 Gen1 (front)
USB 3.2 Gen1 header
USB 2.0 headers
CPU fan, AIO pump, chassis fan headers
RGB/ARGB headers
TPM header
Front panel audio
Power Connectors: 24‑pin ATX, 8‑pin 12V CPU power
Form Factor Mini‑ITX: 17.0 cm × 17.0 cm

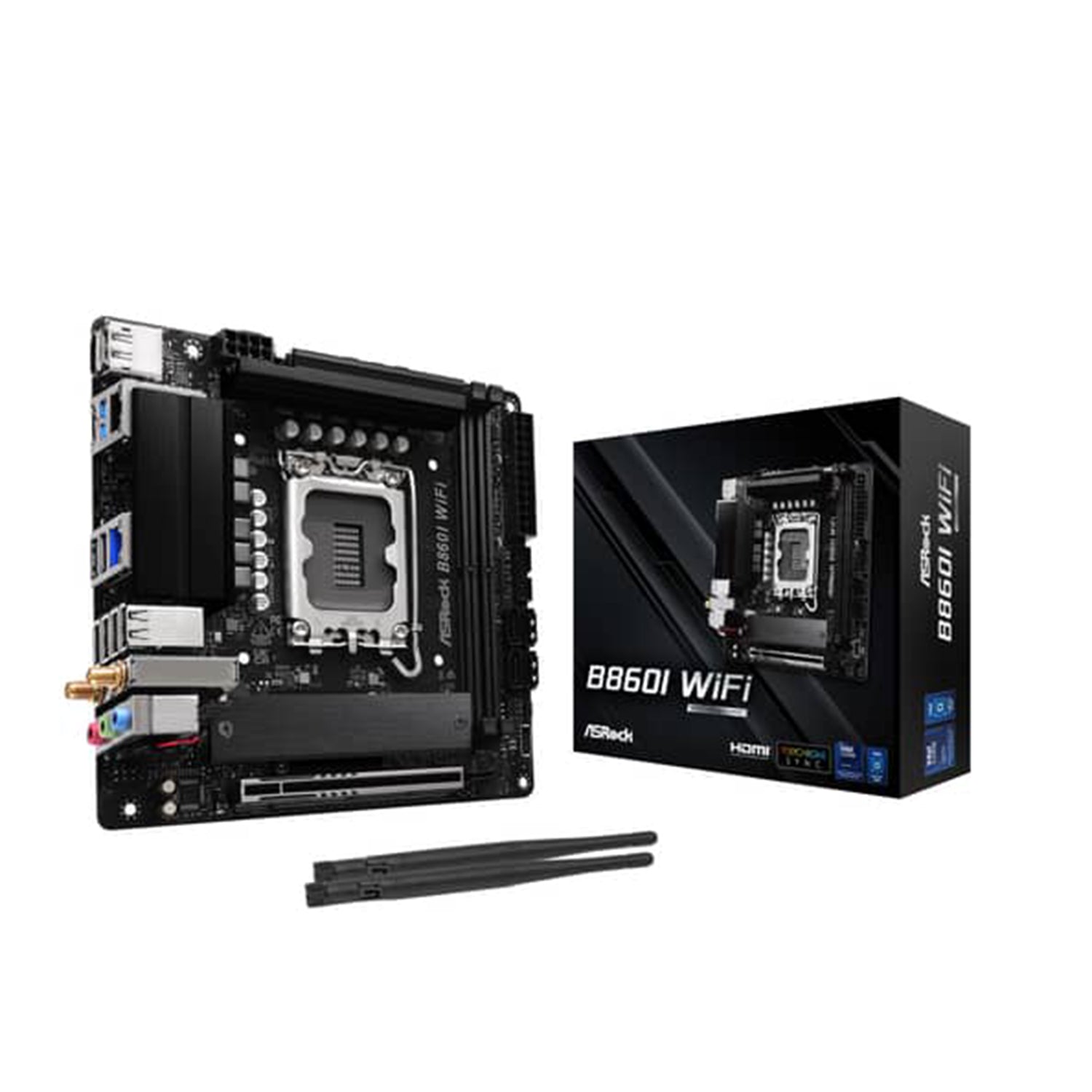

Included Accessories
I/O Shield
2 × SATA Cables
2 × WiFi Antennas
2 × M.2 Screws
Most Suitable For
Compact Mini‑ITX gaming PCs
Intel Core Ultra SFF builds
PCIe 5.0 NVMe storage setups
High‑performance HTPC systems
Productivity and mixed‑use ITX builds
