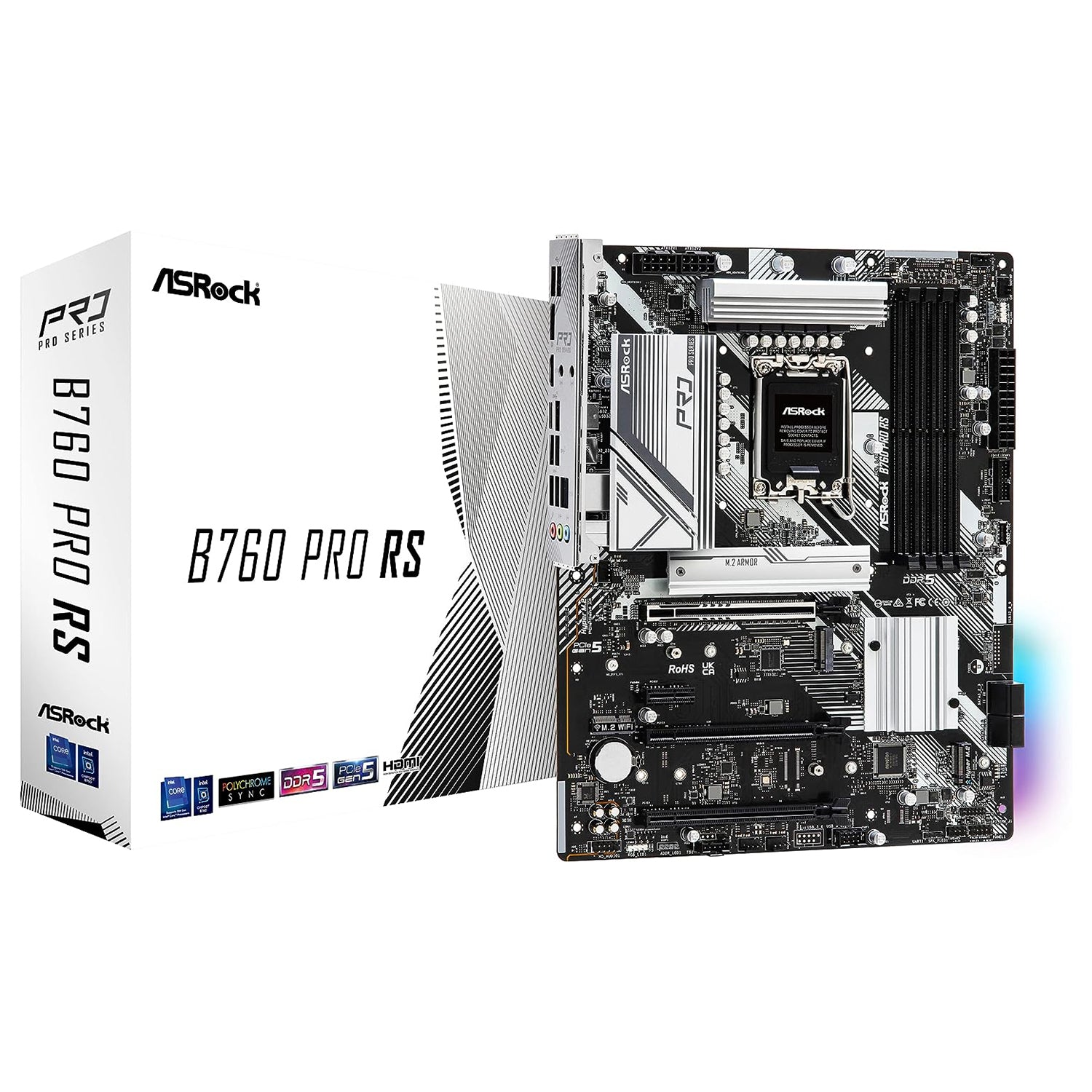

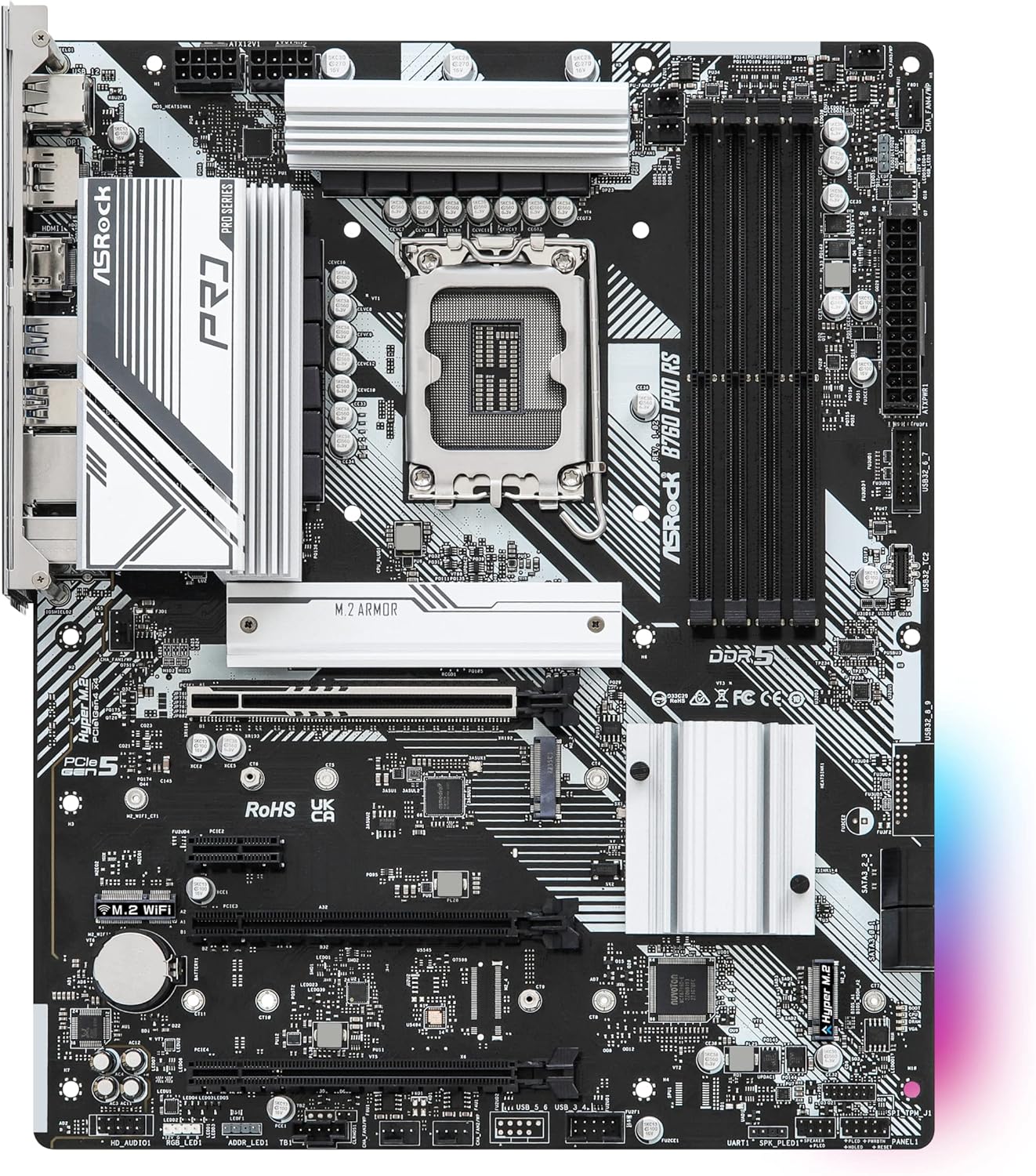

Asrock B760 Pro RS Gaming Motherboard, Intel B760, 1700, ATX, 4 DDR5, HDMI, DP, eDP, 2.5G LAN, PCIe5, 3x M.2, RGB

AsRock B760 Pro RS ATX Motherboard DDR5

Upgrade your gaming experience with the Asrock B760 Pro RS Gaming Motherboard. Equipped with Intel B760 and ATX, this motherboard delivers lightning-fast performance and supports DDR5. Its 2.5G LAN and PCIe5 make it perfect for gaming, while its 3x M.2 slots and RGB lighting add a touch of customization.

Specifications

Motherboard Type: Desktop

Form Factor: ATX

Socket: Intel 1700

Chipset: Intel B760

RAM Technology: DDR5 (Dual Channel)

RAM Slots: 4 x DIMM

RAM Speeds: Up to 7200+(OC)

Maximum Memory: 128GB

Graphics
Integrated Graphics
Graphics specifications may vary between CPU types

Graphics Ports
1 x HDMI
1 x DisplayPort
1 x eDP 1.4

Multi-GPU Support: Supports AMD CrossFire

PCI/PCI Express
1 x PCIe 5.0 x16 (supports x16 mode)
1 x PCIe 4.0 x16 (supports x4 mode)
1 x PCIe 3.0 x16 (supports x1 mode)
1 x PCIe 3.0 x1

Storage
4 x SATA III
1 x M.2 (2260/2280) - PCIe 4.0 x4
1 x M.2 (2260/2280) - PCIe 4.0 x2
1 x M.2 (2260/2280) - PCIe 4.0 x4

RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

Wireless: No

LAN: 2.5GB LAN

Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

USB Ports Supported
1 x USB 3.2 Gen2 Type-C (at back)
1 x USB 3.2 Gen2 Type-A (at back)
6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
4 x USB 2.0 (2 at back, 2 at mid-board)
1 x Front Panel Type-C USB 3.2 Gen1 Header

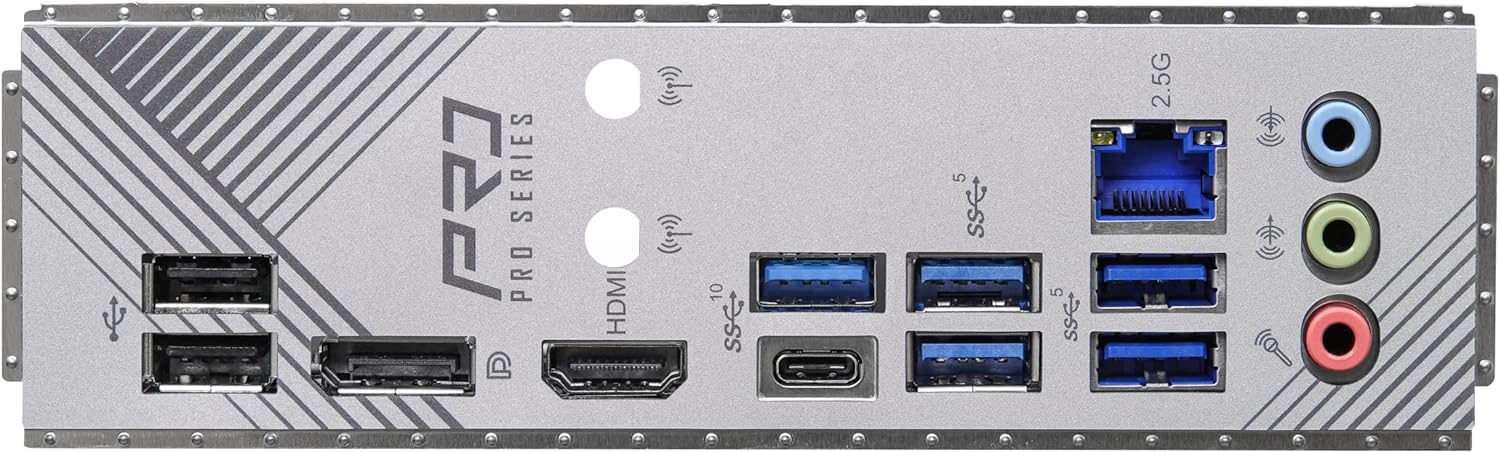

Back Panel I/O Ports
2 x Antenna Mounting Points
1 x HDMI
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
4 x USB 3.2 Gen1
2 x USB 2.0
1 x RJ-45 LAN
HD Audio Jacks

Internal I/O Connectors
1 x eDP Signal
1 x SPI TPM
1 x Power LED and Speaker
2 x RGB LED
2 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
5 x Chassis/Water Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V
1 x Front Panel Audio
1 x Thunderbolt AIC 1 x USB 2.0
1 x USB 3.2 Gen1
1 x Front Panel Type C USB 3.2 Gen2

Accessories
1 x User Manual
2 x SATA Data Cables
4 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket
