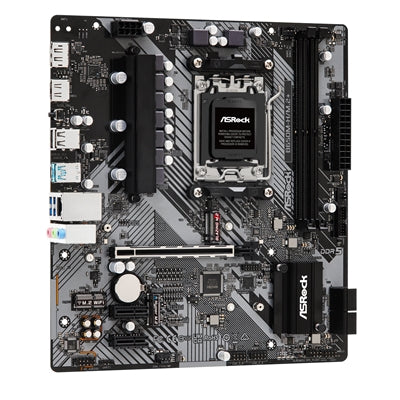

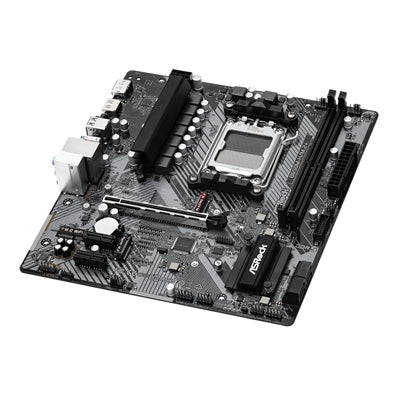

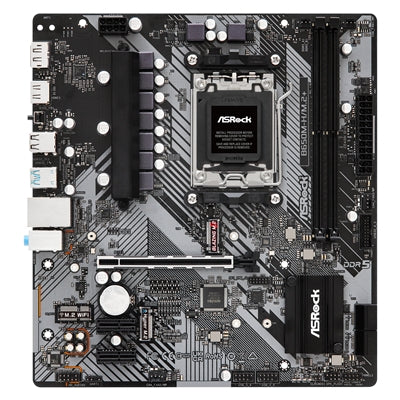

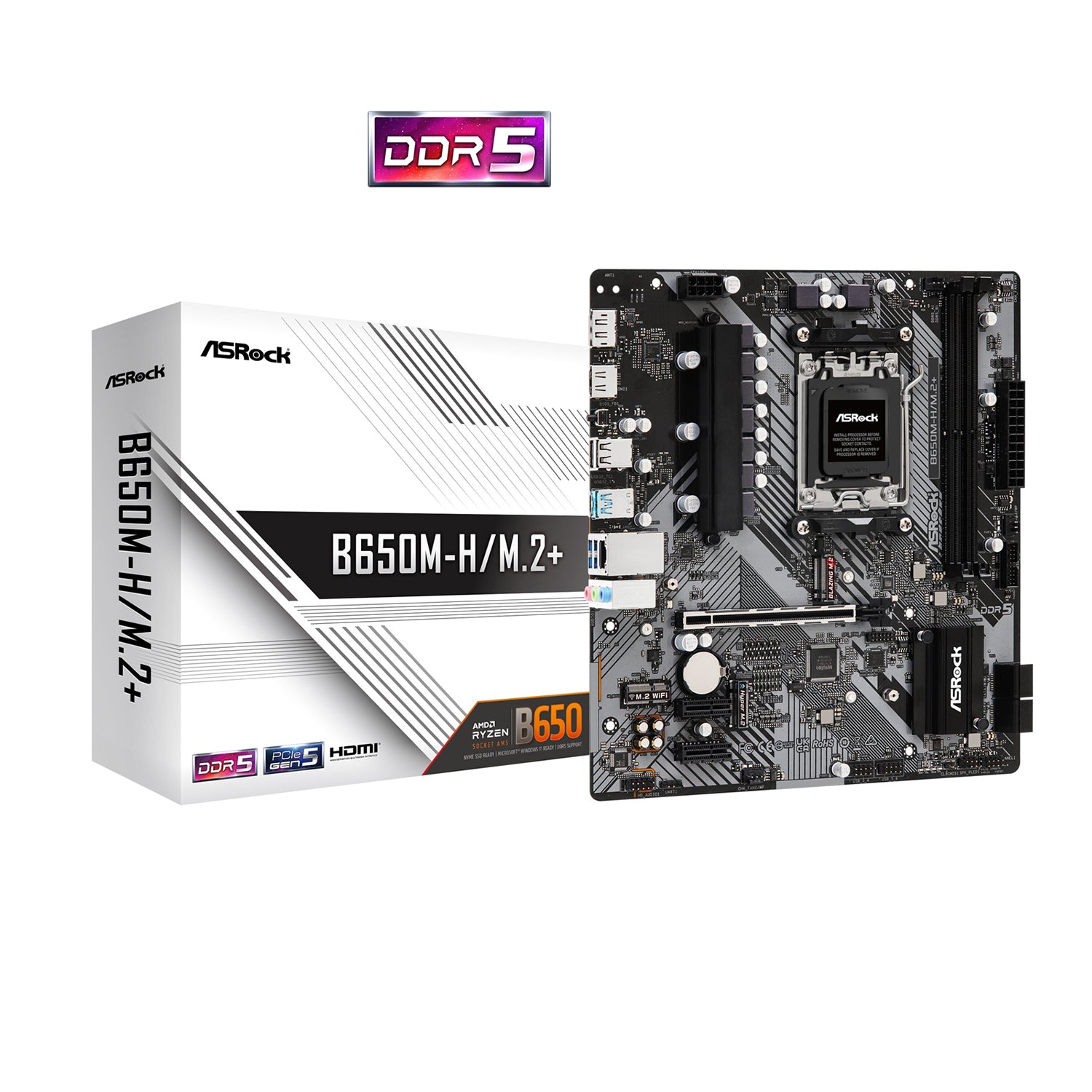

ASRock B650M‑H/M.2+ Micro‑ATX AM5 Motherboard – DDR5, Dual M.2, HDMI/DP
ASRock B650M‑H/M.2+
Build a reliable and efficient AM5 system with the ASRock B650M‑H/M.2+, a Micro‑ATX motherboard designed for gaming, productivity, and everyday computing. Powered by the AMD B650 chipset, it supports Ryzen 7000 / 8000 / 9000 Series processors and delivers high‑speed DDR5 performance up to 6400+ MT/s (O.C.). With PCIe 4.0 x16 GPU support, dual PCIe 4.0 M.2 slots, GbE LAN, Wi‑Fi upgrade headers, and HDMI/DisplayPort outputs, this board provides a stable and capable platform for modern AM5 builds. ASRock EZ‑DIY features such as BIOS Flashback and reinforced PCIe slots ensure easy installation and long‑term durability.
Specifications
Type: Micro‑ATX Motherboard
Brand: ASRock
Model: B650M‑H/M.2+
Chipset: AMD B650
CPU Socket: AM5
Supported CPUs: Ryzen 7000 / 8000 / 9000 Series (with integrated graphics for display output
RAM Type: DDR5 (Dual Channel)
RAM Slots: 2 × 288‑pin
RAM Speed Support: Up to DDR5 6400+ (O.C.)
Max Memory: 96GB
PCIe Slots: 1 × PCIe 4.0 x16 (GPU slot) 1 × PCIe 3.0 x1
Storage: 2 × M.2 Slots: • 1 × PCIe 4.0 x4 (CPU) – NVMe SSD • 1 × PCIe 4.0 x4 (Chipset) – NVMe SS, 4 × SATA 6Gb/s
RAID Support: RAID 0/1/10 (SATA)
LAN: Realtek Gigabit Ethernet (1GbE)
Wireless: Optional Wi‑Fi module support (M.2 Key‑E slot)
Bluetooth: Via optional Wi‑Fi module
Audio: Realtek HD Audio
Channels: 7.1‑Channel High Definition Audio
Video Outputs: (Requires Ryzen CPU with integrated Radeon Graphics) 1 × HDMI 1 × DisplayPort
USB Connectivity
Rear I/O
USB‑C (USB 3.2 Gen 1)
USB‑A (USB 3.2 Gen 1)
USB‑A (USB 2.0)
HDMI
DisplayPort
1Gb LAN
Audio jacks
Internal Headers
USB 3.2 Gen 1 header
USB 2.0 headers
RGB/ARGB headers
Front panel connectors
TPM header
Multiple fan headers
Power Connectors: 24‑pin ATX, 8‑pin CPU power
Form Factor: Micro‑ATX (244 × 244 mm)
Most Suitable For
Budget‑friendly AM5 gaming PCs
Ryzen 7000 / 8000 / 9000 Series builds
Compact Micro‑ATX systems
Dual M.2 NVMe storage setups
Everyday productivity & home office PCs
