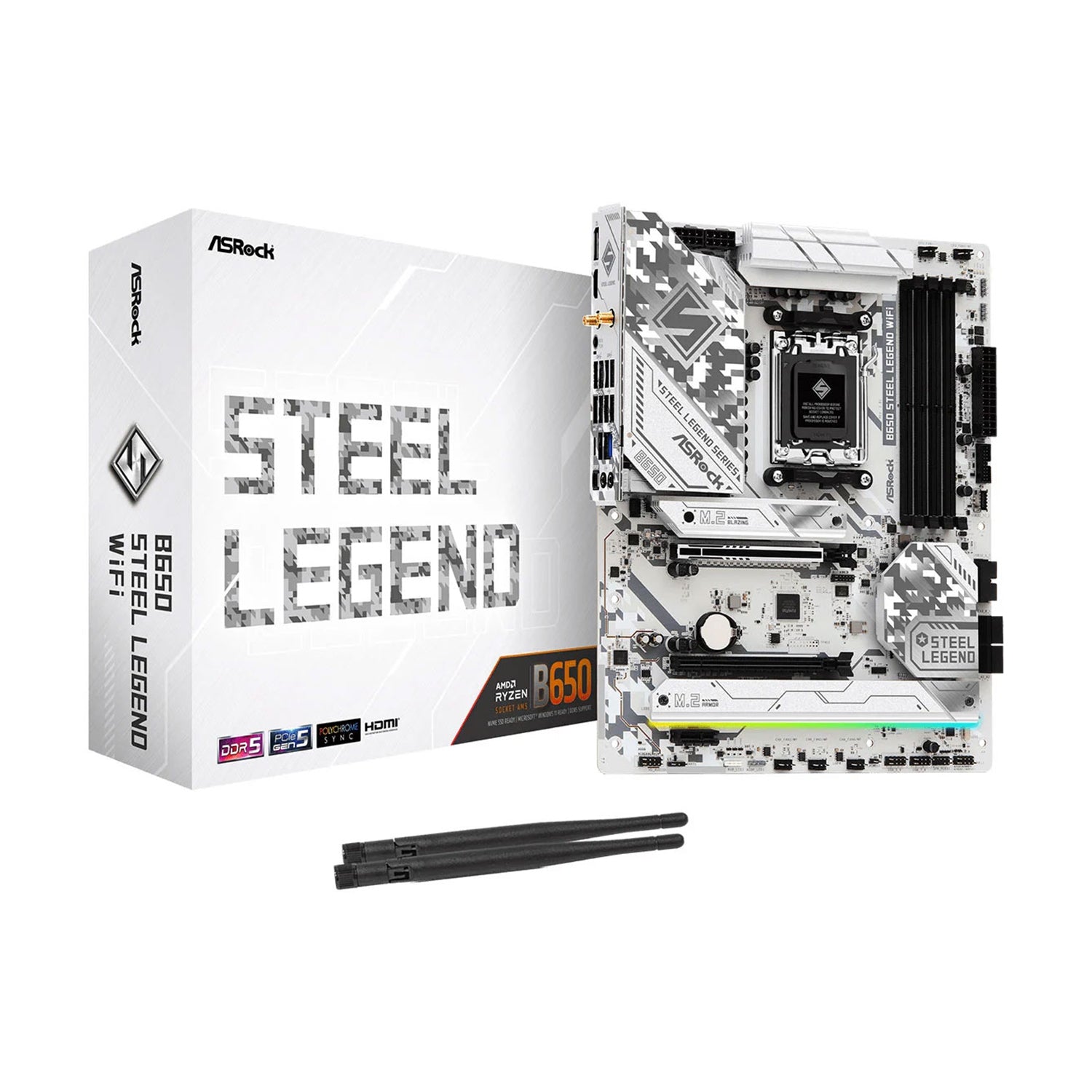

Asrock B650 Steel Legen WiFi Motheboard, AMD B650, AM5, ATX, DDR5, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB

Steel Legend AMD B650 ATX Gaming Motherboard

The ASRock B650 Steel Legend WiFi motherboard supports the latest AMD AM5 processors and features DDR5 memory compatibility for enhanced performance. Its ATX form factor integrates advanced connectivity options including Wi-Fi 6E for ultra-fast wireless access, 2.5G LAN for reliable wired networking, and PCIe 5.0 slots that future-proof your system with next-generation expansion capabilities. Designed with premium components and vibrant RGB lighting, this motherboard ensures stability and style for high-demand gaming and professional builds.

Specifications

Motherboard Type: Desktop

Form Factor: ATX

Socket: AMD AM5

Chipset: AMD B650

RAM Technology
DDR5 (Dual Channel)
Supports ECC/non-ECC, un-buffered memory
Supports XMP and EXPO for Overclocking

RAM Slots: 4 x DIMM

RAM Speeds: Up to 7200+(OC)

Maximum Memory: 256GB

Graphics
Integrated Graphics*
*Graphics specifications may vary between CPU types

Graphics Ports: 1 x HDMI, 1 x DisplayPort

Multi-GPU Support: Supports AMD CrossFire

PCI/PCI Express
1 x PCIe 5.0 x16 (supports x16 mode)
1 x PCIe 3.0 x16 (supports x4 mode)
1 x PCIe 4.0 x1

Storage
2 x SATA III
1 x M.2 (2260/2280) - PCIe 5.0 x4
1 x M.2 (2260/2280) - PCIe 4.0 x4
1 x M.2 (2260/2280) - PCIe 4.0 x4

RAID
Supports RAID 0 and RAID 1 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Wireless
802.11axe Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax/axe
Supports Dual-Band 2x2 with extended 6GHz band support
2 antennas to support 2 (Transmit) x 2 (Receive) diversity tech
Supports Bluetooth 5.2 + High speed class II
Supports MU-MIMO

LAN: 2.5GB LAN

Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

USB Ports Supported
Rear:
1 x USB 3.2 Gen2x2 Type-C
1 x USB 3.2 Gen2 Type-A
2 x USB 3.2 Gen1 Type-A
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0

Front:
1 x USB 3.2 Gen1 Type-C
4 x USB 3.2 Gen1 Type-A
4 x USB 2.0

Back Panel I/O Ports
2 x Antenna
1 x HDMI
1 x DisplayPort 1.4
1 x Optical SPDIF Out
1 x USB 3.2 Gen2x2 Type-C
1 x USB 3.2 Gen2 Type-A
4 x USB 3.2 Gen1 Type-A
4 x USB 2.0
1 x RJ-45 LAN
1 x BIOS Flashback Button
1 x Line Out Jack
1 x Microphone Input Jack

Internal I/O Connectors
1 x SPI TPM
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
4 x Chassis/Water Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V
1 x Front Panel Audio
2 x USB 2.0
2 x USB 3.2 Gen1 1 x Front Panel Type C USB 3.2 Gen1

Accessories
1 x User Manual
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
3 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket
