Asrock A620M-HDV/M.2 Motherboard, AMD A620, AM5, Micro ATX, 2 DDR5, HDMI, DP, GB LAN, PCIe4, 2x M.2

Asrock A620M-HDV/M.2 AMD Motherboard

The AsRock A620M-HDV/M.2 Motherboard is an AM5 embedded platform with DDR5 memory technology. With Micro ATX form factor and 2x PCIe4, it is specifically designed for superior computing performance. Enjoy lightning-fast LAN and M.2 slots to meet the demands of high-end PC configurations.

Specifications

Motherboard Type: Desktop

Form Factor: Micro ATX

Socket: AMD AM5

Chipset: AMD A620

RAM Technology: DDR5 (Dual Channel)

RAM Slots: 2 x DIMM

RAM Speeds: Up to 5600+(OC)

Maximum Memory: 64GB

Graphics
Integrated Graphics*
*Graphics specifications may vary between CPU types

Graphics Ports
1 x HDMI
1 x DisplayPort

PCI/PCI Express
1 x PCIe 4.0 x16 (supports x16 mode)
2 x PCIe 3.0 x1

Storage
2 x SATA III
1 x M.2 (2280) - PCIe
1 x M.2 (2260/2280) - PCIe

RAID
Supports RAID 0 and RAID 1 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Wireless: No

LAN: GB LAN

Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

USB Ports Supported
1 x USB 3.2 Gen1 Type-C (Rear)
4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
6 x USB 2.0 (2 Rear, 4 Front)

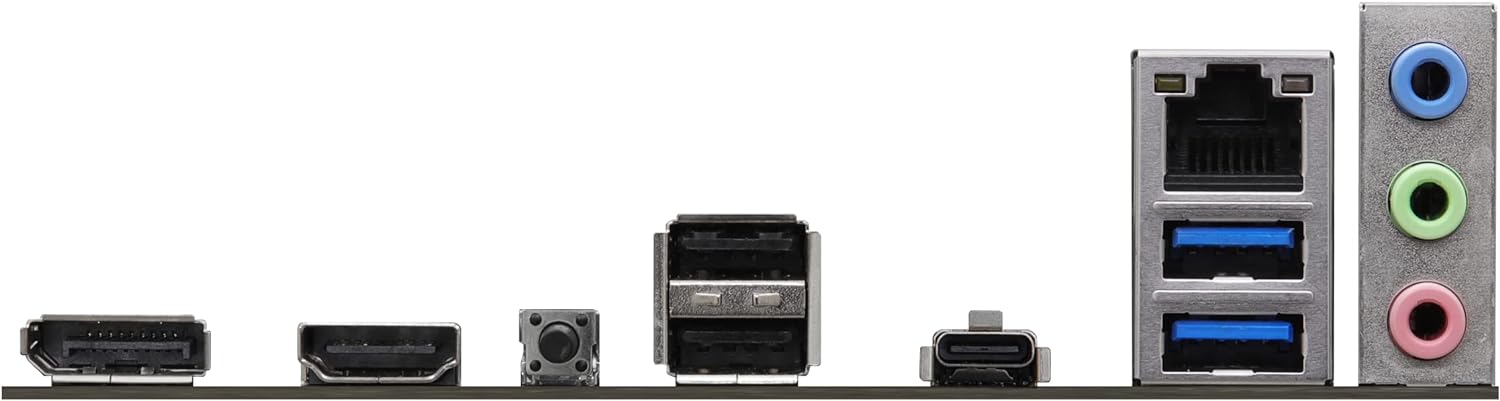

Back Panel I/O Ports
2 x Antenna Mounting Points
1 x HDMI
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x RJ-45 LAN
1 x BIOS Flashback Button
HD Audio Jacks

Internal I/O Connectors
1 x Power LED and Speaker
1 x CPU Fan
3 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
2 x USB 2.0
1 x USB 3.2 Gen1

Accessories
1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
3 x Screws for M.2 Sockets
