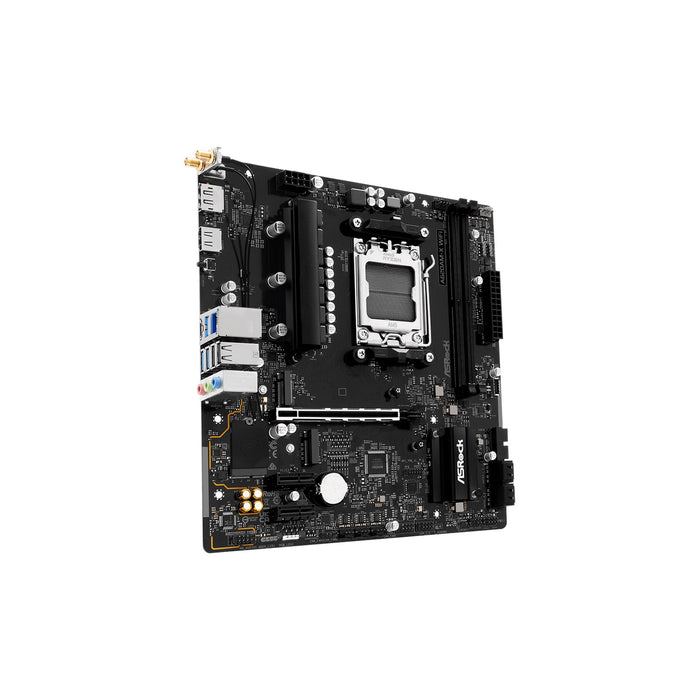

ASRock A620AM-X mATX Gaming Motherboard for AMD AM5, DDR5
AsRock A620 Micro ATX Gaming Motherboard
The ASRock A620AM-X delivers reliable performance for AM5 socket systems in a compact mATX form factor. This motherboard supports DDR5 memory for enhanced bandwidth and future-proofing, whilst the A620 chipset provides essential connectivity for gaming and productivity builds. Built with quality power delivery and thermal management, it offers stable operation across AMD's Ryzen processor lineup. Ideal for builders seeking a balanced, space-efficient platform without unnecessary premium features.
Specifications
CPU: Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
Chipset: AMD A620A
Memory
Dual Channel DDR5 Memory Technology
2 x DDR5 DIMM Slots
Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
Max. capacity of system memory: 128GB
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
Graphics
Integrated AMD RDNA graphics (Actual support may vary by CPU)
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control
Wireless LAN
802.11ac Wi-Fi Module
Supports IEEE 802.11a/b/g/n/ac
Supports Dual-Band (2.4/5 GHz)
Supports high speed wireless connections up to 433Mbps
Supports Bluetooth 5.0
Slots
CPU:
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
15µ Gold Contact in VGA PCIe Slot (PCIE1)
Storage
CPU:
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
Chipset:
4 x SATA3 6.0 Gb/s Connectors
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
USB
CPU:
1xx USB 3.2 Gen1 Type-A (Rear (USB32_3))
Chipset:
2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
4 x USB 3.2 Gen1 Type-A (2 Rear (USB32_1 and USB32_2), 2 Front)
6 x USB 2.0 (2 Rear, 4 Front)
Connector
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header

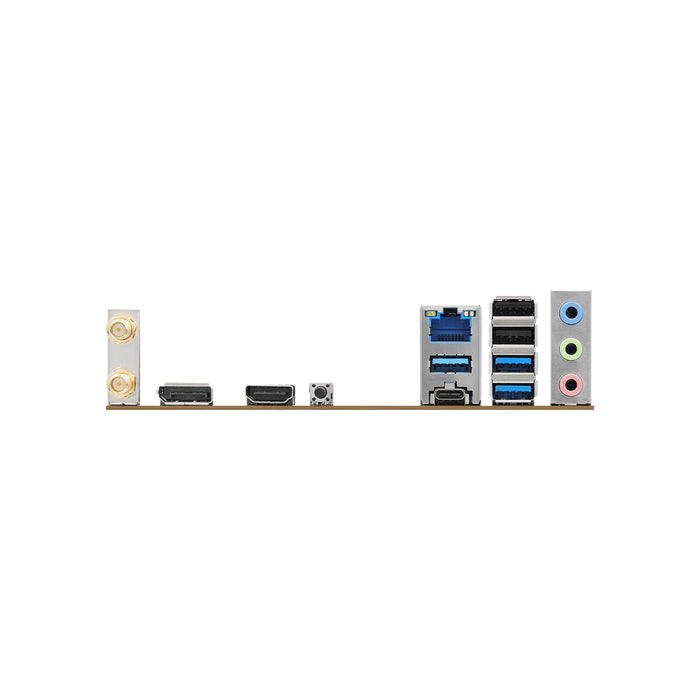

Rear Panel I/O
2 x Antenna Ports
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C Port
3 x USB 3.2 Gen1 Type-A Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
ASRock Motherboard Utility (A-Tuning)
ASRock Dragon 2.5G LAN Software
ASRock Polychrome SYNC
UEFI
ASRock Full HD UEFI
ASRock Auto Driver Installer
ASRock Instant Flash
Accessories
1 x I/O Shield
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5 GHz Antennas
Form Factor: Micro ATX Form Factor: 9.6-in b 8.9-in, 24.4 cm x 22.6 cm
