ASRock A620AI WIFI Mini‑ITX AM5 Motherboard – DDR5, Wi‑Fi 6E, 2.5GbE

ASRock A620AI WIFI

Build a compact and efficient AM5 system with the ASRock A620AI WIFI, a Mini‑ITX motherboard designed for small‑form‑factor gaming, productivity, and home‑office builds. Powered by the AMD A620 chipset, it supports Ryzen 7000 / 8000 / 9000 Series processors and delivers high‑speed DDR5 performance up to 6400+ MT/s (O.C.). With PCIe 4.0 x16 GPU support, dual PCIe 4.0 M.2 slots, Wi‑Fi 6E, 2.5GbE LAN, and HDMI output, this board provides a compact yet capable platform for modern AM5 systems. ASRock EZ‑DIY features such as BIOS Flashback and reinforced PCIe slot ensure easy installation and long‑term reliability.

Specifications

Type: Mini‑ITX Motherboard
Brand: ASRock
Model: A620AI WIFI
Chipset: AMD A620
CPU Socket: AM5
Supported CPUs: Ryzen 7000 / 8000 / 9000 Series (with integrated graphics for display output)
RAM Type: DDR5 (Dual Channel)
RAM Slots: 2 × 288‑pin
RAM Speed Support: Up to DDR5 6400+ (O.C.)
Max Memory: 96GB
PCIe Slots: 1 × PCIe 4.0 x16 (GPU slot)
Storage: 2 × M.2 Slots: • 1 × PCIe 4.0 x4 (CPU) – 2 x NVMe SSD • 2 × SATA 6Gb/s
RAID Support: RAID 0/1/10 (SATA)
LAN: Realtek 2.5Gb Ethernet
Wireless: Wi‑Fi 6E
Bluetooth: 5.0
Audio:  Realtek HD Audio Channels: 7.1‑Channel High Definition Audio
Video Outputs: (Requires Ryzen CPU with integrated Radeon Graphics) 1 × HDMI

USB Connectivity

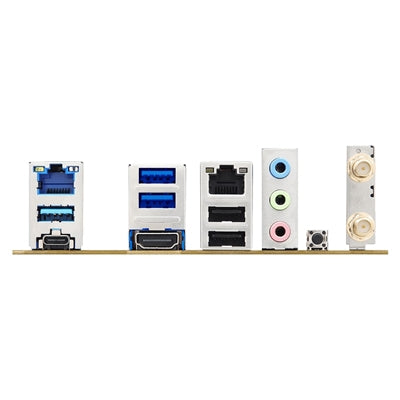

Rear I/O
USB‑C (USB 3.2 Gen 1)
USB‑A (USB 3.2 Gen 1)
 USB‑A (USB 2.0)
HDMI
2.5Gb LAN
Wi‑Fi antenna connector
 Audio jacks
Internal Headers
USB 3.2 Gen 1 header
USB 2.0 headers
 RGB/ARGB headers
Front panel connectors
TPM header
Multiple fan headers
Power Connectors: 24‑pin ATX, 8‑pin CPU power
Form Factor: Mini‑ITX (170 × 170 mm)

Most Suitable For
Small‑form‑factor (SFF) gaming PCs
Compact AM5 builds
HTPC / media centre systems
Wi‑Fi 6E + 2.5Gb LAN connectivity
Ryzen 7000 / 8000 / 9000 Series APUs & CPUs
