AORUS B860M AORUS ELITE WIFI 6E ICE – LGA1851 Micro ATX Motherboard, DDR5, PCIe 5.0, Wi‑Fi 6E

AORUS 1851 B860M AORUS ELITE WIFI 6E ICE

Build a modern Intel system with the AORUS B860M AORUS ELITE WIFI 6E ICE, a compact Micro ATX motherboard designed for Intel Core Ultra Series processors. Powered by the Intel B860 Express chipset, it delivers strong next‑generation performance with DDR5 up to 9200MT/s (O.C), PCIe 5.0 GPU support, PCIe Gen5 + Gen4 M.2 slots, Wi‑Fi 6E, 2.5GbE LAN, and advanced thermal design. GIGABYTE features such as EZ‑Latch Plus, EZ‑Latch Click, D5 Bionic Corsa memory enhancements, Sensor Panel Link, Q‑Flash Plus, and VRM Thermal Armor ensure easy installation, excellent stability, and long‑term durability — all wrapped in a clean ICE‑white Micro ATX design ideal for compact LGA1851 builds.

Specifications

Type: Micro ATX Motherboard
Brand: GIGABYTE
Model: B860M AORUS ELITE WIFI6E ICE
Chipset: Intel B860 Express
CPU Socket: LGA1851
Supported CPUs: Intel Core Ultra processors

Memory
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 × 288‑pin
RAM Speed Support: Up to DDR5 9200 (O.C)
Max Memory: 256GB

PCIe Slots
1 × PCIe 5.0 x16
1 × PCIe 4.0 x16

M.2 Slots
1 × PCIe Gen5 x4
2 × PCIe Gen4 x4
SATA Ports: 4 × SATA 6Gb/s
RAID Support: RAID 0/1/5/10

Networking
LAN: Realtek 2.5GbE LAN
Wireless: Wi‑Fi 6E (2.4/5/6GHz)
Bluetooth: 5.3

Audio
Codec: Realtek HD Audio
Channels: 2/4/5.1/7.1‑Channel HD Audio

Video Outputs
(Requires Intel CPU with integrated graphics)
1 × HDMI
1 × DisplayPort

Special Features
Digital Twin 12+1+2 Phase VRM
D5 Bionic Corsa Memory Performance
EZ‑Latch Plus (PCIe & M.2 quick‑release)
EZ‑Latch Click (screwless M.2 heatsinks)
Sensor Panel Link
VRM Thermal Armor Advanced
M.2 Thermal Guard Ext
Q‑Flash Plus
Friendly UI BIOS (multi‑theme, AIO fan control, auto scan)
Ultra‑Fast Storage (PCIe 5.0 M.2)
Wi‑Fi EZ‑Plug

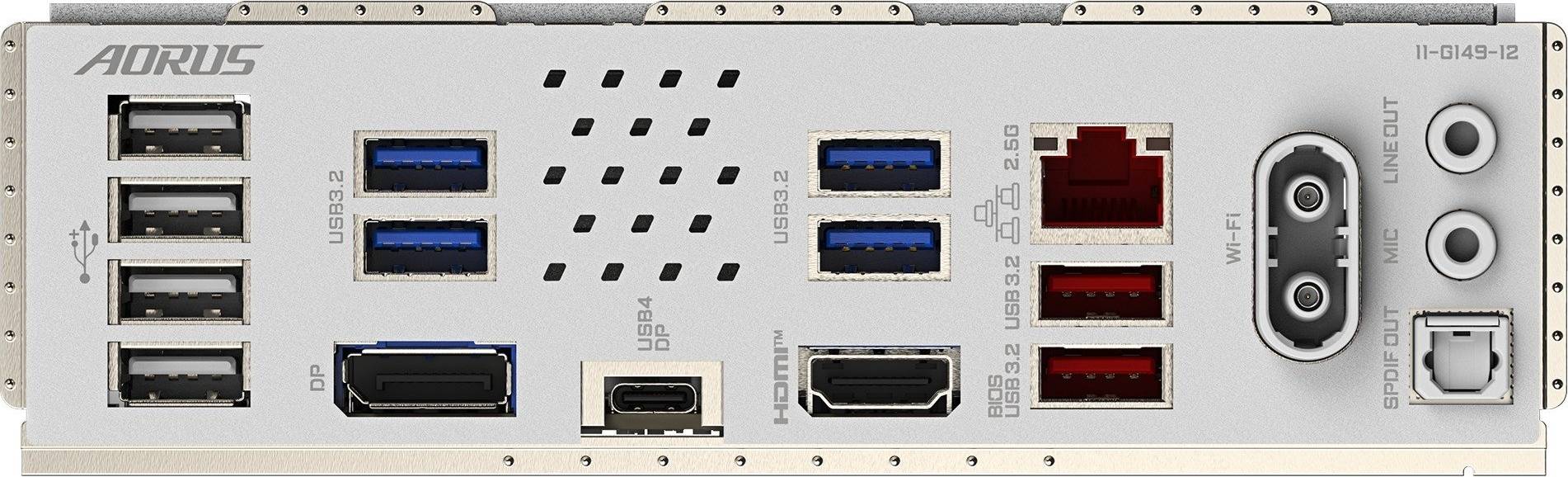

USB Connectivity Rear I/O
4 × USB 2.0
4 × USB 3.2 Gen1 Type‑A
2 × USB 3.2 Gen2 Type‑A
1 × USB4 Type‑C
HDMI
DisplayPort
2.5GbE LAN
Wi‑Fi antenna connectors
2 × audio jacks
1 × S/PDIF
Power button
Reset button
Q‑Flash Plus button

Internal Headers
24‑pin ATX
2 × 8‑pin CPU power
12 × USB 2.0 headers
1 × USB 3.2 Gen1 header
1 × USB 3.2 Gen2 header
2 × Thunderbolt headers
Front panel audio
TPM header
3 × ARGB Gen2 headers
1 × RGB header
Internal power button
Internal reset button
Q‑Flash Plus
Multiple fan headers
Form Factor: Micro ATX (244 × 244 mm)
