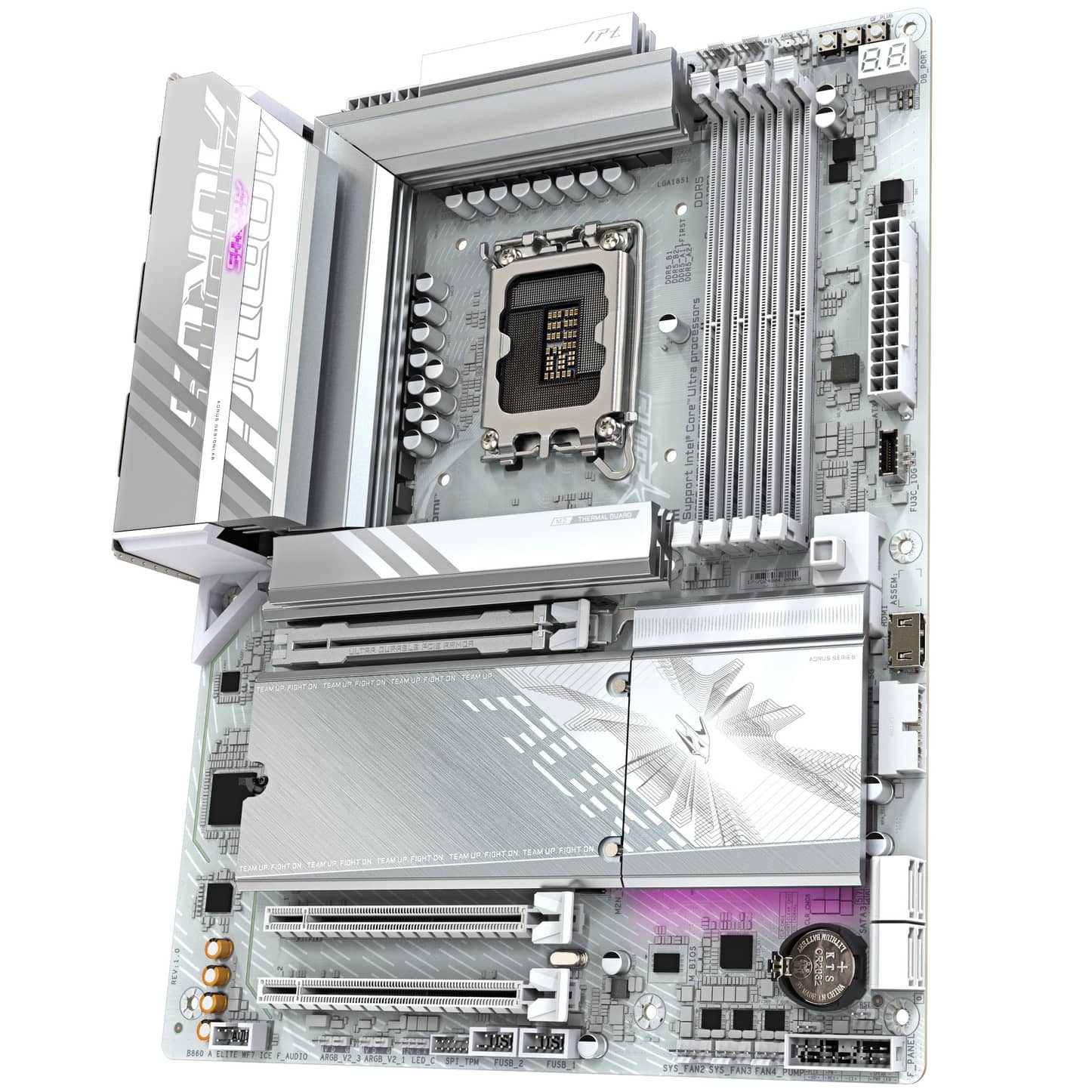

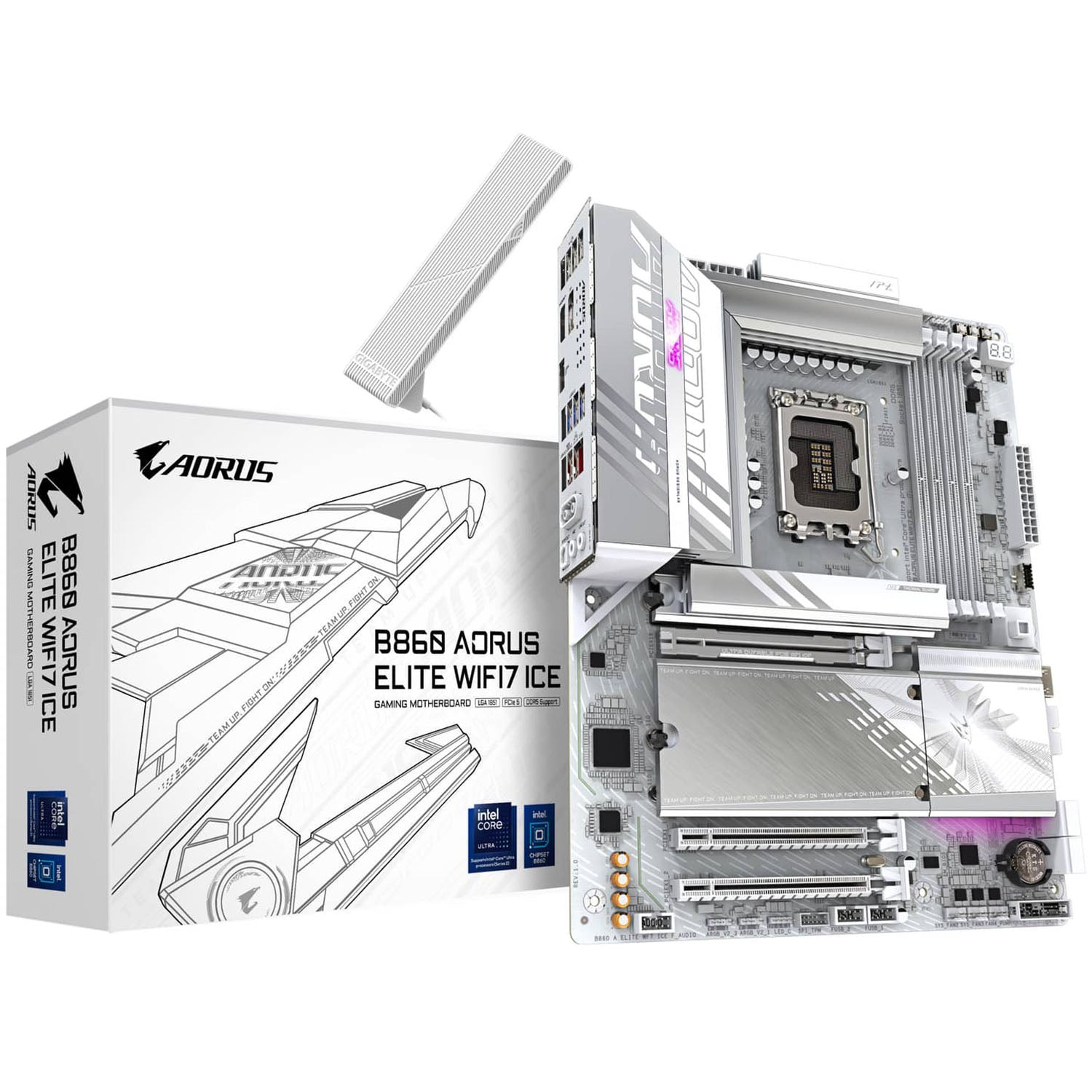

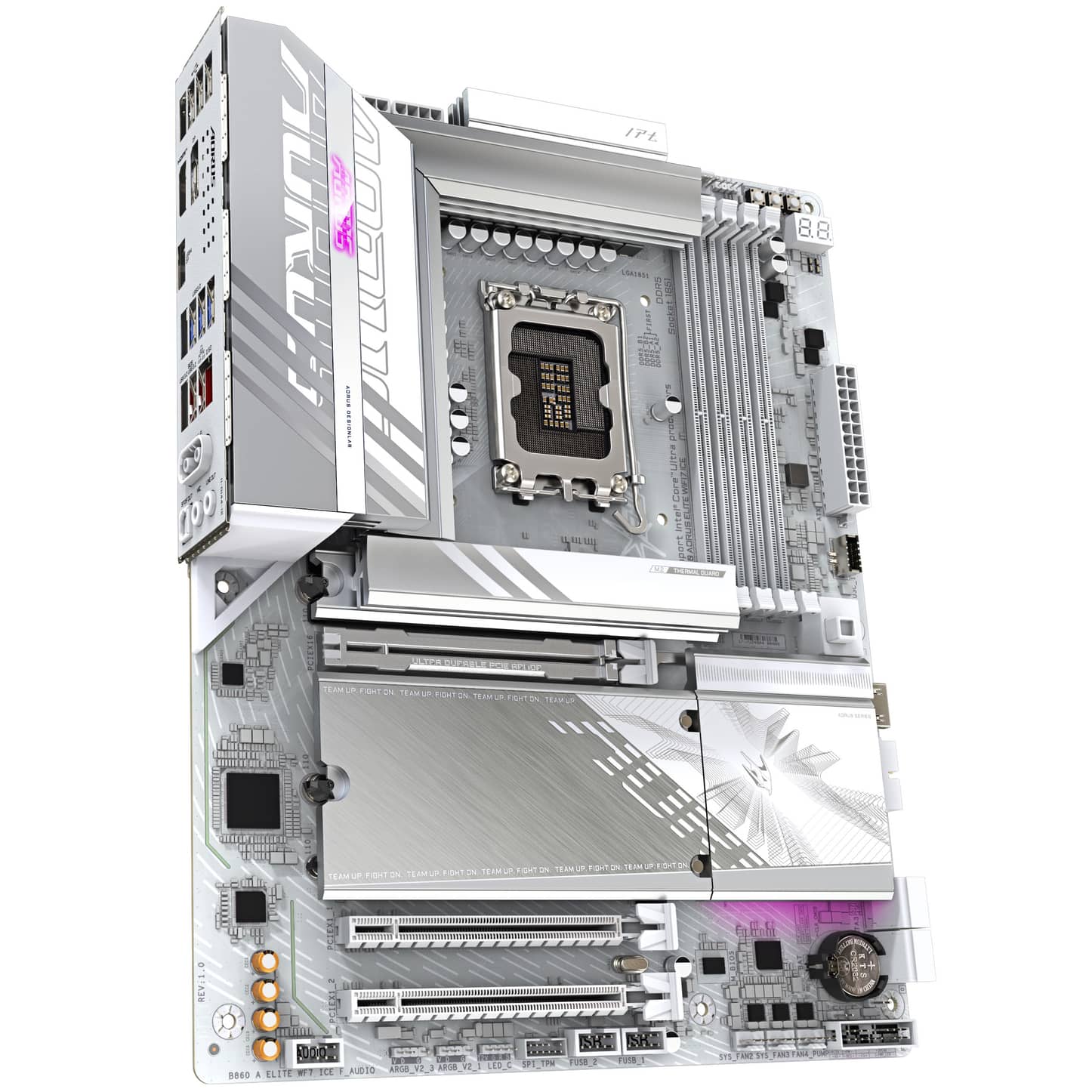

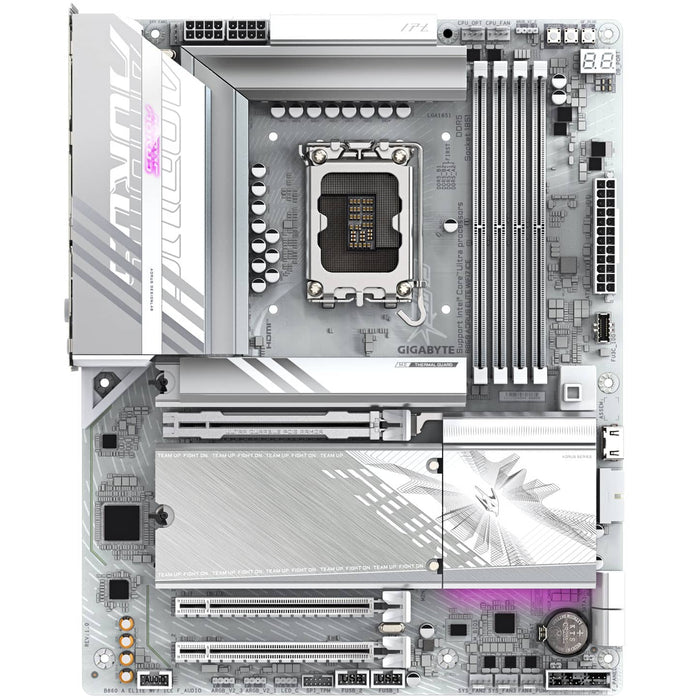

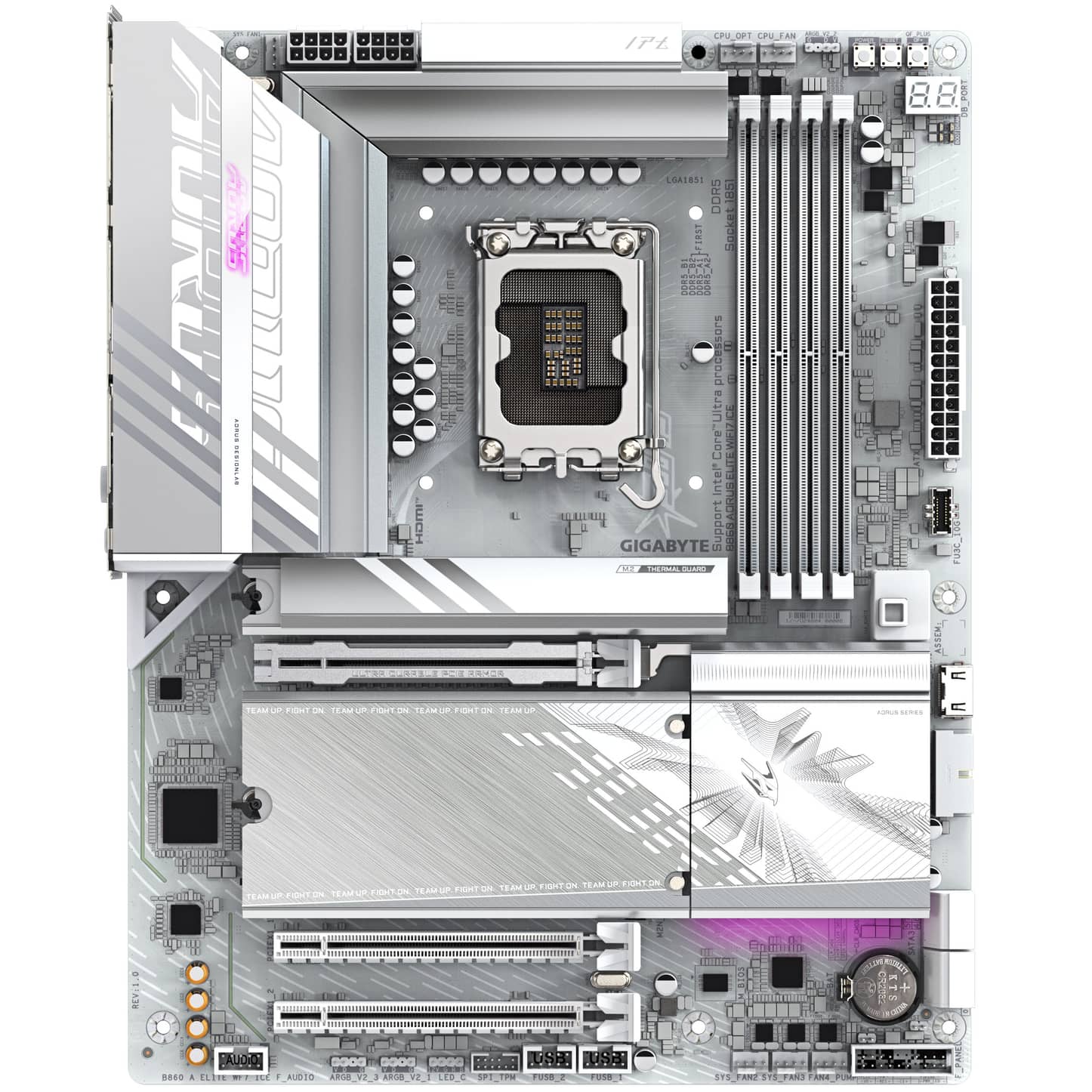

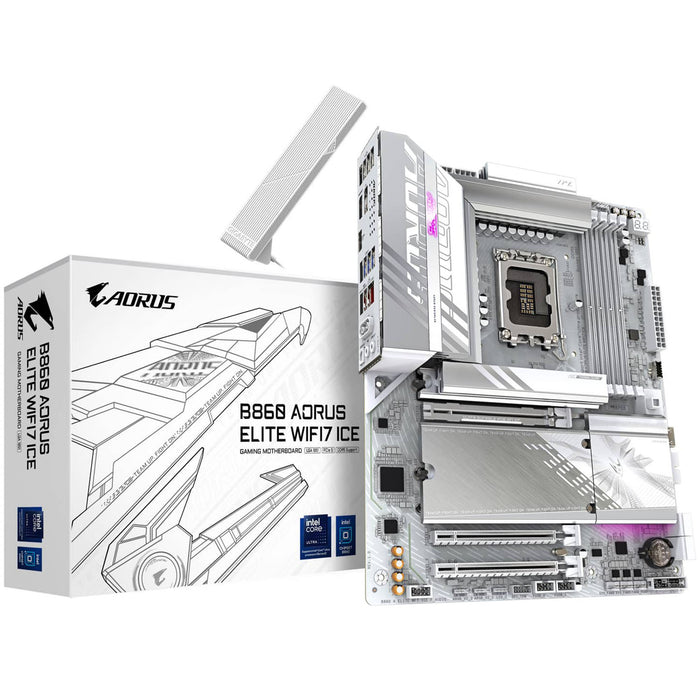

AORUS B860 AORUS ELITE WIFI 7 ICE – LGA1851 ATX Motherboard, DDR5, PCIe 5.0, Wi‑Fi 7

AORUS 1851 B860 AORUS ELITE WIFI 7 ICE

Build a next‑generation Intel system with the AORUS B860 AORUS ELITE WIFI 7 ICE, a feature‑rich ATX motherboard designed for Intel Core Ultra Series processors. Powered by the Intel B860 Express chipset, it delivers modern performance with DDR5 up to 9200MT/s (O.C), PCIe 5.0 GPU support, PCIe Gen5 + Gen4 M.2 slots, Wi‑Fi 7, 2.5GbE LAN, and advanced thermal design. GIGABYTE technologies such as EZ‑Latch Plus, EZ‑Latch Click, D5 Bionic Corsa memory enhancements, Q‑Flash Plus, Sensor Panel Link, and VRM Thermal Armor ensure easy installation, excellent stability, and long‑term durability — all wrapped in a clean ICE‑white ATX design ideal for modern LGA1851 builds.

Specifications

Type: ATX Motherboard
Brand: GIGABYTE
Model: B860 AORUS ELITE WIFI7 ICE
Chipset: Intel B860 Express
CPU Socket: LGA1851
Supported CPUs: Intel Core Ultra processors

Memory
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 × 288‑pin
RAM Speed Support: Up to DDR5 9200 (O.C)
Max Memory: 256GB
PCIe Slots
1 × PCIe 5.0 x16
2 × PCIe 4.0 x16
M.2 Slots
1 × PCIe Gen5 x4
2 × PCIe Gen4 x4
SATA Ports: 4 × SATA 6Gb/s

RAID Support: RAID 0/1/5/10

Networking
LAN: Realtek 2.5GbE LAN

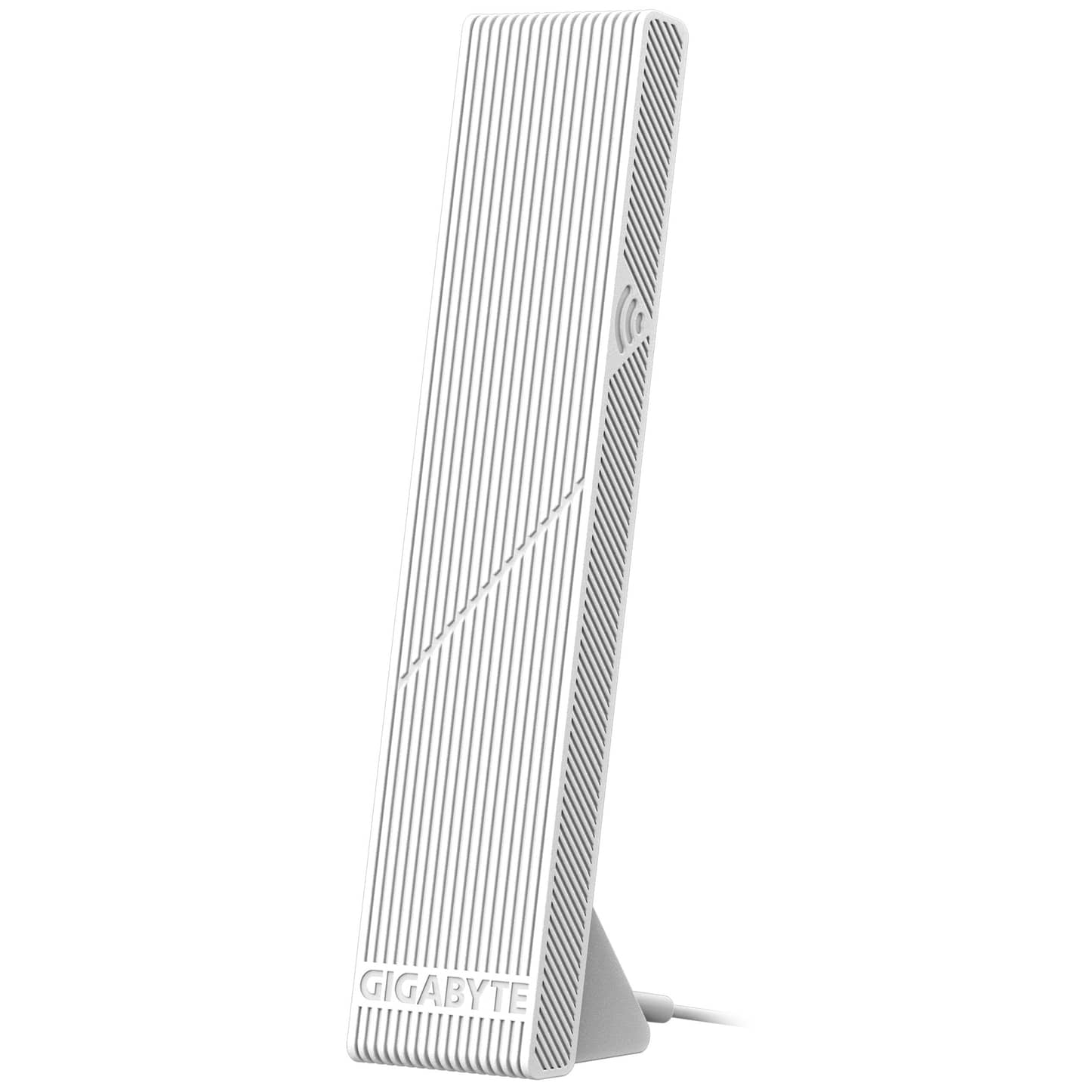

Wireless: Wi‑Fi 7 (2.4/5/6GHz)
Bluetooth: 5.4

Audio
Codec: Realtek HD Audio
Channels: 2/4/5.1/7.1‑Channel HD Audio
Video Outputs
(Requires Intel CPU with integrated graphics)
1 × HDMI
1 × DisplayPort

Special Features
Digital Twin 14+1+2 Phase VRM
D5 Bionic Corsa Memory Performance
EZ‑Latch Plus (PCIe & M.2 quick‑release)
EZ‑Latch Click (screwless M.2 heatsinks)
Sensor Panel Link
VRM Thermal Armor Advanced
M.2 Thermal Guard Ext
Q‑Flash Plus
Friendly UI BIOS (multi‑theme, AIO fan control, auto scan)
Ultra‑Fast Storage (PCIe 5.0 M.2)
Wi‑Fi EZ‑Plu

USB Connectivity Rear I/O
4 × USB 2.0
4 × USB 3.1 Gen2 Type‑A
2 × USB 3.2 Gen2 Type‑A
1 × USB4 Type‑C
HDMI
DisplayPort
2.5GbE LAN
Wi‑Fi antenna connectors
2 × audio jacks
1 × S/PDIF
Power button
Reset button
Q‑Flash Plus button

Internal Headers
24‑pin ATX
2 × 8‑pin CPU power
2 × USB 2.0 headers
1 × USB 3.2 Gen1 header
1 × USB 3.2 Gen2 header
3 × ARGB Gen2 headers
1 × RGB header
Front panel audio
TPM header
Power button
Reset button
Q‑Flash Plus
Multiple fan headers
Form Factor: ATX (305 × 244 mm)
